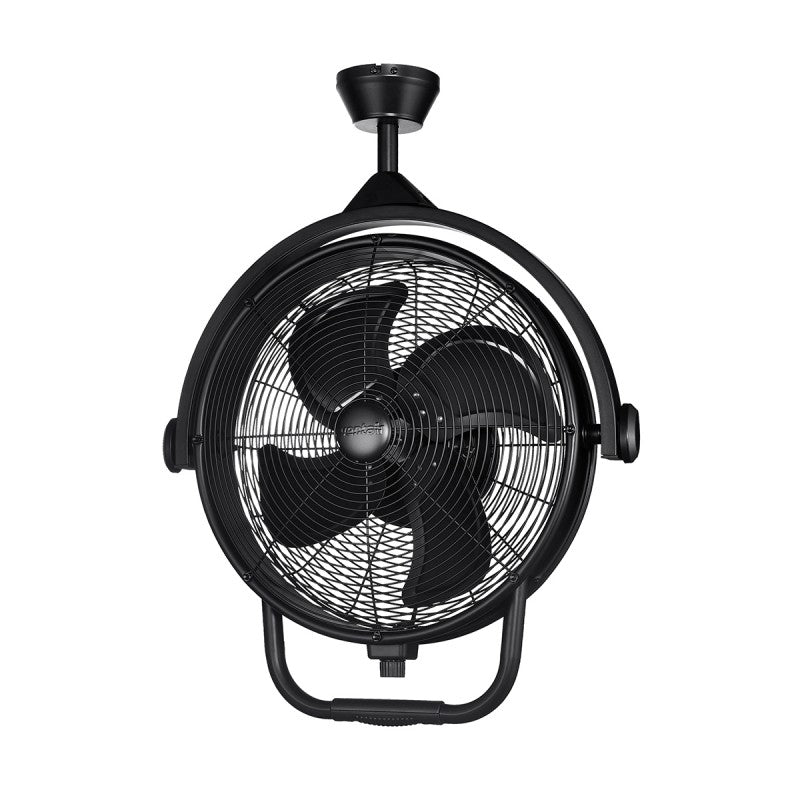

Ventair TILT360-CM 420mm Ceiling Mount - Drum Fan
Air movement specialists
Tilt 360 Ceiling Mount
Directional airflow from a full-copper AC motor and four aluminium blades.
Before you buy
- For flat ceilings only (0°). Both 150mm and 300mm downrods are supplied.
- The 2m plug-and-lead is included. A licensed electrician is required for a new power point or hard-wiring. Do not use an external speed controller or wall dimmer.
- Use indoors or in a covered outdoor area. IP54 does not permit high-pressure water jets, pooling, submersion or prolonged direct weather exposure.
Key highlights
Motor Wattage
Low: 83W, Med: 95W, High: 110W
Air Delivery
Low: 3,398m³/h, Med: 5,946m³/h, High: 7,645m³/h
IP Rating
IP54
Blade Count
4
Key features
Aim the airflow
Tilt through 300° and swivel horizontally through 360°.
Three-speed dial
The dial on the fan selects low, medium or high airflow.
All-metal build
A powder-coated metal body houses four aluminium blades.
Lock the angle
TILT LOCK handles secure the chosen drum position.
Technical specifications
TILT360-CM
- Model Number
- TILT360-CM
- Colour
- Black
- Motor Type
- Full Copper AC
- Motor Wattage
- Low: 83W, Med: 95W, High: 110W
- Air Delivery
- Low: 3,398m³/h, Med: 5,946m³/h, High: 7,645m³/h
- Speed (RPM)
- Low: 800, Med: 1,100, High: 1,350
- Noise Level
- 70dB(A)
- Blade Count
- 4
- Body Material
- Durable Powder-Coated Metal
- Blade Material
- Aluminium
- Control Type
- 3 Speed Dial on Unit
- Mount
- Ceiling
- Mount Angle
- 0° (Flat Ceilings Only)
- Vertical Tilt Angle
- 300°
- Horizontal Swivel
- 360°
- IP Rating
- IP54
- Installation
- AC Plug & Lead
- Input Power
- 220-240V~ 50Hz
- Downrods
- 150mm and 300mm downrods included
- Product Weight
- 9kg
- Suitable for
- Indoor and covered outdoor
Dimensions and physical details
TILT360-CM
- Sweep Size
- 420mm
Physical details
- Lead length
- 2m
- Overall width (A)
- 625mm
- Total height with 150mm downrod (B)
- 811mm
- Total height with 300mm downrod (B)
- 961mm
- Drum depth (C)
- 267mm
- Net weight
- 9kg
Compatible accessories
- MISTVKIT misting kit is listed by Ventair as an optional accessory, sold separately.
What’s included
Included
- Drum fan with 2m AC plug-and-lead, 150mm and 300mm downrods.
Not included / sold separately
- Optional MISTVKIT misting kit.
Installation & maintenance
- Secure the fan to a suitable supporting structure and maintain clearance for movement.
- Unplug before cleaning. Keep all safety guards fitted during use; use mild soapy water on a cloth and dry immediately.
Warranty
TILT360-CM
- Warranty
- 3 years
- Three-year limited manufacturer warranty; commercial use is limited to one year.
