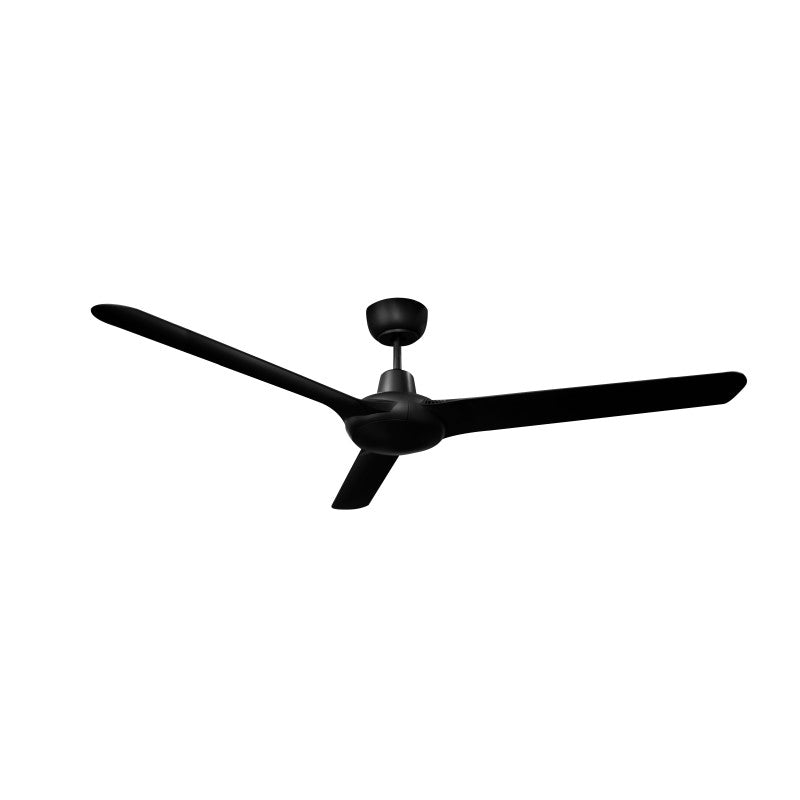

Ventair SPYDA DC Ceiling Fan - 62in with Wall Control
Air movement specialists
Spyda DC 1570
Three moulded polycarbonate blades, DC operation and an included three-speed wall control.
Before you buy
- A licensed electrician must install the fan. Keep blade tips at least 300mm from walls or nearby objects; Ventair recommends a minimum blade height of 2.1m.
- The three-speed wall controller is included. The optional six-speed Vario SDCRC remote is sold separately; speeds 2, 4 and 5 in the six-speed specification require that remote.
- Indoor or covered outdoor use only, with a maximum mounting angle of 18°. Do not connect the motor to a dimmer.
Key highlights
Motor Watt
6 - 45W
Air Movement
6,720m³/h - 15,300m³/h
Blade Count
3
Blade Material
Polycarbonate Composite
Key features
Wall control included
Use the supplied three-speed wall controller for everyday airflow adjustment.
Optional remote access
Add Vario SDCRC for six speeds and timer operation; it can work with the supplied wall control.
Reversible operation
Summer and winter airflow modes are available for seasonal use.
Moulded blade design
Three polycarbonate composite blades provide the curved airflow profile.
Technical specifications
SPYDC1573WH
- Model Number
- SPYDC1573WH
- Colour
- White
- Motor Type
- DC
- Motor Watt
- 6 - 45W
- Air Movement
- 6,720m³/h - 15,300m³/h
- Blade Count
- 3
- Blade Material
- Polycarbonate Composite
- Overall Blade Pitch
- HIGH (curved blade)
- Reverse Mode
- Yes
- Mount Angle
- 0-18°
- Remote Control
- Compatible with Vario SDCRC
- Installation
- Qualified Electrician Required
- Power Input
- 220-240V~ 50Hz
SPYDC1573BL
- Model Number
- SPYDC1573BL
- Colour
- Black
- Motor Type
- DC
- Motor Watt
- 6 - 45W
- Air Movement
- 6,720m³/h - 15,300m³/h
- Blade Count
- 3
- Blade Material
- Polycarbonate Composite
- Overall Blade Pitch
- HIGH (curved blade)
- Reverse Mode
- Yes
- Mount Angle
- 0-18°
- Remote Control
- Compatible with Vario SDCRC
- Installation
- Qualified Electrician Required
- Power Input
- 220-240V~ 50Hz
Additional operating details
- Motor speeds 1–6
- 100 / 120 / 140 / 160 / 180 / 200 RPM
- Power at speeds 1–6
- 6 / 12 / 16 / 21 / 29 / 45 W
- Airflow at speeds 1–6
- 6,720 / 8,000 / 10,560 / 12,000 / 13,500 / 15,300 m³/h
Dimensions and physical details
SPYDC1573WH
- Size
- 1570mm (62")
SPYDC1573BL
- Size
- 1570mm (62")
Physical details
- Blade drop
- 345mm
- Total drop
- 375mm
- Overall sweep
- 1570mm
Compatible accessories
- Vario SDCRC six-speed remote control (sold separately).
- SDCEXTR60WH/BL 600mm and SDCEXTR90WH/BL 900mm extension rods with wiring looms (sold separately).
What’s included
Included
- Ceiling fan, three-speed wall controller, hanging bracket, instruction manual and warranty card.
Not included / sold separately
- Vario remote and extension rods.
- Light: this listing is the no-light model.
Installation & maintenance
- The mounting point must support four times the fan net weight.
- Isolate the supply before cleaning; use a soft cloth with mild soapy water, then dry immediately. Avoid solvents.
Warranty
SPYDC1573WH
- Warranty
- 6 years (2 year in-home plus 4 year motor replacement)
- Commercial Warranty
- 1 year
SPYDC1573BL
- Warranty
- 6 years (2 year in-home plus 4 year motor replacement)
- Commercial Warranty
- 1 year
