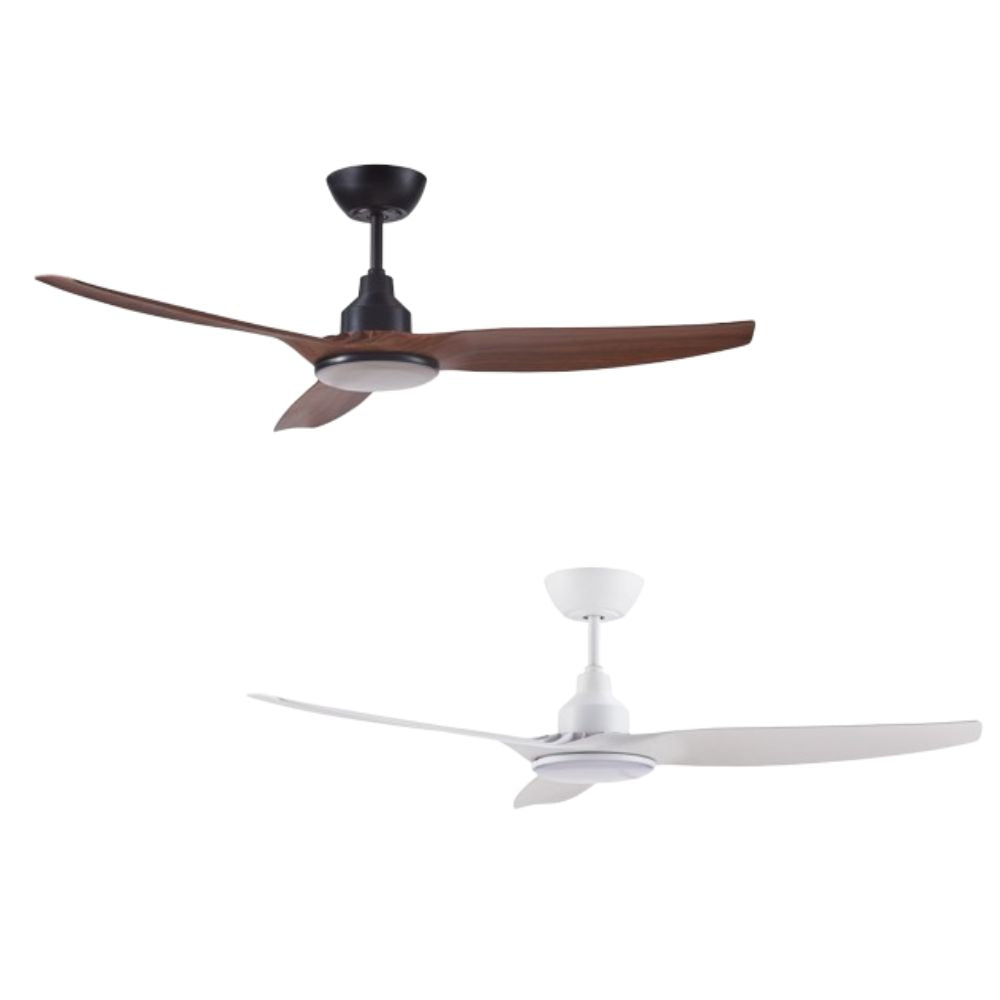

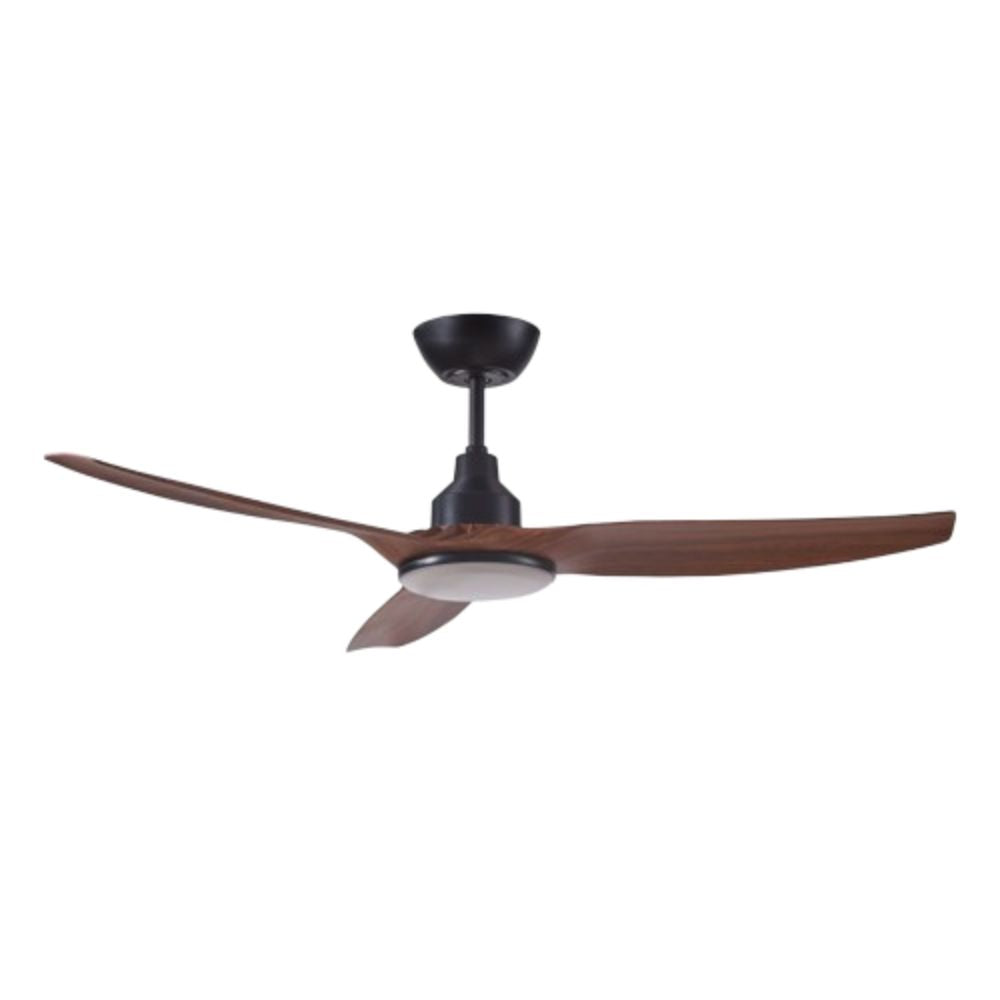

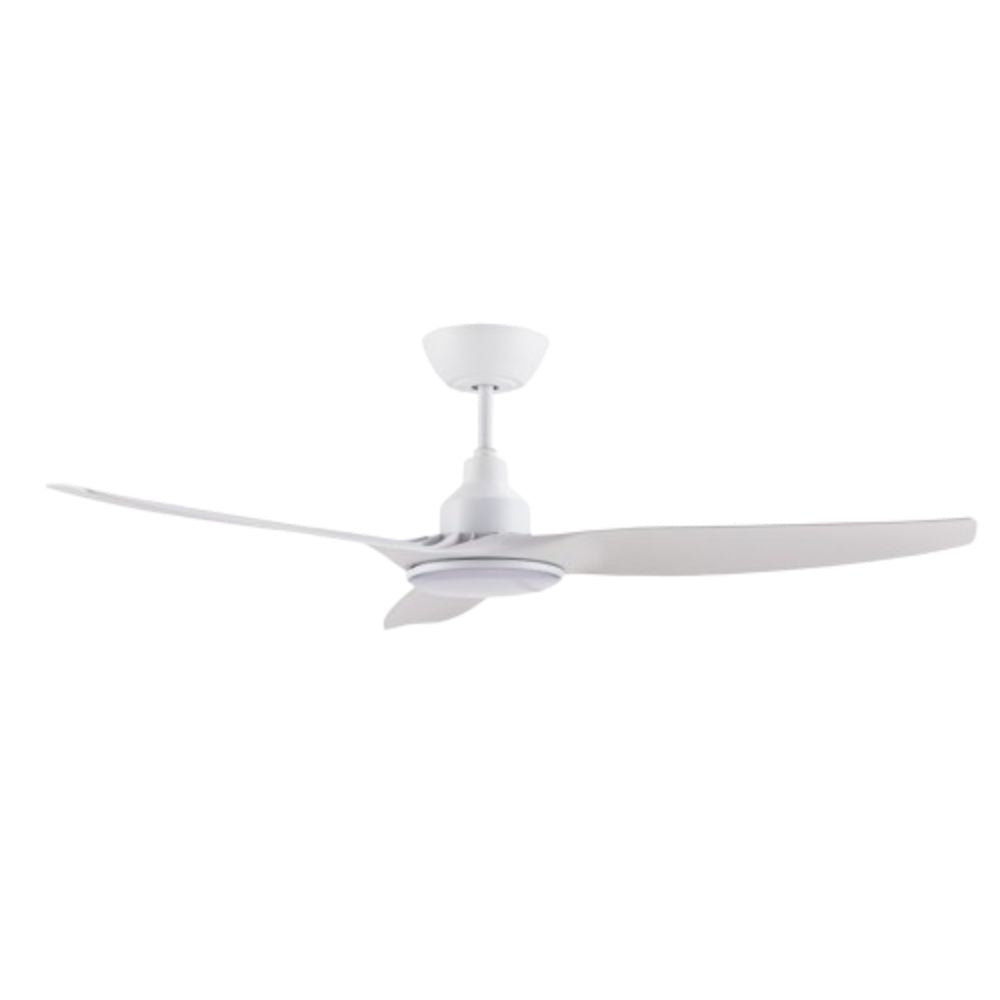

Ventair SKYFAN DC Ceiling Fan - 3 Blade 52" 1300mm, Switchable CCT LED Light
Air movement specialists
SKYFAN
Glass-fibre composite blades, a DC motor and an included LCD remote with ECO, Sleep and timer settings, plus integrated tri-colour LED lighting.
Before you buy
- A licensed electrician must install the fan and fixed wiring. Installation is arranged separately.
- Keep blade tips at least 300mm from nearby objects. Ventair specifies at least 2.1m blade height and a support capable of carrying 20kg. Maximum ceiling angle 15°.
- The LCD remote and receiver are included. Optional wall controls and app modules are sold separately. A remote handset and wall controller cannot operate together.
Highlights
Sweep
1300mmAir Delivery
14,610m³/hMotor Power
Low: 3.9W - High 31WLight Wattage
20WKey features
Blade construction
3 blades in Glass Fibre Composite.
Motor and airflow
A DC motor with the speed-by-speed figures listed for each model.
Seasonal operation
Summer/winter reversal changes airflow direction.
Control choice

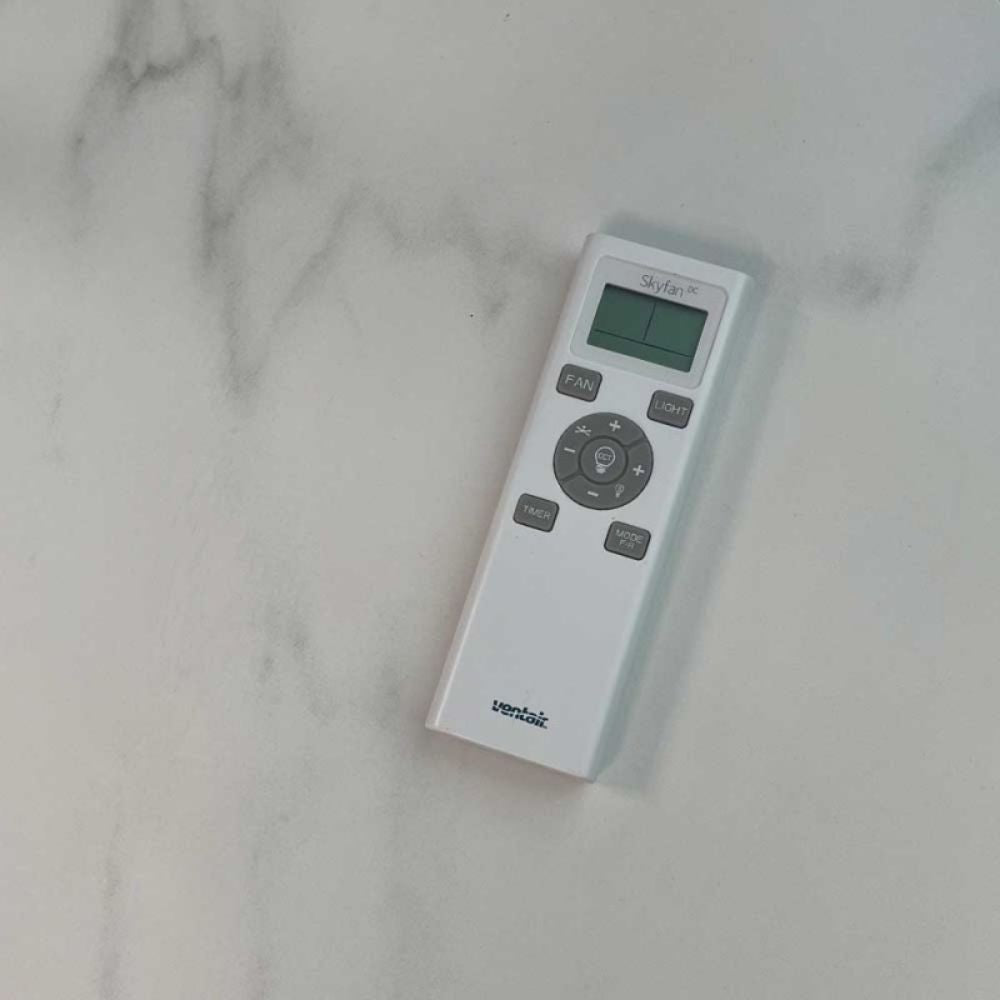

6 speed LCD remote included.
Light option
20W LED lighting with the colour and dimming settings listed for each model.
Quick-fit blades
Glass-fibre composite blades use a quick-click assembly and an anti-vibration system.
Technical specifications
SKY1303TK-L
- Input Voltage
- 240V AC
- Globe Type
- LED Panel
- Colour
- Teak
- Motor Wattage
- Low: 3.9W - High 31W
- Air Delivery
- 14,610m³/h
- Speed (RPM)
- 90/132/166/190/210RPM - *Eco110RPM
- Blade Count
- 3
- Blade Material
- Glass Fibre Composite
- LED Type
- LED Panel
- Light Type
- LED panel
- Dimmable
- 5 Step
- Lumens
- 1800Lm
- Light Wattage
- 20W
- Tri-Colour Light
- Warm/Natural/Cool (3000K/4000K/5000K)
- Ceiling Fan with Light
- Included
- Overall Blade Pitch
- 12.5º
- Reverse Mode
- Yes
- Mount Angle
- 15° Max
- Remote Control
- 6 speed LCD remote included
- Installation
- Qualified Electrician Required
- Model Number
- SKY1303TK-L
- Assembly
- Quick-click blades
- Anti vibration system
- Built in
- Suitable for
- Indoor and covered outdoor
- Remote modes
- ECO, Sleep, Timer; seasonal reversal
- Motor Type
- DC
- Quick Connect
- Yes
Dimensions and installation space
SKY1303TK-L
- Sweep
- 1300mm
- Overall height
- 365mm
- Blade height
- 330mm
- Overall diameter
- 1321mm
- Net weight
- 4.35kg
Compatible accessories — sold separately
- SKYAPPCM or compatible FanLink app module; matching SKYEXTR extension rods. SKYWCM LCD wall control for light models. All sold separately.
What is included
- Ceiling fan, selected blades, LCD remote, receiver, two AAA batteries, mounting bracket, balancing kit, screw pack, instructions and warranty card.
- Integrated LED panel is included with the selected LED-light model.
Optional extras — sold separately
- Optional app module, compatible wall controller and extension rod.
Installation and care
- Use only the controls and hardware specified for the exact model. Stop the fan before changing airflow direction.
- Isolate power before cleaning. Inspect mounting and blade screws every six months; clean with a soft brush or lightly damp cloth and keep the motor dry.
Warranty
SKY1303TK-L
- Warranty
- 5 years (2 year in-home plus 3 year motor replacement)
- Warranty on LED Panel
- 1 year
- Commercial Warranty
- 1 year
