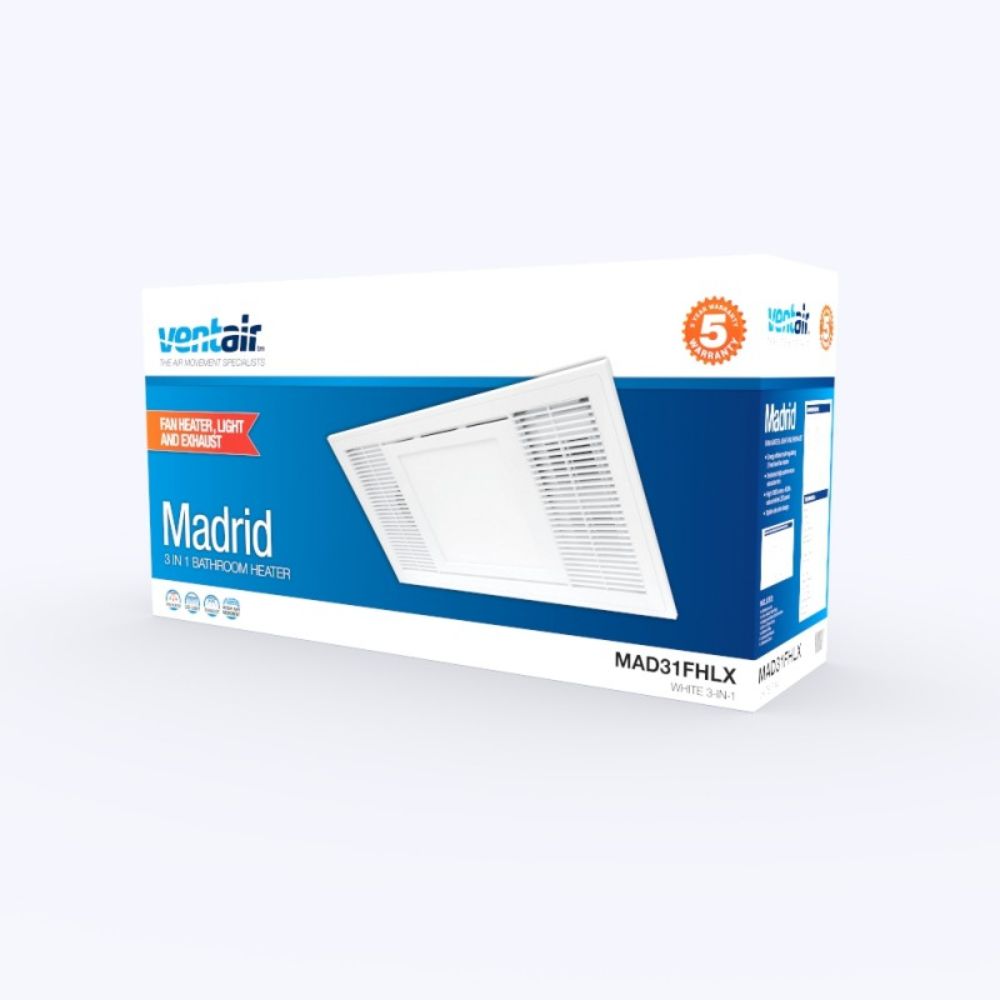

Ventair MADRID - 3 in 1 Heat Light Exhaust Fan Heater with LED Light
Air movement specialists
Madrid 3-in-1 bathroom unit
Combine two levels of fan-assisted PTC heat, a 20W natural-white LED panel and a separate centrifugal exhaust fan in one slim ceiling unit.
Before you buy
- A licensed electrician must install this unit in a flat ceiling. Provide the 590 ×320mm cut-out and recommended 200mm installation depth.
- Mount at least 2.1m above the floor and 250mm from vertical walls. Maintain 50mm around the unit and do not cover it with insulation. Do not place it where water can splash into the heater.
Key highlights
Exhaust Motor Power
50W
Air Delivery
330m³/h (92L/s), free-air performance
IP Rating
IPX2
Warranty
5-year replacement warranty
Key features
Two heat levels
Select 1400W fan heat or the 2000W boost setting.
Separate extraction
The 50W centrifugal exhaust motor delivers 330m³/h free-air performance.
Natural-white light
The integrated 20W LED supplies 1900lm at 4000K.
Slim fascia
A 630 ×350mm fascia sits beneath the 145mm-deep housing.
Technical specifications
MAD31FHLX
- Model Number
- MAD31FHLX
- Colour
- White
- Input Power
- 220–240V AC, 50Hz
- Heat Wattage (low / high)
- 1400W / 2000W
- Heater fan power
- 40W
- Exhaust Motor Power
- 50W
- Total rated power
- 2100W
- Air Delivery
- 330m³/h (92L/s), free-air performance
- Static pressure
- 115Pa
- Noise Level
- 49.5dB(A) at 3m
- Light Type
- Integrated LED panel
- Light Wattage
- 20W
- Lumens
- 1900lm
- Light Colour
- 4000K Natural White
- IP Rating
- IPX2
- Installation
- Licensed electrician; flat ceilings only
Dimensions and physical details
MAD31FHLX
- Cut out size
- 590 × 320mm
- Fascia Size
- 630 × 350mm
- Unit depth
- 145mm
- Min. install depth
- 200mm recommended
- Net Weight
- 5.6kg
Compatible accessories
- Optional VUBHR universal bathroom remote, sold separately.
What is included
Included
- Bathroom unit, four-switch wall plate, spigot with backdraft stopper,3m of 125mm duct, exterior grille, instructions, cutting template and warranty card.
Sold separately
- Optional VUBHR bathroom remote.
Installation and maintenance
- Provide a replacement-air path into the room; keep ducts fully expanded with minimal bends. Isolate the supply and allow the heater to cool before cleaning.
- The LED light source is not replaceable; follow the manufacturer instructions at end of life.
Warranty
MAD31FHLX
- Warranty
- 5-year replacement warranty
