Ventair AIRBUS Exhaust Fan - EC 200/500 Energy Efficient
Air movement specialists
AIRBUS
A three-speed EC exhaust motor body with continuous 24/7 trickle ventilation and included wireless wall control; a compatible fascia is purchased separately.
Before you buy
- Check the selected model’s cut-out, minimum installation depth and duct size before cutting. Provide replacement air and a suitable discharge path.
- A plug and lead are supplied. Any new outlet, switch or fixed wiring must be installed by a licensed electrician.
- Wireless wall control is included. The isolation switch is a separate installation item.
- Motor body only: select a separate compatible Airbus200 fascia for PVPXEC200 or Airbus250 fascia for PVPXEC500.
- Ducting and an external vent are required for the exhaust installation and are sold separately.
Highlights
Air Delivery
Boost: 245m³/h Run: 180m³/h 24/7: 65m³/h / Boost: 510m³/h Run: 380m³/h 24/7: 70m³/hMotor Power
Boost: 24W Run: 14W 24/7: 3W / Boost: 80W Run: 35W 24/7: 3WIP Rating
IPX4Duct outlet size
Ø100mm / Ø150mmKey features
Air movement
Rated airflow is listed for each size and operating mode below.
Bearing motor
Ball bearings support smooth running and routine ventilation.
Connection choice
The full model tables identify electrical connection, duct size and installation space.
Continuous ventilation

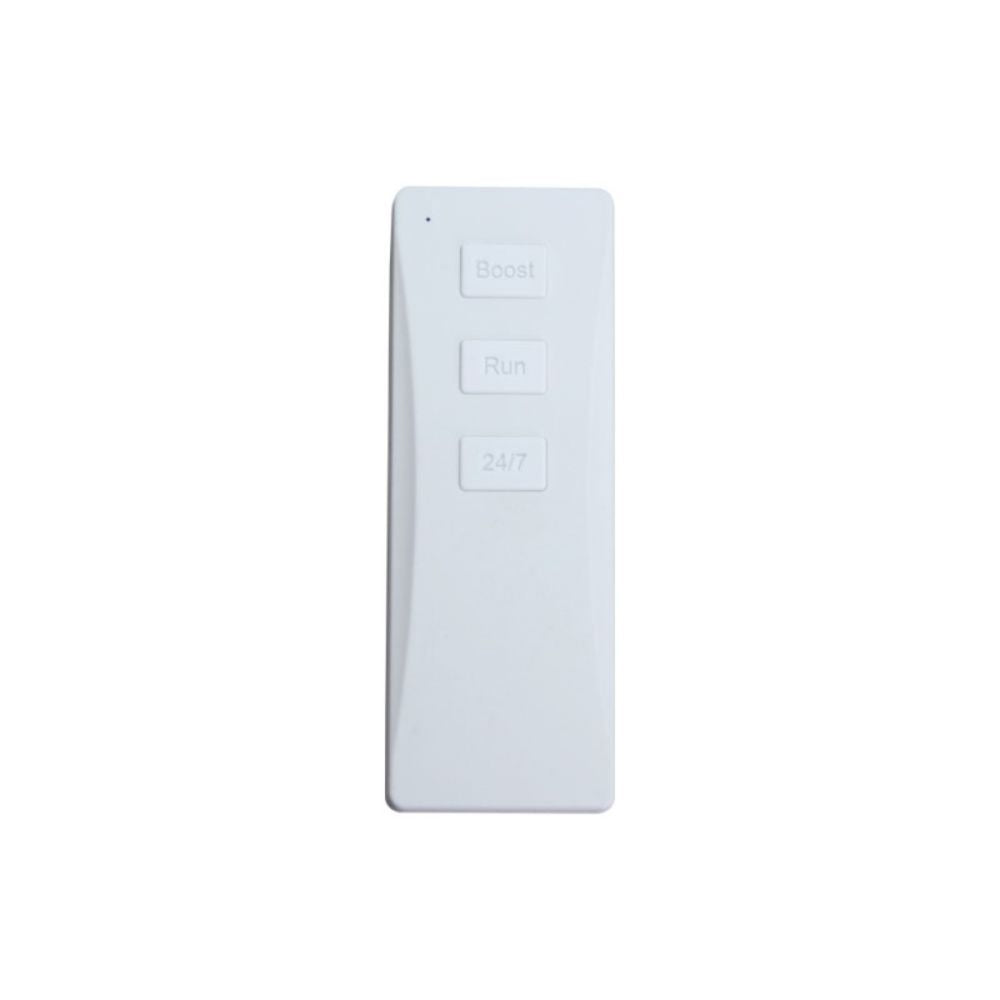

Use Boost, Run or continuous 24/7 trickle settings with the included wireless wall control.
Technical specifications
PVPXEC200
- Ball bearing motor
- Yes
- Exhaust Motor Power
- Boost: 24W Run: 14W 24/7: 3W
- Air Delivery
- Boost: 245m³/h Run: 180m³/h 24/7: 65m³/h
- Noise Level
- Boost: 37dB(A) Run: 30dB(A) 24/7: 28dB(A)
- IP Rating
- IPX4
- Installation
- Plug and Lead
- Power Input
- 220-240V~ 50Hz
- Model Number
- PVPXEC200
PVPXEC500
- Ball bearing motor
- Yes
- Exhaust Motor Power
- Boost: 80W Run: 35W 24/7: 3W
- Air Delivery
- Boost: 510m³/h Run: 380m³/h 24/7: 70m³/h
- Noise Level
- Boost: 44dB(A) Run: 40dB(A) 24 /7: 21dB(A)
- IP Rating
- IPX4
- Installation
- Plug and Lead
- Power Input
- 220-240V~ 50Hz
- Model Number
- PVPXEC500
Dimensions and installation space
PVPXEC200
- Side outlet duct size
- Ø100mm
- Cut out size
- Ø240mm
- Min. install depth
- 200mm
PVPXEC500
- Side outlet duct size
- Ø150mm
- Cut out size
- Ø300mm
- Min. install depth
- 220mm
What is included
- Selected EC exhaust motor body, wireless wall controller, plug and lead, instructions and warranty card.
Required separately
- Ducting and external vent.
- Isolation switch.
- Compatible modular fascia.
Installation and care
- Boost runs for 10 minutes and Run for 20 minutes before returning to continuous 24/7 extraction.
- Fully extend flexible ducting and minimise bends. Isolate power before cleaning the removable grille and checking duct connections.
Warranty
PVPXEC200
- Warranty
- 5 years
- Commercial Warranty
- 1 year
PVPXEC500
- Warranty
- 5 years
- Commercial Warranty
- 1 year
