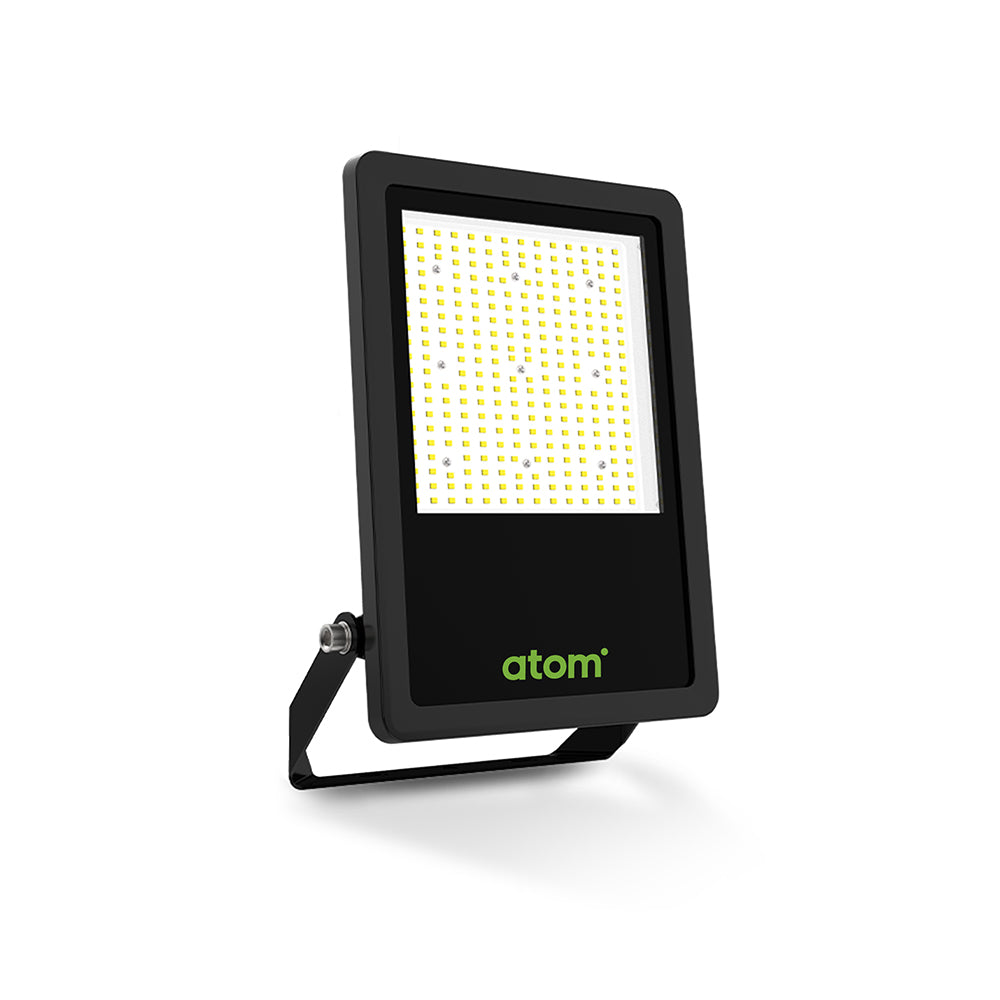

![[POSSIBLE DUPLICATE] Atom ZENIX AT9815/100 LED Floodlight - 100W, 5000K-Atom Lighting-Ozlighting.com.au](http://www.ozlighting.com.au/cdn/shop/files/POSSIBLE-DUPLICATE-Atom-ZENIX-AT9815100-LED-Floodlight-100W-5000K-Atom-Lighting.jpg?v=1792124200&width=1000)
[POSSIBLE DUPLICATE] Atom ZENIX AT9815/100 LED Floodlight - 100W, 5000K
Order code: 14476
Supplier item code: AT9815/100
Floodlights
Atom AT9815/100 — Zenix 100W LED Floodlight - 5000K
Before you buy
- Confirm Atom item 14476 / AT9815/100 with the supplier before ordering: its distributor-reported barcode also appears on an AT9814 catalogue listing.
- Mounting fixings are not included. Installation above 3 m requires a safety chain, and the flying leads require an appropriately IP-rated junction box or equivalent.
- Leave at least 2 cm of cable drop below the gland to keep rainwater draining away. Do not jet-wash the fitting.
- Installation must be carried out by a licensed electrician.
At a glance
Fixture power
Maximum rating: 100 W
Colour temperature
5000 K
IP Rating
IP66
Input voltage
230Vac
Driver Type
Fixed output
Installation Type
Surface mount
Product details
The Zenix 100 W floodlight is Atom item 14476, with a black surface-mount body and an adjustable fitting. Its driver is included and uses fixed output.
The Zenix floodlight uses a tempered-glass diffuser and a powder-coated aluminium enclosure with symmetrical light distribution.
The manufacturer lists general outdoor lighting, small sports areas and private car parks as applications.
Technical specifications
Efficiencies
- Total System Efficiency
- 160 lm/W
- Efficiency scope
- Total system efficiency includes optical, thermal and driver losses; it is distinct from LED-chip or luminaire-only efficiency.
Mechanical
- IP Rating
- IP66
- IK Rating
- IK08
- Adjustability
- Adjustable
- Fitting Colour
- Black
- Product Finish
- Powdercoated
- Body Material
- Aluminium
- Diffuser Material
- Glass
- Installation Type
- Surface mount
Electrical
- Working Temp Range
- 0 to 45 °C
- Input Frequency
- 50 Hz
- Switch Type
- Inline
- Power Factor
- 0.95
- Inrush Current
- 80 A
- Inrush Duration
- 200uS (50%) uS
- Maximum Wattage
- 100 W
- Input voltage
- 230Vac
- Surge Protection L-N
- 6kV
- Surge Protection L/N-PE
- 6KV
- In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Lamp
- Colour Rendering Index (CRI)
- >80
- LED Type
- Diffused
- CCT Configuration
- Single
- Macadam Steps (SDCM)
- 5-step MacAdam Ellipse
- Beam Angle
- 110 °
LED Lifetime
- LED Lifetime
- 60000 hrs
- LED Lifetime Rating
- L70 B10 (10K)
- TM-21 Test Hours
- 10000 hrs
- LED lifetime scope
- LED lifetime figures concern LED-component performance, not a guaranteed complete-fixture service life or the warranty period.
- Lifetime-rating terminology
- L describes remaining light output as a percentage of initial output; B describes the proportion of LEDs below that output criterion at the stated time and ambient temperature.
Colour temperature
- CCT Colour
- Daylight
- LED Wattage
- 100 W
- Luminaire Lumens
- 16000 lm
- CCT
- 5000 K
- Photometric tolerance
- The manufacturer states ±10% tolerance for photometric data; luminaire lumens are delivered output from the fitting.
Driver
- Driver Type
- Fixed output
- Driver Included
- Yes
- Integrated Driver
- No
- Flex & Plug or Lead Length
- 1500 mm
- Wiring Type
- Flying leads (3 wire)
- Driver Mode
- Constant Current
- Driver Current
- 500 mA
- Dimmable
- No
Compliance
- Standards
- AS/NZS 60598.1 | AS/NZS 60598.2.5 | AS/NZS 61347.1 | AS/NZS 61347.2.13 | AS CISPR 15 | IEC 62031 | IEC/TR 62778 | IEC 62471
- Daily Use
- 10 hours/day recommended for stated design life; longer use reduces design life proportionally
- The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally.
Warranty
- Warranty
- 5 years from purchase for products purchased from 1 July 2026; first 2 years onsite in Australia where eligible, then return to base. Any expressly stated Warranty Operating Hours and Atom terms apply.
- Warranty conditions
- Onsite support requires eligible purchase and installation by an appropriately licensed electrician in Australia, and is subject to location, access, service-network availability and claim acceptance.
- The total warranty period is shown above. Where an on-site period is listed, the first years are covered on-site, with return-to-base coverage for the remainder. For full warranty details and claim instructions, please refer to our Warranty page.
Product configuration
- Product image scope
- Manufacturer images are illustrative; confirm the selected item number and supplied configuration before ordering.
- Fixture power
- Maximum rating: 100 W
- Light source
- LED
- Electrical class
- Class I
- Mounting fixings
- Not supplied; select fixings adequate to support the floodlight securely
- Safety-chain requirement
- Mounting above 3 m requires a safety chain
- Connection requirement
- Terminate the mains cable in an appropriately IP-rated junction box or equivalent
- Cable routing
- Provide at least 2 cm of cable drop below the gland so water drains away, per manufacturer guidance updated 18 August 2026
- Light-source / cord service
- Light source and damaged external flexible cord must only be replaced by the manufacturer, its service agent or a similarly qualified person
- Installation / cleaning
- Isolate mains before installation or servicing; do not jet-wash; aim the head and secure both clamping bolts
- Installation requirement
- Must be installed by a licensed electrician; isolate mains before installation or servicing
Dimensions & mounting
- Product Height
- 325 mm
- Product Length
- 241 mm
- Product Width
- 100 mm
Package & requirements
Included
- Driver
Not included / sold separately
- Not supplied; select fixings adequate to support the floodlight securely
Required separately
- Terminate the mains cable in an appropriately IP-rated junction box or equivalent
Installation & care
- Must be installed by a licensed electrician; isolate mains before installation or servicing
- Provide at least 2 cm of cable drop below the gland so water drains away, per manufacturer guidance updated 18 August 2026
- Mounting above 3 m requires a safety chain
- Isolate mains before installation or servicing; do not jet-wash; aim the head and secure both clamping bolts
- Light source and damaged external flexible cord must only be replaced by the manufacturer, its service agent or a similarly qualified person
Warranty
- 5 years from purchase for products purchased from 1 July 2026; first 2 years onsite in Australia where eligible, then return to base. Any expressly stated Warranty Operating Hours and Atom terms apply.
- Onsite support requires eligible purchase and installation by an appropriately licensed electrician in Australia, and is subject to location, access, service-network availability and claim acceptance.
