Havit TIVAH - 5W TRI Colour LED Garden Spike Light
Tivah TRI-colour garden spike light
Aim a 5 W MR16 spotlight with 90° tilt and 270° swivel. Choose black 316 stainless steel or solid brass.
Important before you buy
A suitable 12 V DC constant-voltage LED driver is required separately. Do not connect the fitting directly to 240 V. Installation must be performed by a licensed electrician, with watertight connections and the fitting no more than 25 m from the driver. For the black stainless-steel option, maintain the finish regularly; solid brass naturally tarnishes outdoors.
Key features
90° tilt and 270° swivel position the single adjustable spotlight.
The included 5 W MR16 LED offers 3000 K, 4000 K or 5500 K.

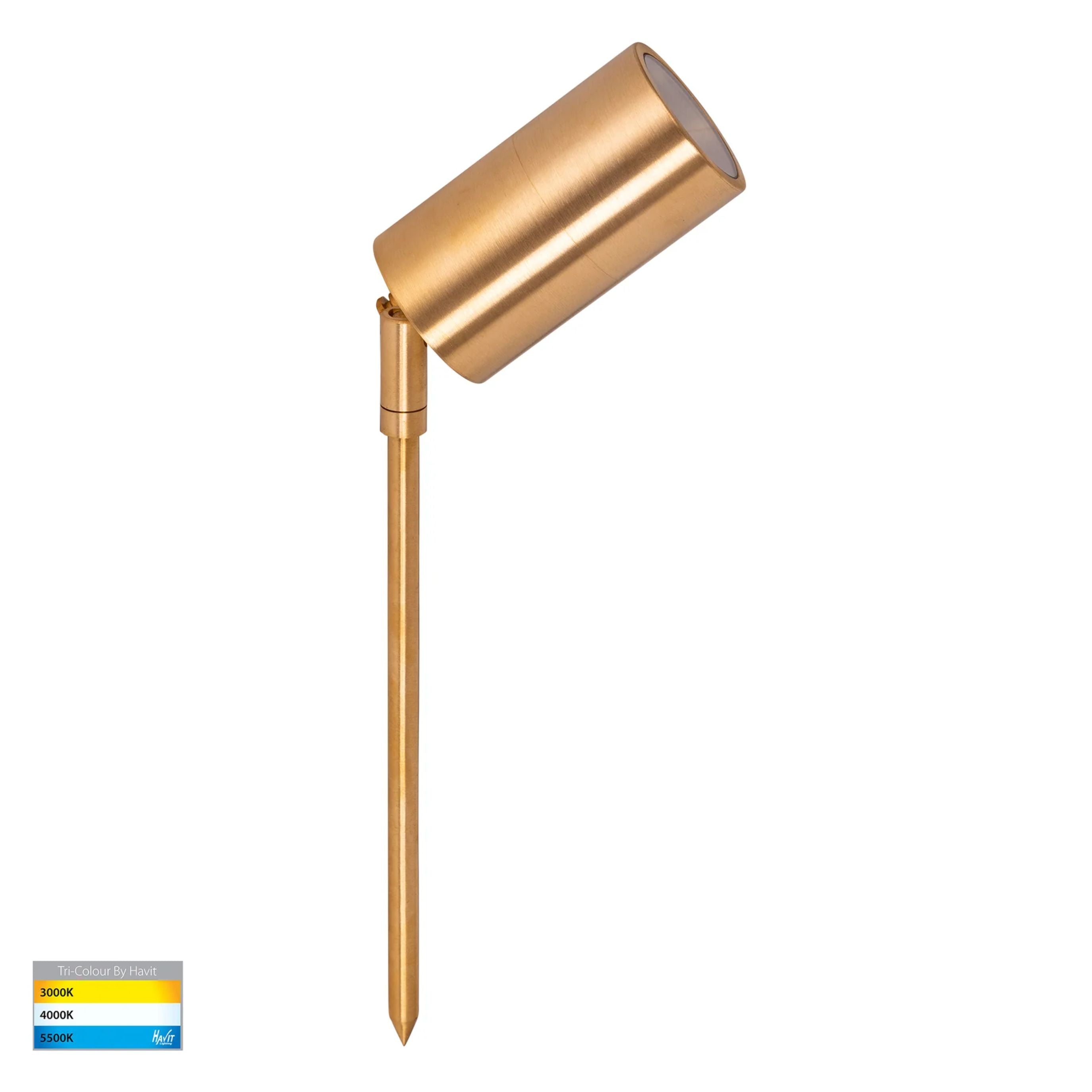

Black: powder-coated 316 stainless steel. Brass: solid brass. Both have a clear glass diffuser.
Technical specifications
- Models
- Black: HV1427T-SSBLK; solid brass: HV1457T
- Input
- 12 V DC constant voltage
- Included lamp
- 1 × 5 W TRI-colour MR16 LED
- Colour temperature / lumens
- 3000 K: 270 lm; 4000 K: 285 lm; 5500 K: 300 lm
- Beam angle
- 120° with the supplied LED, as specified in the current model datasheets
- Protection
- IP65; IK08; Class 3 low voltage, no earth required
- Dimming
- Non-dimmable with the supplied lamp
- Colour rendering
- CRI >80
- Maximum lamp wattage
- 20 W MR16; Havit recommends LED globes
- Lamp expectancy
- Less than 30,000 hours, per manufacturer rating
- Black-model additional ratings
- SDCM <6; UGR <45
- Cable
- 2 m reinforced cable
- Wiring
- Parallel
Dimensions
- Overall height
- 374 mm
- Spotlight body
- 60 mm diameter × 110 mm long
- Spike length
- 235 mm
Compatible accessories
Suitable 12 V DC LED drivers and HV9911, HV9912 or HV9913 weatherproof connectors are listed separately by Havit. The HV9507 12 V MR16 lamp is a listed optional replacement. The related HV9508 is a 24 V lamp and must not be substituted into this 12 V fitting.
What’s included / required separately
Included: selected Tivah spike fitting with 5 W TRI-colour MR16 LED and 2 m cable. Required separately: suitable 12 V DC LED driver and installation connection materials.
Installation & maintenance
The manufacturer requires supply voltage within ±5% and sealed, watertight electrical connections. Set the lamp’s colour switch with power isolated, then refit the cover and seals. Do not force adjustment beyond its stop. Black stainless steel needs regular cleaning; Havit refers to the HV9971 maintenance kit. Uncoated solid brass develops a natural patina.
Warranty
3-year replacement warranty, subject to Havit’s warranty terms. The black model’s current product page specifies items ordered after 1 January 2022.
