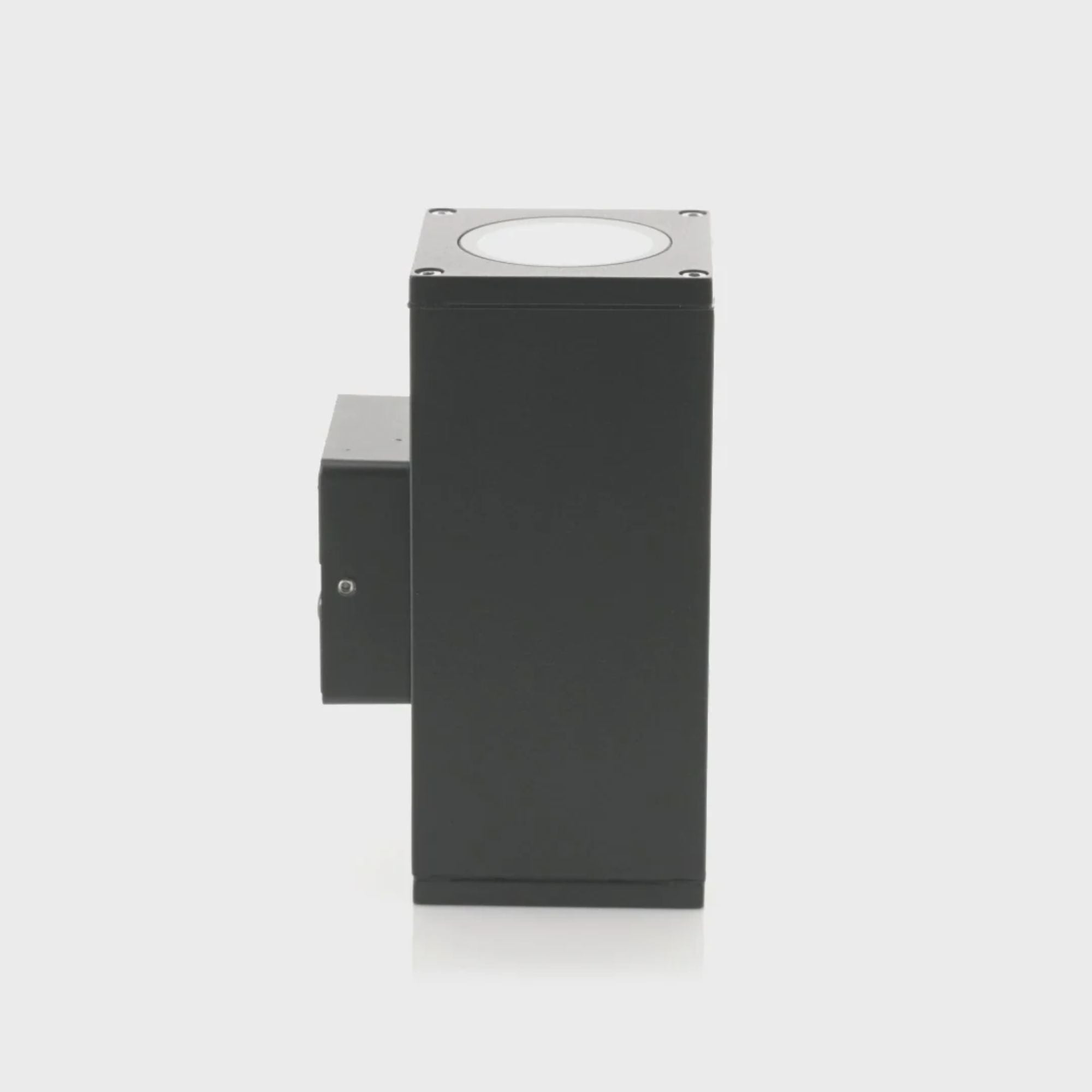

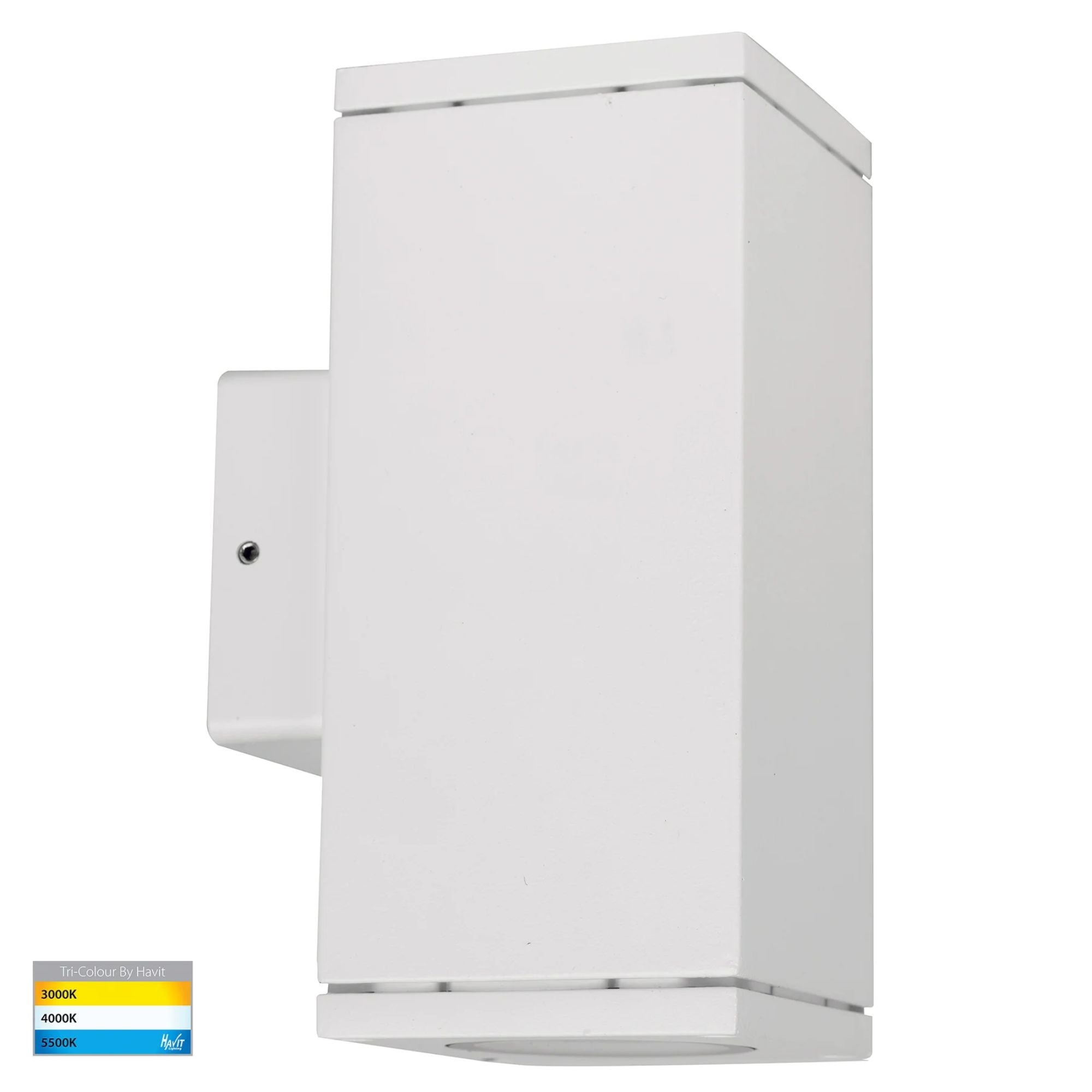

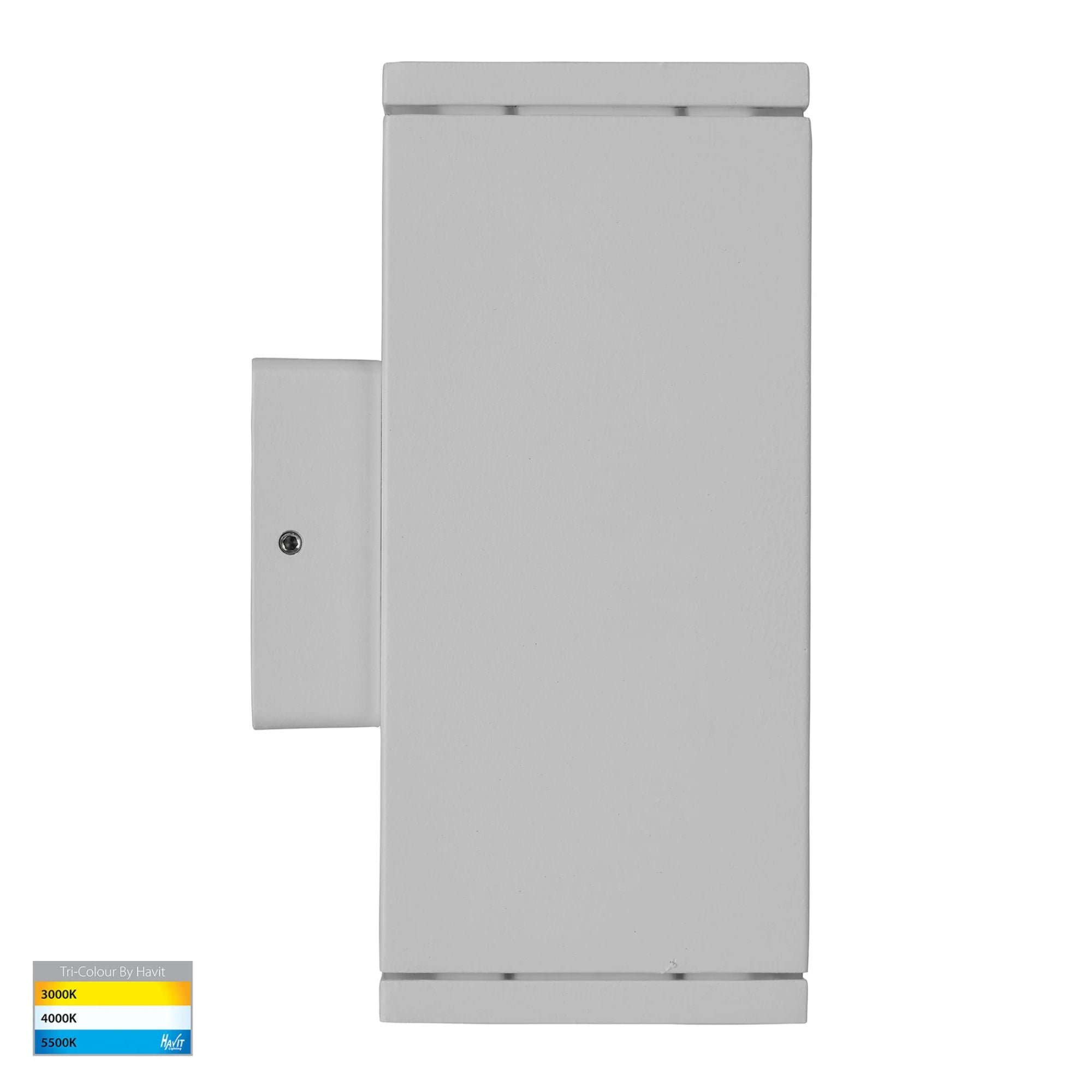

Havit QUADRU - 5W Up & Down LED Wall Light
HAVIT QUADRU
Up and down square LED wall light · 2 × 5W GU10
A square aluminium wall fitting with light directed above and below, clear glass and selectable tri-colour LED globes. Available in black or white.
Important before you buy
Not dimmable with the supplied globes. This 240V AC Class 1 fitting requires an earth connection and installation by a licensed electrician.
Havit's installation guide states that aluminium fittings must not be installed within 5km of salt-water environments. Confirm the site's suitability before ordering. Seals and cable-entry sealing must be maintained as instructed.
Key features
Two GU10 globes illuminate above and below.
3000K, 4000K or 5500K.
Ratings stated in the exact model datasheet.
2 × 5W tri-colour LED globes supplied.
Light and construction
The supplied globes are preset to 3000K. Each globe produces 270lm at 3000K, 285lm at 4000K or 300lm at 5500K. The colour-temperature switch is on the globe.
Poly powder-coated black or white finish with a clear glass diffuser. The product page identifies the glass as tempered. The fitting mounts on a wall with an earth connection.
Technical specifications
- Models
- HV3624T-BLK / HV3624T-WHT
- Input
- 240V AC
- Included light source
- 2 × 5W tri-colour GU10 LED globes
- Lamp holder
- GU10
- Maximum lamp wattage
- 2 × 35W — fitting maximum, distinct from supplied 5W LED globes
- Colour temperatures
- 3000K / 4000K / 5500K
- Lumen output
- 270lm / 285lm / 300lm per globe, respectively
- Beam angle
- 120°
- CRI
- >80
- Dimming
- Not dimmable with the supplied globes
- Body
- Poly powder-coated aluminium, black or white
- Diffuser
- Clear glass; official product page specifies tempered glass
- IP / IK rating
- IP54 / IK08
- Protection class
- Class 1 — earth required
- Installation
- Wall surface-mounted
- Lamp expectancy
- <30,000 hours as listed in the supplier datasheet

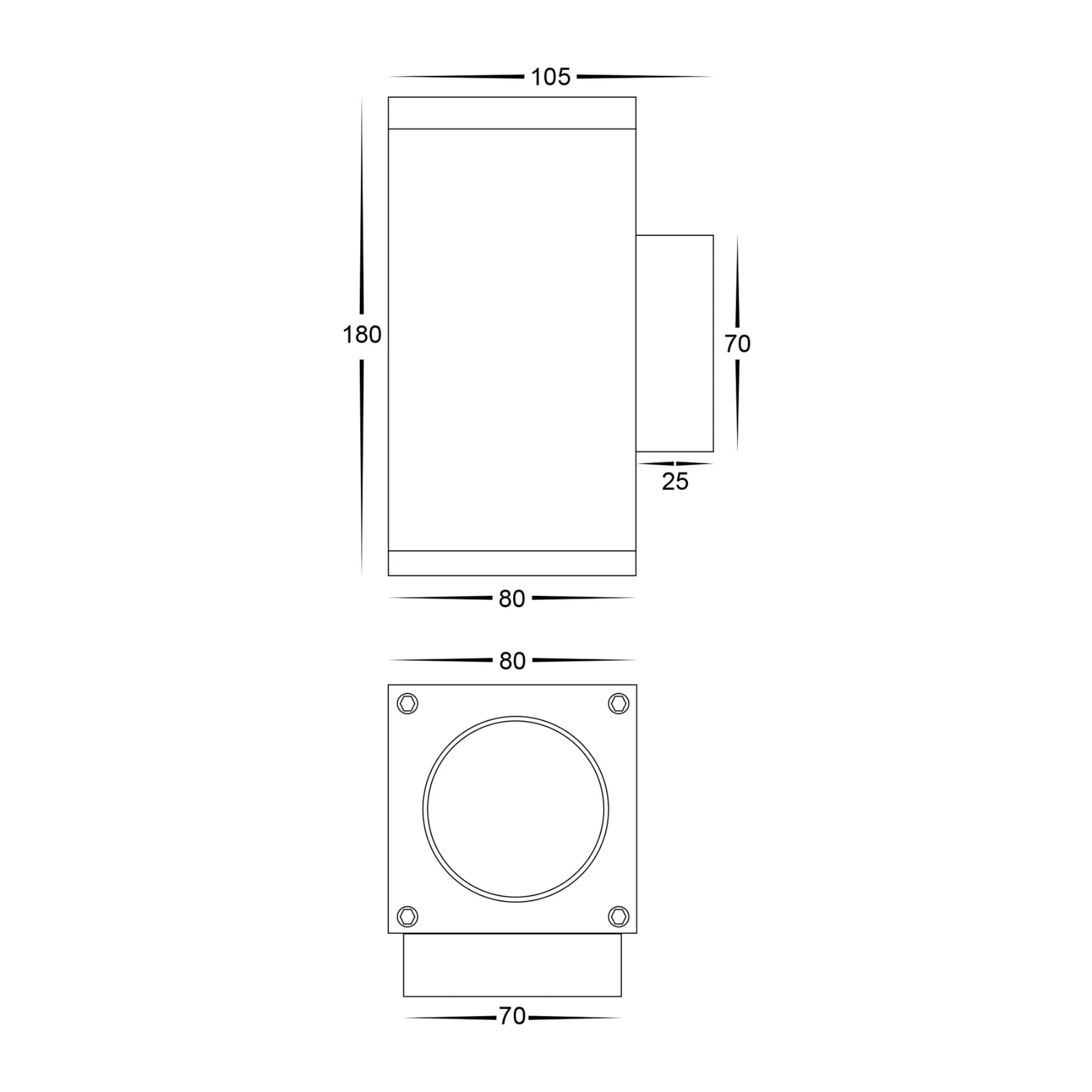

Dimensions
- Light body
- 80mm wide × 80mm deep × 180mm high
- Overall projection
- 105mm, including the 25mm mounting-base projection
- External base
- 70mm × 70mm

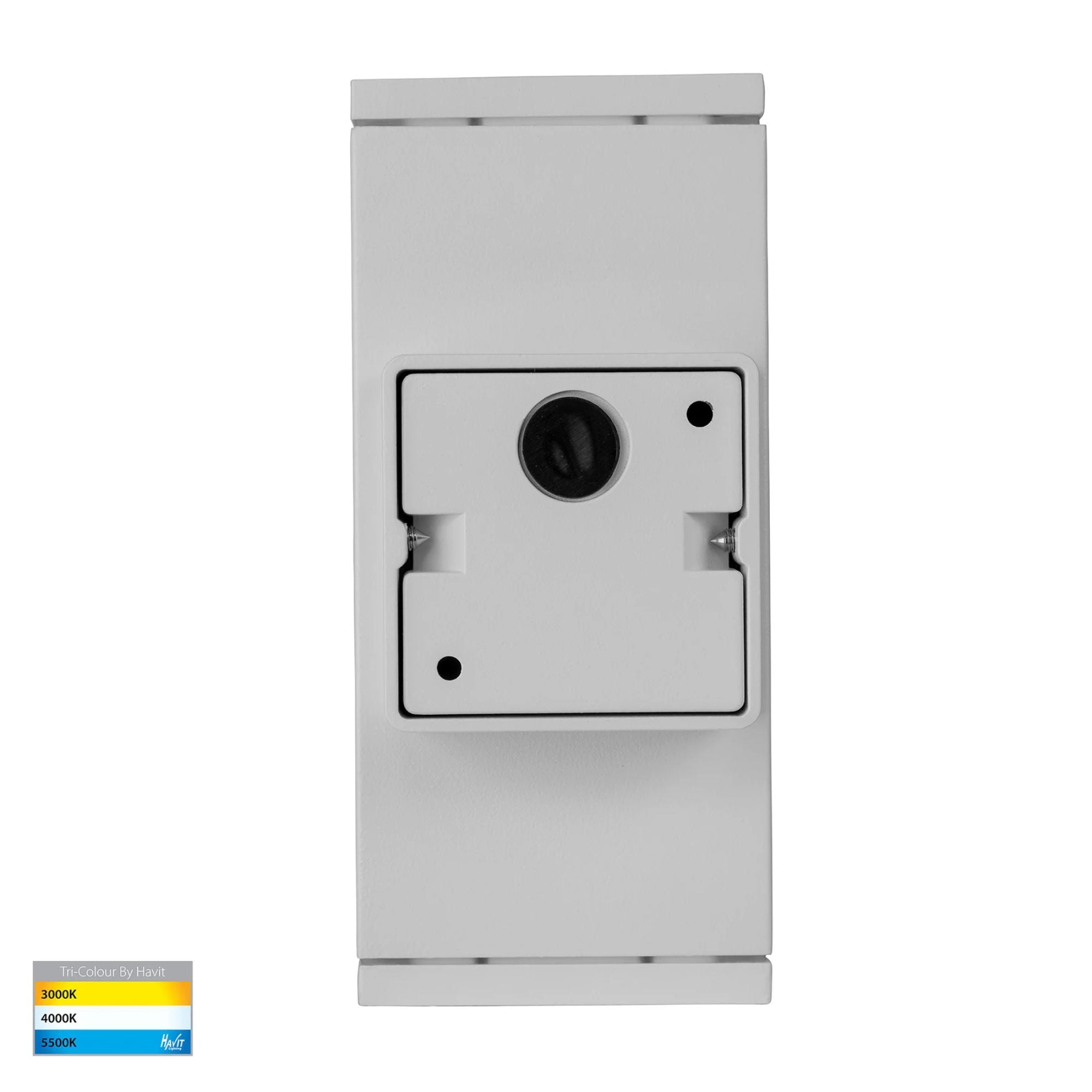

- Mounting-base detail
- The installation drawing lists 59mm × 59mm internal dimensions, Ø17mm cable entry and 2 × Ø4mm mounting holes. Refer to the exact drawing for hole positions.
Variants and inclusions
- Black
- HV3624T-BLK · Barcode 9350418033925
- White
- HV3624T-WHT · Barcode 9350418033932
- Included
- Selected wall fitting and 2 × 5W tri-colour GU10 LED globes, as listed by Havit.
- Replacement globes
- Use the correct GU10 globe and check the product label for permitted wattage before replacement. The fitting maximum is 2 × 35W.
- Other configuration
- HV3623T fixed-down is a separate model.
Installation and warranty
Installation must be carried out by a qualified electrician according to AS/NZS 3000. Follow Havit's exact model instructions, including earth connection, sealing cable entry and fixing holes, perimeter sealing and correct placement of seals to prevent water ingress.
Havit lists a 3-year replacement warranty for items ordered after 1 January 2022, subject to its current terms. Modification, incorrect installation and displaced seals affect warranty coverage.
