Havit POLLY - 8W Fixed LED Downlight
HAVIT POLLY
8W fixed recessed LED downlight · 24V DC models
A polycarbonate downlight with selectable warm, neutral or cool white light and a wide 120° beam. Choose a black or white finish.
Important before you buy
A compatible 24V DC LED driver is required separately. These are the HV5522T-BLK-24V and HV5522T-WHT-24V models. Do not connect the fitting directly to 240V mains.
For dimming, select a compatible dimmable 24V DC driver and matching control system. The integrated mains driver and flex-and-plug supplied with the separate 240V models do not apply to these 24V models. Installation must be carried out by a licensed electrician.
Key features
Built-in tri-colour light source.
External compatible driver required.
110mm overall diameter and 48mm height.
Wide light distribution from a fixed fitting.
Light and construction
3000K warm white, 4000K neutral white or 5500K cool white. Supplier-rated output is 635lm, 750lm and 715lm respectively.
Black or white finish with a plastic diffuser. IP54 applies to the front of the fitting only; the datasheet lists IK08 and IC-4 ratings.
Technical specifications
- Product family
- Havit POLLY
- Models
- HV5522T-BLK-24V (black); HV5522T-WHT-24V (white)
- Input
- 24V DC
- Light source
- Built-in 8W tri-colour LED
- Colour temperatures
- 3000K / 4000K / 5500K
- Lumen output
- 635lm at 3000K; 750lm at 4000K; 715lm at 5500K
- Beam angle
- 120°
- CRI
- >80
- Dimming
- Dimmable with a compatible dimmable 24V DC driver and control system
- Material / diffuser
- Polycarbonate / plastic
- IP rating
- IP54 — front of fitting only
- IK rating
- IK08
- IC rating
- IC-4
- Protection class
- Class 3 — low voltage, no earth required
- Mounting
- Ceiling recessed; fixed, no tilt
- Lamp expectancy
- <30,000 hours as stated in the supplier datasheet

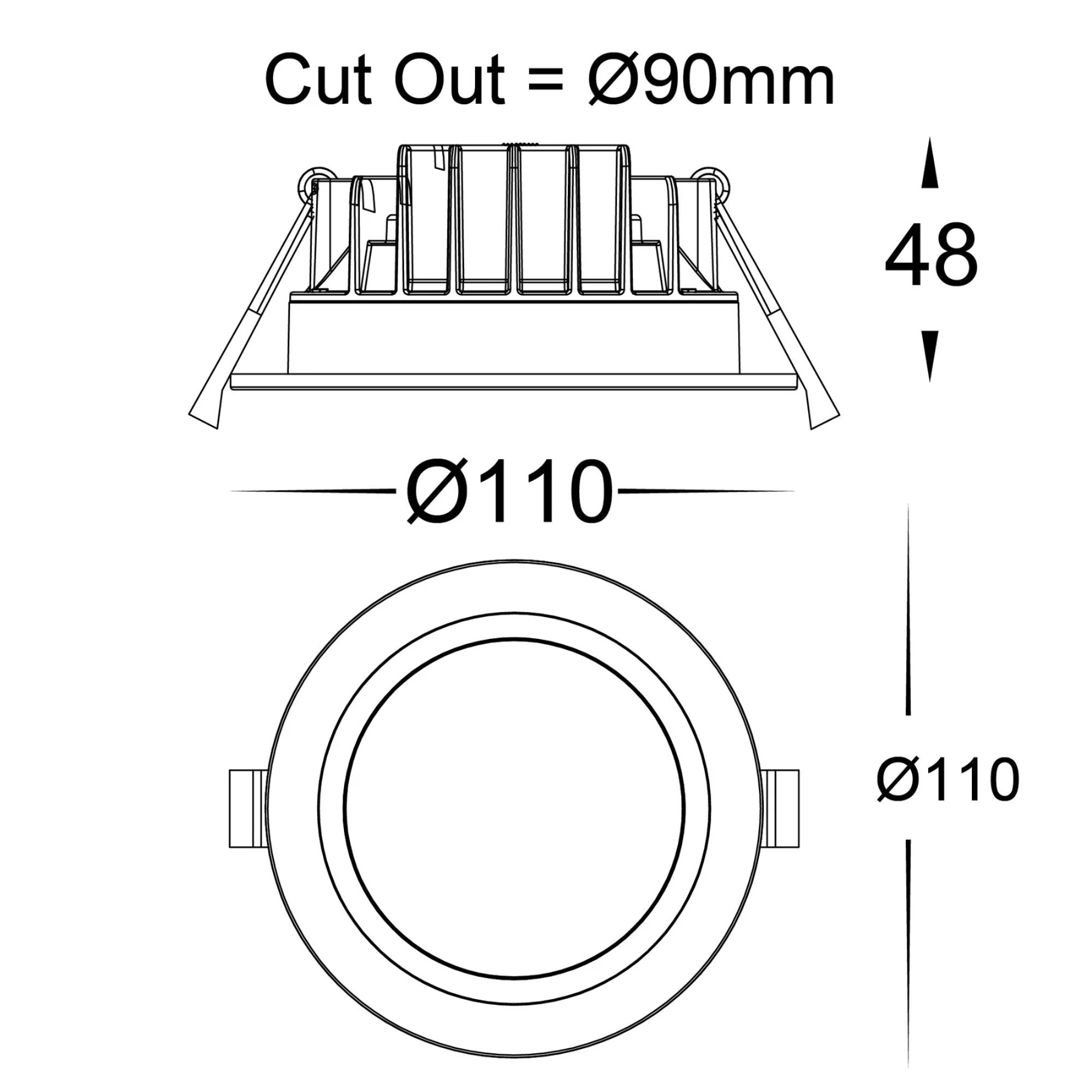

Dimensions
- Overall diameter
- 110mm
- Height
- 48mm
- Ceiling cut-out
- 90mm
Options and required accessories
- Black
- HV5522T-BLK-24V · Barcode 9350418035837
- White
- HV5522T-WHT-24V · Barcode 9350418035844
- Required separately
- Compatible 24V DC LED driver. Use a compatible dimmable driver and matching controls if dimming is needed.
- Included
- Selected POLLY fitting with its built-in LED light source.
- Related 240V models
- HV5522T-BLK and HV5522T-WHT are different models with an integrated driver and flex-and-plug. They are not the variants in this listing.
Installation and warranty
Use a licensed electrician and follow the instructions supplied with the exact 24V model. Keep the fitting and driver ventilated, preserve supplied cables and do not extend leads contrary to Havit's instructions. The IP54 rating protects the front only.
Havit lists a 3-year replacement warranty, subject to its terms. Its downlight guidelines limit operation for that coverage to 8 continuous hours followed by a 1-hour rest, and no more than 12 hours per day. Longer continuous operation and commercial use have different warranty conditions.
