Havit NELLA - 18W Surface Mounted LED Downlight
NELLA · HV5805T 12V DC
HAVIT NELLA - 18W SURFACE MOUNTED LED DOWNLIGHT
An 18W surface-mounted LED downlight with a broad 120° beam and selectable 3000K, 4000K or 5500K light. Choose a black or white finish and standard or extended body.
Important before you buy
These variants are 12V DC models. A suitable external 12V DC constant-voltage LED driver is required separately for installation. Do not connect the fitting directly to 240V mains. These 12V fittings are non-dimmable. Installation must be completed by a qualified electrician. Havit states that aluminium fittings must not be installed within 5 km of salt-water environments.
Key highlights
18W built-in LED
Selectable 3000K warm white, 4000K or 5500K light, with the LED integrated into the fitting.
Wide 120° beam
A broad light distribution from a semi-frosted glass diffuser.
IP54 aluminium body
Powder-coated aluminium, available in black or white.
Product features
Selectable light colour
Choose from three colour temperatures using the switch inside the fitting. Havit supplies the fitting preset to 3000K.
Standard or extended body

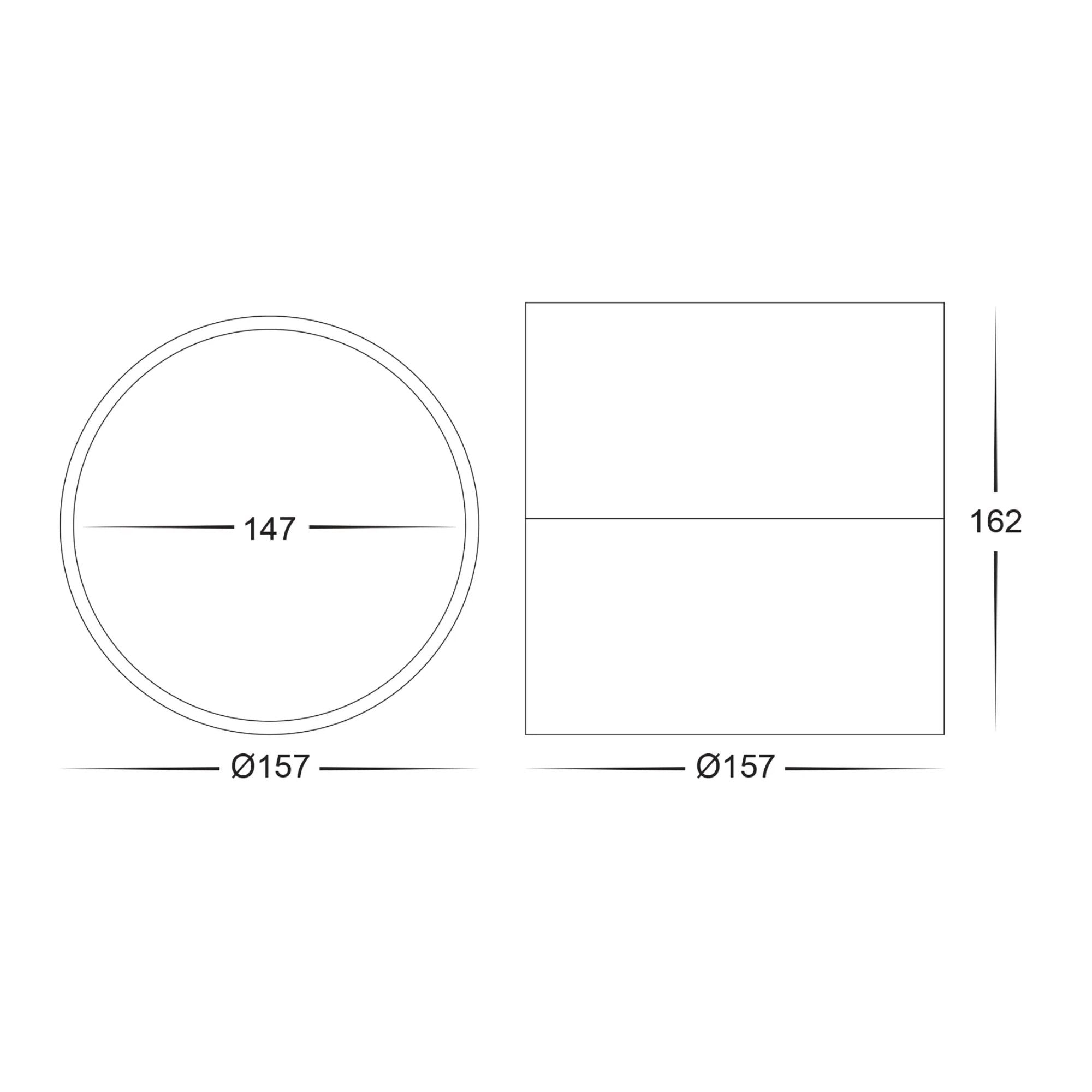

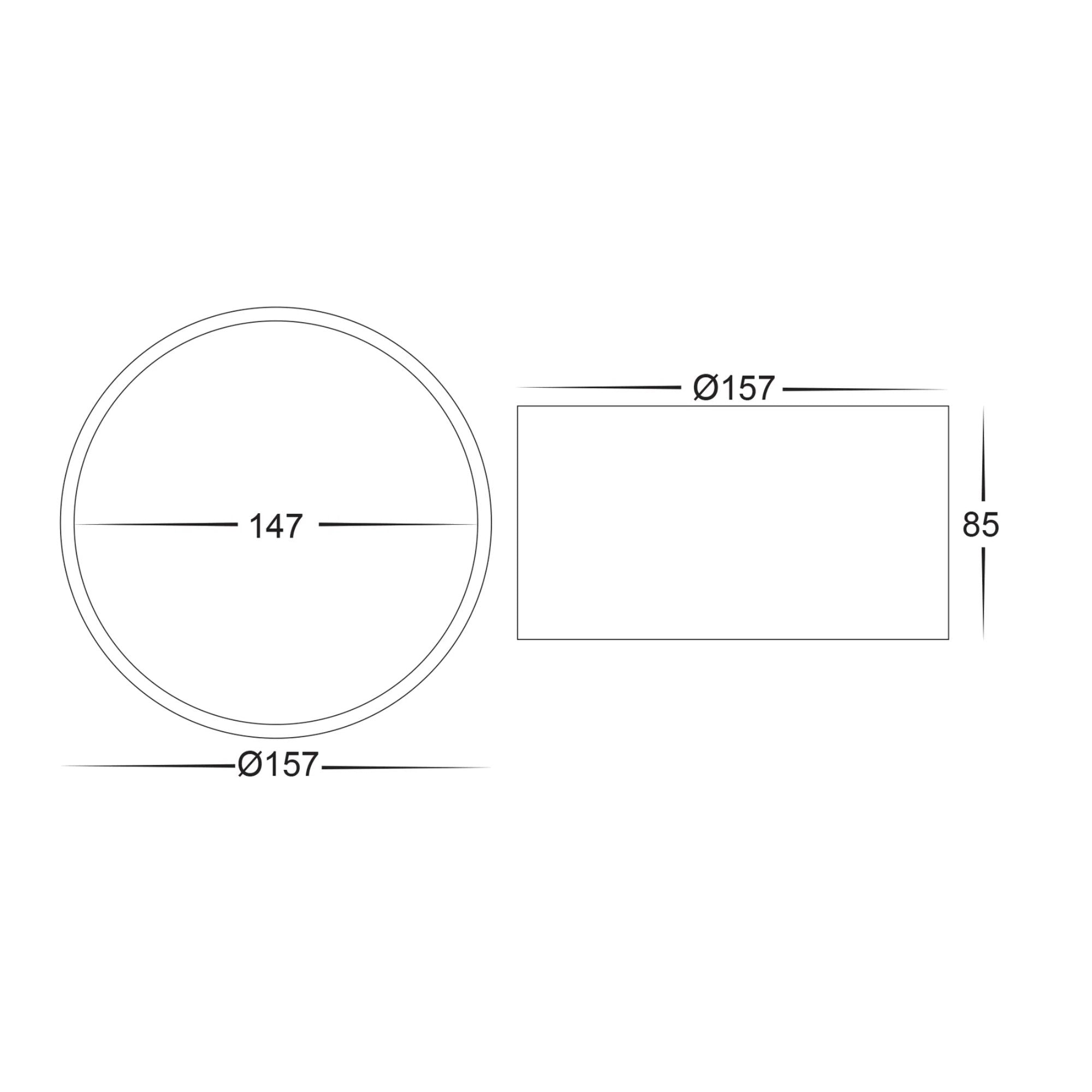

The standard fitting is 85 mm high; the extended fitting is 162 mm high. Both have a 157 mm diameter.
Fixed surface mounting
Designed for ceiling surface mounting, with a fixed light direction and no tilt adjustment.

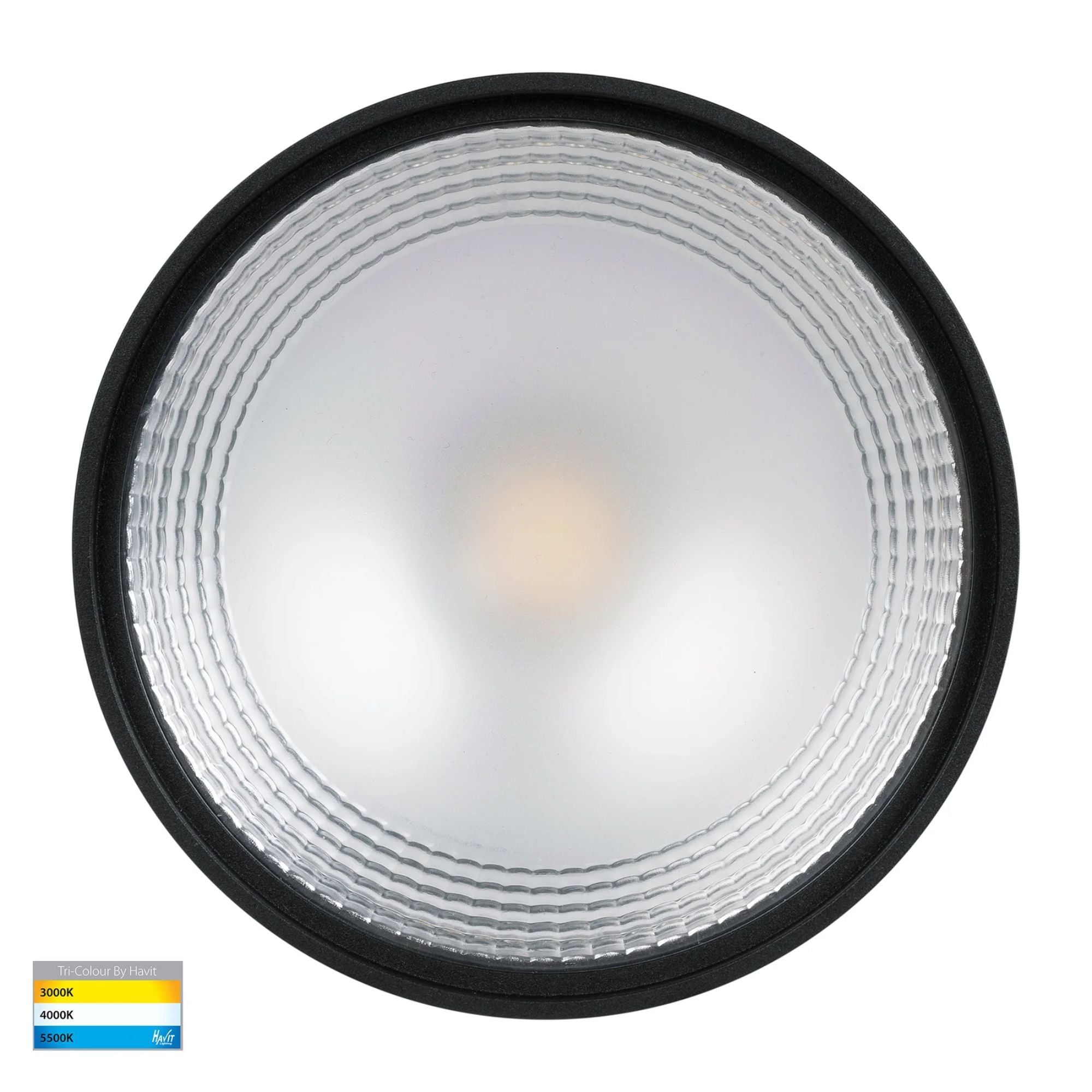

Glass diffuser
The semi-frosted glass diffuser accompanies the integrated LED and wide 120° beam.
Technical specifications
- Power
- 18W built-in LED
- Input voltage
- 12V DC constant voltage; external LED driver required
- Colour temperature and output
- 3000K: 1380 lm
4000K: 1430 lm
5500K: 1305 lm - Beam angle
- 120°
- IP rating
- IP54
- Material / diffuser
- Aluminium / semi-frosted glass
- Colour rendering
- CRI >80
- LED life expectancy
- Under 30,000 hours, as stated in Havit’s datasheet
- Protection class
- Class III: low voltage; no earth required
- Impact rating
- IK07
- Installation
- Ceiling surface mounted; fixed, without tilt
- Dimming
- Non-dimmable, as specified in Havit’s 12V installation instructions.
- Dimensions
- Standard: diameter 157 mm × height 85 mm
Extended: diameter 157 mm × height 162 mm
Choose your finish and body
Black · Standard
Manufacturer model: HV5805T-BLK-12V
Ozlighting SKU: HL-HV5805T-BLK-12V
Diameter 157 mm × height 85 mm; 12V DC input.

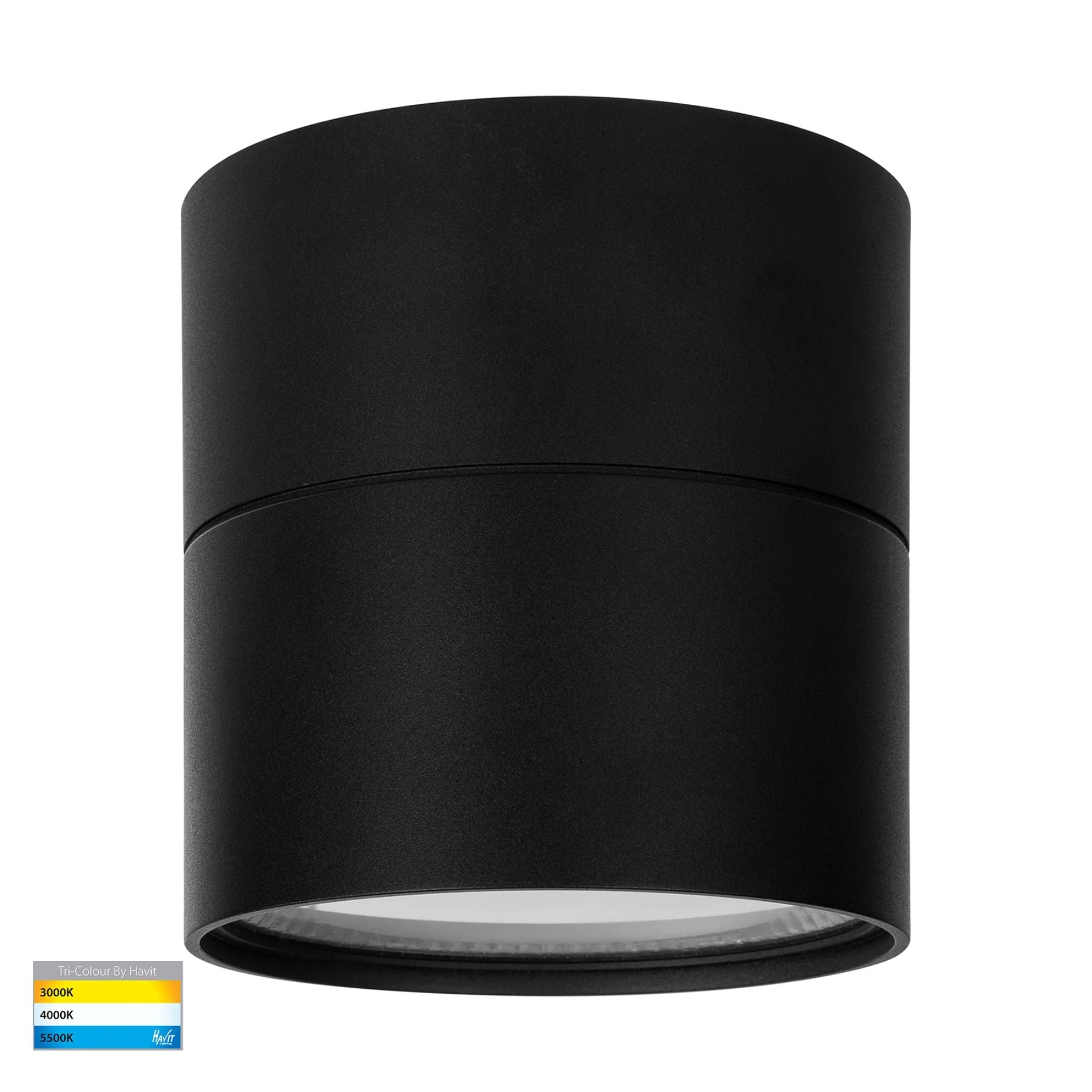

Black · Extended
Manufacturer model: HV5805T-BLK-EXT-12V
Ozlighting SKU: HL-HV5805T-BLK-EXT-12V
Diameter 157 mm × height 162 mm; 12V DC input.

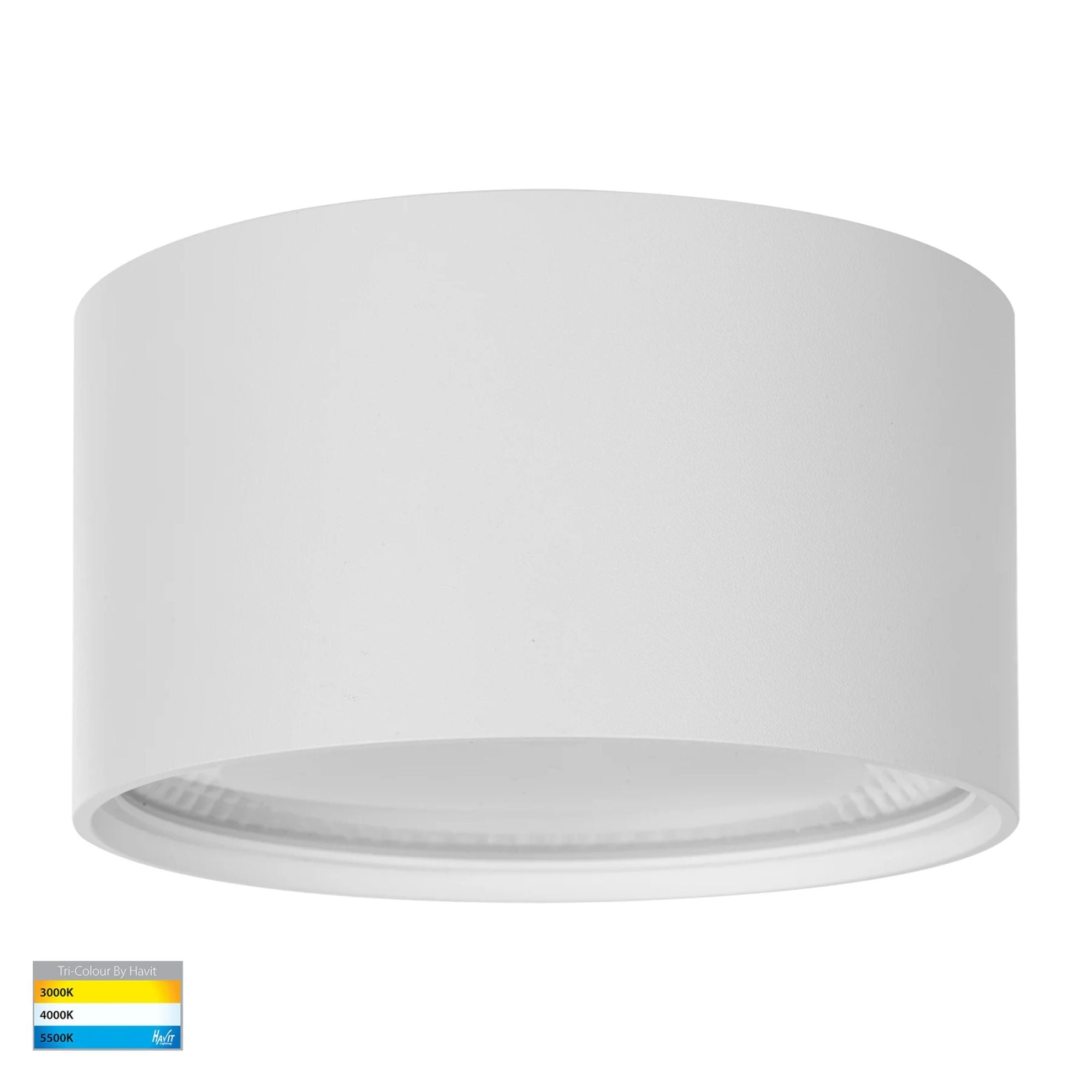

White · Standard
Manufacturer model: HV5805T-WHT-12V
Ozlighting SKU: HL-HV5805T-WHT-12V
Diameter 157 mm × height 85 mm; 12V DC input.
White · Extended
Manufacturer model: HV5805T-WHT-EXT-12V
Ozlighting SKU: HL-HV5805T-WHT-EXT-12V
Diameter 157 mm × height 162 mm; 12V DC input.
What’s included
Included
The NELLA downlight in your selected finish and body, with its built-in 18W LED.
Required separately
A suitable external 12V DC constant-voltage LED driver. Confirm driver selection and installation requirements with your installer before ordering.
Installation notes
Installation must follow Havit’s instructions and AS/NZS 3000. Multiple fittings must be wired in parallel. Keep all seals and O-rings correctly fitted; for outdoor installation, retain the seal to maintain the IP rating. Product modification voids the warranty.
Refer to the exact-model 12V DC installation instructions before installation.
Warranty
3-year replacement warranty for items ordered after 1 January 2022, subject to Havit’s warranty terms and conditions.
