Havit LUZ - Single Up & Down Wall Pillar Lights
LUZ single pillar wall light
Up and down light from one 300mm cylinder, with 2 included GU10 LEDs and selectable colour temperature and power.
Important before you buy
Licensed electrical installation required: 240V AC, Class I — earth connection required. 2 GU10 LED globes are included. The black and white aluminium finishes must not be installed within 5km of a saltwater environment. Wear gloves when handling the solid-brass finish; it naturally tarnishes outdoors.
Supplied-globe restriction: Havit states that the included wall-light LED globes cannot be used for commercial use. The fixture and supplied globes have different warranty periods; see below.
Key features
2 included GU10 LEDs
Each 9-in-1 globe has selectable 3W, 5W or 7W power and three colour temperatures.
3000K / 4000K / 5500K
Select warm white, cool white or daylight on the switches on each globe. Factory preset: 3000K and 7W.
IP65 · IK10
Wall surface-mounted fitting with clear-glass diffusers.
TRIAC dimming
Manufacturer lists TRIAC dimmability and the optional HV9625 LED dimmer.
60° beam · CRI >80
Published beam angle and colour-rendering specification for the included LEDs.

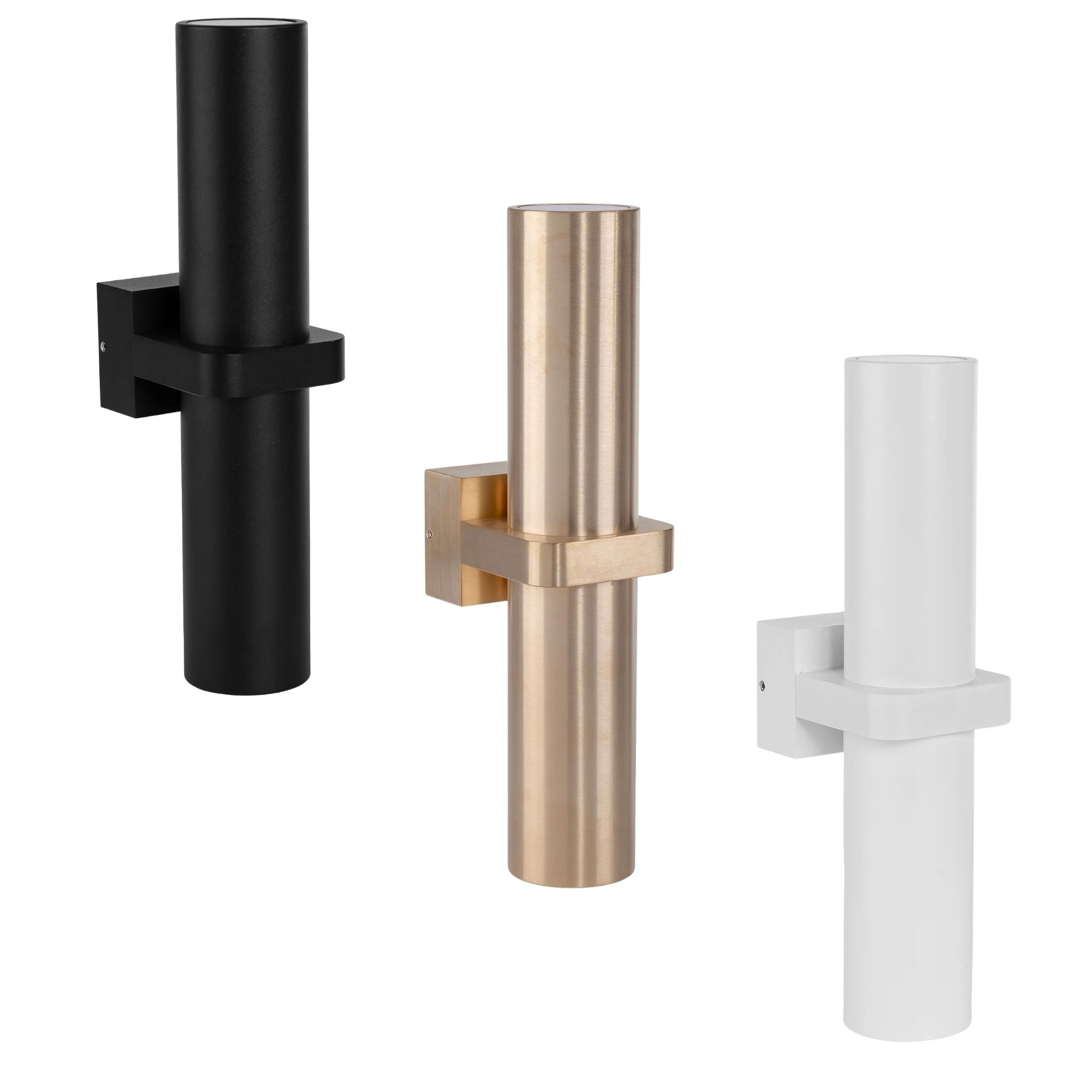

Three finishes
Poly powder-coated black or white aluminium, or solid brass. Match the exact model below.
Technical specifications
- Product format
- Single cylinder, two light sources — up and down wall pillar light
- Supply & protection
- 240V AC · Class I · earth required
- Installation
- Wall — surface-mounted
- Lamp base & included power
- 2 × GU10 LEDs · 3W / 5W / 7W selectable per globe
- Colour temperature
- 3000K / 4000K / 5500K selectable per globe
- Factory setting
- 3000K and 7W per globe
- Light output at 3000K
- 2 × 240–560lm
- Light output at 4000K
- 2 × 255–595lm
- Light output at 5500K
- 2 × 270–630lm
- Output qualification
- Manufacturer-published ranges span the selectable power settings; separate 5W output values are not published in these model tables.
- Beam angle & colour rendering
- 60° · CRI >80
- Dimming
- Yes — TRIAC
- Protection ratings
- IP65 · IK10
- Diffuser
- Clear glass
- Maximum GU10 globe rating
- 35W per globe. Follow the fitting label and installation instructions when replacing a globe.
- Manufacturer lamp expectancy
- <30,000 hours, reproduced as published; a laboratory rating subject to operating conditions, not a guaranteed service life.

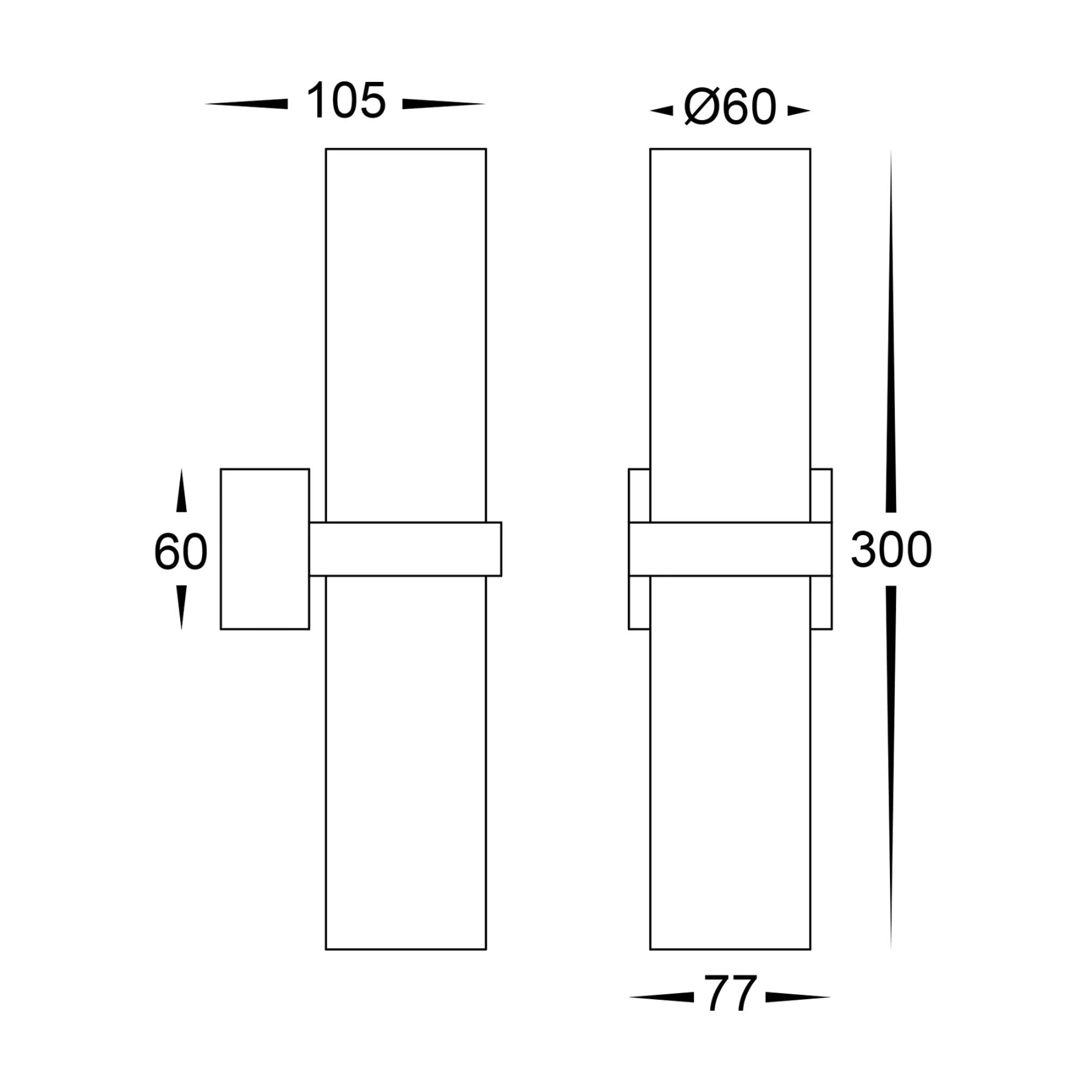

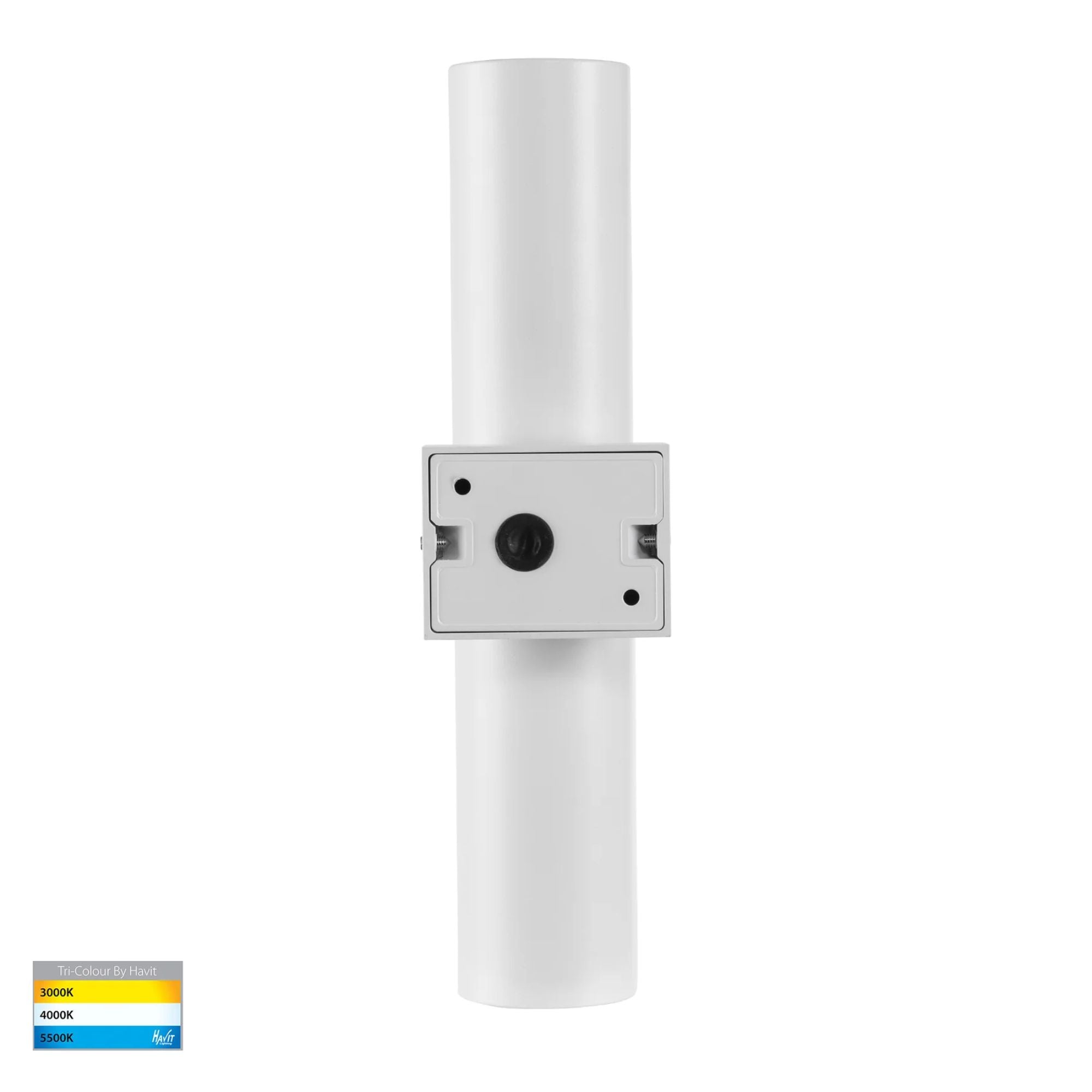

Dimensions & mounting
- Overall height
- 300mm
- Overall width
- 77mm
- Projection from wall
- 105mm
- Pillar diameter
- Ø60mm
- Backing-plate height
- 60mm
- Mounting-bracket width
- 72mm
- Mounting holes
- 4 × Ø4mm; shown 27mm left and right of the centreline and 18mm above and below it
- Cable entry
- Ø13mm; diagram shows an 8mm lateral offset
Dimensions follow the manufacturer’s 2LT drawing. Check the exact mounting layout in the linked installation sheet before drilling.
Finish & model options
- HV10291T

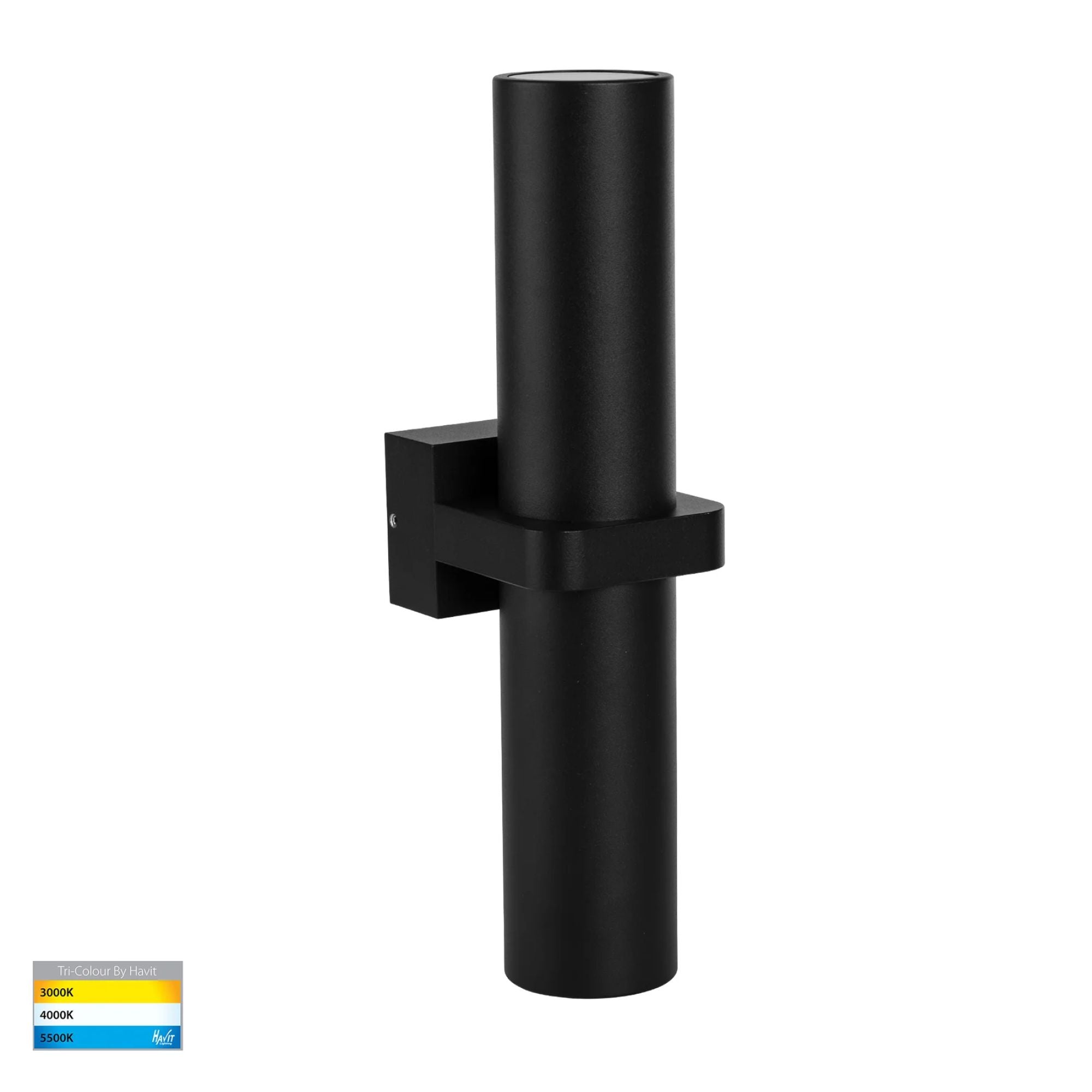

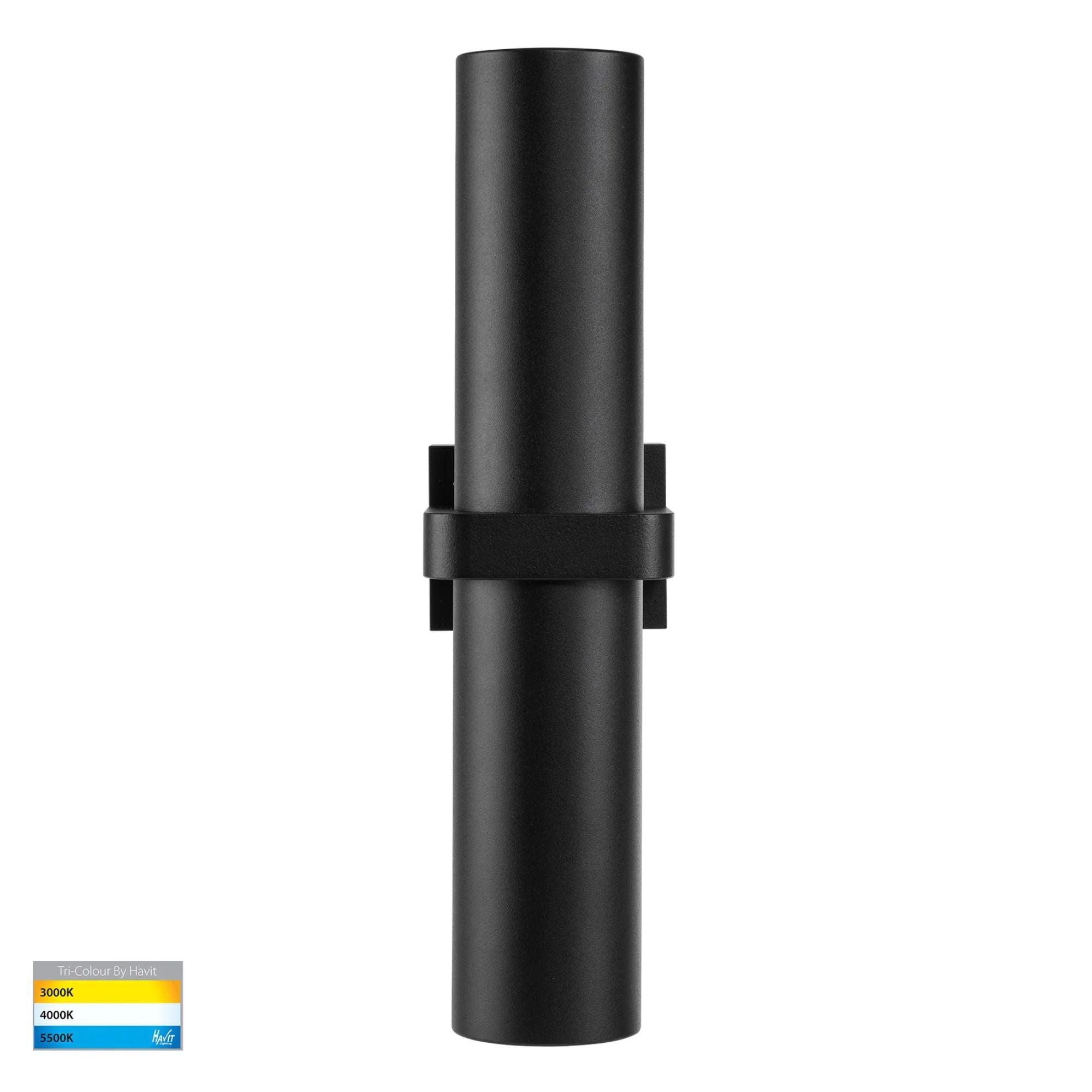

- Black poly powder-coated aluminium
- HV10391T

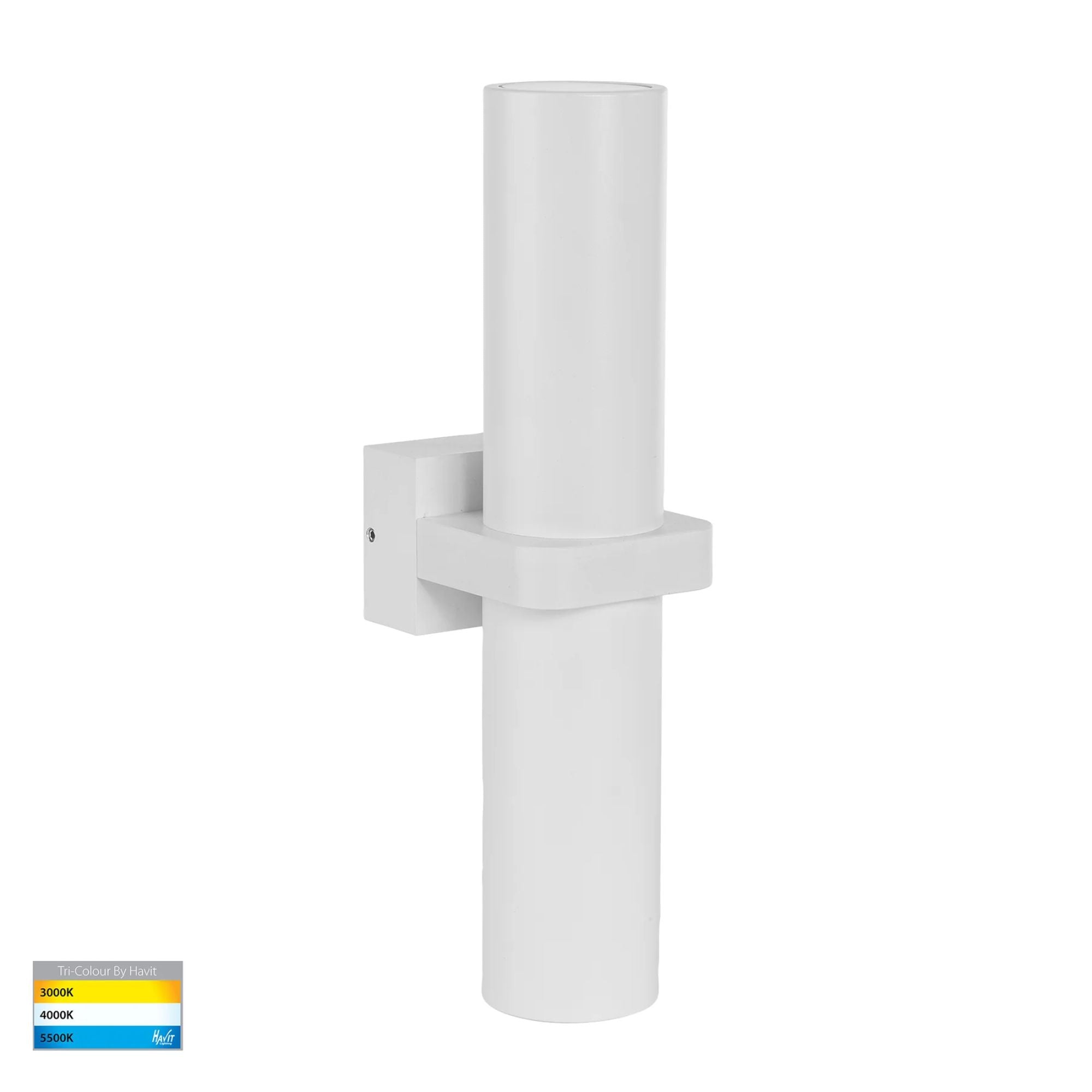

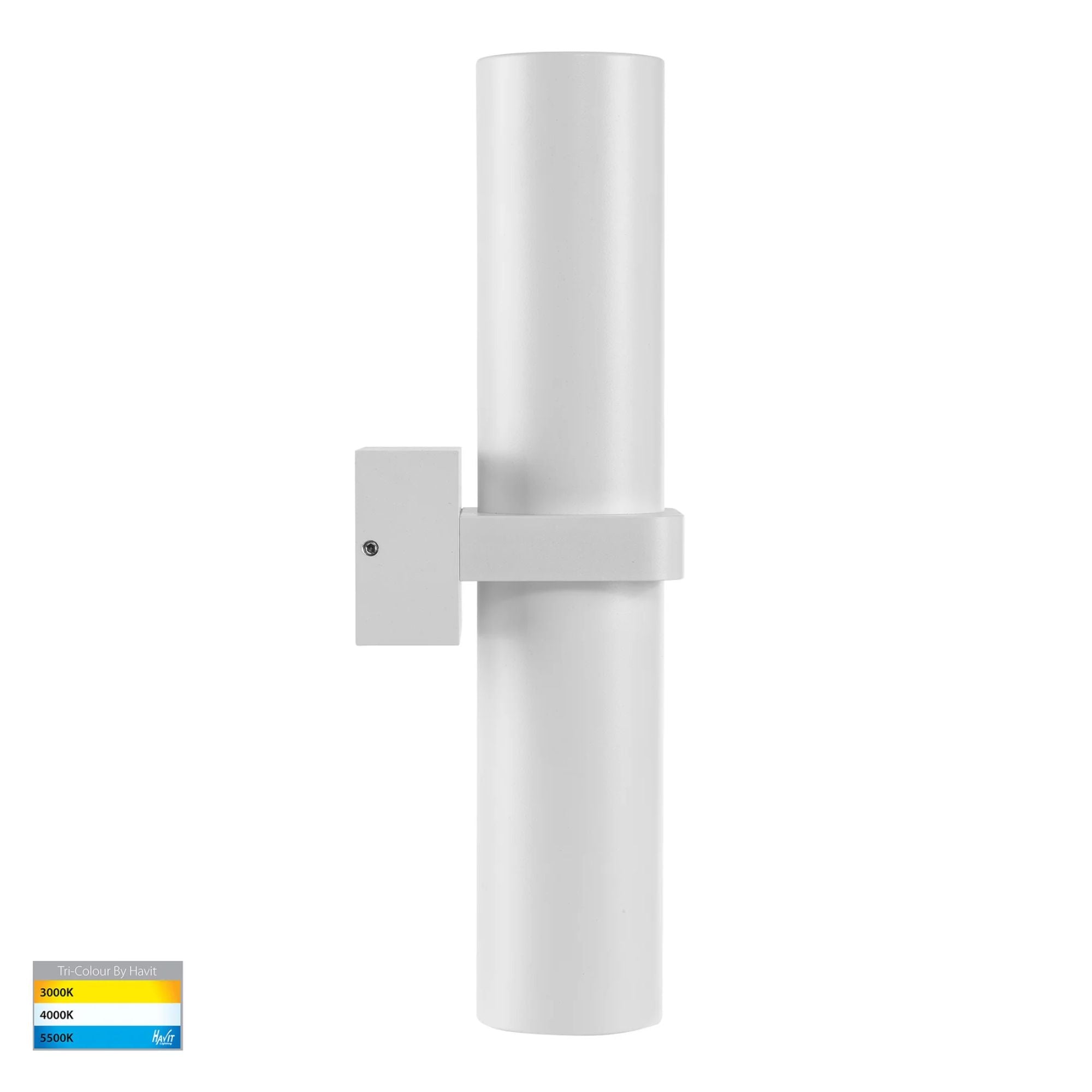

- White poly powder-coated aluminium
- HV10591T

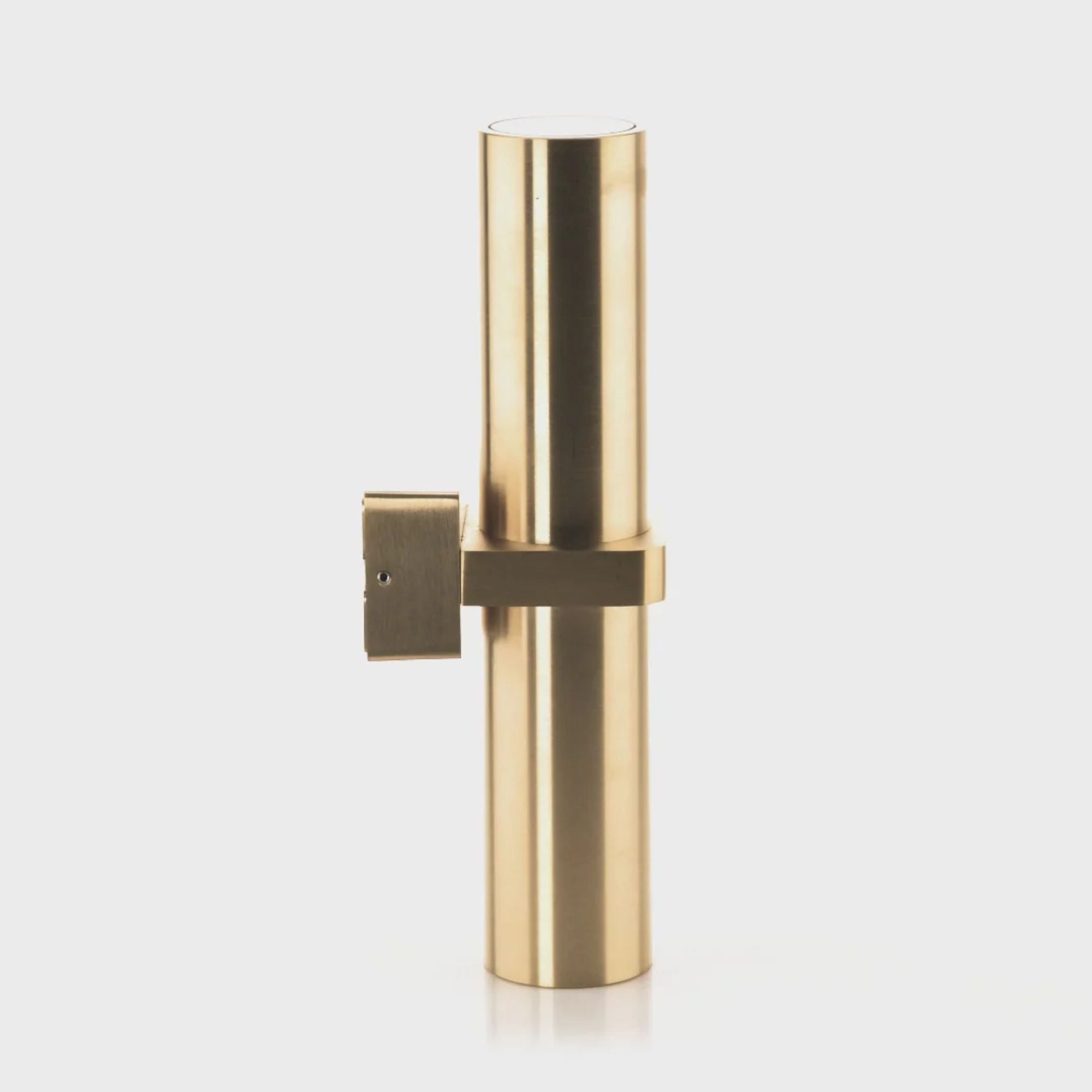

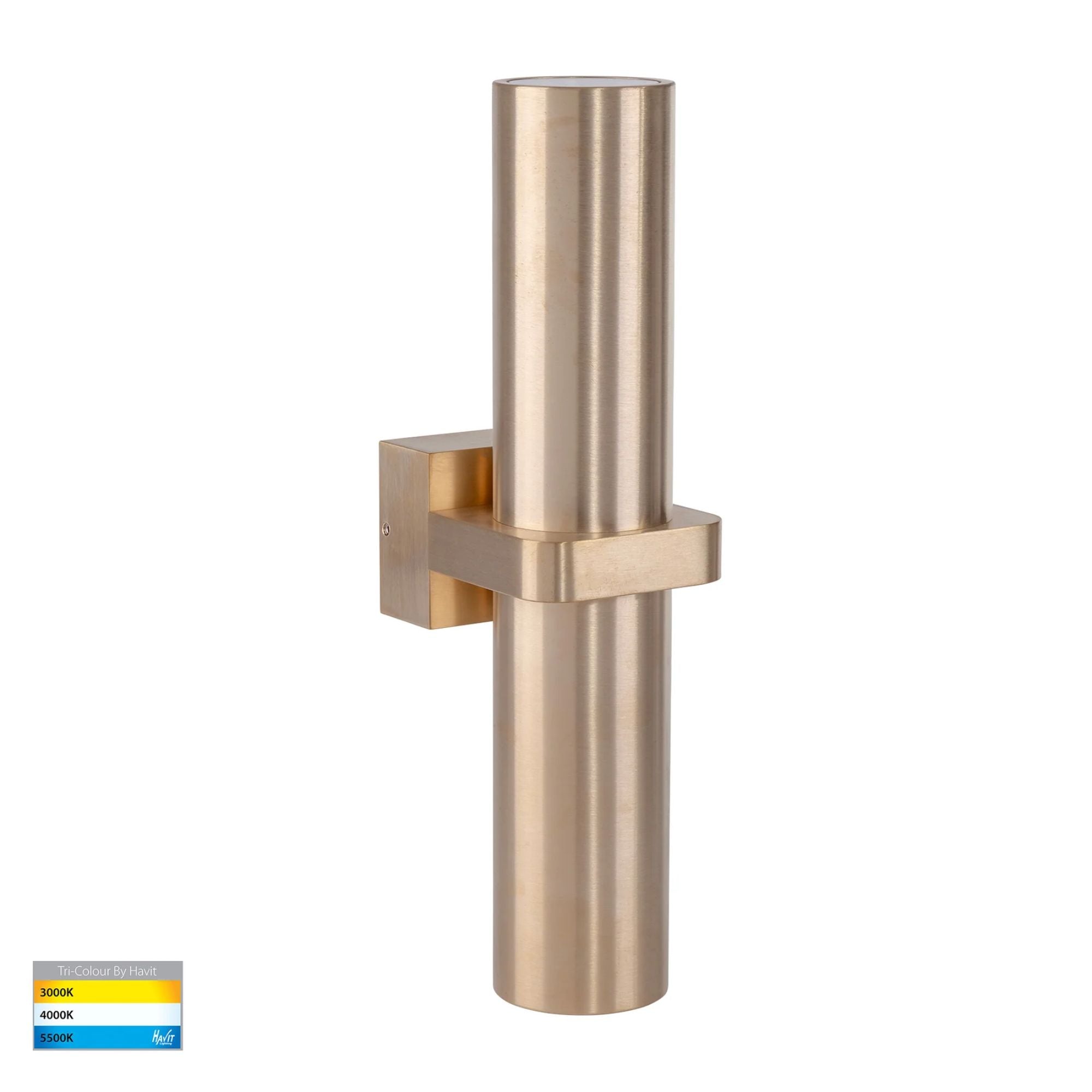

- Solid brass; natural outdoor tarnishing
Compatible accessory
HV9625 LED dimmer — 300W maximum is listed by Havit as an optional compatible accessory, sold separately. The installer must check the applicable dimmer and lamp loading requirements for the installation.
What’s included & installation requirements
Included
- One LUZ single pillar wall fitting in the selected finish.
- 2 × 9-in-1, 3W / 5W / 7W, tri-colour GU10 LED globes.
- Matching backing plate with stainless steel grub screws.
Required for installation
Licensed electrician, an earthed 240V AC supply, mounting fixings suitable for the wall and weatherproof sealing materials. The electrician selects the correct fixings and seals for the application.
Installation & maintenance
- Install according to AS/NZS 3000 and Havit’s exact installation instructions. Isolate the mains before installation, adjustments or globe replacement.
- Secure the backing plate using appropriate screws. Seal every screw hole and the cable entry, then apply silicone around the entire base-to-wall joint to protect the electrical connections.
- The installer must connect earth first, followed by live and neutral, then tighten the fitting’s grub/Allen screws securely.
- Keep all O-rings and seals correctly seated. Covers must be tight to prevent water entering the fitting.
- To set colour or power with the circuit isolated, remove the covers anticlockwise, remove the GU10 globes, set the switches on each globe, and refit the globes and covers clockwise with the seals intact.
- Do not modify the fitting. Choose an accessible mounting location for servicing. Havit excludes LED fittings on circuits shared with fluorescent lights, exhaust fans, bathroom 3-in-1 units, ovens or microwaves.
- Black/white aluminium: no installation within 5km of saltwater. Solid brass: wear gloves during installation to avoid finger oils; natural tarnishing outdoors is expected and excluded from warranty.
- Avoid mounting surfaces that can cause corrosion, such as sandstone or bush rock. Ordinary outdoor condensation is treated under Havit’s warranty terms; excessive condensation causing a manufacturing-related failure is assessed by Havit.
Warranty
Fixture: 3-year limited replacement warranty against defects in materials or workmanship, for items ordered after 1 January 2022. The period starts at purchase. In the first 12 months, installation and labour are at the discretion of the Havit Lighting Service Team; the remaining two years are replacement only, excluding labour, subject to Australian consumer rights.
Included GU10 LED globes: 12-month replacement warranty. Havit prohibits commercial use of the supplied wall-light globes and does not pay electrician costs to replace complimentary globes.
For the outdoor-wall fixture’s three-year period, Havit limits operation to eight continuous hours, followed by a one-hour rest, and no more than 12 hours a day. Published reduced periods are 18 months for 8–12 continuous hours and 12 months for 12–24 continuous hours. Domestic fittings used in commercial premises have a 12-month warranty.
Keep proof of purchase from an authorised retailer and proof of licensed installation. Replacements carry the remaining original warranty period. Correct installation, seals, usage and the applicable corrosion and natural-weathering exclusions apply. These manufacturer terms are subject to Australian consumer rights; read Havit’s current warranty conditions.
