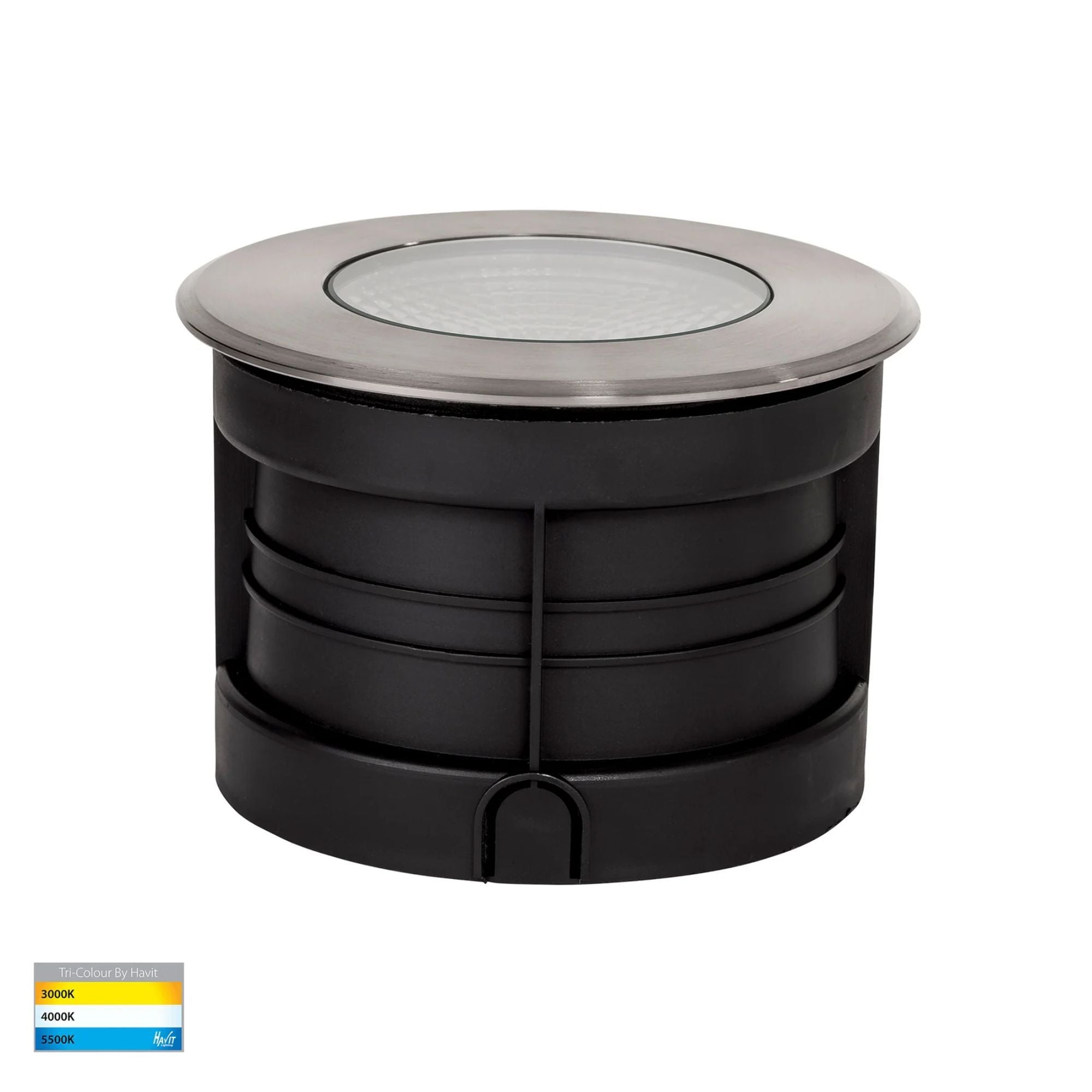

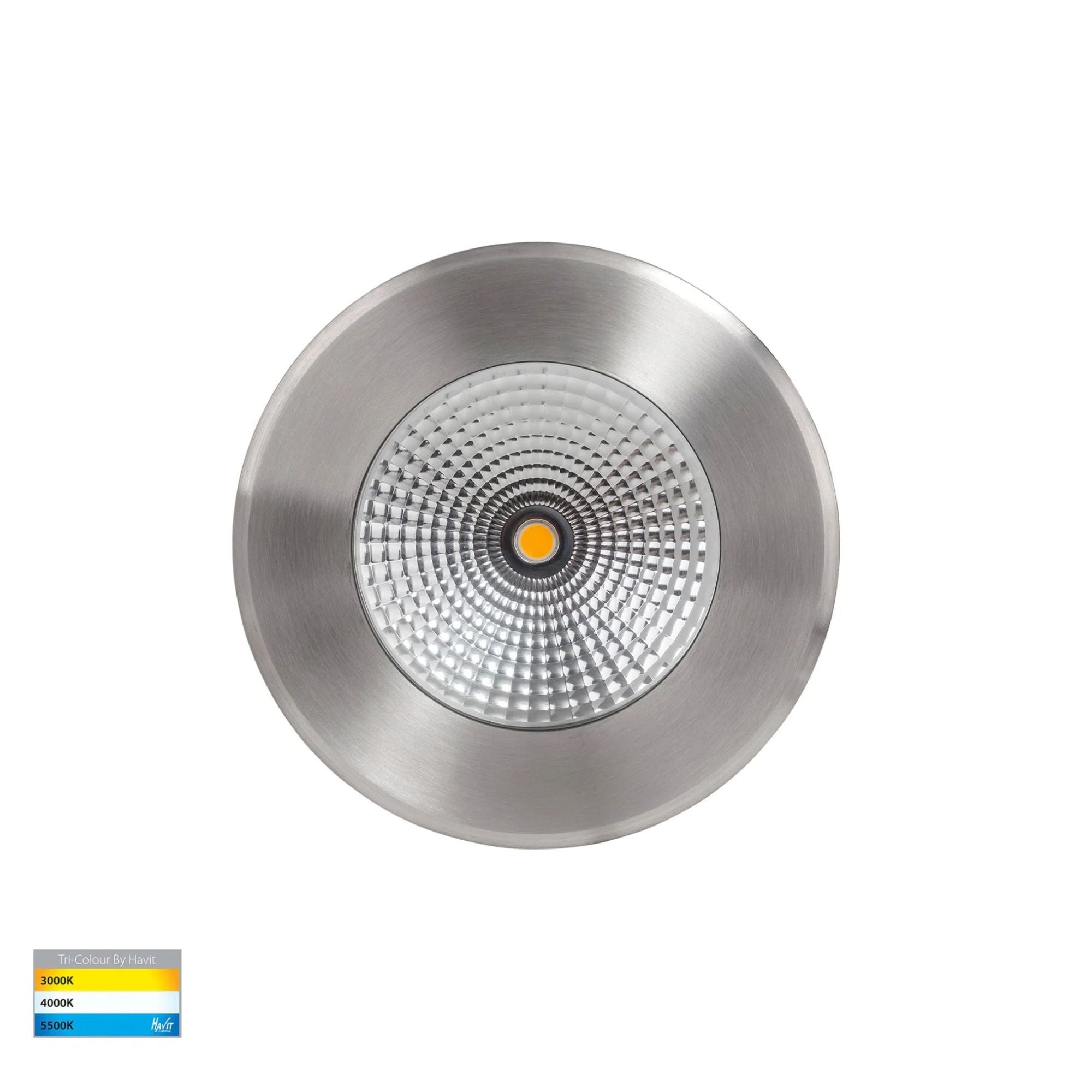

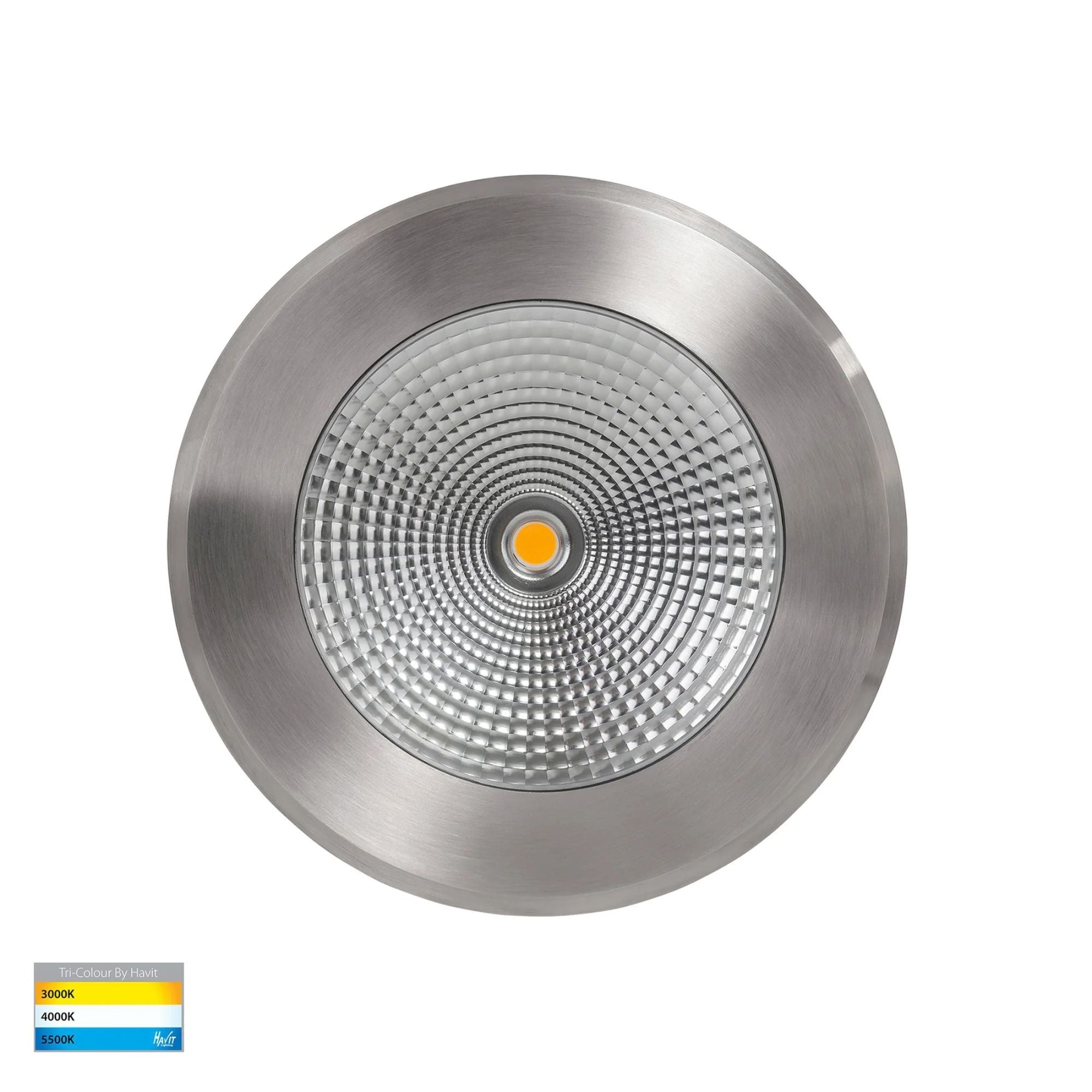

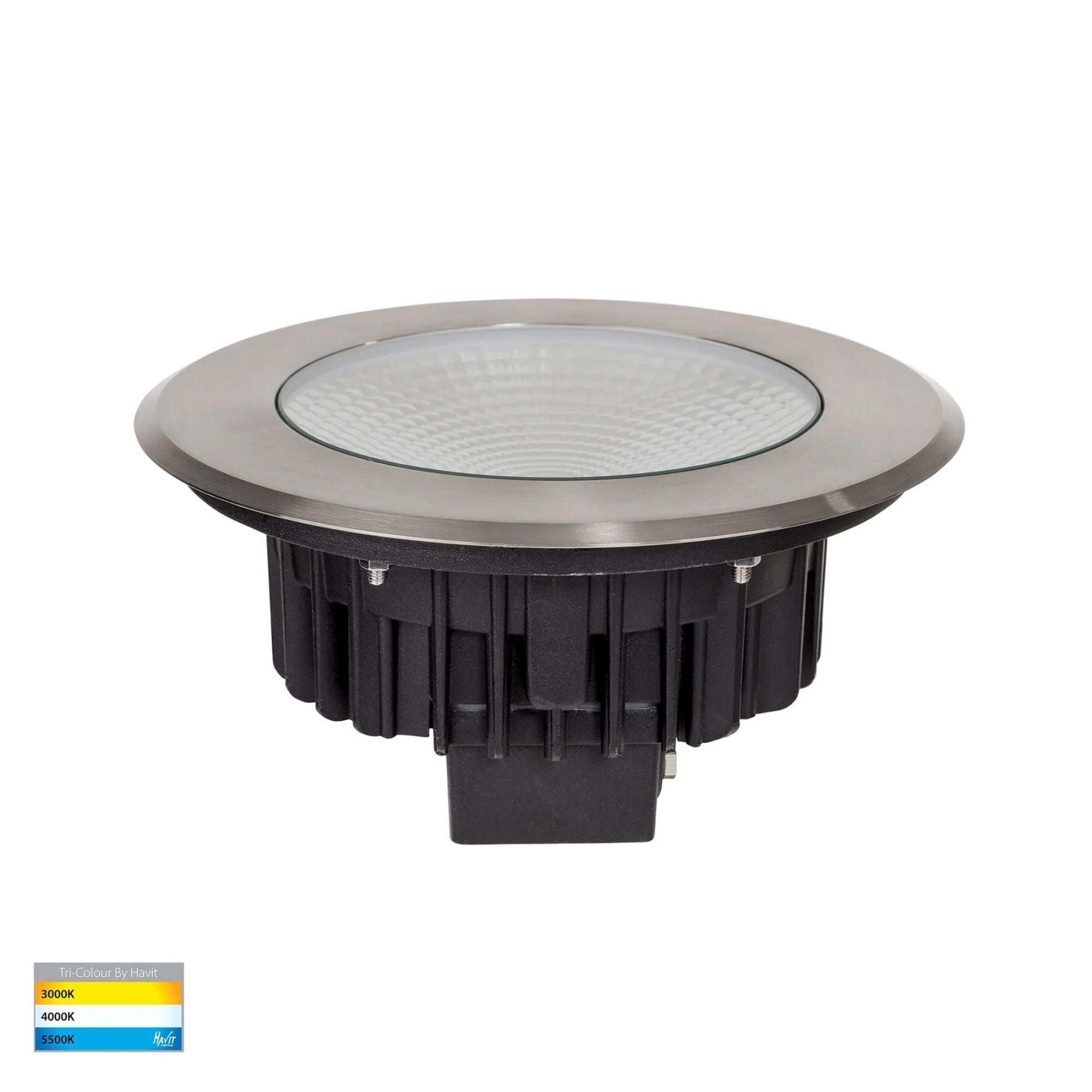

Havit KLIP - 240V LED Inground Light
KLIP 240V LED Inground Light

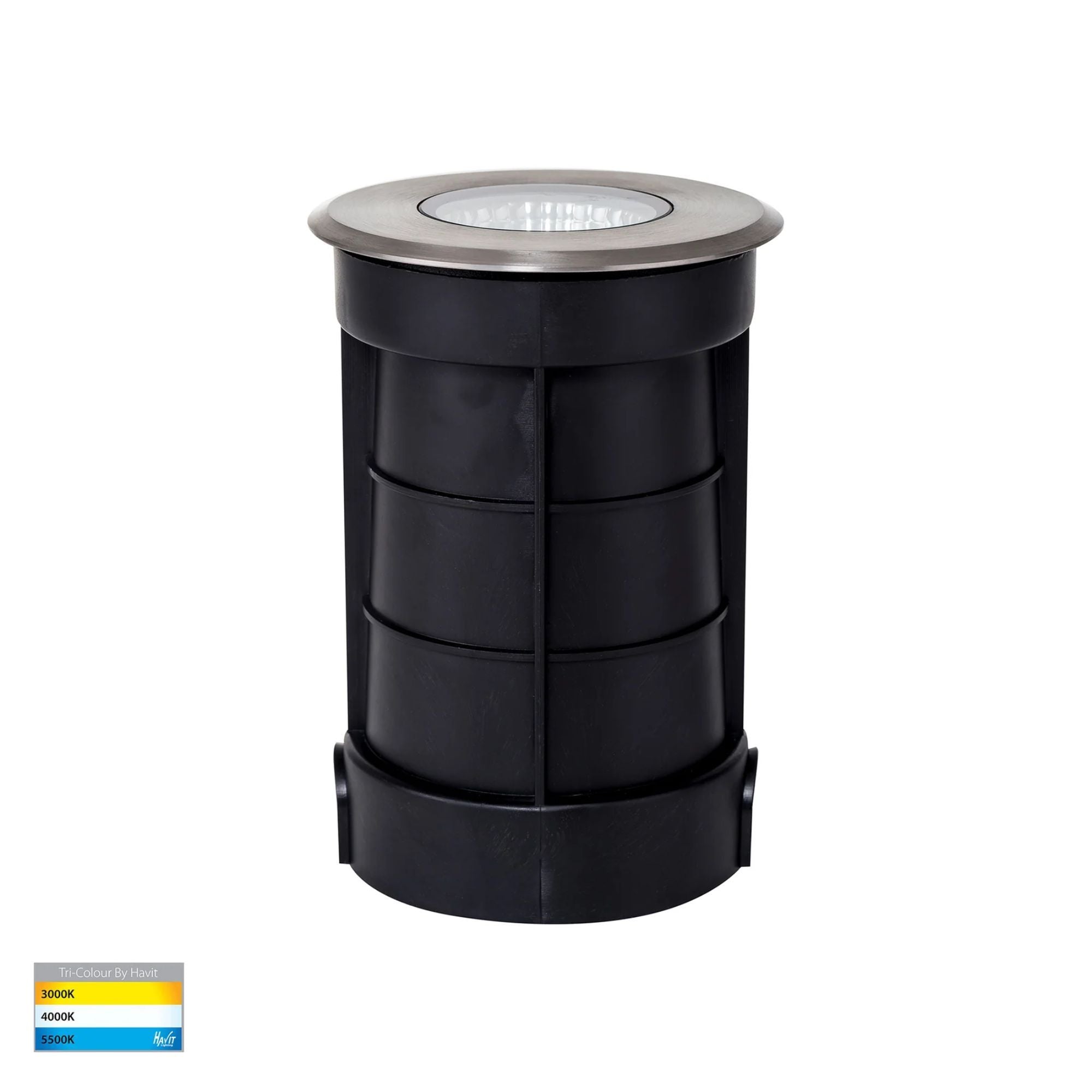

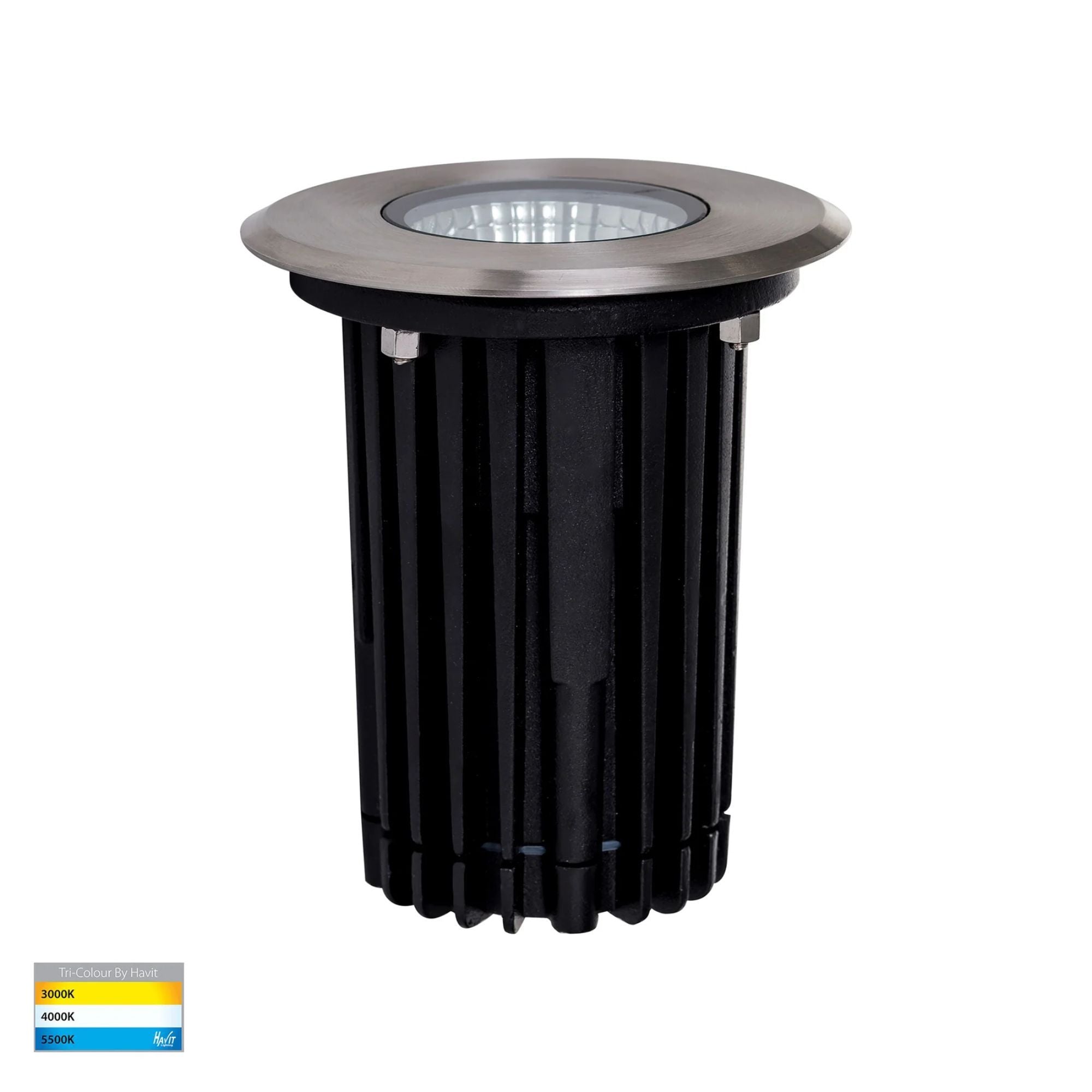

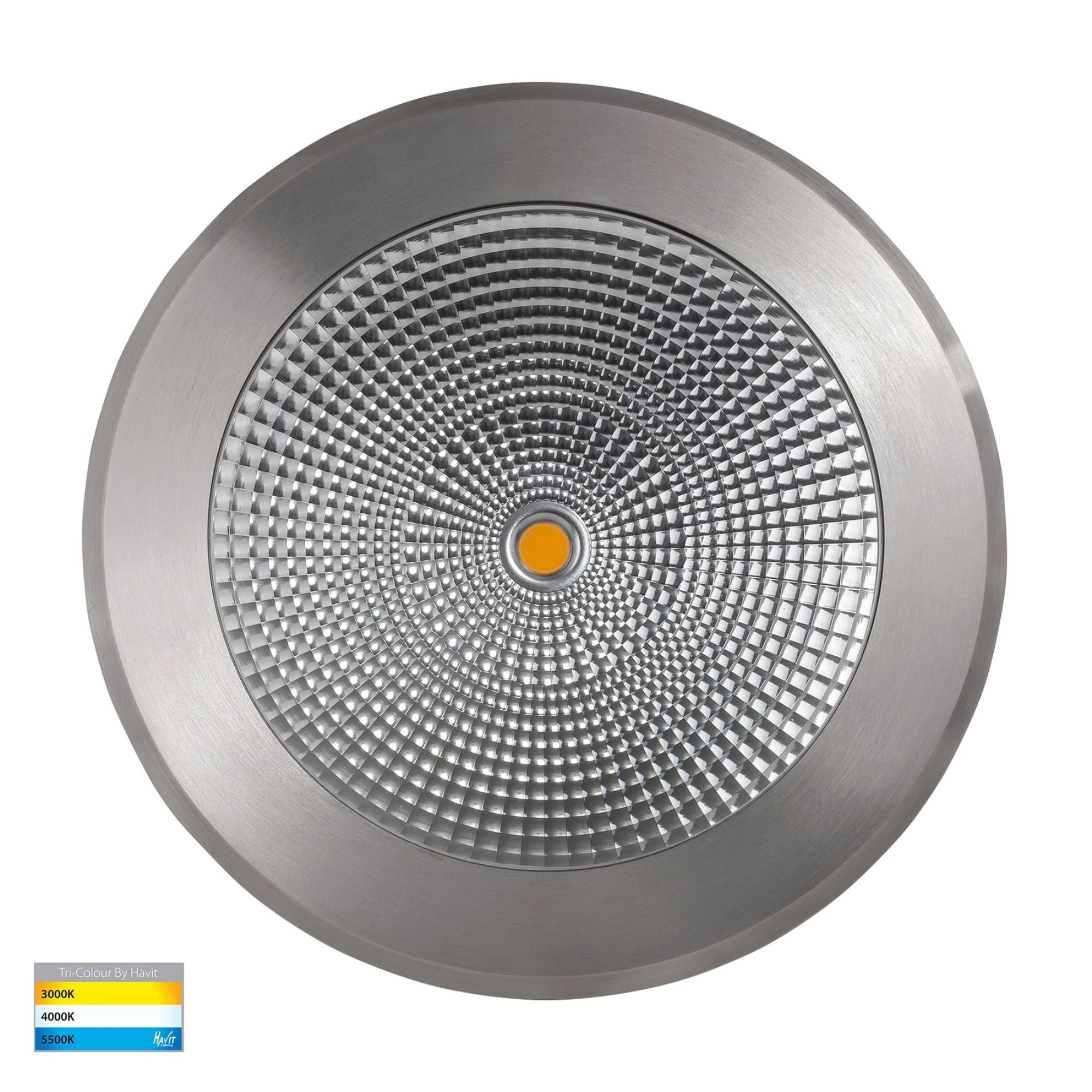

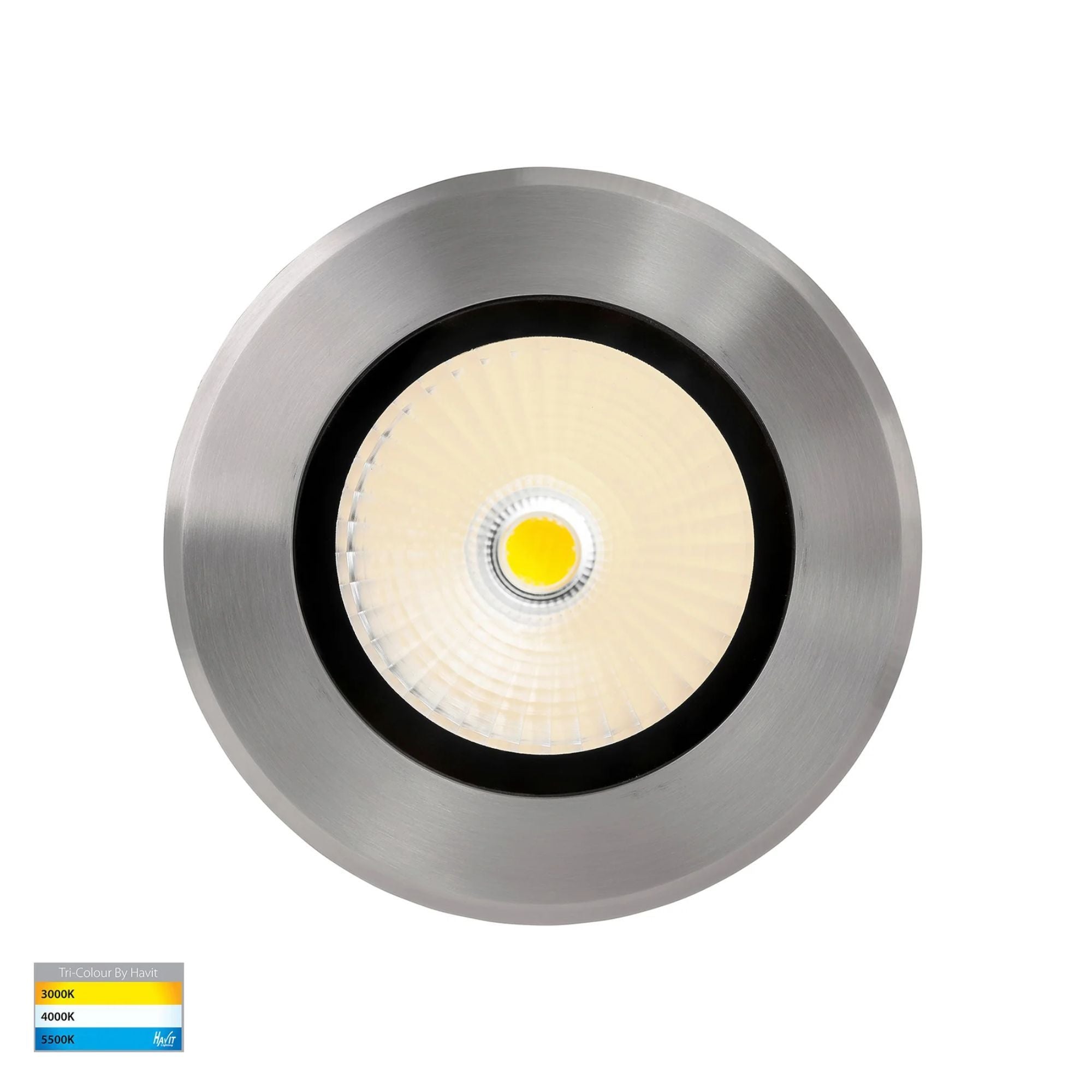

A recessed round uplighter with a marine-grade 316 stainless steel face, black aluminium body and flush tempered glass. Choose from five sizes and beam patterns, with a built-in tri-colour LED in each model.
Before you order
Licensed mains installation: these 240 V AC fittings are Class I and require an earth connection. Select the mains-voltage option for your installation; a 12 V driver is not required for these models.
Drainage and location: the exact installation instructions require drainage to prevent prolonged standing water and prohibit aluminium fittings within 5 km of any saltwater environment. The stainless steel face does not remove the aluminium-body restriction.
Stainless steel care: the face requires regular cleaning; surface rust and tea staining are excluded from the limited manufacturer warranty.
Plan for access and operating hours: licensed installation is required. Havit’s inground warranty conditions limit continuous use to 8 hours, followed by a 1-hour rest, with no more than 12 hours of total use per day for the 3-year term.
Choose the exact size and beam
| Exact model | Face | Power / beam | 3000 K | 4000 K | 5500 K |
|---|---|---|---|---|---|
| HV1831T-240V | 100 mm | 7 W / 38° | 570 lm | 600 lm | 630 lm |
| HV1832T-240V | 160 mm | 10 W / 120° | 800 lm | 850 lm | 900 lm |
| HV1833T-240V | 210 mm | 20 W / 120° | 1600 lm | 1700 lm | 1800 lm |
| HV1834T-240V | 210 mm | 30 W / 60° | 2400 lm | 2550 lm | 2700 lm |
| HV1835T-240V | 260 mm | 30 W / 120° | 2400 lm | 2550 lm | 2700 lm |
The 210 mm / 30 W option is the 60° narrow-beam HV1834T. The 210 mm / 20 W and 260 mm / 30 W options have 120° beams. All models are preset to 3000 K; your electrician sets the bottom-mounted switch within its sealed cover to 3000 K, 4000 K or 5500 K.
Specifications
- Input voltage
- 240 V AC
- Protection class
- Class I; earth connection required
- LED / dimming
- Built-in LED / non-dimmable
- Construction
- Marine-grade 316 stainless steel cover; black aluminium body
- Diffuser
- Flush tempered clear glass
- Protection / impact
- IP67 / IK10
- Manufacturer trafficable rating
- 1000 kg
- Colour rendering
- CRI >80
- Mounting / wiring
- Recessed inground / parallel wiring
- Fitting cable
- 300 mm
- Manufacturer lamp expectancy
- <30,000 hours, reproduced as published; laboratory rating subject to conditions

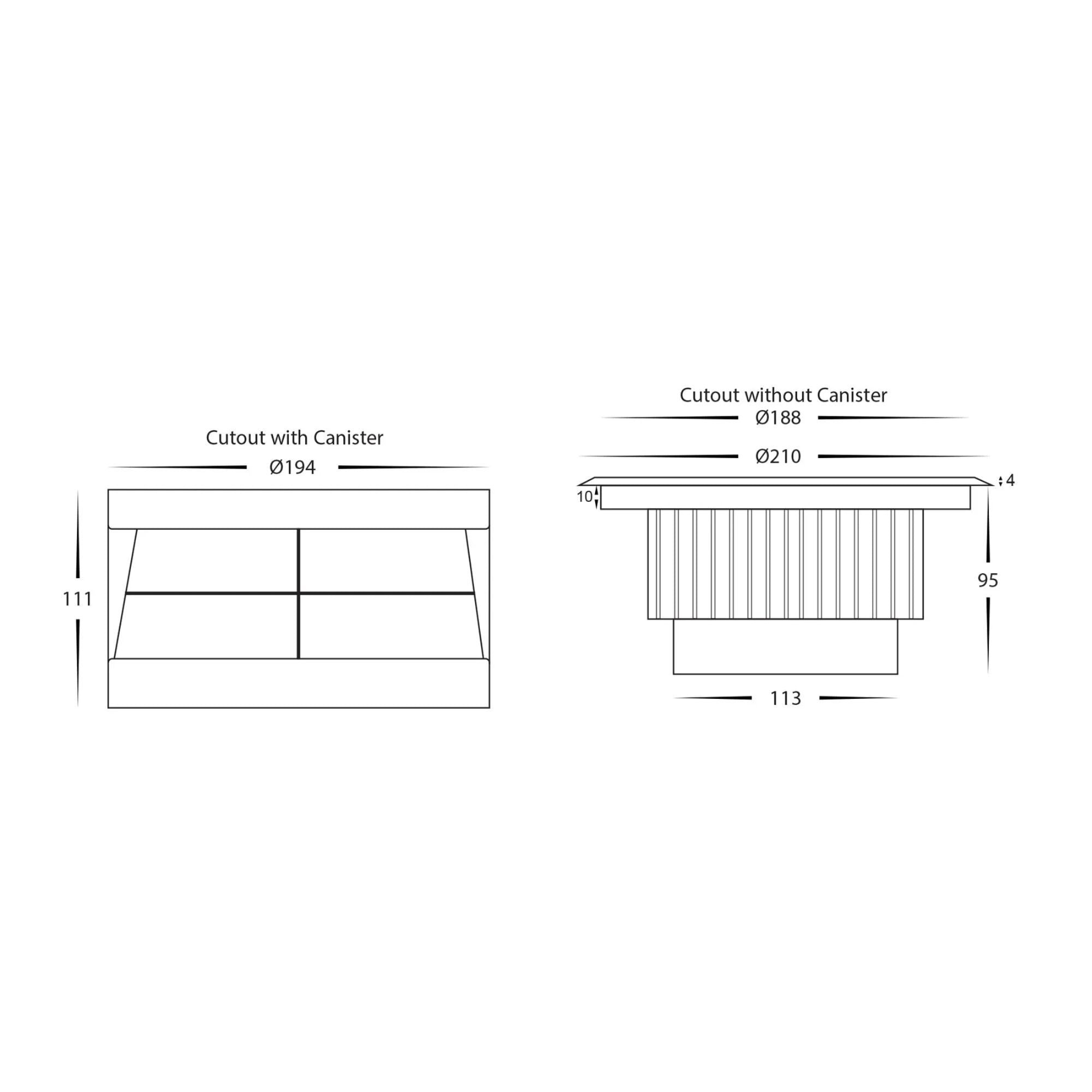

Dimensions and recess planning

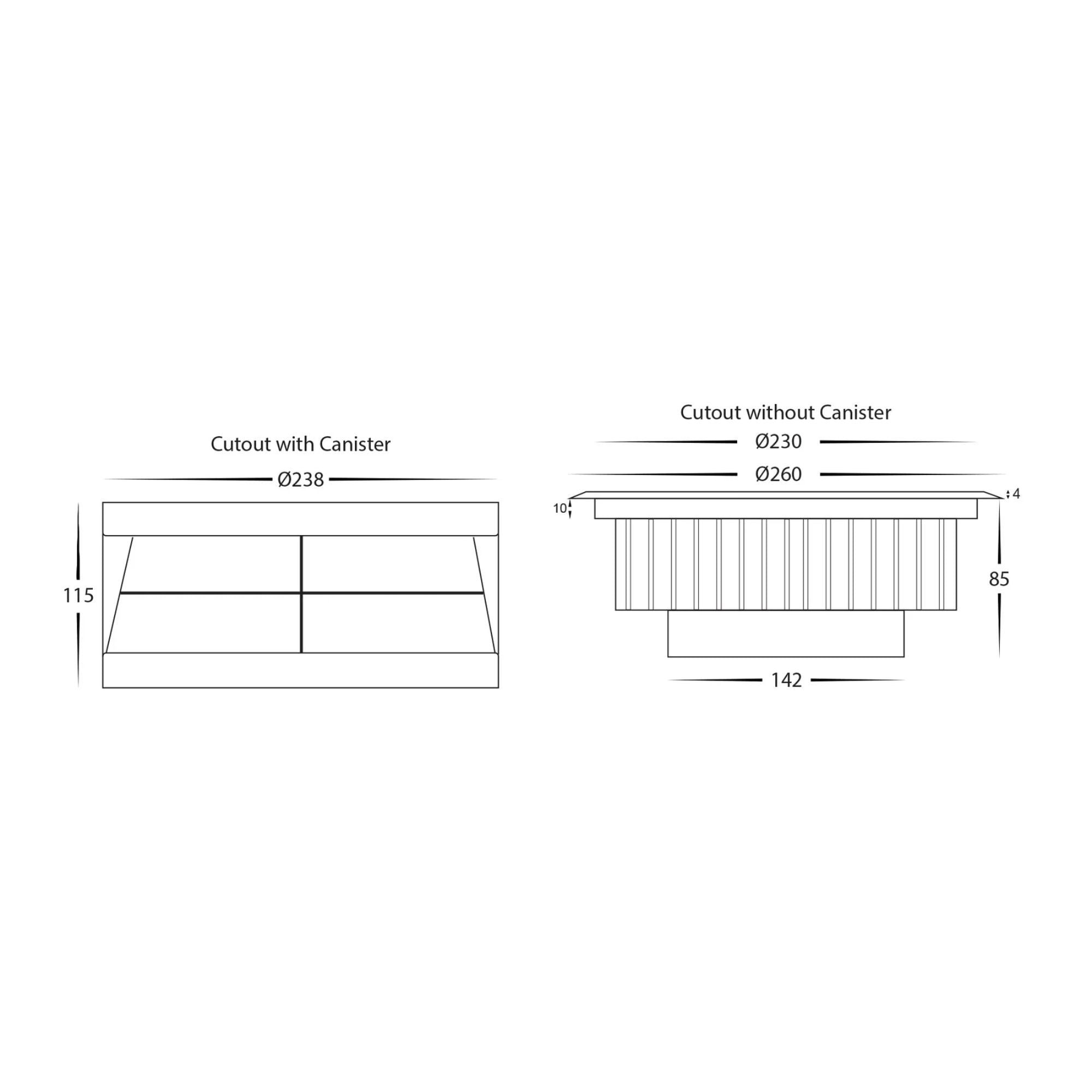

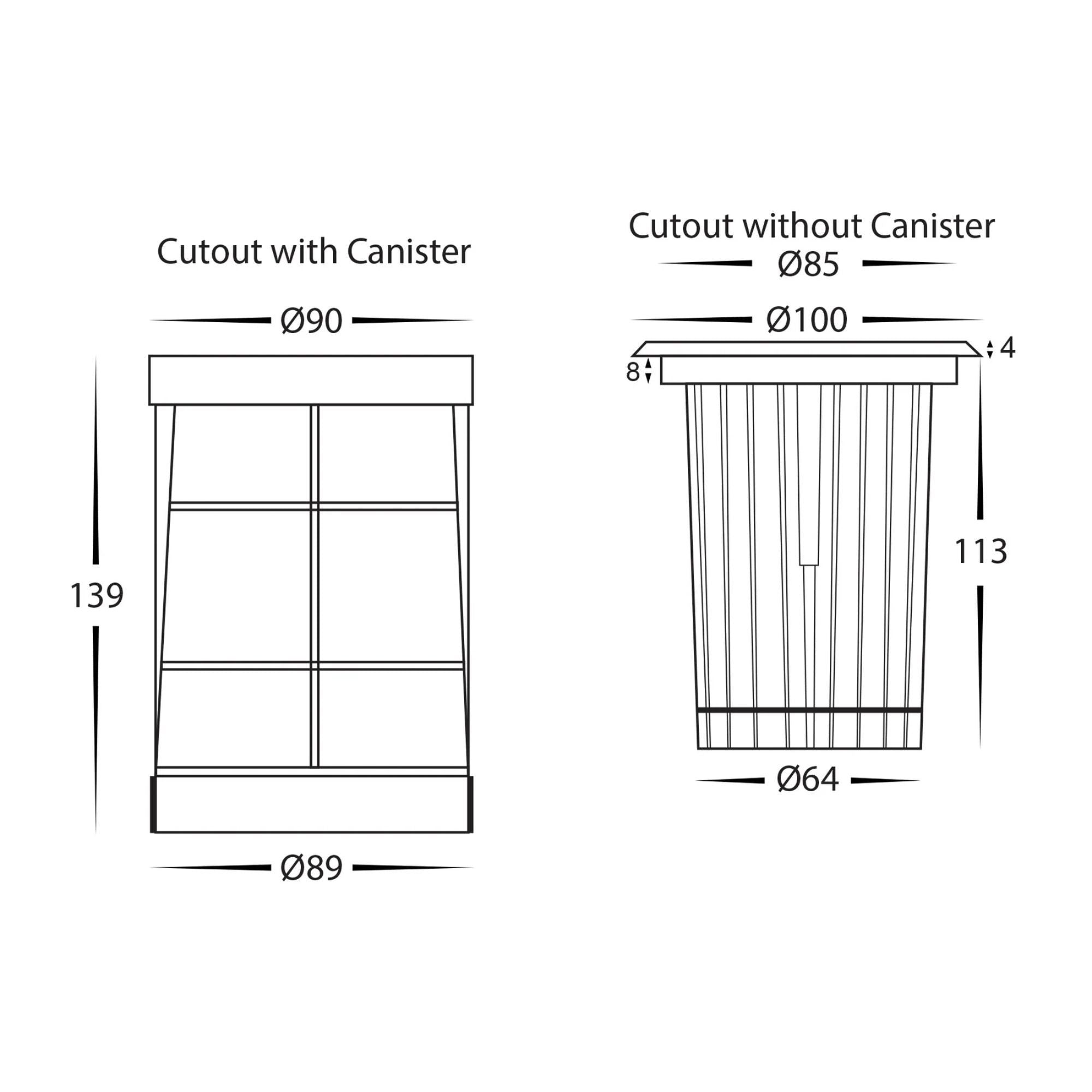

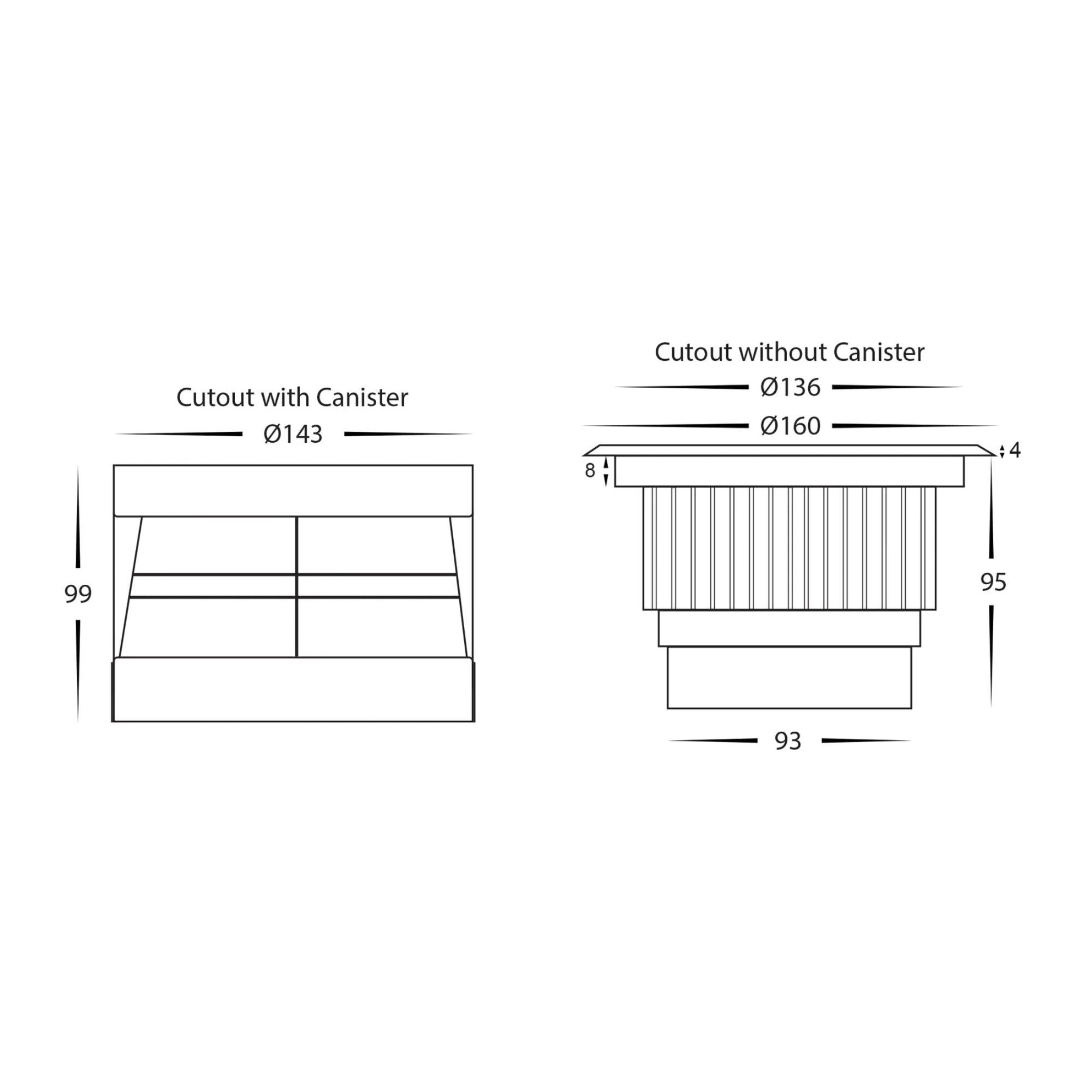

| Exact model | Face diameter | Fitting depth shown | Cutout without canister | Cutout with canister | Canister height |
|---|---|---|---|---|---|
| HV1831T-240V | 100 | 113 | 85 | 90 | 139 |
| HV1832T-240V | 160 | 95 | 136 | 143 | 99 |
| HV1833T-240V | 210 | 95 | 188 | 194 | 111 |
| HV1834T-240V | 210 | 205 | 188 | 199 | 270 |
| HV1835T-240V | 260 | 85 | 230 | 238 | 115 |

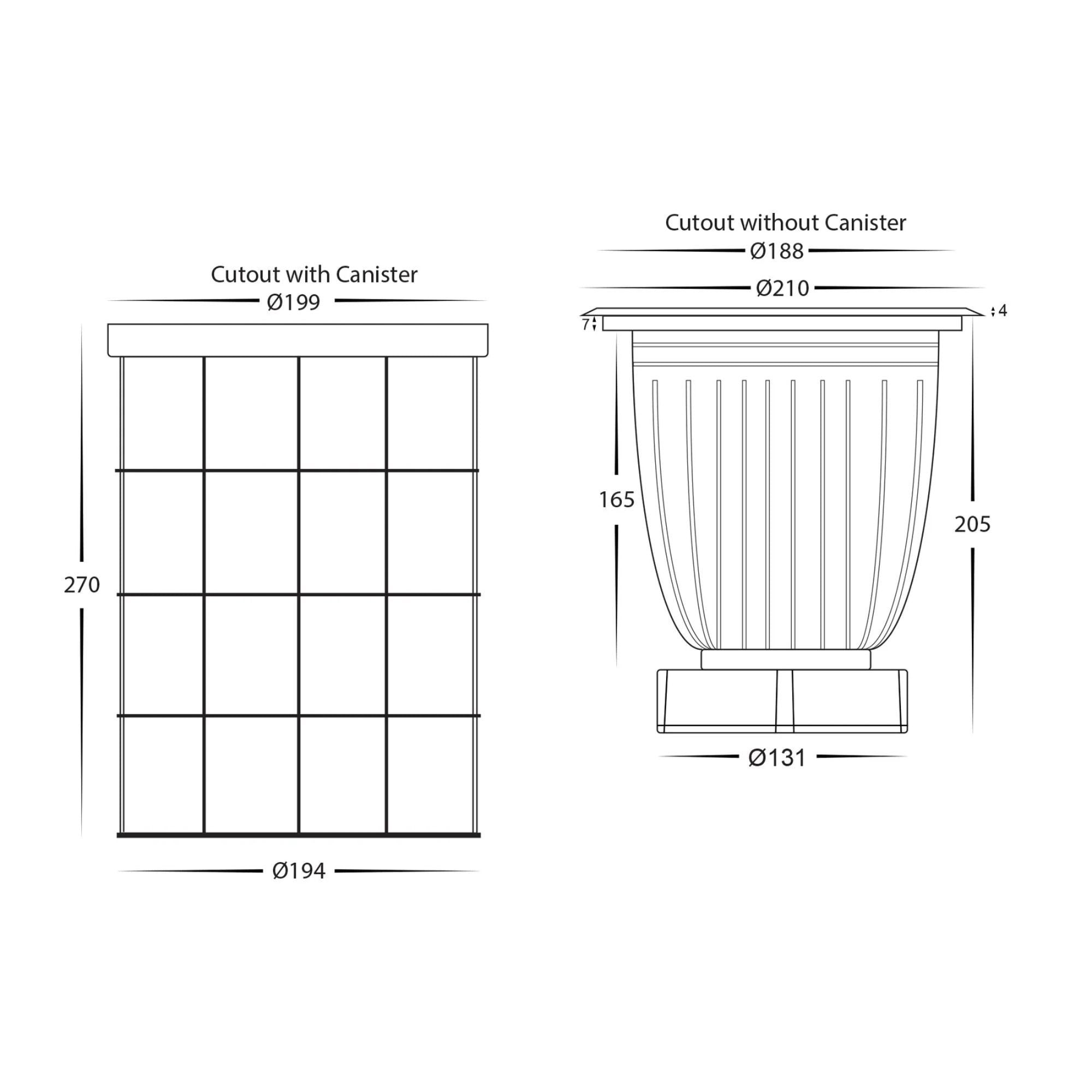

The 210 mm narrow-beam model needs a deeper recess than the 210 mm wide-beam model. Use the exact drawing for the selected model; do not size the excavation from the face diameter alone.
Havit’s drainage diagram specifies 100 mm of clear space beneath the canister and a 100–150 mm layer of crushed rock below that space. Set the canister top level with the ground or floor, with a slight fall in the surrounding surface to direct water away.
Optional model-specific accessories
- HV1831T-240V
- HV1831-HC Honeycomb Lens; HV1831-F-SH Security Face with screws; HV1831-F-BR Solid Brass Face with screws
- HV1832T-240V
- HV1832-HC Honeycomb Lens; HV1832-F-SH Security Face with screws
- HV1833T-240V
- HV1833-HC Honeycomb Lens; HV1833-F-SH Security Face with screws
- HV1834T-240V
- HV1834-HC Honeycomb Lens; HV1834-F-SH Security Face with screws
- HV1835T-240V
- HV1835-HC Honeycomb Lens; HV1835-F-SH Security Face with screws
The HV9971 stainless steel maintenance kit is an optional accessory for all five models. Optional solid brass faces naturally tarnish outdoors.
Included and required components
Each light has its model-specific integrated LED. Havit’s instructions also confirm an anti-syphon plug and male and female cable connector are supplied; both must remain on the cable.
Provide the appropriate electrical supply, suitable installation cable, watertight connection materials and an adequately drained recess. Havit shows a model-specific canister in the drawings; confirm canister supply for your selected model before ordering.
Matching honeycomb lenses and security faces are separate optional accessories. A solid brass face is also available for the 100 mm model. The HV9971 stainless steel maintenance kit is optional.
Installation and stainless steel care
- A licensed electrician must install the fitting in accordance with AS/NZS 3000, with mains power isolated. For these 240 V models, earth must be connected first.
- Prepare the model-specific recess and drainage. Keep the canister level with the ground or floor. Retain the supplied anti-syphon plug and cable connector.
- Follow the exact manufacturer instructions for soldered joins and watertight connections using adhesive-lined heat shrink or gel caps. Keep seals and O-rings correctly seated, tighten the cable gland, and apply the specified perimeter silicone seal.
- Have the electrician set the colour-temperature switch with power isolated, then refit and tighten the sealed cover. Inspect every connection before restoring power.
- Clean the 316 stainless steel face regularly to limit tea staining. Havit’s optional HV9971 kit uses a rejuvenating paste followed by Nanolan protective spray. Surface rust and tea staining are excluded from the limited manufacturer warranty.
- Havit’s LED warranty conditions prohibit installation on the same circuit as fluorescent lighting, exhaust fans, bathroom three-in-one units, ovens or microwaves.
Manufacturer warranty and usage
The fitting has a 3-year limited replacement warranty, subject to licensed installation, proof of purchase and Havit’s current terms. For the 3-year inground term, use no more than 8 continuous hours, allow a 1-hour rest before switching on again, and keep total use within 12 hours per day. Havit lists an 18-month term for 8–12 hours of continuous use and a 12-month term for 12–24 hours.
Domestic products used in commercial premises have a 12-month warranty term unless specifically designated otherwise. During the first 12 months, installation and labour claims are assessed at the discretion of Havit’s Service Team; the remaining two years cover replacement only and exclude labour, subject to applicable consumer rights.
Current manufacturer warranty terms · Complete 2026 warranty PDF · Stainless steel maintenance kit and care information
Exact manufacturer documents
- HV1831T product information · Datasheet and dimensions · Installation and drainage instructions
- HV1832T product information · Datasheet and dimensions · Installation and drainage instructions
- HV1833T product information · Datasheet and dimensions · Installation and drainage instructions
- HV1834T product information · Datasheet and dimensions · Installation and drainage instructions
- HV1835T product information · Datasheet and dimensions · Installation and drainage instructions
