Havit HIGHLITE - 5W TRI Colour LED Bollard Lights IP54
Highlite white 12 V bollard light
445 mm aluminium bollard with a clear Perspex reflector lens and included 5 W TRI-colour MR16 LED.
Important before you buy
This HV1602T-WHT model requires a suitable 12 V DC LED driver, supplied separately, and must use LED globes only (10 W maximum). It is not the related 240 V GU10 model. The supplier’s linked installation instructions require licensed electrical installation, a concrete base above ground level and waterproof sealing. Aluminium fittings must not be installed within 5 km of salt-water environments.
Key features
Included 5 W lamp: 3000 K, 4000 K or 5500 K.
Poly powder-coated white with a high-grade clear Perspex reflector lens.
Compatible with separately purchased HV1603-WHT extensions; up to two may be used.
Technical specifications
- Exact model
- HV1602T-WHT
- Input
- 12 V DC
- Included LED
- 1 × 5 W MR16 TRI-colour LED
- Colour temperature / lumens
- 3000 K: 270 lm; 4000 K: 285 lm; 5500 K: 300 lm
- Beam angle
- 120° with the supplied lamp, per current datasheet
- Material / finish
- Aluminium; poly powder-coated white
- Reflector / diffuser
- High-grade clear Perspex
- Protection
- IP54; IK09
- Electrical protection
- Class 3; no earth required for this 12 V model
- Dimming
- No with the supplied globe
- Maximum lamp wattage
- 10 W; LED globes only
- Colour rendering
- CRI >80
- Lamp expectancy
- Less than 30,000 hours
- Cable
- 2 m reinforced cable
- Installation
- Ground, surface mounted
Dimensions
- Overall height
- 445 mm
- Body diameter
- 63 mm
- Base diameter
- 83 mm

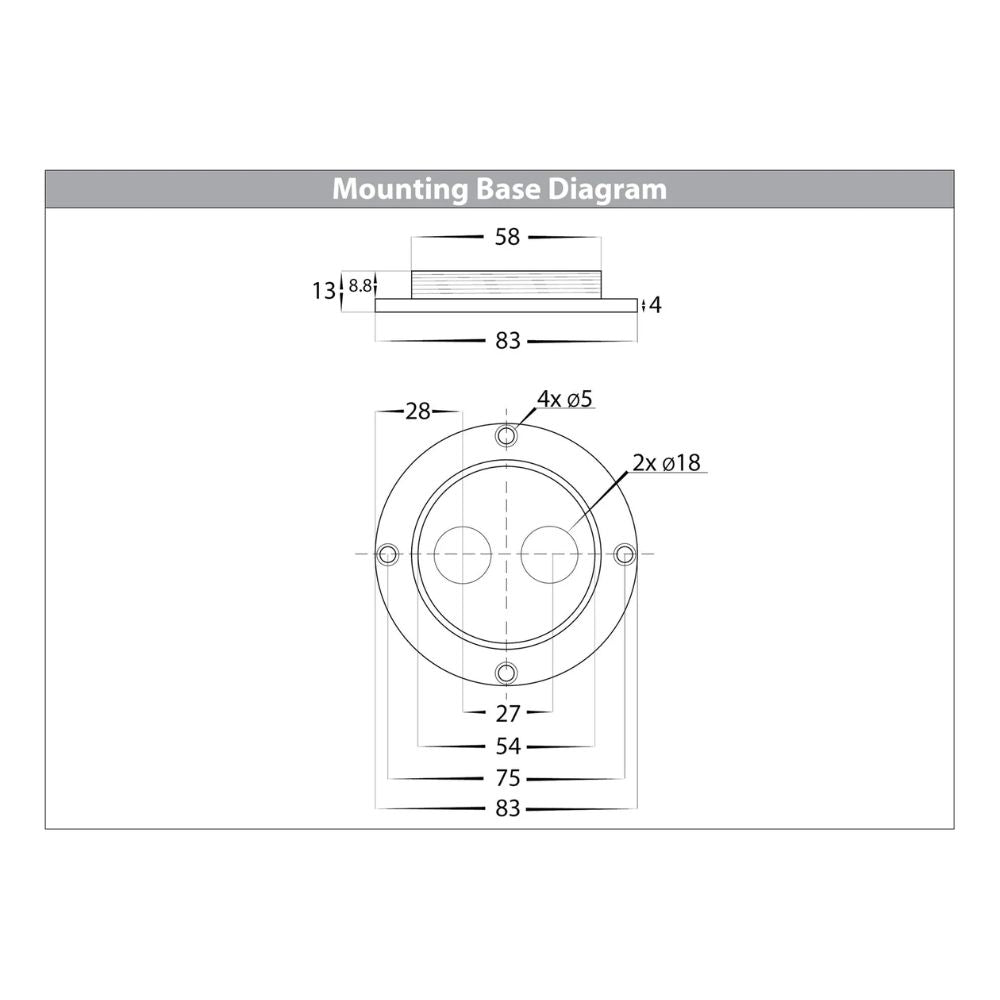

- Mounting base drawing
- 4 × 5 mm fixing holes; 2 × 18 mm openings. Refer to manufacturer drawing for spacing
Compatible accessories
Optional: HV1603-WHT extension (up to two), HV1607 ground spike and HV9911/HV9912/HV9913 weatherproof connectors. The listed 12 V replacement MR16 lamp is HV9507. A 24 V MR16 option or a GU10 lamp is not a direct substitute for this model.
What’s included / required separately
Included: white Highlite bollard, 5 W TRI-colour MR16 LED and 2 m cable. Required separately: suitable 12 V DC LED driver. Optional extensions, ground spike and connection accessories are separate purchases.
Installation & maintenance
The current product page links the HV1602 12 V family instructions. Fit the base to concrete or a concrete pad above ground level; seal cable entries, fixing holes and the fitting at ground level. Supplied mild-steel screws must be replaced with a higher grade if water exposure is possible. Keep seals correctly fitted. Isolate power before changing the lamp’s colour switch.
Warranty
3-year replacement warranty, subject to Havit’s warranty terms. Applies to items ordered after 1 January 2022.
