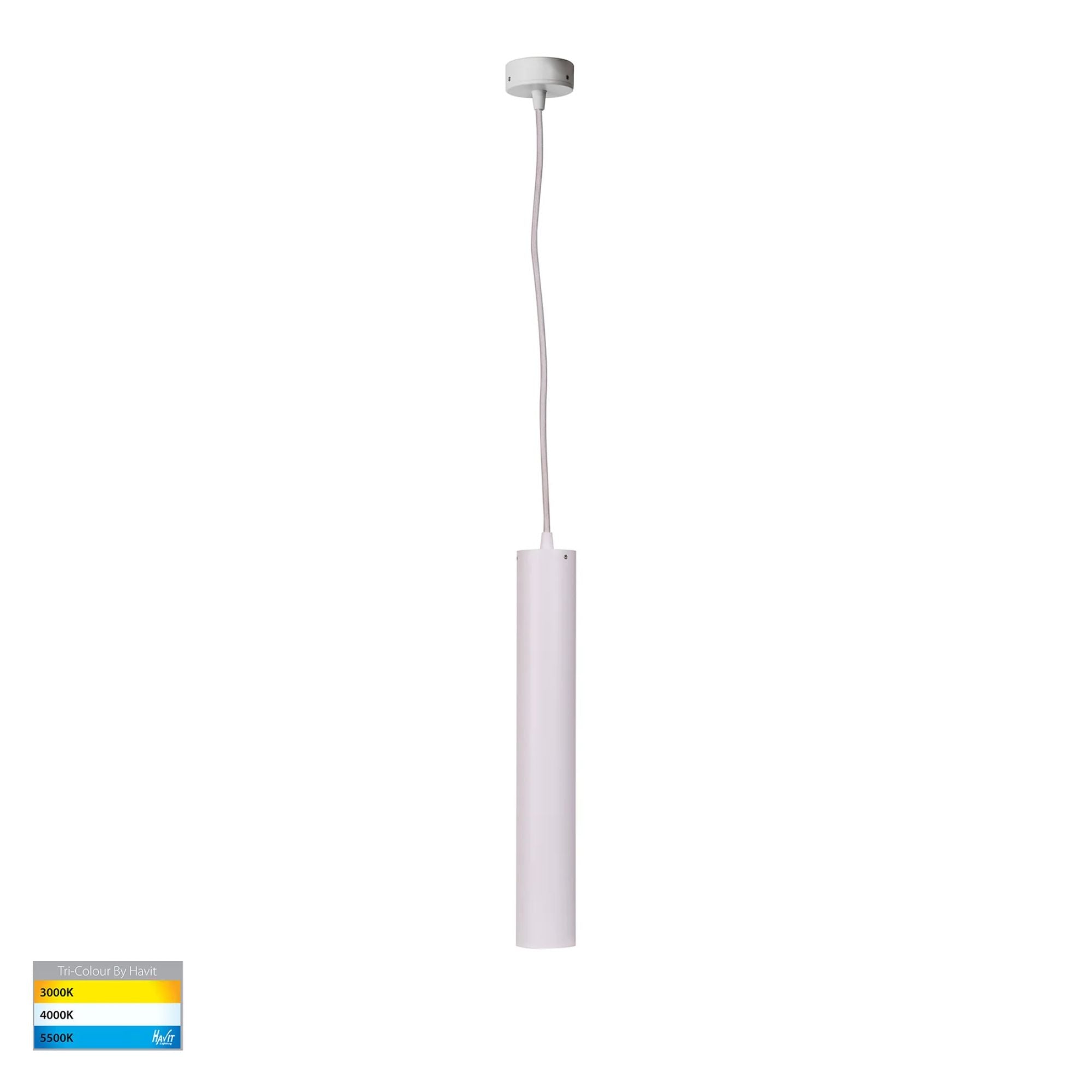

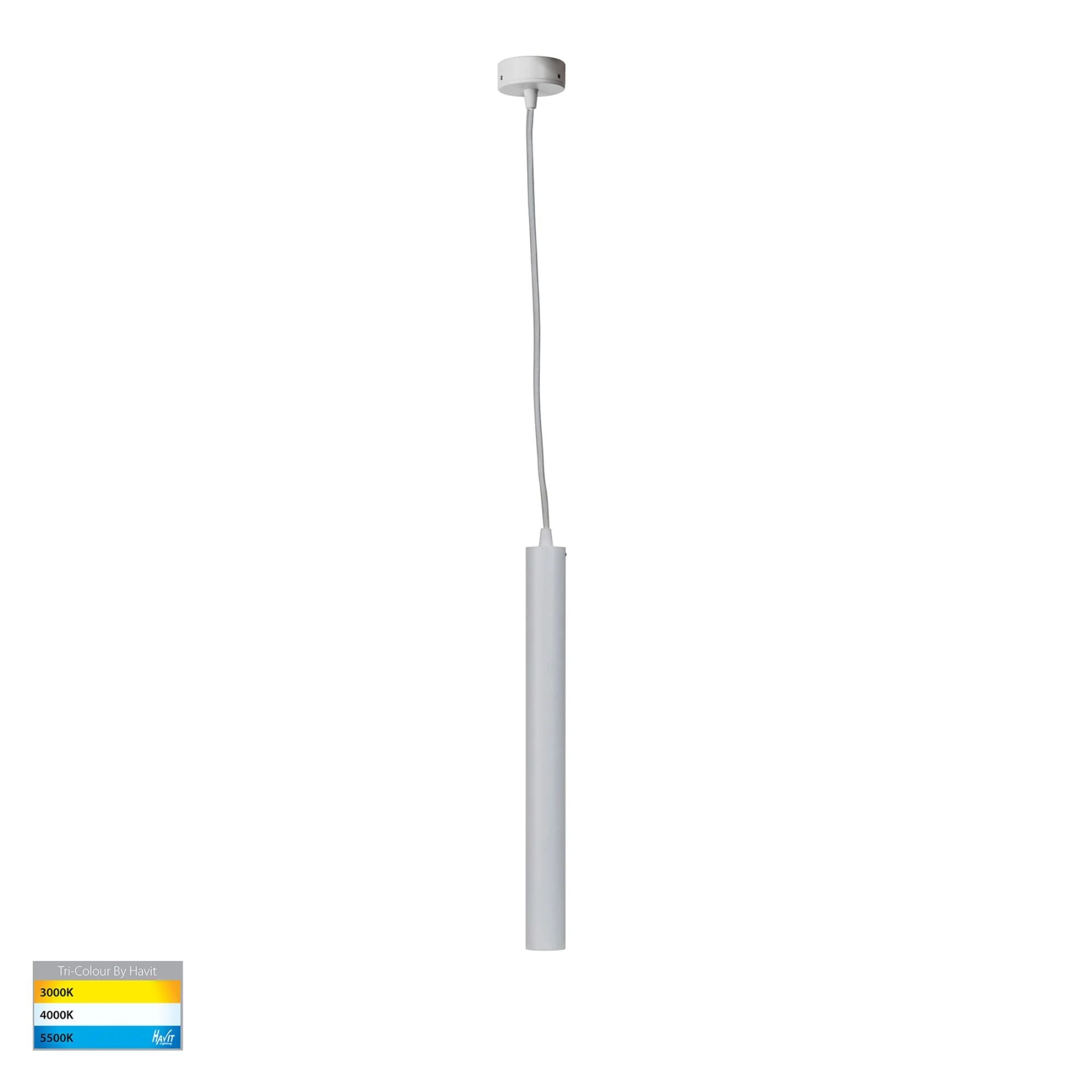

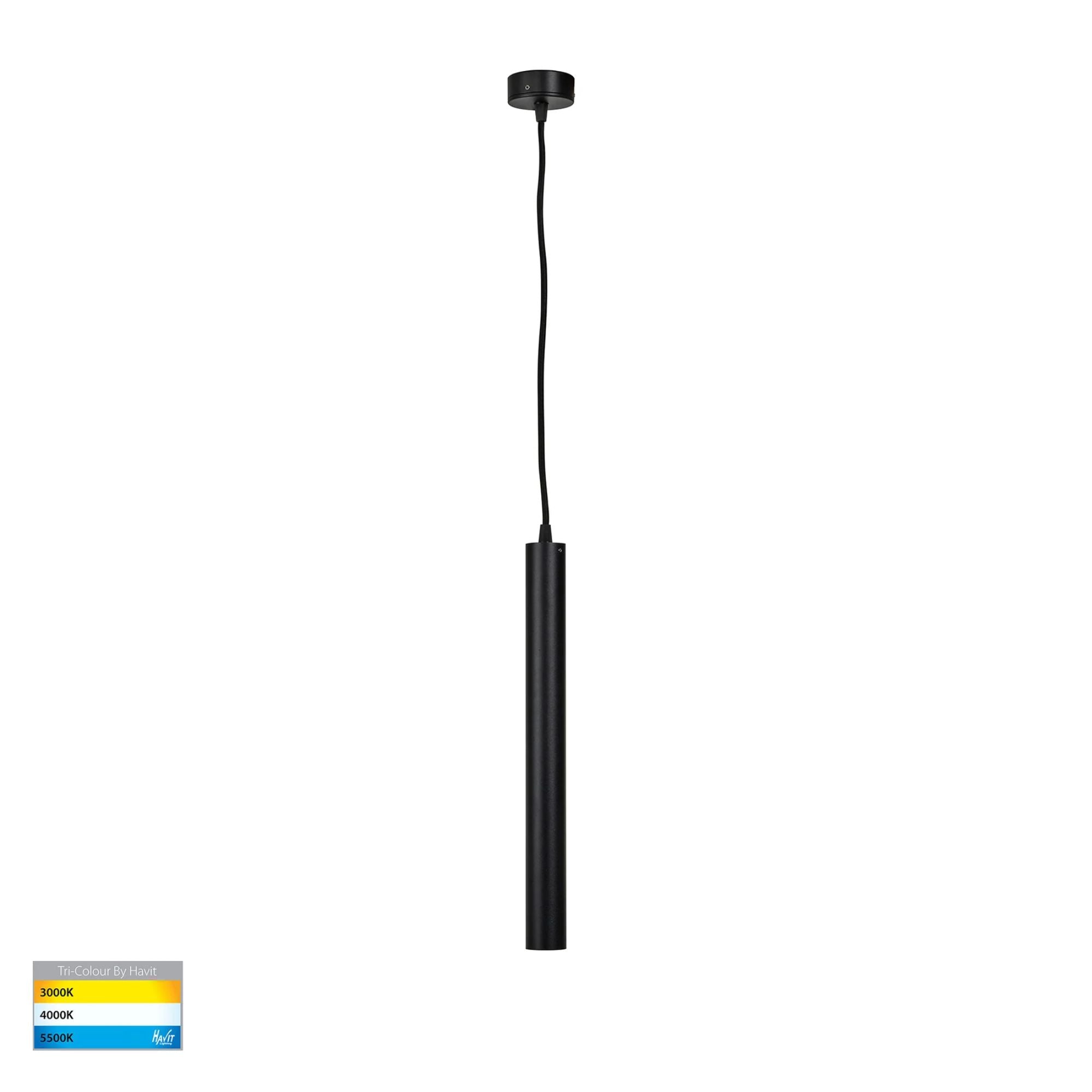

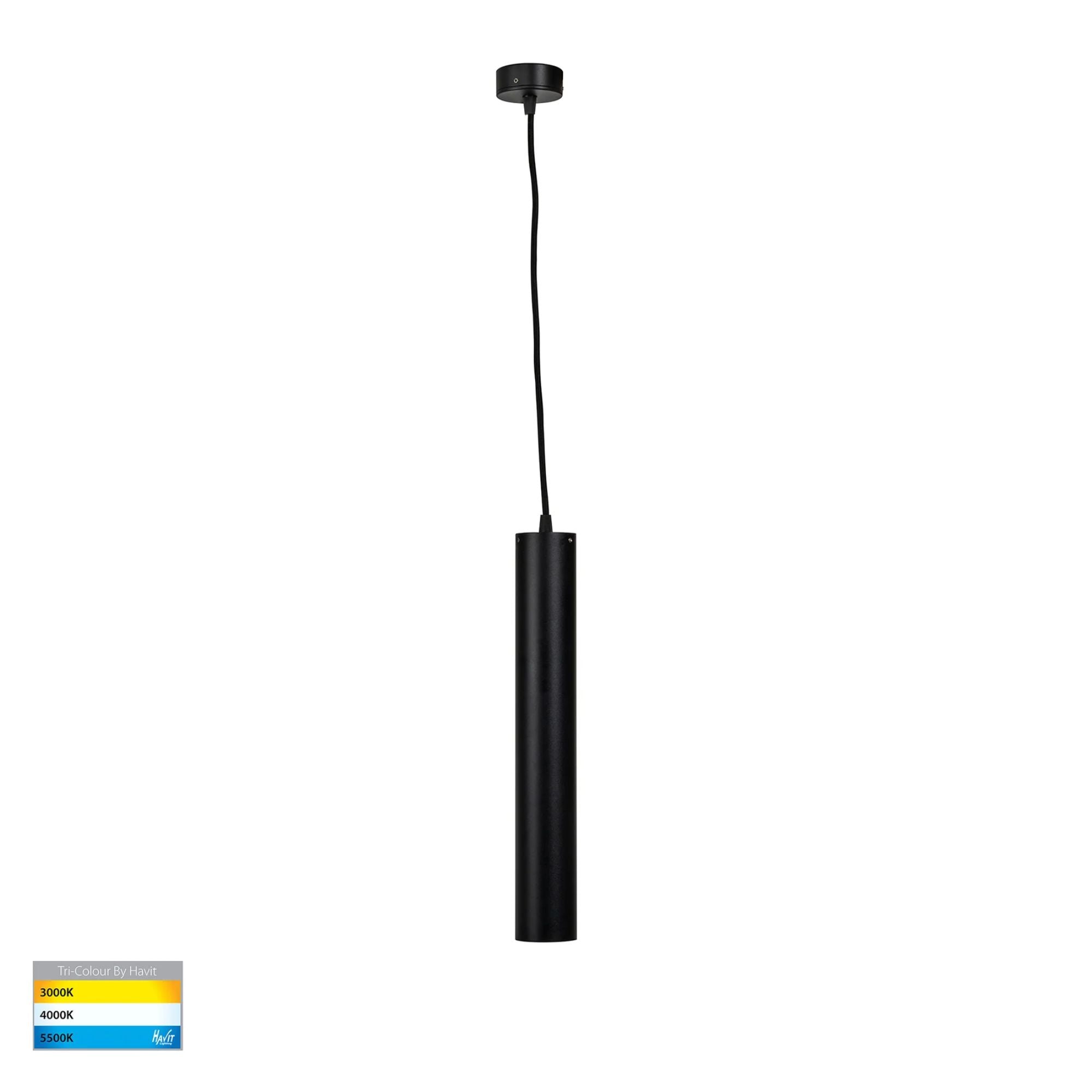

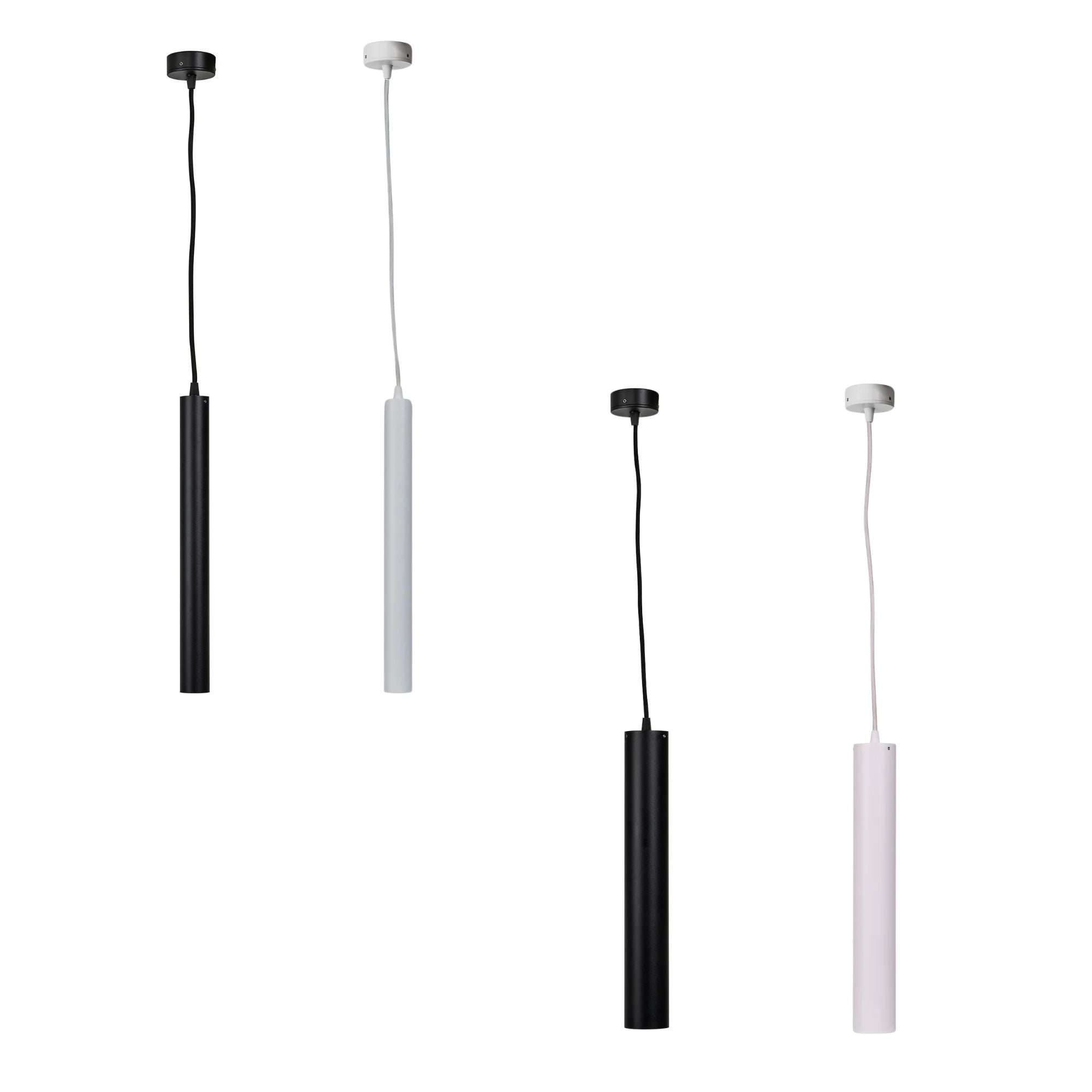

Havit HENGER - 1 Light Cylinder LED Pendant
HENGER Cylinder LED Pendant
A slim aluminium pendant with a clear glass diffuser, built-in LED and adjustable suspension cable. Choose a 40 mm cylinder with a 6 W LED or a 60 mm cylinder with a 9 W LED, in Black or White.
Before you order
Location restriction: Havit’s exact installation instructions prohibit these aluminium fittings within 5 km of any saltwater environment.
Licensed installation required: this 240 V AC pendant is Class I and requires an earth connection. Plan a suitable ceiling fixing and have your electrician set the suspension length and colour temperature.
For dimming: provide a compatible TRIAC LED dimmer, sold separately; its selection must suit the connected LED load.
Choose your cylinder
HV5898T-BLK: Black.
HV5898T-WHT: White.
3000 K: 480 lm.
4000 K: 520 lm.
5500 K: 500 lm.
HV5899T-BLK: Black.
HV5899T-WHT: White.
3000 K: 720 lm.
4000 K: 760 lm.
5500 K: 740 lm.
Choose 3000 K warm white, 4000 K neutral white or 5500 K cool white. The fitting is preset to 3000 K; the internal switch at the top of the pendant is set during installation.
Specifications and dimensions
- Input / protection class
- 240 V AC / Class I; earth connection required
- LED / power
- Built-in LED; 6 W for HV5898T or 9 W for HV5899T
- Construction / finish
- Aluminium, poly powder coated Black or White
- Diffuser
- Clear glass
- Protection
- IP65 / IK08
- Beam angle / colour rendering
- 60° / CRI >80
- Dimming
- TRIAC dimmable; compatible dimmer required for dimming
- Manufacturer lamp expectancy
- <30,000 hours, reproduced as published; laboratory rating subject to conditions
- Mounting / wiring
- Ceiling surface mounted / parallel wiring
- Cylinder dimensions
- HV5898T: 40 mm diameter × 400 mm high.
HV5899T: 60 mm diameter × 400 mm high. - Ceiling canopy
- 68 mm diameter × 27 mm high
- Suspension cable
- 2550 mm, adjustable by the installer
- Overall dimension
- Havit’s drawing labels the complete pendant at 3000 mm overall before suspension adjustment
- Mounting details
- Two 4.2 mm mounting holes at 40 mm centres; see the exact mounting-base drawing for installation
Included and required components
The pendant has a built-in 6 W or 9 W LED, according to the selected diameter. Its assembly includes the ceiling canopy and adjustable suspension cable shown in Havit’s diagrams.
Provide a suitable 240 V AC supply with earth, and ceiling fixings appropriate for the mounting surface. Installation must be performed by a licensed electrician.
HENGER is TRIAC dimmable. A compatible dimmer is needed if dimming is desired; Havit lists its HV9625 LED dimmer (300 W maximum rating) as an optional accessory sold separately. Dimmer selection must suit the connected LED load.
Installation essentials
- A qualified, licensed electrician must install the pendant in accordance with AS/NZS 3000, with mains power isolated. Connect earth first and wire multiple fittings in parallel.
- Secure the mounting plate with screws appropriate for the ceiling structure. Follow Havit’s exact instructions to shorten the suspension cable and remove excess cable.
- Set the internal colour-temperature switch with power isolated, then reattach the pendant and tighten its screws. Keep all O-rings and seals correctly seated and inspect electrical contacts before restoring power.
- Havit’s LED warranty conditions prohibit installation on the same circuit as fluorescent lighting, exhaust fans, bathroom three-in-one fittings, ovens or microwaves.
Manufacturer warranty
The fitting has a 3-year limited replacement warranty, subject to proof of purchase, licensed installation and Havit’s current terms. Havit’s products intended for domestic use have a 12-month warranty term when used commercially, unless specifically designated otherwise.
During the first 12 months, installation and labour claims are assessed at the discretion of Havit's Service Team. The remaining two years cover replacement only and exclude labour, subject to applicable consumer rights.
Read the current manufacturer warranty terms for the complete usage conditions, limitations and claim requirements.
Manufacturer documents
40 mm / 6 W datasheet · 60 mm / 9 W datasheet · Exact installation and mounting diagrams
Exact manufacturer product pages: 6 W Black · 6 W White · 9 W Black · 9 W White
