Havit FLAME - Single CCT/RGBCW Mini Deck Lights
FLAME Mini Deck Light
One 0.5 W recessed deck light with CCT or RGBCW colour control, in Stainless Steel or Black.
Before you order

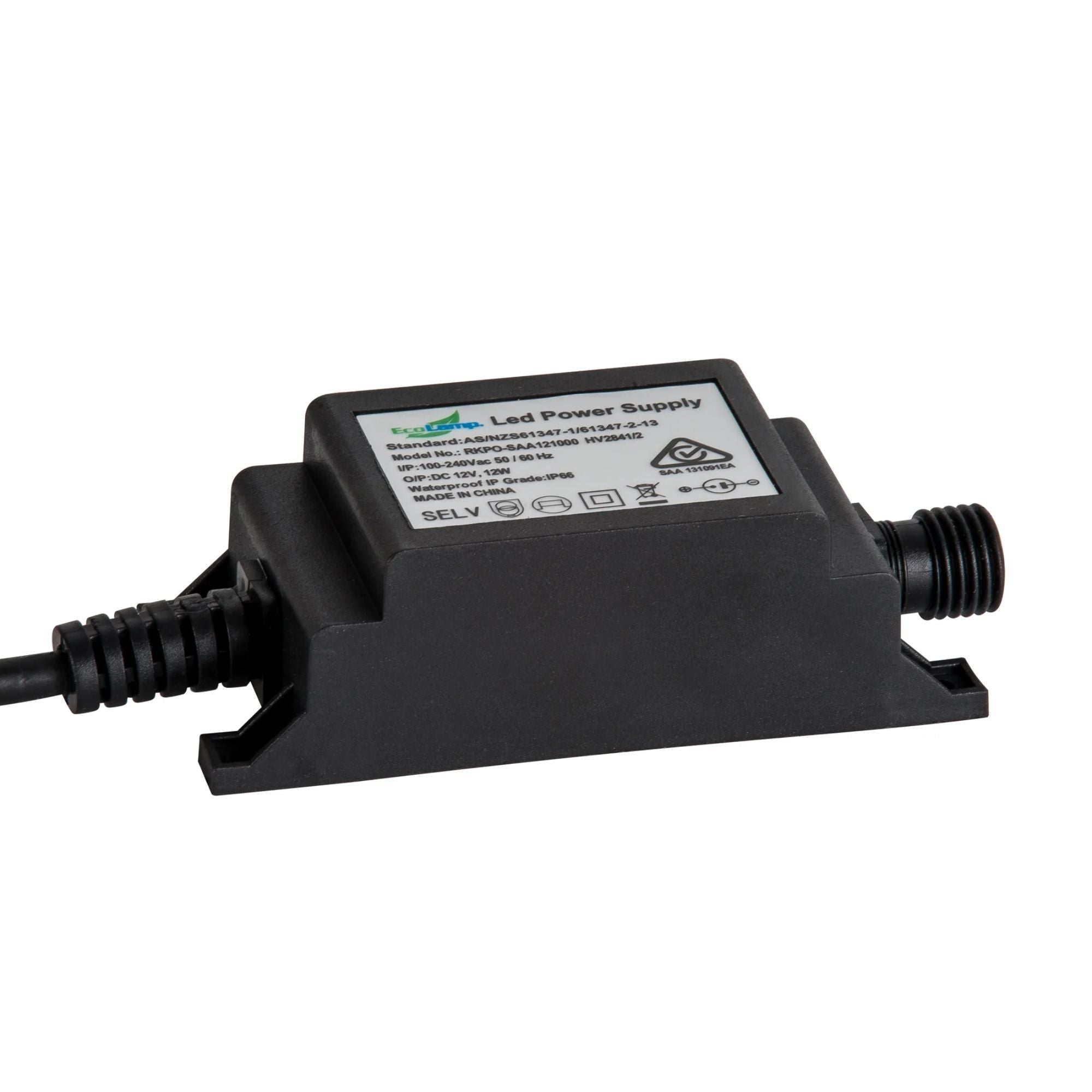

This is one additional light, not the six-light kit. It requires a matching 12 V DC LED driver and CCT or RGBCW controller, supplied separately unless you are adding it to the matching FLAME kit. Choose the control family that matches your existing system. Do not connect the fitting directly to 240 V.
Plan the complete installation: a maximum of 10 fittings may be used with the driver and controller supplied in the kit; the last fitting must be within 25 m of the driver. Licensed electrical installation, adequate drainage, watertight connections and regular cleaning of the 316 stainless steel are required.
Key details
One mini deck fitting with the LED included.

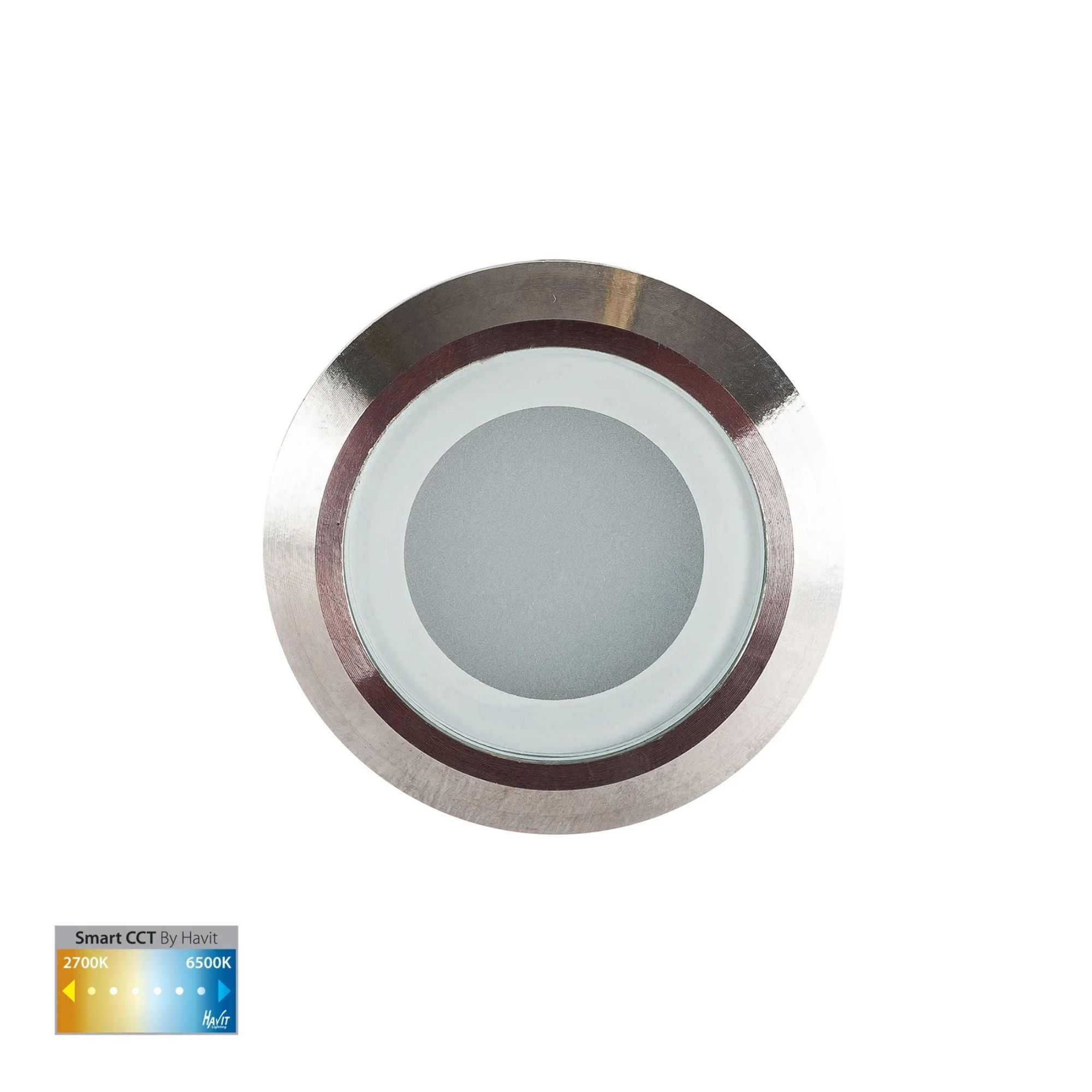

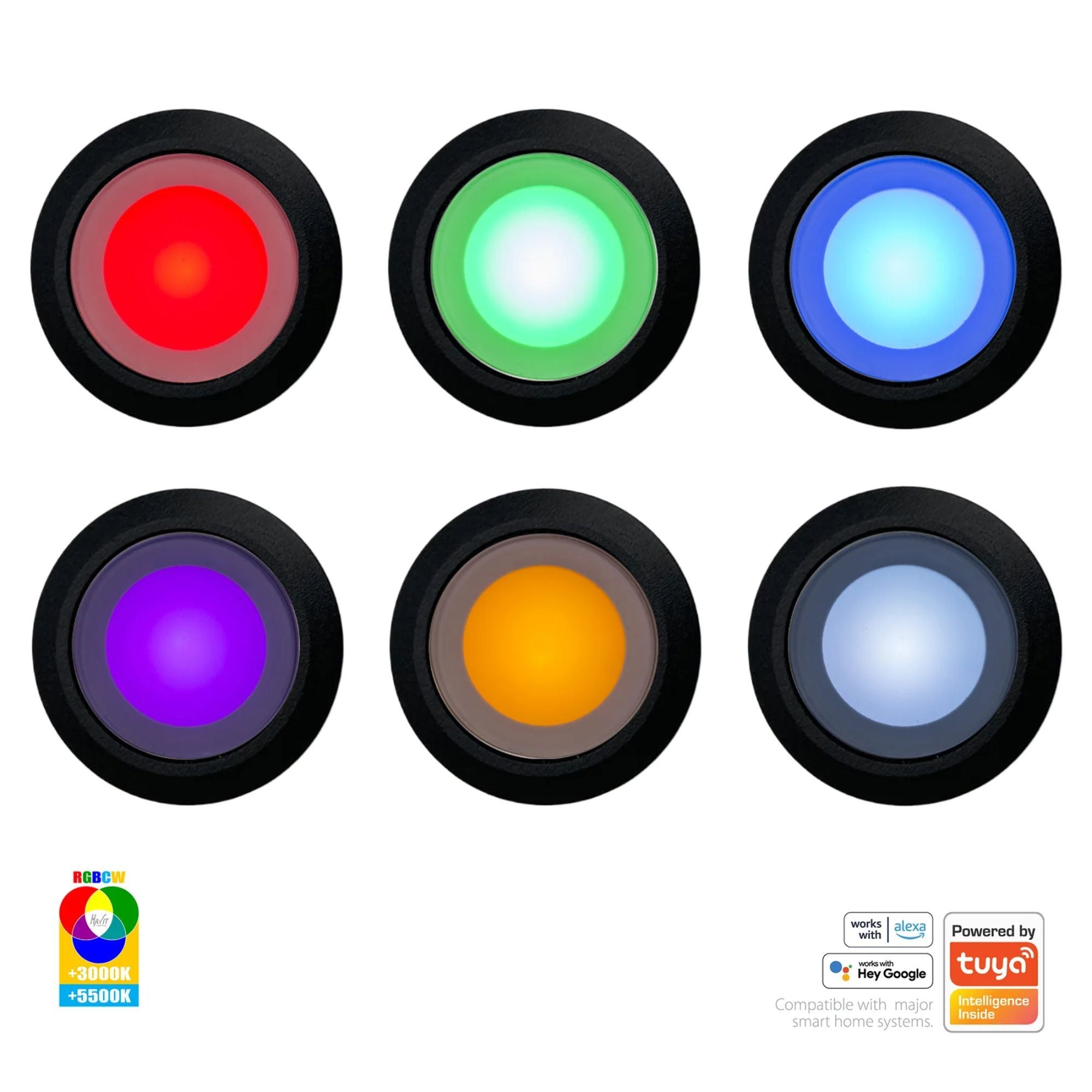

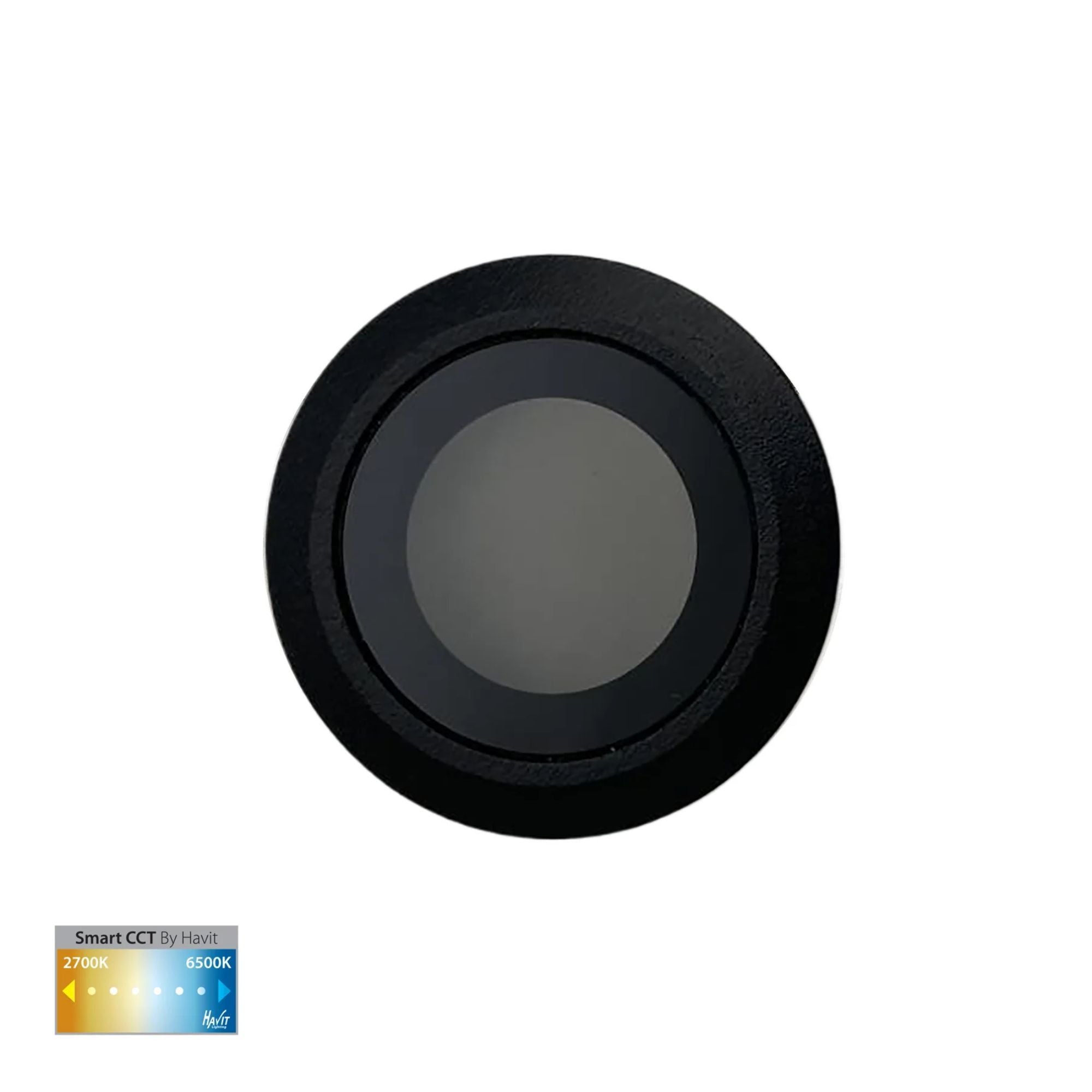

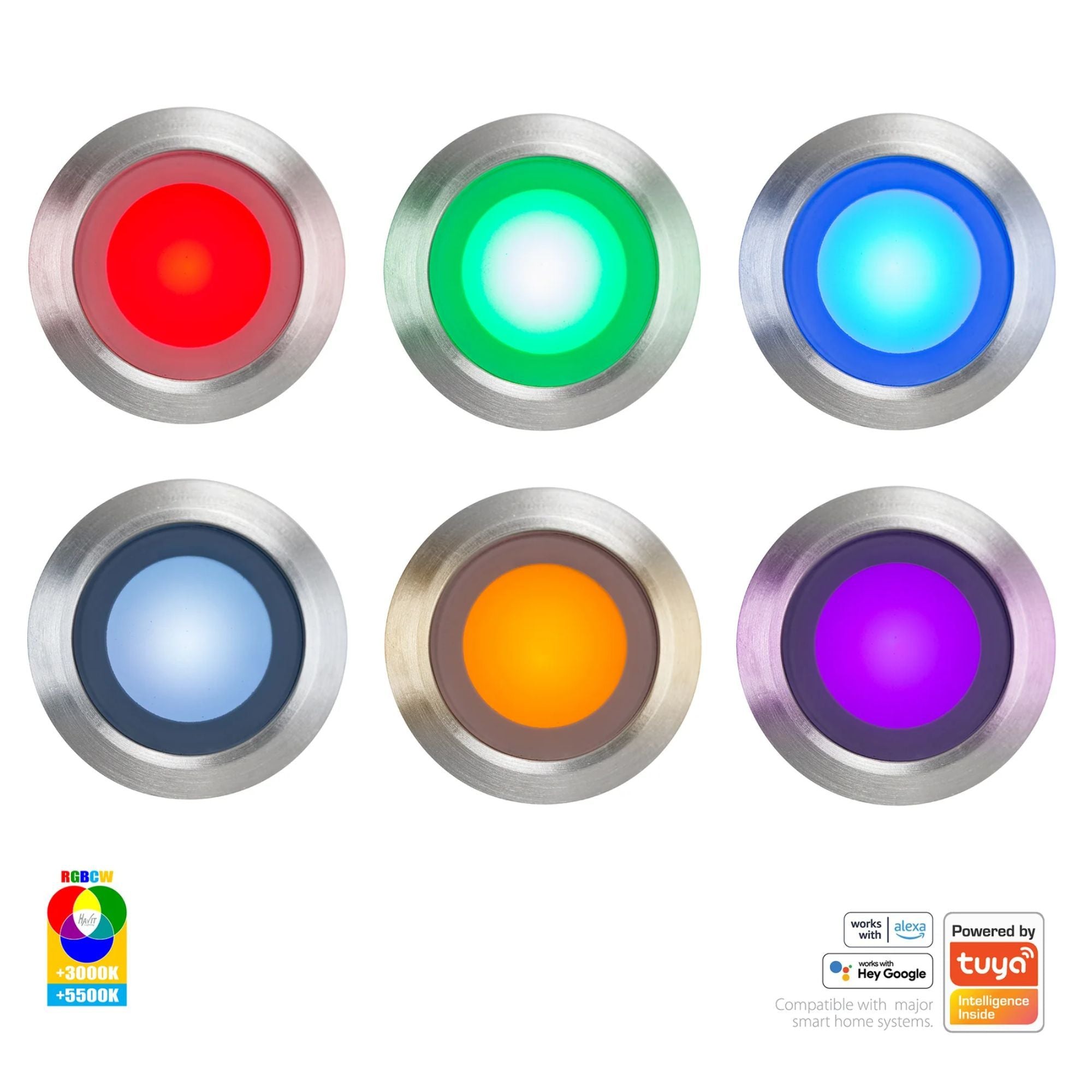

CCT provides adjustable white from 2700 K to 6500 K. RGBCW provides RGB colour plus 3000 K and 5500 K white.

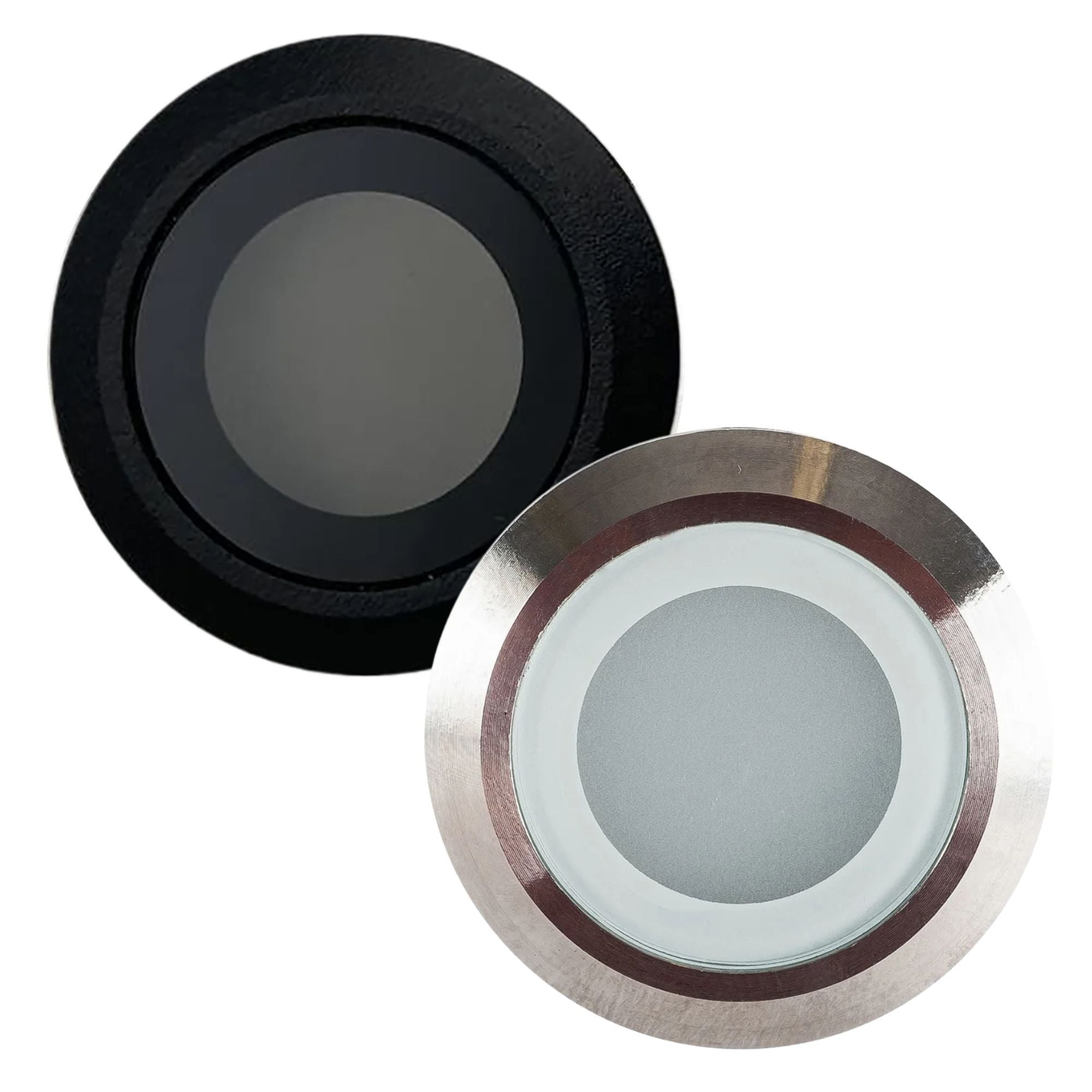

Choose Stainless Steel or a powder coated Black finish, with frosted tempered glass.

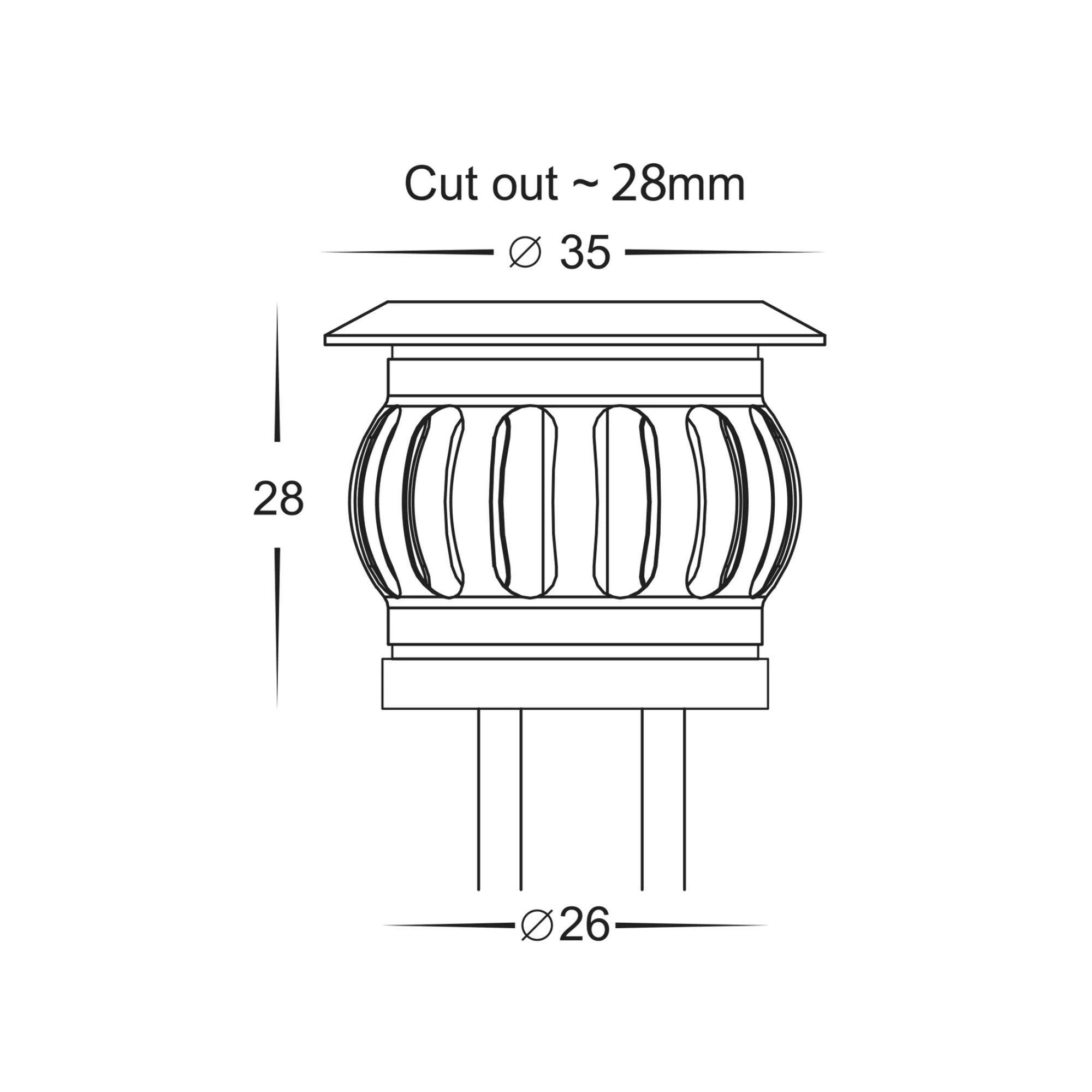

35 mm face diameter, 28 mm overall height and approximately 28 mm cutout; 26 mm body diameter.
Specifications and dimensions
- Exact CCT models
- HV28261CCT / HV28261CCT-BLK
- Exact RGBCW models
- HV28261RGBCW / HV28261RGBCW-BLK
- Supply / protection class
- 12 V DC / Class III low voltage fitting; no earth connection for the fitting
- Light source / power
- Built-in LED / 0.5 W per fitting
- Published light output
- 25 lm per fitting, as listed on the current exact manufacturer product pages
- CCT option
- 2700 K to 6500 K adjustable white
- RGBCW option
- RGB + 3000 K + 5500 K
- Dimming and control
- Yes, using the matching CCT/RGBCW controller or Tuya app
- Beam angle / colour rendering
- 120° / CRI >80
- Protection
- IP67 / IK05
- Material / finish
- 316 stainless steel; Stainless Steel or powder coated Black
- Glass
- Frosted tempered glass; datasheets describe opal glass
- Dimensions
- Face Ø35 mm × 28 mm high; body Ø26 mm
- Cutout
- Approximately Ø28 mm, as shown on the manufacturer diagram
- Attached cables
- 2 × 1500 mm per fitting
- Installation / wiring
- Ground recessed / parallel
- Manufacturer lamp expectancy
- >30,000 hours, a laboratory rating subject to manufacturer conditions
Choose a matching option
HV28261CCT in Stainless Steel or HV28261CCT-BLK in Black. Use a compatible CCT driver/controller system or the corresponding FLAME CCT kit.
HV28261RGBCW in Stainless Steel or HV28261RGBCW-BLK in Black. Use a compatible RGBCW driver/controller system or the corresponding FLAME RGBCW kit.

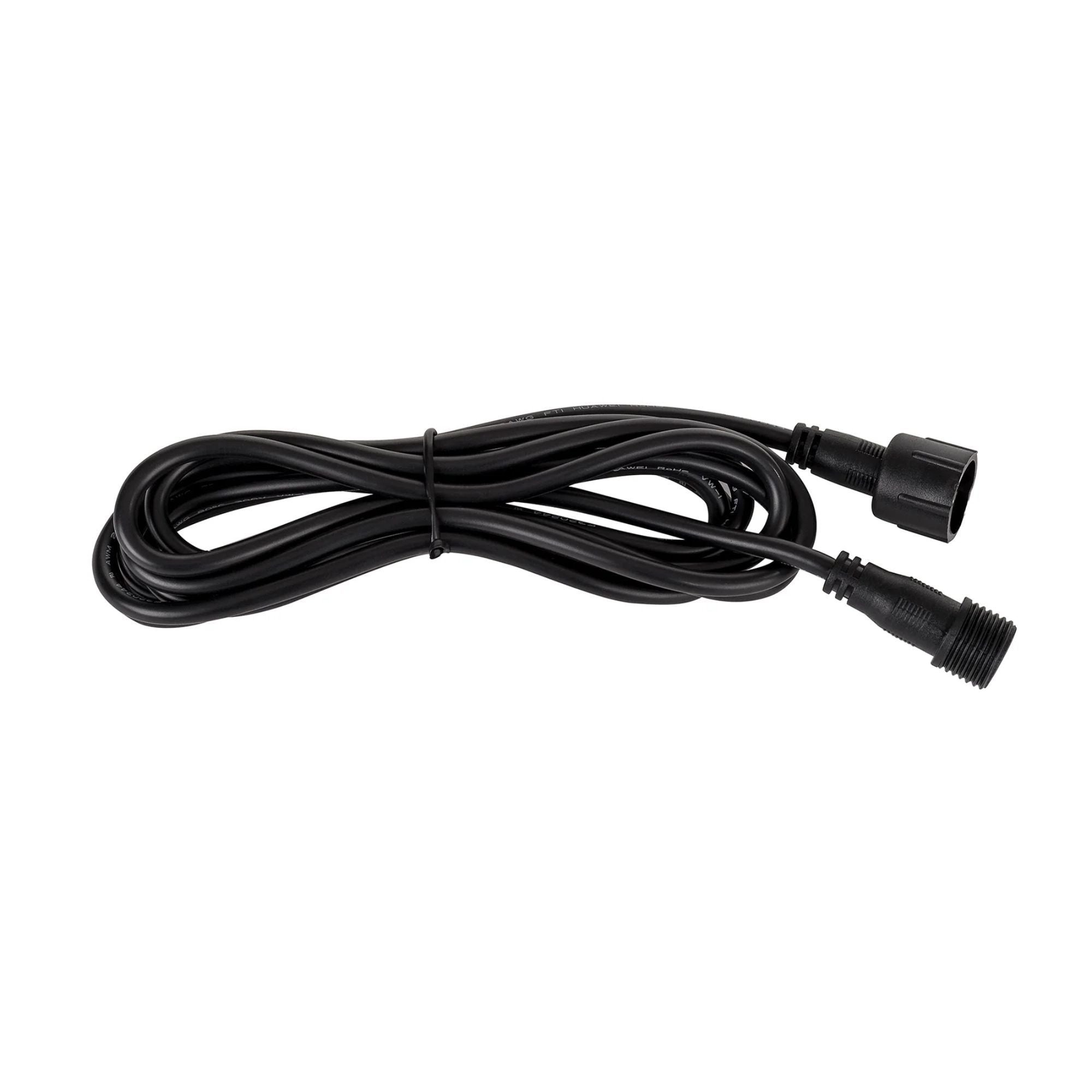

CCT: HV2826-EXT-CCT-2M / -4M. RGBCW: HV2826-EXT-RGBCW-2M / -4M. Extensions are sold separately and count towards the 25 m run limit.
What is included and required separately

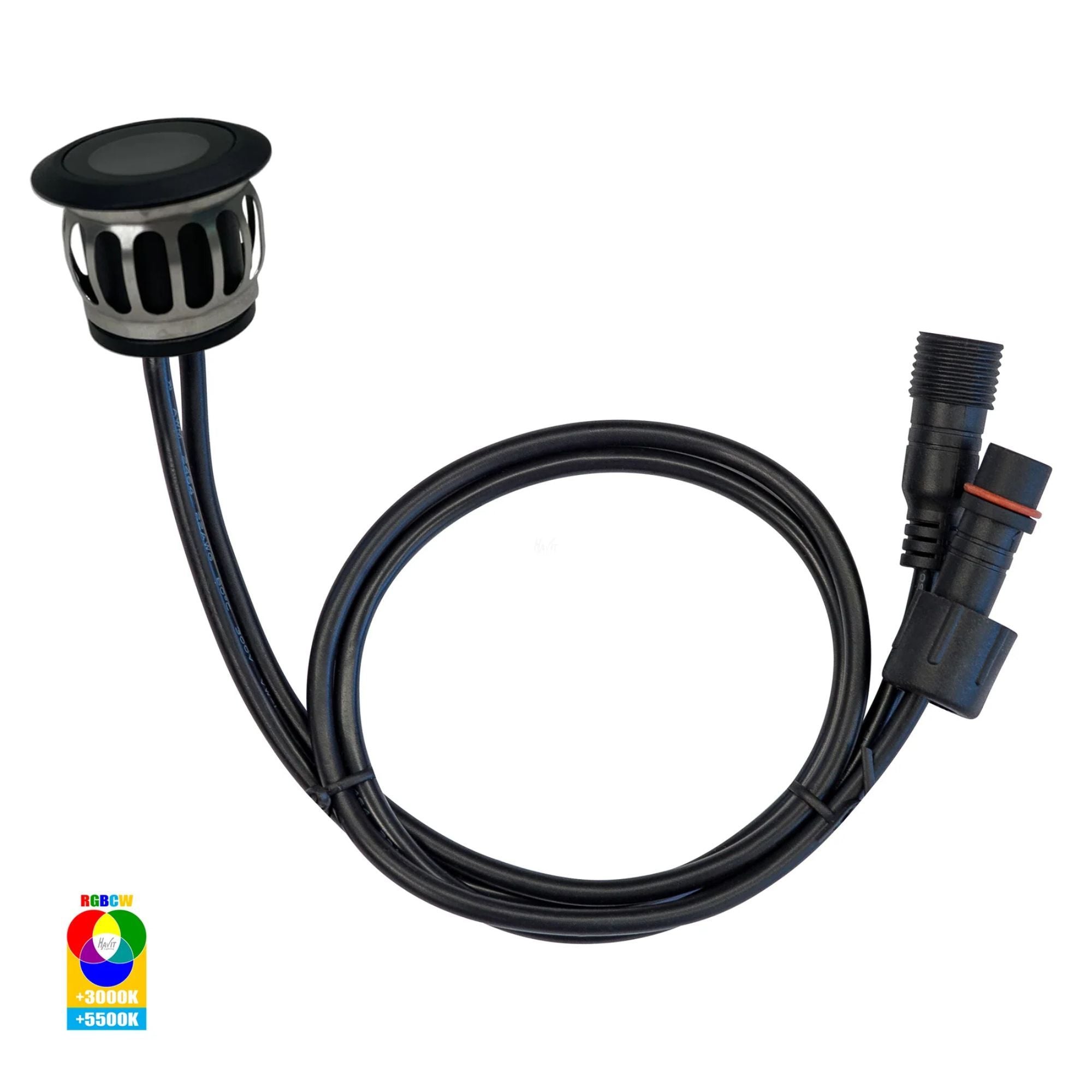

Included: one light fitting, its 0.5 W built-in LED and two attached 1.5 m cables.

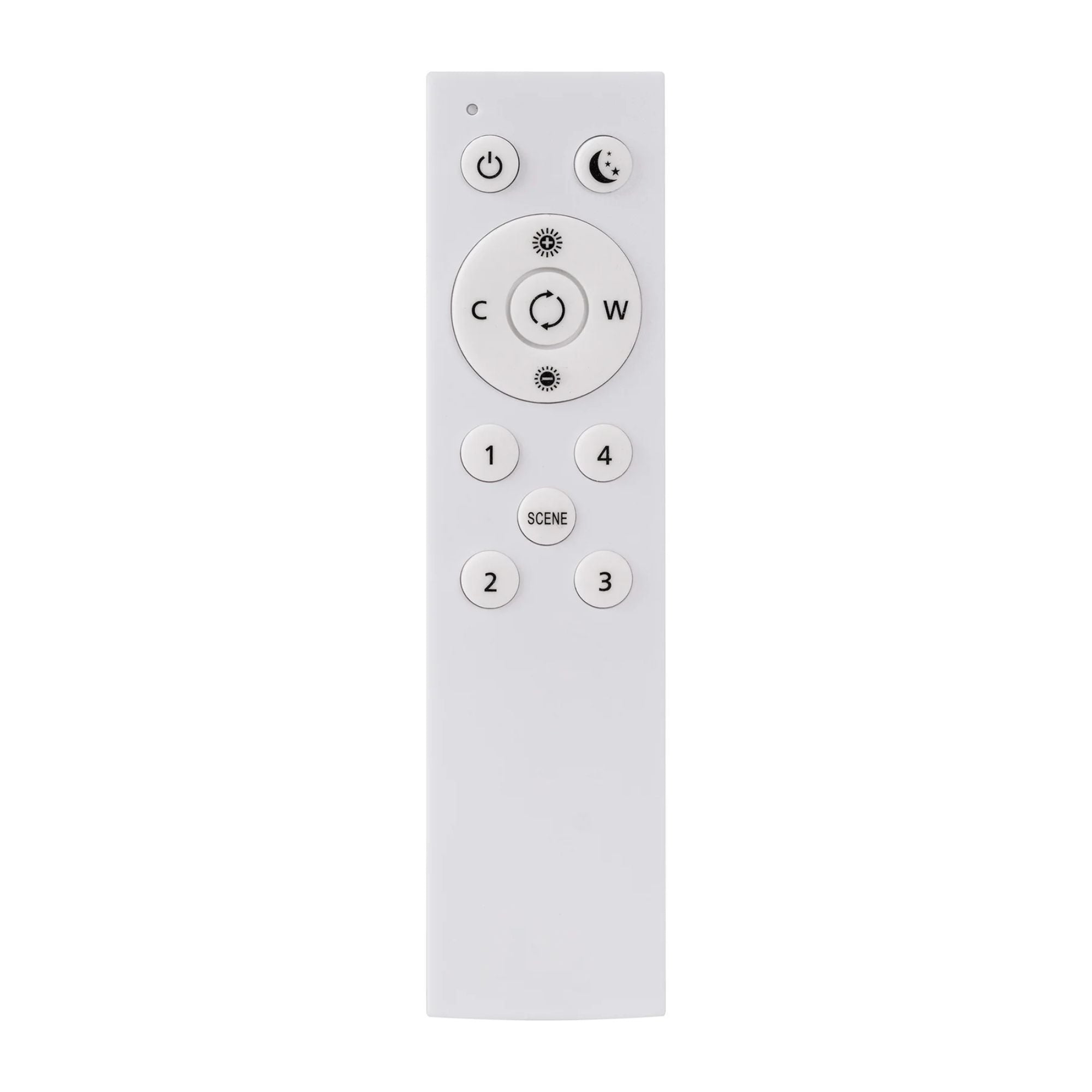

Required separately: a matching 12 V DC driver and colour controller, or an existing matching FLAME kit with capacity for this additional fitting. A remote, driver, controller and additional extension cables are not supplied with the single fitting. Havit lists HV2826-D-12W as a compatible driver for HV28261CCT and HV28261RGBCW; pair it with the correct colour controller.
Installation and care
Use a licensed electrician and isolate power before work. Keep voltage at the fitting within ±5% and all electrical connections watertight. Maintain the seals and allow adequate drainage. The manufacturer's ground-installation diagram shows a slight slope away from the light, 100 mm clearance below the canister and 100–150 mm of crushed rock beneath; it does not confirm that a canister is included.

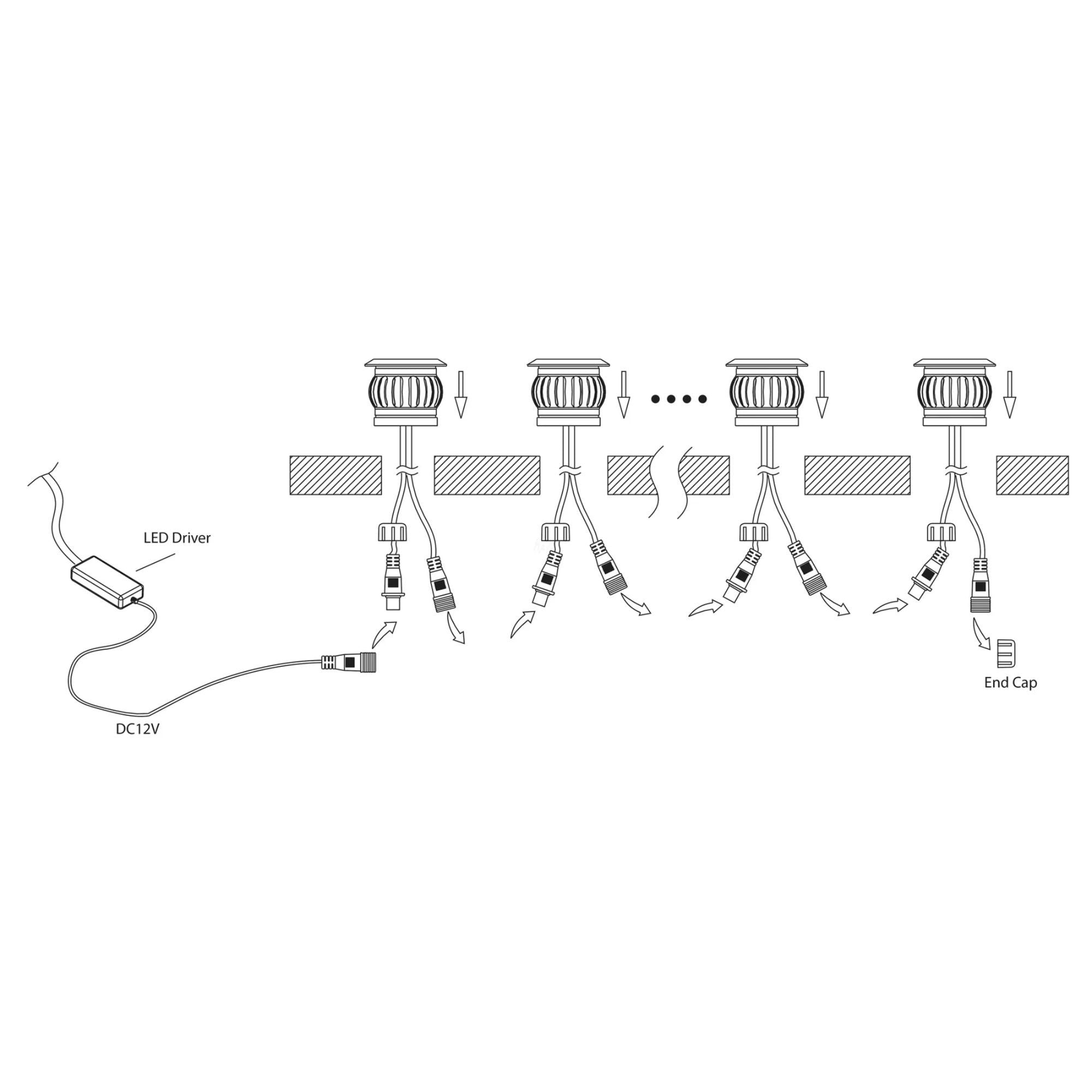

Connect an additional fitting to the last light in the matching kit according to its instructions. When using the matching kit, position its receiver where installation materials do not cause WiFi interference. When using that system's app and remote together, configure the app first.
Regularly clean the 316 stainless steel to reduce tea staining. Havit's separately sold HV9971 maintenance kit uses rejuvenating paste followed by Nanolan protective spray. Surface rust and tea staining are excluded from the manufacturer warranty.
Warranty and operating conditions
3-year replacement warranty, subject to Havit's current terms. For the published three-year deck-light warranty conditions, use no more than 8 continuous hours, followed by at least 1 hour off, and no more than 12 hours per day. Havit lists 18 months for 8–12 hours of continuous use and 12 months for 12–24 hours; domestic products used commercially have a 12-month warranty under its terms.
The current Deck Lights guidelines require a suitable low-voltage supply with 30% allowance from the LED driver maximum load. Other-brand drivers must include short-circuit, overheating, overvoltage and overload protection. Keep purchase and required installation evidence. Review the current Havit warranty terms for full conditions.
