Havit ESSIL - 2x6W Up & Down LED Wall Light | 240V
Essil TRI-colour up & down wall light

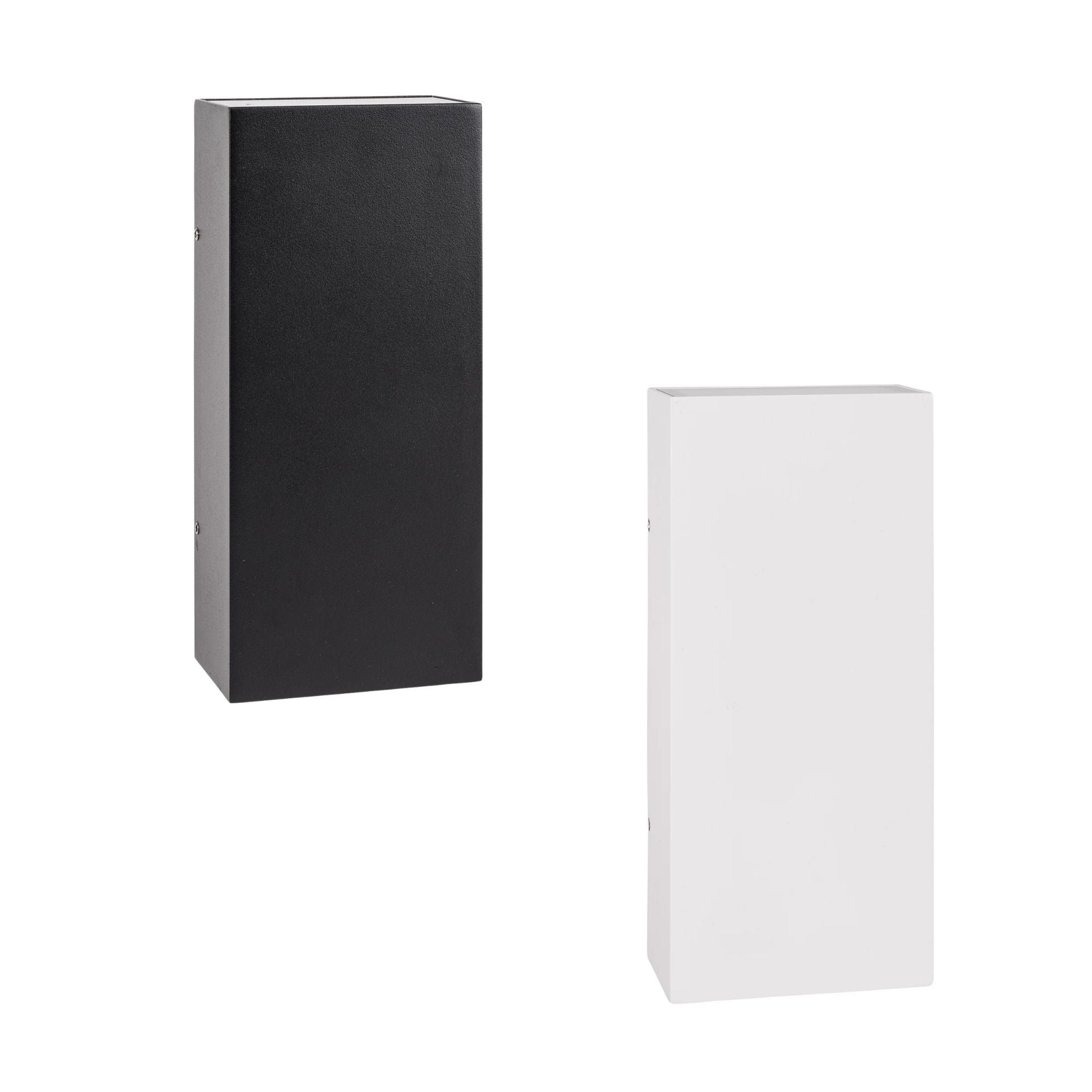

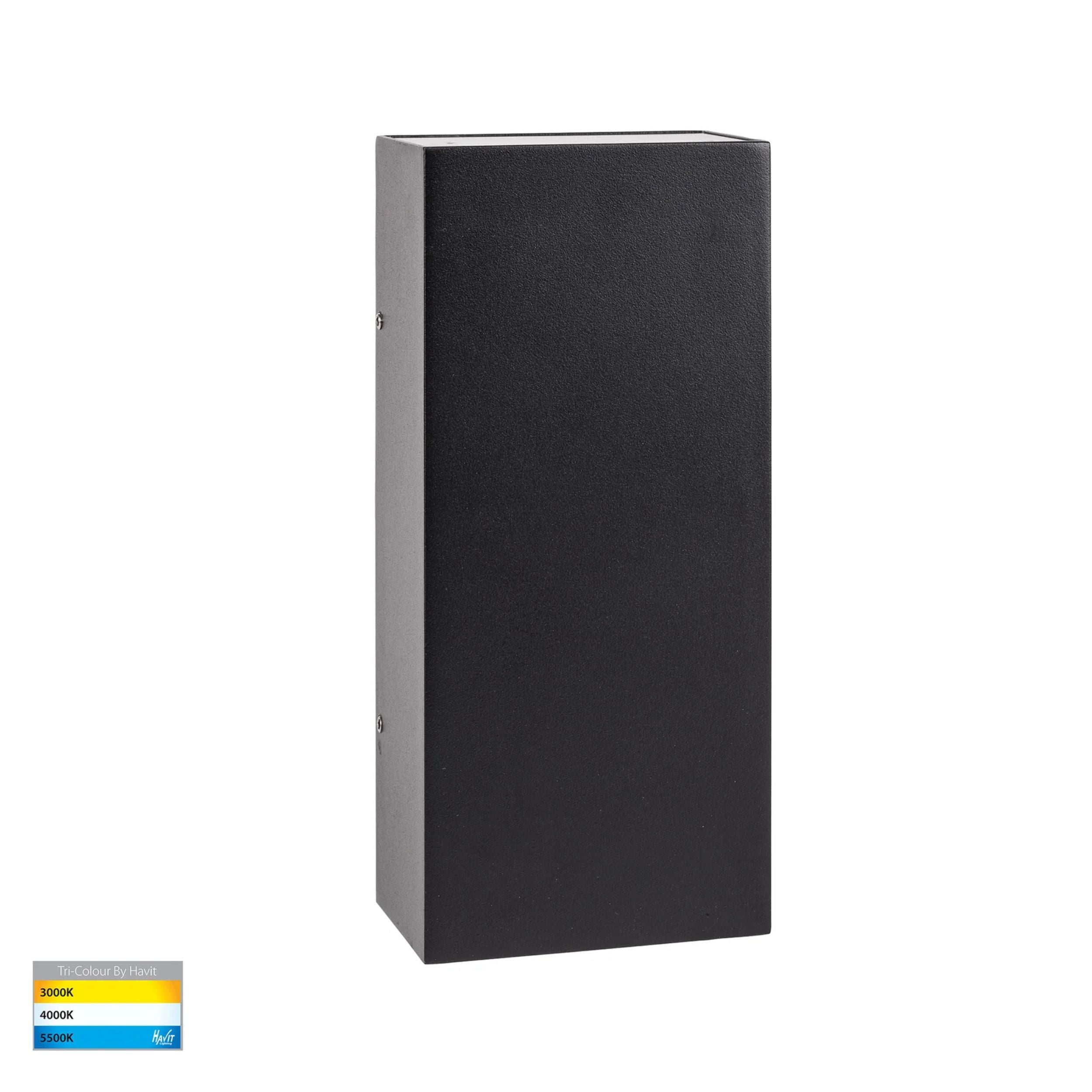

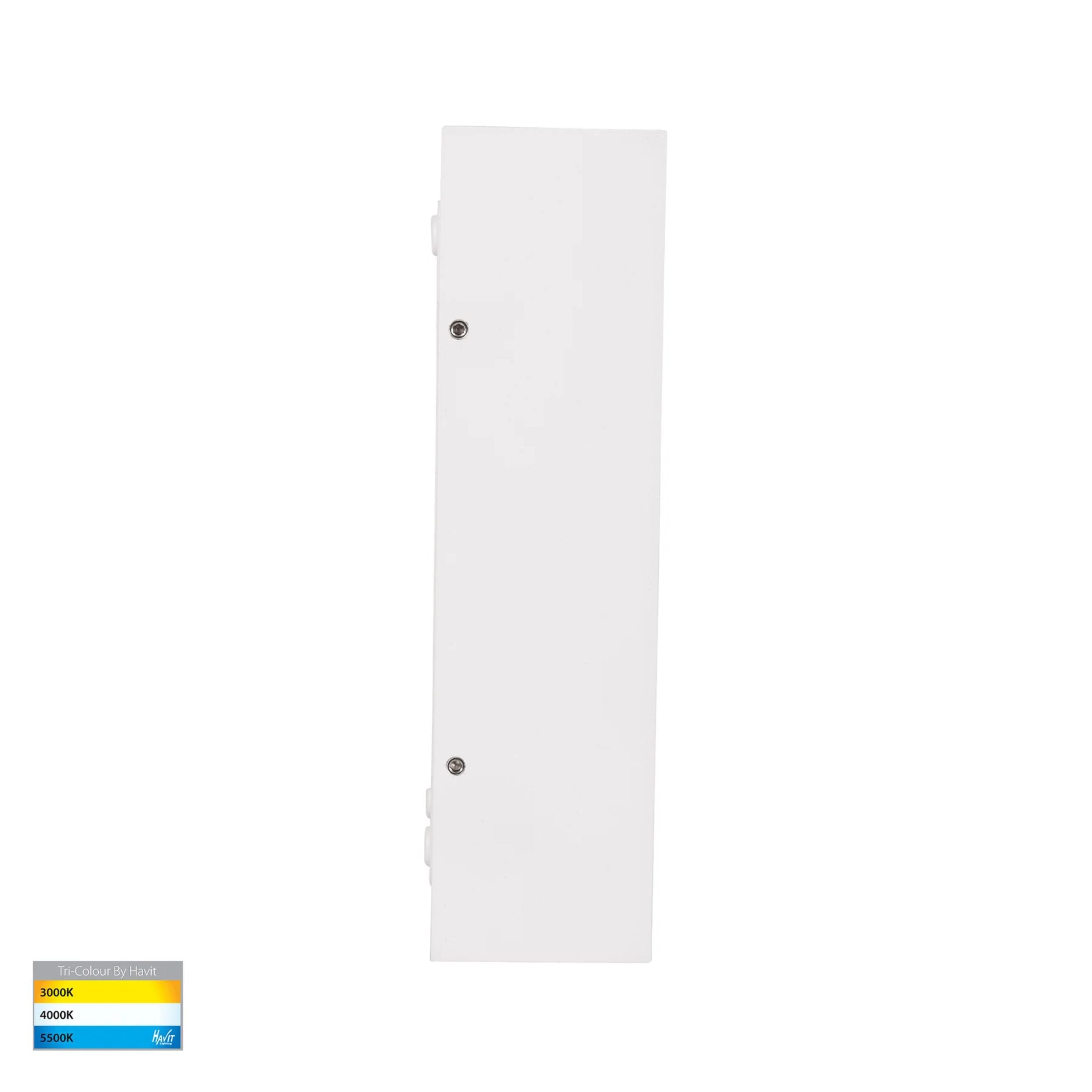

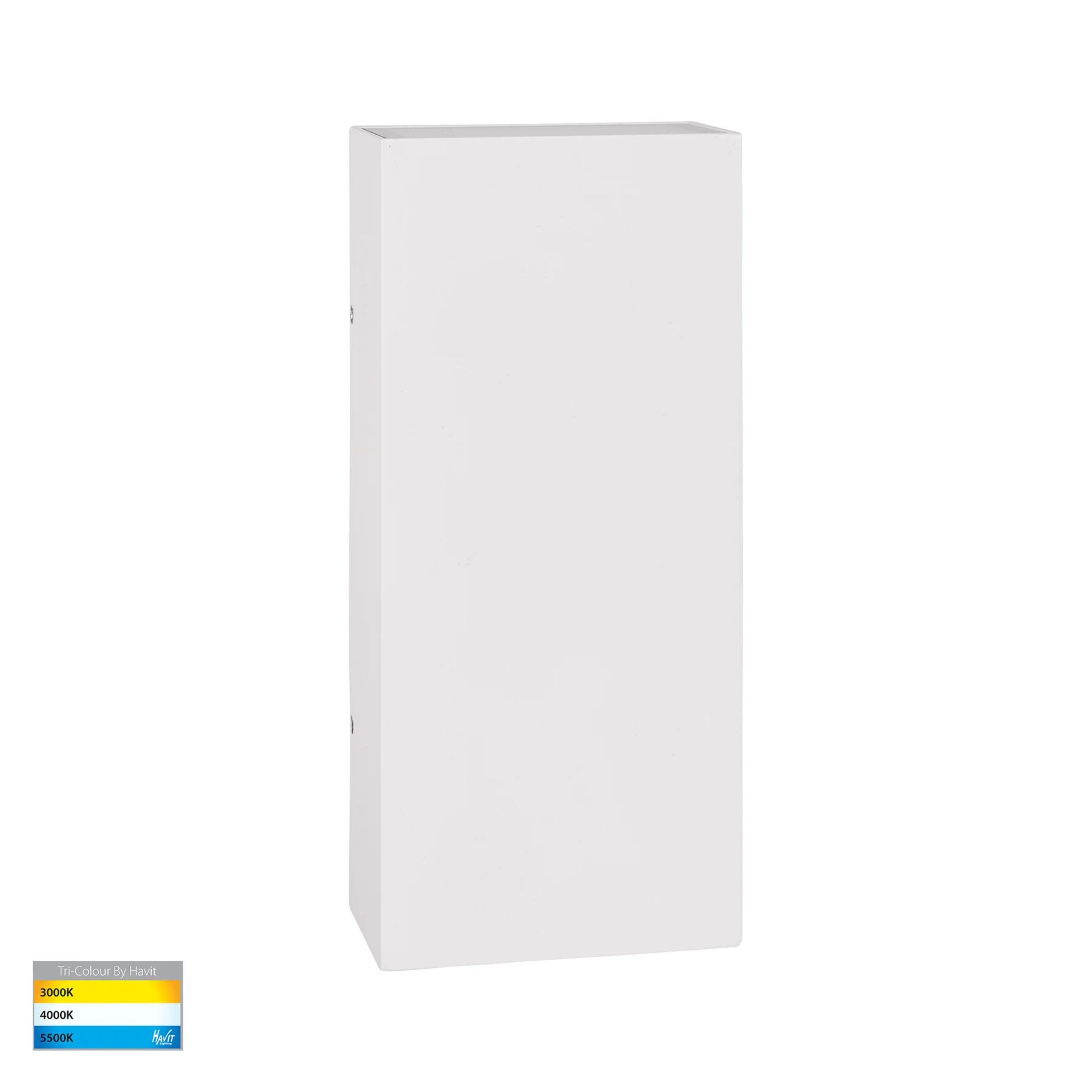

Two built-in 6 W LEDs cast light above and below a slim aluminium body. Choose a black or white powder-coated finish, with three selectable white light temperatures and TRIAC dimming on these 240 V models.
Important before you buy
Licensed electrical installation and an earth connection are required. These are Class I, 240 V AC fittings. Have your electrician check the installation location and a compatible TRIAC dimmer if dimming is required.
Do not install within 5 km of any saltwater environment. Havit expressly prohibits this placement for aluminium fittings. All cable entries, fixing holes and seals must be correctly sealed to maintain weather protection.
Key features
2 × 6 W built-in LED with a 120° beam angle.
3000 K, 4000 K or 5500 K, selected by the switch inside the base. Factory preset to 3000 K.
Powder-coated aluminium with tempered glass, IP54 protection and an IK08 impact rating.
Technical specifications
- Manufacturer models
- Black: HV3650T-BLK-240V
White: HV3650T-WHT-240V - Input & protection class
- 240 V AC; Class I, earth required
- Installation
- Surface-mounted wall light
- Body & diffuser
- Aluminium with poly powder-coated black or white finish; tempered glass
- Light source & power
- Built-in LED, 2 × 6 W
- Colour temperature
- TRI-colour: 3000 K / 4000 K / 5500 K
- Light output
- 3000 K: 2 × 350 lm
4000 K: 2 × 365 lm
5500 K: 2 × 380 lm - Beam angle
- 120°
- Colour rendering
- CRI > 80
- Dimming
- TRIAC dimmable with a compatible control
- Ratings
- IP54; IK08
- Lamp expectancy
- Manufacturer specification: less than 30,000 hours. Actual life depends on operating conditions.

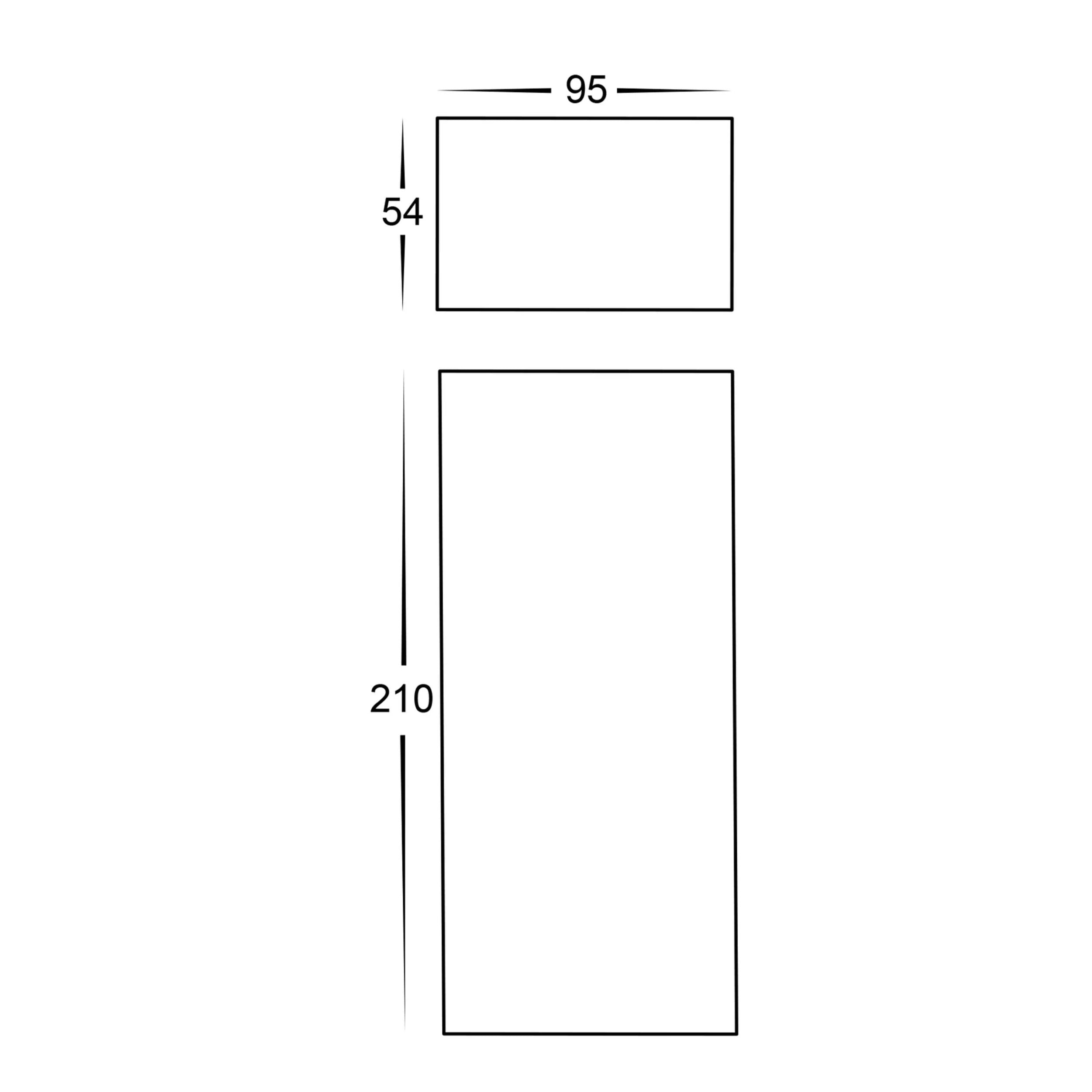

Dimensions
- Overall body
- 95 mm wide × 210 mm high × 54 mm projection

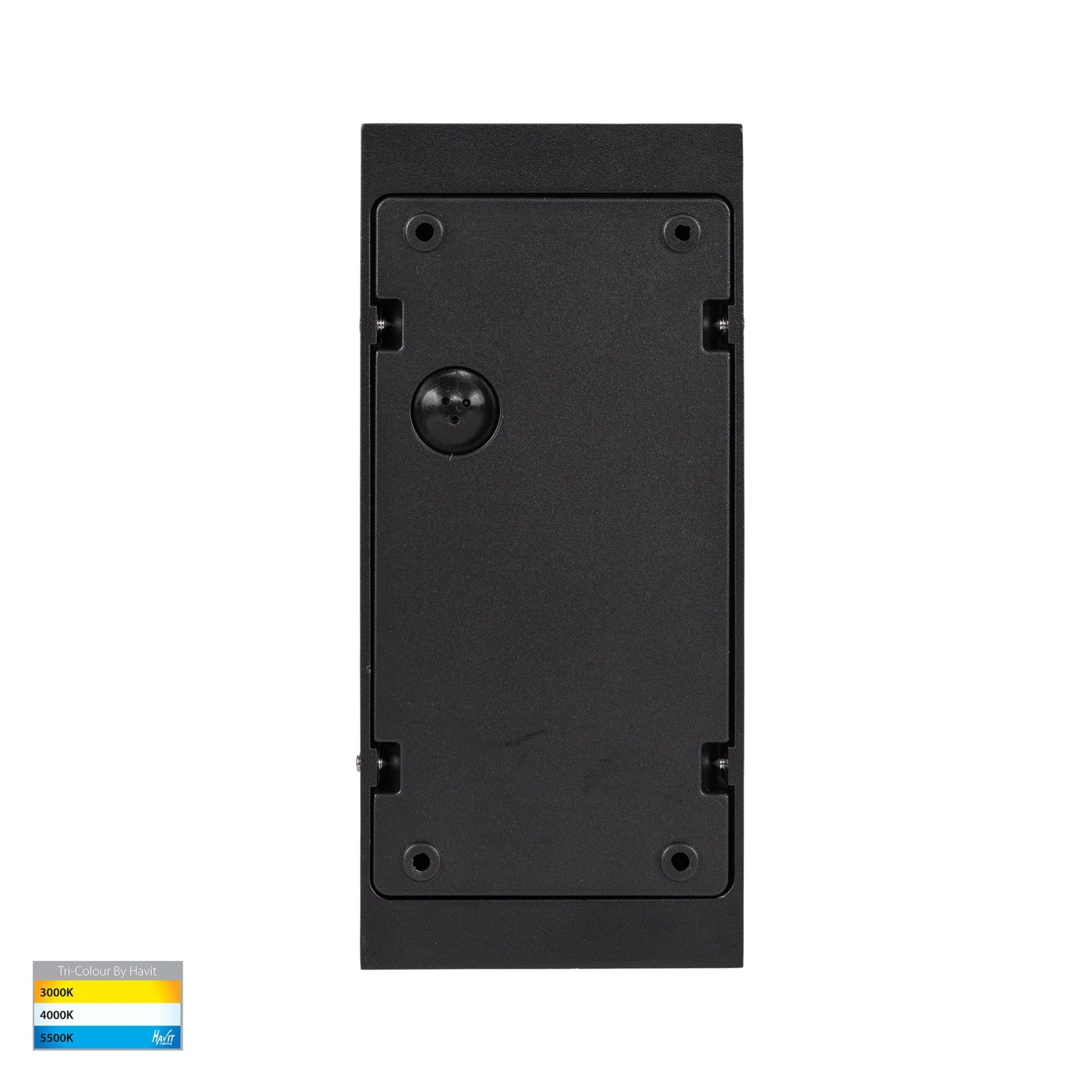

- Mounting base
- 89 mm wide × 175 mm high × 10 mm deep
- Mounting holes
- 4 × Ø5 mm
- Cable-entry opening
- Ø17 mm
What's included & installation requirements
Included: the selected black or white Essil wall fitting with built-in 2 × 6 W LEDs and its mounting base. A separate globe is not required.
Required for installation: a licensed electrician, an earth connection, suitable wall fixings and weather sealing. A compatible TRIAC control is required if you want dimming. These 240 V models connect to the mains supply; the external 12 V DC driver requirement applies to the separate 12 V versions.
Installation & maintenance
Your electrician must follow Havit's installation instructions and AS/NZS 3000, isolate the mains supply and connect the earth first. Seal the cable entry and fixing holes, keep all O-rings and seals correctly seated, tighten the side screws and seal around the fitting to protect electrical connections.
Havit's warranty conditions prohibit sharing the LED lighting circuit with fluorescent lighting, exhaust fans, bathroom 3-in-1 units, ovens or microwaves. Keep the fitting accessible for service and retain proof of purchase and electrical installation.
Warranty
Havit provides a 3-year limited replacement warranty for defects in materials or workmanship. Installation and labour during the first 12 months are at Havit's Service Team's discretion; the remaining two years cover replacement only and exclude labour.
The outdoor wall-light conditions allow up to 8 hours of continuous use, a 1-hour rest before restarting and no more than 12 hours per day. Havit lists 18 months for 8–12 hours of continuous use and 12 months for 12–24 hours. Domestic products used commercially carry a 12-month warranty. Full terms and exclusions apply.
Read Havit's current warranty terms · Read the installation instructions
