The supplied 9 W E27 LED provides 700 lm at 2700 K.
Havit ANGELA - 9W LED Wall Light

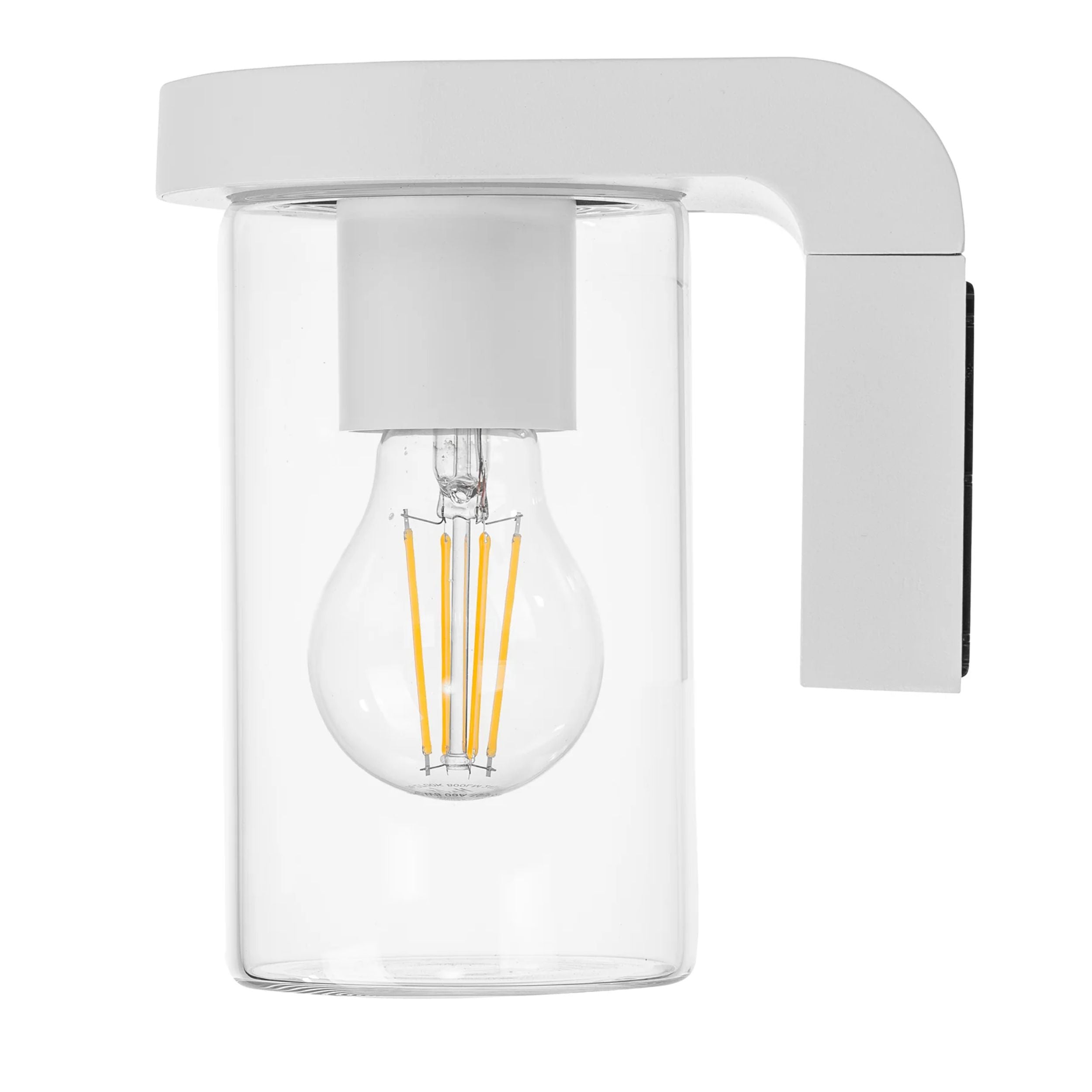

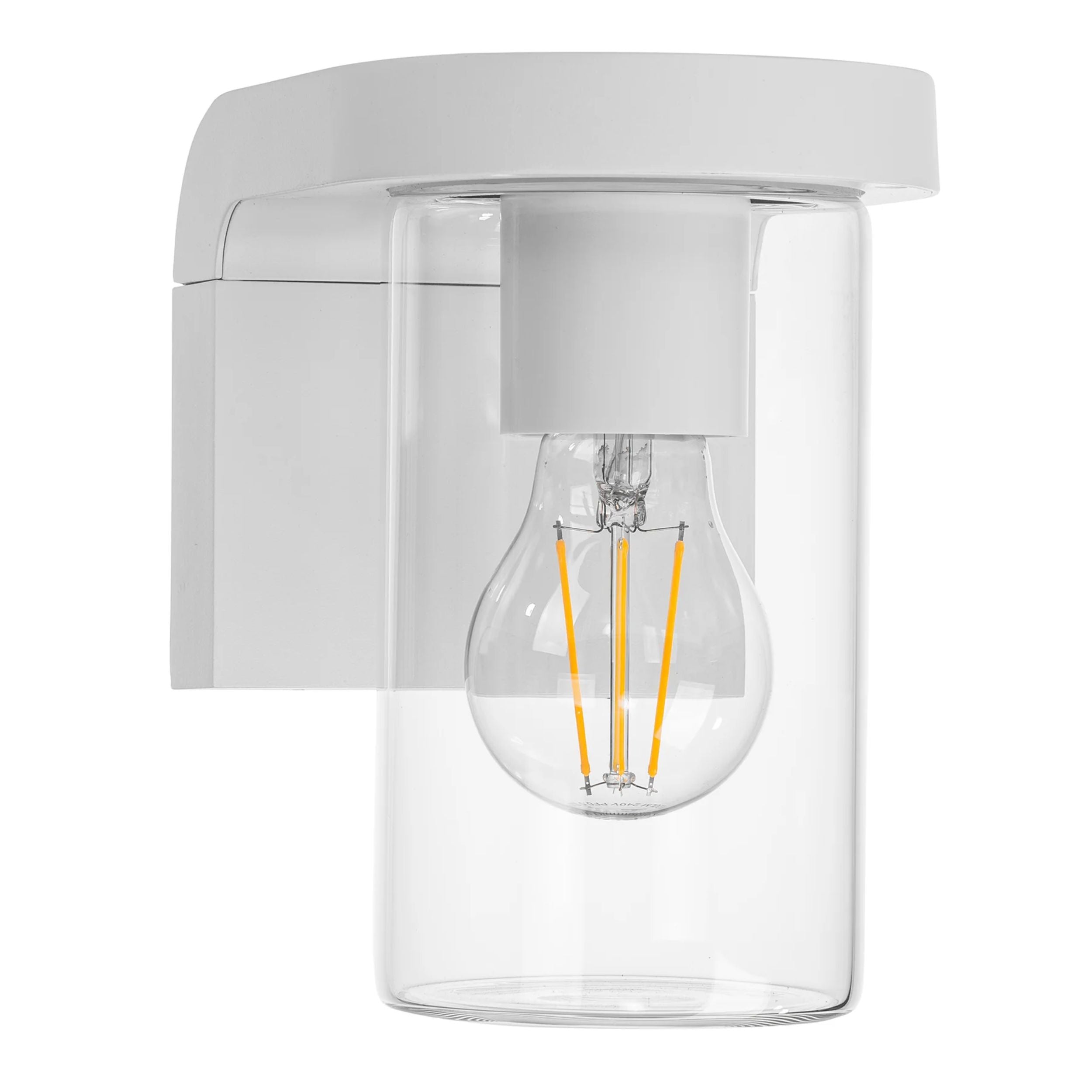

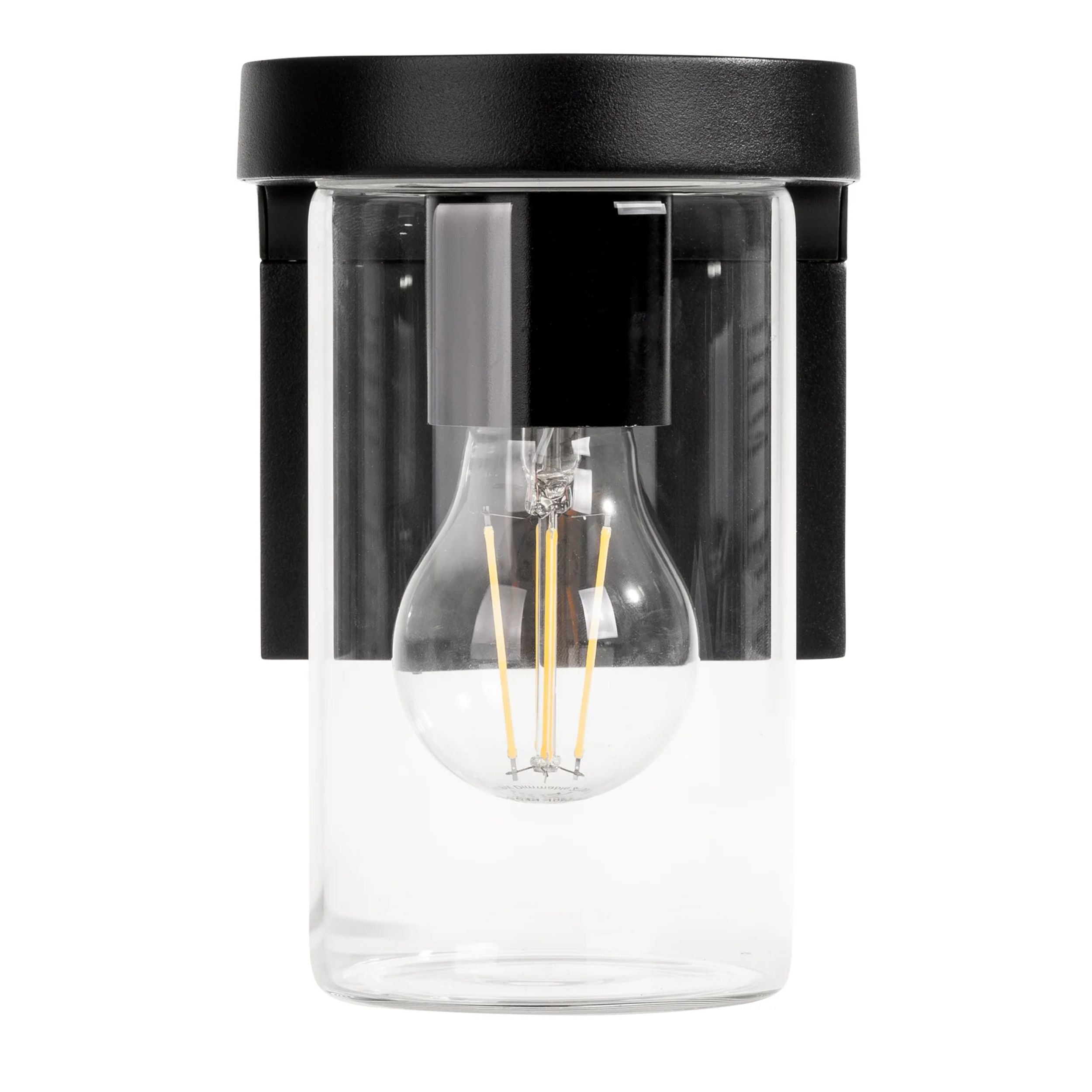

ANGELA wall light
A clear-glass wall light with an included 9 W E27 filament LED globe, delivering 2700 K warm white light.
Important before you buy
Licensed electrician installation and an earth connection are required. These aluminium fittings must not be installed within 5 km of saltwater environments, including pools. The 9 W E27 LED globe is included. The supplied LED globe is specified for domestic use; Havit excludes commercial use of supplied wall-light globes.
Key features
Triac / phase-cut dimming is specified for the supplied lamp.
IP54 and IK04 ratings, with seals and cable entry correctly maintained.
Choose poly powder coated black or white aluminium.
A clear diffuser with a verified 180° beam angle.
The E27 lamp is replaceable; retain the maximum 9 W rating.
Technical specifications
- Models
- HV3692W-BLK (black) / HV3692W-WHT (white)
- Input / protection class
- 240 V AC; Class 1, earth connection required
- Included lamp / maximum wattage
- 1 × 9 W replaceable E27 filament LED globe; maximum 9 W
- Colour temperature / output
- 2700 K warm white / 700 lm
- Dimming
- Triac / phase-cut dimmable
- Beam angle / colour rendering
- 180° / CRI >80
- Protection
- IP54; IK04
- Construction
- Aluminium with poly powder coated black or white finish; clear glass diffuser
- Mounting
- Wall surface mounted

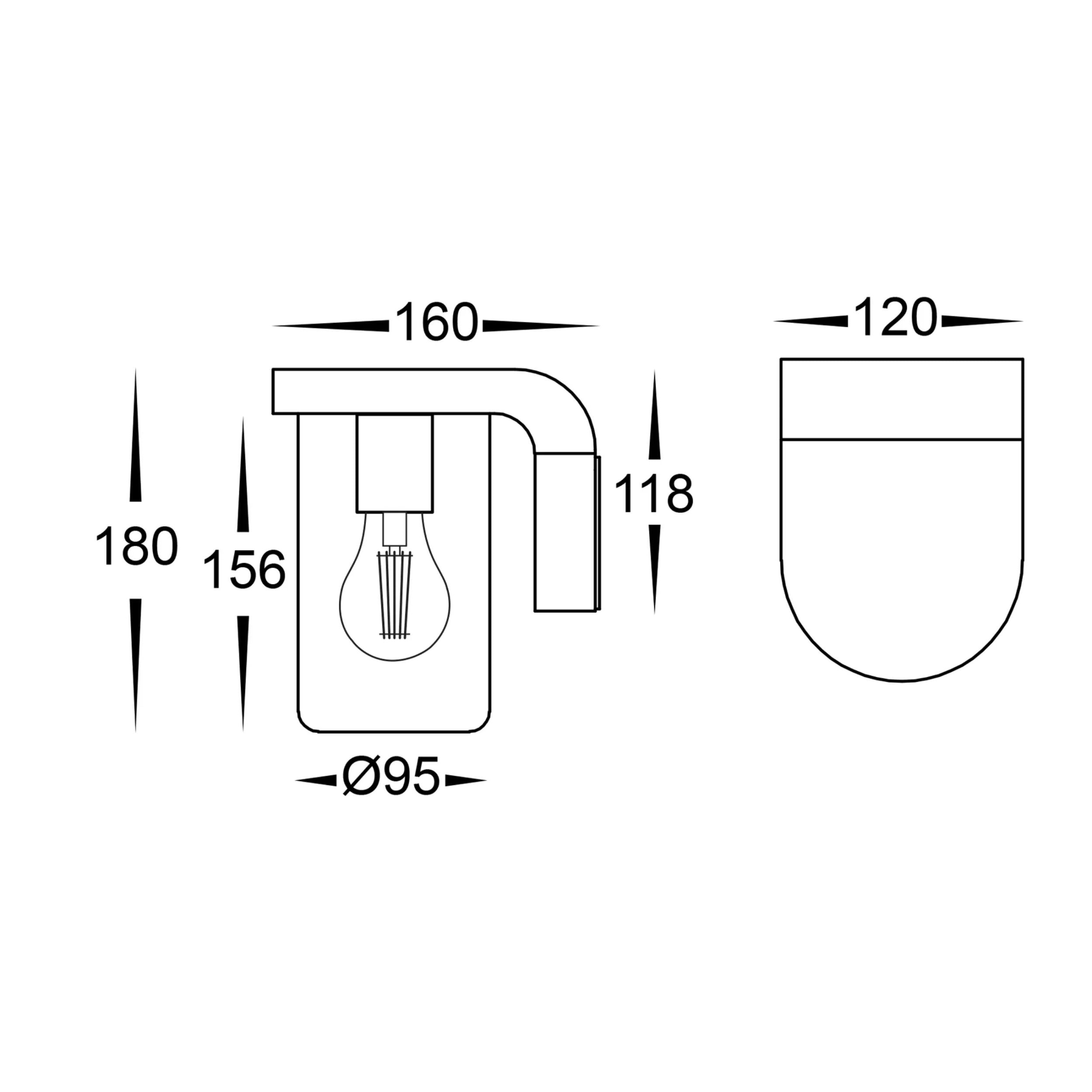

Dimensions
- Overall height × width × projection
- 180 × 120 × 160 mm
- Glass diameter
- 95 mm
- Mounting base
- 115 × 75 mm
- Cable entry diameter
- 18 mm
Available options
Black: HV3692W-BLK. White: HV3692W-WHT. Both use the same included 9 W E27 lamp specification.
What's included & required separately
Included: ANGELA wall fitting and 1 × 9 W E27 filament LED globe. Appropriate mounting screws, electrical connection and sealing materials must be selected for the installation; the manufacturer does not specify a supplied fixing package.
Installation & maintenance
Install to AS/NZS 3000 with mains isolated. Connect earth first, then live and neutral. Seal the cable entry, screw holes and mounting base against water; keep all seals correctly fitted to maintain IP54. Modification or incorrect installation affects warranty.
Warranty
Fitting: 3-year limited replacement warranty. The supplied LED globe has a separate 12-month replacement warranty and is not for commercial use. For the 3-year term, Havit specifies no more than 8 hours continuous use, followed by a 1-hour rest, and no more than 12 hours per day. Longer continuous use and commercial use of domestic fittings reduce the applicable warranty period. See Havit's warranty terms and conditions.
