Ektor UMBRA-PRO-WP-EM/S/LK - 20W/33W LED DALI 600mm (2FT) / 1200mm (4FT) CCT Tuneable Emergency Weatherproof Batten IP65
One of the smartest and most feature-packed battens on the market today, the Ektor UMBRA Emergency LED Batten series features both IP65 and IK08 ratings, 12 years design life at max ambient, and unrivalled control. Available in a range of size, sensor and pro wireless options.
- Tuneable white (DT8-Tc) driver and LED allow tuning of the white colour to suit the application or time of day.
- Flicker-free dimming throughout the dimming range allows light level adjustment to gain maximum power savings.
- IP65 weatherproof rating and IK08 impact rating.
- LED lifetime >120,000 hours (L70), 90,000 hours (L80) and 43,000 hours (L90).
- 12 Year design life at max. ambient
- Full support for DALI and DALI-2 (IEC 62386) DT6 (LED) and DT8 (Tuneable white).
- Power monitoring (DT51) allows control systems to monitor and report active power and total power consumption.
- Built-in DALI-2 switch can be used for standalone control or unlimited control with DALI-2 complaints control systems.
- 5 Year Warranty
Specifications:
- Input Voltage (V): 240V AC
- Power (W): 20W/33W LED
- IP Rating (IP): IP65
- IK Rating (IK): IK08
- Lumen Output: >2000Lm
- Dimmable: Yes
- Material: Polycarbonate
- Ambient temperature: 40°C
- Colour Temperature: 3000K - 6500K (CCT Tuneable)
Selected Models:
- Emergency models are fully compliant (AS/NZS 2293.3) and support DALI DT1 (IEC 62386-202).
- Soft-start battery charger to reduce building load, allowing the building to stabilize before adding additional load.
- High-quality lithium battery (LiFePO4) and smart charger to ensure long battery service life.
- Lynk wireless control allows for remote testing and monitoring and provides full lighting control (AS/NZS 62386-104).
- Microwave sensor suitable for DALI-2 (IEC 62386-303) allows unlimited control on DALI-2-compliant control systems.
- Corridor mode support in standalone mode to intelligently save power by turning off when there is no occupancy.

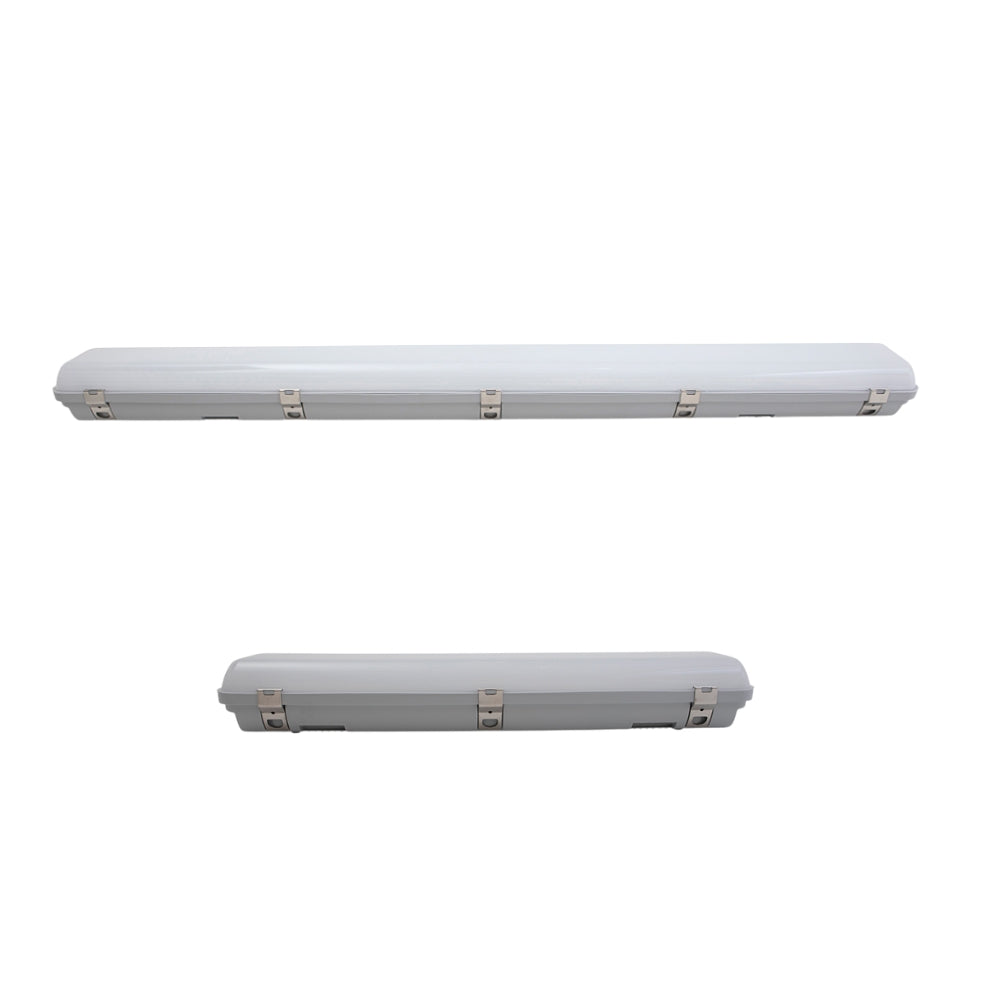

Dimensions:
- L: 650mm x H: 93mm x W: 130mm
- L: 1260mm x H: 93mm x W: 130mm
