Flicker-free dimming through the specified compatible control system.

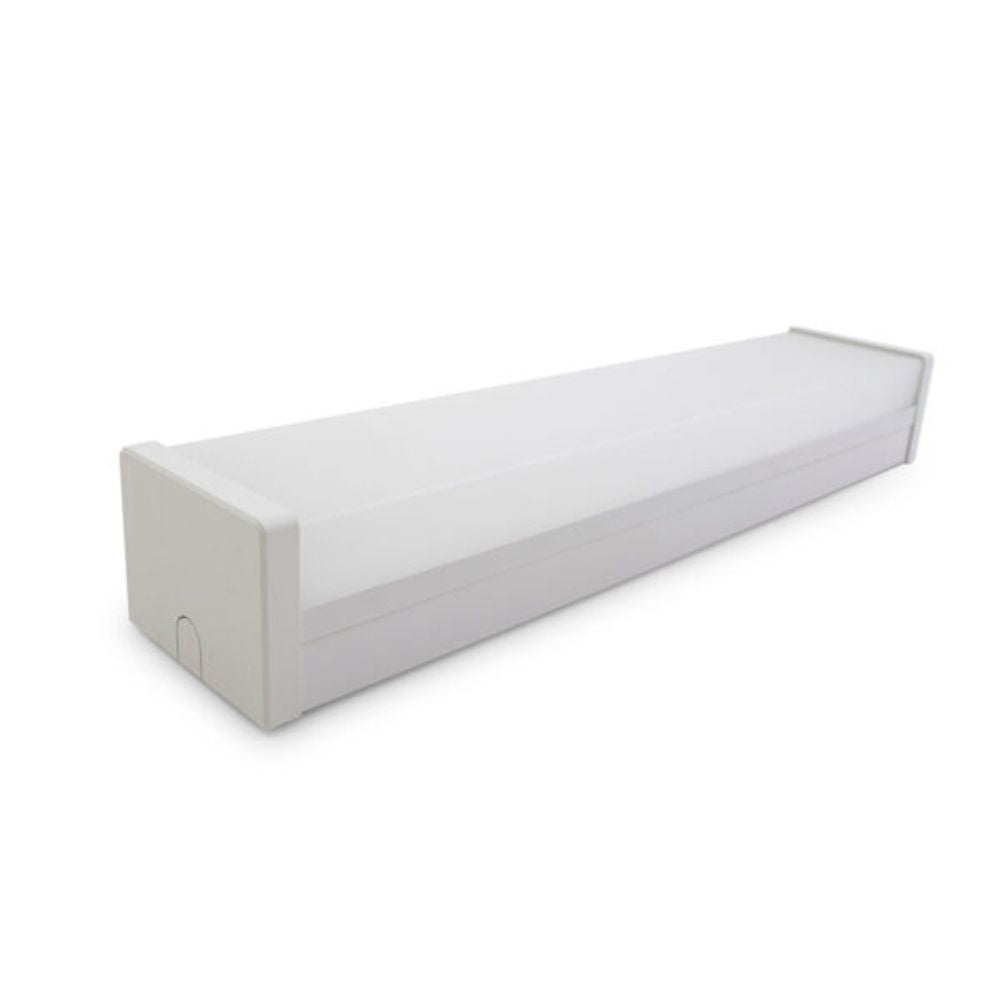

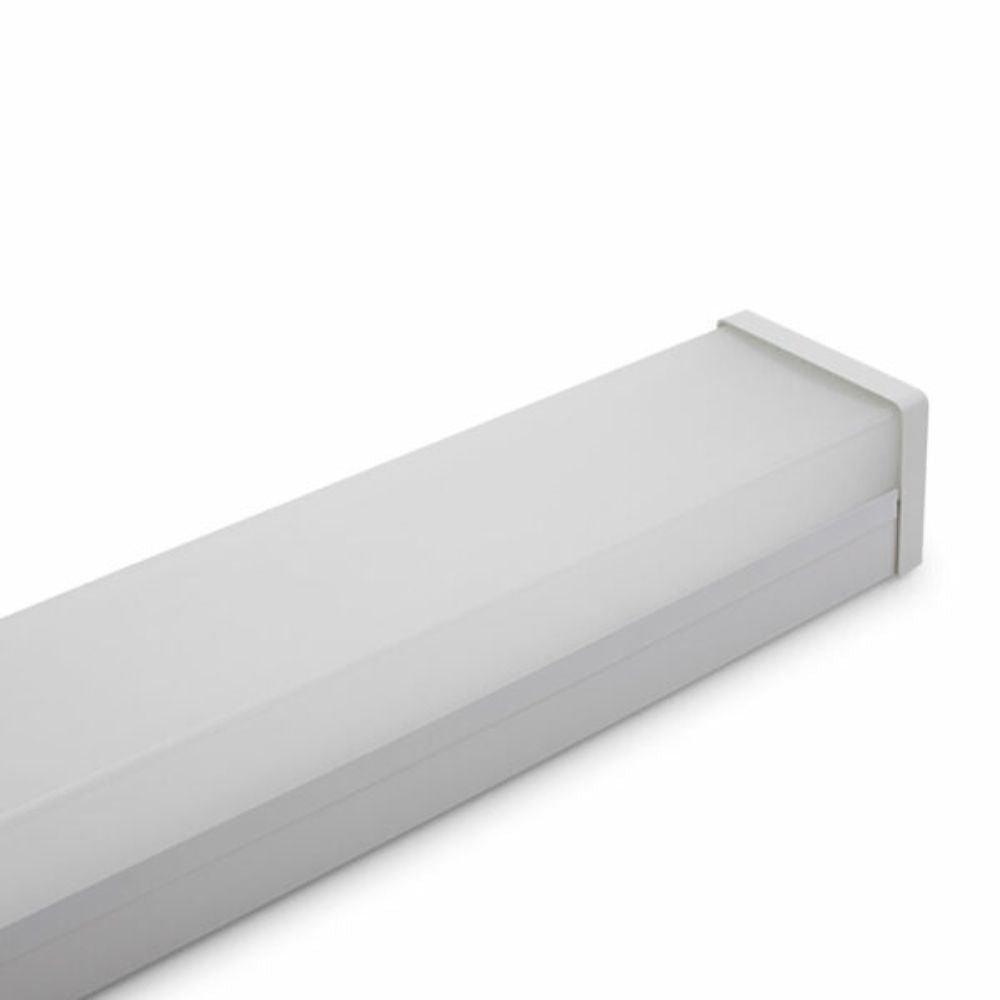

Ektor UMBRA-PRO-DIFF-EM/S - 20W/33W LED DALI 600mm 2FT / 1200mm 4FT CCT Tuneable Diffused Emergency Batten
UMBRA PRO DIFF EM/S
UMBRA PRO DIFF EM/S — select the exact option below.
Important before you buy
- Arrange installation by a licensed electrician. The exact mounting and electrical connection for each available option are listed below.
- DALI dimming, tuning or monitored functions require a compatible DALI control system separately; standalone operation is available only where specified for the selected model.
IP Rating
IP20
Input voltage
230Vac
Maximum Wattage
20 W / 33 W
Emergency Duration
90 mins
Key features
12-year product design life at the maximum stated ambient temperature.
Supports the DALI control or emergency monitoring functions specified for this model.
Soft-start battery charging reduces the initial load on the electrical supply.
LiFePO4 battery and smart charger for emergency operation.
DT51 power monitoring reports active power and energy consumption to a compatible system.
Technical specifications
Shared across the listed options
Mechanical
- IP Rating
- IP20
- Fitting Colour
- White
- Body Material
- Powder Coated Steel
- Diffuser Material
- PMMA
- Installation Type
- Surface mount
Electrical
- Working Temp Range
- 0 to 40 °C
- Input Frequency
- 50 Hz
- Switch Type
- Inbuilt Mains Rated DALI Switch
- Power Factor
- 0.95
- Input voltage
- 230Vac
- Standby Power
- 0.3 W
Lamp
- Colour Rendering Index (CRI)
- >84
- CCT Configuration
- Single
- Macadam Steps (SDCM)
- 3-step MacAdam Ellipse
LED Lifetime
- LED Lifetime
- >102000 hrs
- LED Lifetime Ratings (Failure rate & lumen depreciation)
- Ambient Temp (°C): 25 °C: 40 °C; L90B10: 55000 hrs: 55000 hrs
- TM-21 Test Hours
- 17000 hrs
Colour temperature
- CCT
- 4000 K
Driver
- Driver Type
- DALI DT6 LED Driver
- Driver Included
- Yes
- Integrated Driver
- No
- Dimmable
- Yes
- Wiring Type
- Re-wireable terminal block (6 pin)
- Driver Mode
- Constant Current
- Power Monitoring
- DALI Device type 51 power monitoring
- PSTLM
- 0.08
- SVM
- 0.018
Emergency (EM suffix)
- Emergency Mode
- Maintained
- Emergency Classification
- C0:D40, C90:D25
- Emergency Output Power
- 1900 mW
- Replacement Battery Code
- 01302
- Emergency Duration
- 90 mins
- Emergency Lumen Output
- 350 lm
- Emergency Control
- DALI Monitored (DT1)
Compliance
- Product Design Life
- 12 years
Additional verified features
- Emergency battery chemistry
- LiFePO4
Further shared features
- Built-in DALI-2 switch supports standalone control or a compatible DALI-2 control system.
EK-12234 · 600mm / Without Sensor
EV-UMBRA-PRO-DIFF-600-EM
Efficiencies
- Total System Efficiency
- 125 lm/W
Electrical
- Maximum Wattage
- 20 W
- System Max Wattage
- 20 W
Lamp
- Lamp/LED voltage
- 24 V
- Lamp/LED Current
- 650 mA
Colour temperature
- Luminaire Lumens
- 2500 lm
Driver
- Driver Current
- 650 mA
Compliance
- Standards
- AS/NZS 60598.1 AS 60598.2.22 AS/NZS 61347.1 AS/NZS 61347.2.13 AS CISPR 15 AS/NZS 2293.3 IEC 62386-102 IEC 62386-103
EK-12236 · 600mm / With Sensor
EV-UMBRA-PRO-DIFF-600-EM-S
Efficiencies
- Total System Efficiency
- 125 lm/W
Electrical
- Maximum Wattage
- 20 W
- System Max Wattage
- 20 W
Lamp
- Lamp/LED voltage
- 24 V
- Lamp/LED Current
- 650 mA
Colour temperature
- Luminaire Lumens
- 2500 lm
Driver
- Driver Current
- 650 mA
Sensor (S suffix)
- Sensor Type
- Microwave
- Detection Range [1]
- 10 m
- Time Delay
- Via DALI
- Switched Output
- No
- Corridor Function [1]
- Yes
- Lux Adjustment [1]
- No
- Manual Override [1]
- Yes
- Dawn Reset [1]
- No
- Dusk Mode [1]
- No
- Adjustable Hold Time [1]
- Yes
- Adjustable Standby Level [1]
- Yes
- Adjustable Standby Period [1]
- Yes
- Adjustable Detection Area / Sensitivity [1]
- Yes
- Sensor Communication [1]
- DALI 2
Compliance
- Standards
- AS/NZS 60598.1 AS 60598.2.22 AS/NZS 61347.1 AS/NZS 61347.2.13 AS CISPR 15 AS/NZS 2293.3 AS/NZS 4268 IEC 62386-102 IEC 62386-103
Features for this option
- DALI-2 microwave occupancy sensing to IEC 62386-303.
- Corridor mode provides the stated sensor control during standalone operation.
EK-12238 · 1200mm / Without Sensor
EV-UMBRA-PRO-DIFF-1200-EM
Efficiencies
- Total System Efficiency
- 142 lm/W
Electrical
- Maximum Wattage
- 33 W
- System Max Wattage
- 34 W
Lamp
- Lamp/LED voltage
- 36 V
- Lamp/LED Current
- 850 mA
Colour temperature
- Luminaire Lumens
- 4800 lm
Driver
- Driver Current
- 850 mA
Compliance
- Standards
- AS/NZS 60598.1 AS 60598.2.22 AS/NZS 61347.1 AS/NZS 61347.2.13 AS CISPR 15 AS/NZS 2293.3 IEC 62386-102 IEC 62386-103
EK-12240 · 1200mm / With Sensor
EV-UMBRA-PRO-DIFF-1200-EM-S
Efficiencies
- Total System Efficiency
- 142 lm/W
Electrical
- Maximum Wattage
- 33 W
- System Max Wattage
- 34 W
Lamp
- Lamp/LED voltage
- 36 V
- Lamp/LED Current
- 850 mA
Colour temperature
- Luminaire Lumens
- 4800 lm
Driver
- Driver Current
- 850 mA
Sensor (S suffix)
- Sensor Type
- Microwave
- Detection Range [1]
- 10 m
- Time Delay
- Via DALI
- Switched Output
- No
- Corridor Function [1]
- Yes
- Lux Adjustment [1]
- No
- Manual Override [1]
- Yes
- Dawn Reset [1]
- No
- Dusk Mode [1]
- No
- Adjustable Hold Time [1]
- Yes
- Adjustable Standby Level [1]
- Yes
- Adjustable Standby Period [1]
- Yes
- Adjustable Detection Area / Sensitivity [1]
- Yes
- Sensor Communication [1]
- DALI 2
Compliance
- Standards
- AS/NZS 60598.1 AS 60598.2.22 AS/NZS 61347.1 AS/NZS 61347.2.13 AS CISPR 15 AS/NZS 2293.3 AS/NZS 4268 IEC 62386-102 IEC 62386-103
Features for this option
- DALI-2 microwave occupancy sensing to IEC 62386-303.
- Corridor mode provides the stated sensor control during standalone operation.
Dimensions
EK-12234
- Product Height
- 93 mm
- Product Length
- 620 mm
- Product Width
- 130 mm
EK-12236
- Product Height
- 93 mm
- Product Length
- 620 mm
- Product Width
- 130 mm
EK-12238
- Product Height
- 93 mm
- Product Length
- 1230 mm
- Product Width
- 130 mm
EK-12240
- Product Height
- 93 mm
- Product Length
- 1230 mm
- Product Width
- 130 mm
Inclusions & required separately
- EK-12234: LED driver included.
- EK-12234: emergency battery / charging system included for this emergency option.
- EK-12236: LED driver included.
- EK-12236: emergency battery / charging system included for this emergency option.
- EK-12238: LED driver included.
- EK-12238: emergency battery / charging system included for this emergency option.
- EK-12240: LED driver included.
- EK-12240: emergency battery / charging system included for this emergency option.
- EK-12234: Emergency LiFePO4 battery and smart charger.
- EK-12236: Emergency LiFePO4 battery and smart charger.
- EK-12238: Emergency LiFePO4 battery and smart charger.
- EK-12240: Emergency LiFePO4 battery and smart charger.
Installation & maintenance
- Follow the supplied manufacturer instructions for commissioning, charging, emergency testing and maintenance. Use the listed replacement battery code for the exact option.
Warranty
EK-12234
- Warranty
- 5 Year Warranty, First 2 Years Onsite
- Commercial Use Warranty
- 5Y return to base on General lighting components; 8Y return to base on Emergency lighting components; First 2Y includes an exclusive onsite warranty
- Warranty Operating Hours
- 30000 hrs
- Coverage limit
- Stated period or 30000 hrs, whichever occurs first
EK-12236
- Warranty
- 5 Year Warranty, First 2 Years Onsite
- Commercial Use Warranty
- 5Y return to base on General lighting components; 8Y return to base on Emergency lighting components; First 2Y includes an exclusive onsite warranty
- Warranty Operating Hours
- 30000 hrs
- Coverage limit
- Stated period or 30000 hrs, whichever occurs first
EK-12238
- Warranty
- 5 Year Warranty, First 2 Years Onsite
- Commercial Use Warranty
- 5Y return to base on General lighting components; 8Y return to base on Emergency lighting components; First 2Y includes an exclusive onsite warranty
- Warranty Operating Hours
- 30000 hrs
- Coverage limit
- Stated period or 30000 hrs, whichever occurs first
EK-12240
- Warranty
- 5 Year Warranty, First 2 Years Onsite
- Commercial Use Warranty
- 5Y return to base on General lighting components; 8Y return to base on Emergency lighting components; First 2Y includes an exclusive onsite warranty
- Warranty Operating Hours
- 30000 hrs
- Coverage limit
- Stated period or 30000 hrs, whichever occurs first
Subject to the manufacturer’s warranty conditions and stated operating limits. Any stated on-site service is subject to Australian installation, eligibility and service availability.
We currently ship our products to both Australia and New Zealand.
Dispatch Times
Not all products available for sale are held in our local warehouse.
Once your order is placed, we begin processing it immediately. Most items are ordered directly from our suppliers and delivered to our warehouse before being carefully packed and shipped out to you.
Most items will ship within 1 to 7 business days. If there are any delays we will endeavour to let you know as soon as possible.
Production Items and Made To Order Products can take up to 10 business days to produce, if this is the case, we will let you know as soon as possible.
Delivery Times
Delivery times will vary based on your location. Once we've dispatched your order, you can expect to receive it in the following time frames:
| NSW/ACT | 1-2 Business Days |
| VIC/QLD | 2-3 Business Days |
| SA/TAS | 4-5 Business Days |
| WA/NT | 7-10 Business Days |
| NZ | 10-15 Business Days |
* Please allow an additional 1-2 business days for regional areas and for orders placed on weekends and public holidays.
Whilst all care is taken to dispatch your order as soon as possible, we cannot control supplier turnarounds or courier delivery timeframes. As a result, it is advisable to not book your electrician for installation of your lights until they have physically arrived to your premises.
Express Shipping
If you would like to add Express Shipping onto your order please email our team at sales@ozlighting.com.au or call on 1300 858 360 and we will be able to assist you with your request.
*Please note additional costs apply for Express Shipping option.
Shipping Charges (Australia)
We now offer postage starting from $11.95 to Sydney and $15.95 to NSW Metro Areas, and Interstate Capital City Areas start from $17.95.
Postage to Interstate Metro Areas starts from $21.95 & $32.95 to Regional Areas of Australia.
Shipping is calculated upon checkout after you have added all your items to your cart.
Please note that postage varies in price based on delivery location and the total weight of the order. Lowest shipping prices are for orders with a total weight up to 5kg.
Orders over 10kg will be calculated by Australia Post at checkout.
Products over 105cm in length or bulky orders may attract an additional shipping charge in which case we will let you know as soon as possible. Delivery to certain remote areas of Australia may also attract an additional shipping charge in which case we will let you know as soon as possible.
Please refer to the table below beforehand to identify what the shipping rate is for your address.
| Delivery Location | Up to 5KG | 5KG-10KG |
|---|---|---|
| Sydney | $11.95 | $20.95 |
| NSW Metro Areas | $15.95 | $30.95 |
| NSW Regional Areas | $25.95 | $54.95 |
| Interstate Capitals | Up to 5KG | 5KG-10KG |
| Melbourne, Brisbane, Adelaide & Perth | $17.95 | $32.95 |
| Interstate Metro Areas | Up to 5KG | 5KG-10KG |
| Hobart, Victoria Metro, Queensland Metro, South Australia Metro & Western Australia Metro | $21.95 | $46.95 |
| Interstate Regional Areas | Up to 5KG | 5KG-10KG |
| Victoria Regional, Queensland Regional, Tasmania Regional, Northern Territory, South Australia Regional, Western Australia Regional & Other Areas | $31.95 | $74.95 |
| Postcodes | |
|---|---|
| NSW | |
| Sydney | 1000-1935, 2000-2079, 2085-2107, 2109-2156, 2158, 2160-2172, 2174-2229, 2232-2249, 2557-2559, 2564-2567, 2740-2744, 2747-2751, 2759-2764, 2766-2774, 2776-2777, 2890-2897 |
| NSW Metro Areas | 2080-2084, 2108, 2157, 2159, 2173, 2230-2231, 2508-2514, 2555-2556, 2560-2563, 2568-2574, 2745-2746, 2752-2758, 2765, 2775, 2778-2786, 2250-2263, 2500-2507, 2515-2532, 2282-2310, 200-299, 2600-2620, 2900-2920, 1936-1999, 2640-2641, 2708-2709, 2485-2486 |
| NSW Regional Areas | 2264-2281, 2311-2484, 2487-2499, 2533-2554, 2575-2599, 2621-2639, 2642-2647, 2649-2707, 2710-2714, 2716, 2720-2730, 2787-2879 |
| Postcodes | |
| Interstate Capitals | |
| Melbourne | 3000-3062, 3064-3098, 3101-3138, 3140-3210, 3800-3801, 8000-8999, 9999 |
| Brisbane | 4000-4018, 4029-4068, 4072-4123, 4127-4129, 4131-4132, 4151-4164, 4169-4182, 4205-4206, 9000-9725 |
| Adelaide | 5000-5113, 5115-5117, 5125-5130, 5158-5169, 5800-5999 |
| Perth | 6000-6030, 6036, 6050-6066, 6069, 6076, 6090-6110, 6112-6120, 6147-6160, 6162-6175, 6180, 6182-6206, 6210, 6800-6990, 6992-6996 |
| Postcodes | |
| Interstate Metro Areas | |
| Hobart | 7000-7019, 7050-7053, 7055-7108, 7172, 7248-7254, 7258-7329, 7800-7999 |
| Victoria Metro | 3063, 3099-3100, 3139, 3335-3341, 3427-3443, 3750-3799, 3802-3811, 3910-3920, 3926-3944, 3975-3978, 3980-3983, 3211-3220, 3350, 3353-3356, 3689-3690 |
| Queensland Metro | 4019-4028, 4069-4071, 4124-4126, 4130, 4133-4150, 4165-4168, 4183-4204, 4207-4209, 4270-4299, 4500-4549, 4300-4308, 4210-4224, 4226-4269, 9726-9919, 4225, 4550-4579 |
| South Australia Metro | 5114, 5118-5124, 5131-5157, 5170-5200 |
| Western Australia Metro | 6031-6035, 6037-6049, 6067-6068, 6070-6075, 6077-6089, 6111, 6121-6146, 6161, 6176-6179, 6181, 6207-6209, 6211-6214, 6991, 6997-6999 |
| Postcodes | |
| Interstate Regional Areas | |
| Victoria Regional | 2648, 2715, 2717-2719, 2731-2739, 3221-3334, 3342-3349, 3351-3352, 3357-3426, 3444-3688, 3691-3749, 3812-3909, 3921-3925, 3945-3974, 3979, 3984-3999 |
| Queensland Regional | 4309-4453, 4580-4693, 4454-4499, 4694-4802, 4804-4805, 9920-9960, 4803, 4806-4999, 9961-9998 |
| South Australia Regional | 2880-2889, 5201-5749 |
| Western Australia Regional | 6215-6700, 6701-6797 |
| Tasmania Regional | 7020-7049, 7054, 7109-7150, 7155-7171, 7173-7247, 7255-7257, 7330-7799 |
| Northern Territory & Other Areas | 800-802, 804-821, 828-851, 853-853, 860-861, 870-871, 873-879, 906-999, 803-803, 822-827, 852-852, 854-859, 862-869, 872-872, 880-905, 2898-2899, 6798-6799, 7151-7154 |
Shipping Charges (New Zealand)
We offer a $49.99 flat shipping rate to our New Zealand customers.
Please note: products over 1.2M in length or bulky items may attract an additional shipping charge in which case we will let you know as soon as possible.
Please note: certain remote areas of New Zealand may attract an additional shipping charge in which case we will let you know as soon as possible.
Warranties
For all warranty claims, please ensure you have your proof of purchase and that the faulty product is within the applicable manufacturer's stated warranty period. Warranty is limited to replacement unless otherwise stated.
Under no circumstances will Ozlighting be liable for any electrical costs associated with a faulty product.
Please note that all electrical items that require installation must be done by a licensed electrician in accordance with Australian and New Zealand laws and regulations. If you are claiming a warranty on a particular item, we may ask you to provide evidence that it has been installed by a licensed electrician.
Goods damaged in Transit or Short Deliveries
Unfortunately, accidents do happen in transit and occasionally shipping errors can occur. If this is the case, please get in touch with us within 7 days of receiving your order at sales@ozlighting.com.au and we will begin to process rectifying the order for you right away.
Returns
If a product is no longer required or you've changed your mind, you have 30 days to return these goods to our warehouse.
All products returned must be in their original packaging and must not have been used. If the product box is damaged in any way this may affect the result of your return.
Returns will be processed as a store credit which is valid for up to 12 months from the date of issue to use on any of our products. If you would like to opt for a refund please note it will incur a 15% restocking fee.
The customer is responsible to arrange and pay for the return delivery.
For items that have been made to order or custom made or altered in any way, unfortunately we cannot accept these items back.
Please note:
Products may differ from those pictured on the website due to natural variations in colour and finish. Products that have been installed cannot be returned.
Procedure
To claim your warranty or return, please email us at sales@ozlighting.com.au with the following information:
- Your invoice or order number.
- The reason for the warranty or return.
- Any supporting evidence (such as photos) to support your claim
Liability
We exclude and are not liable for all liabilities, losses, damages, expenses and costs of any kind (including without limitation any indirect and consequential losses, such as commercial or economic loss of any kind, and/or expenses incurred for installation services) as a result of or in connection with your access and/or use of our website, and/or any of our acts or omissions (including negligence).
Governing Law
Any argument relating to the terms and conditions between Ozlighting and the customer shall be governed by the laws of New South Wales, Australia.
Ektor UMBRA-PRO-DIFF-EM/S - 20W/33W LED DALI 600mm 2FT / 1200mm 4FT CCT Tuneable Diffused Emergency Batten
Sale price$387.50
Regular price$546.63
