IP65 / IK08 construction.

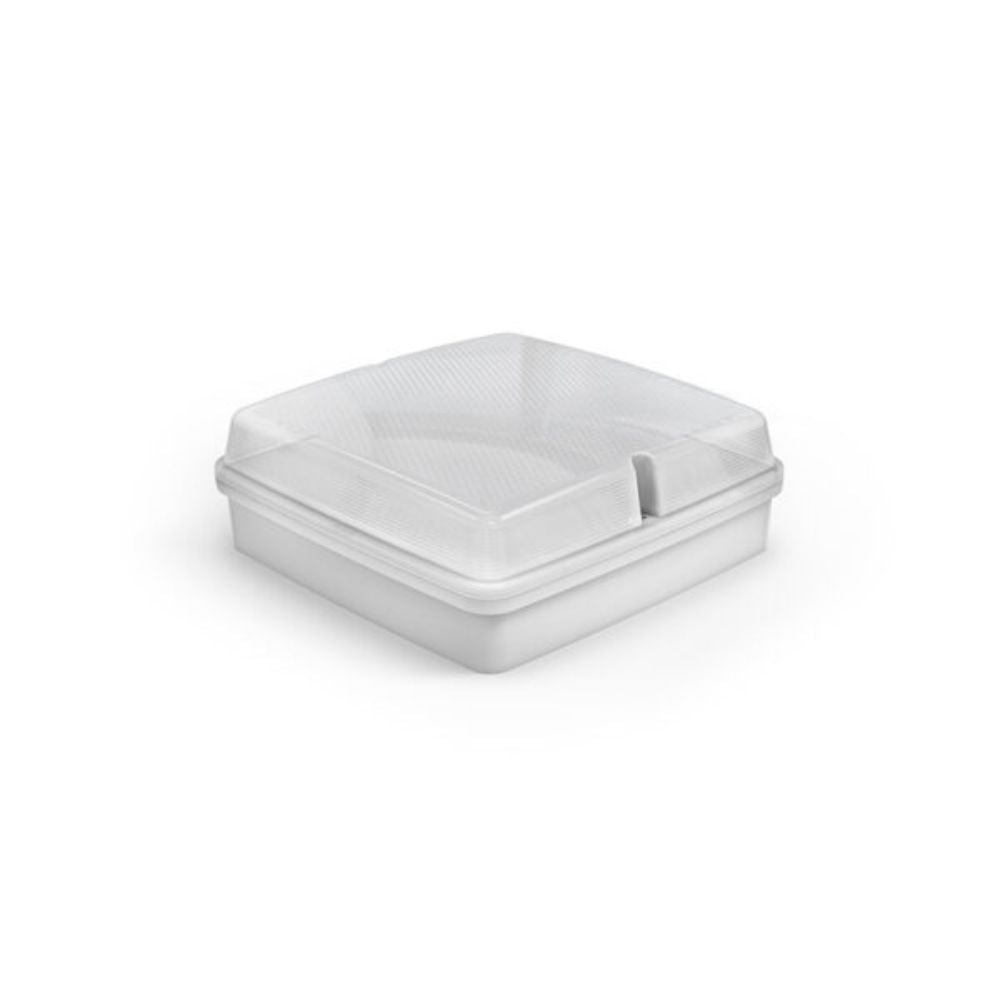

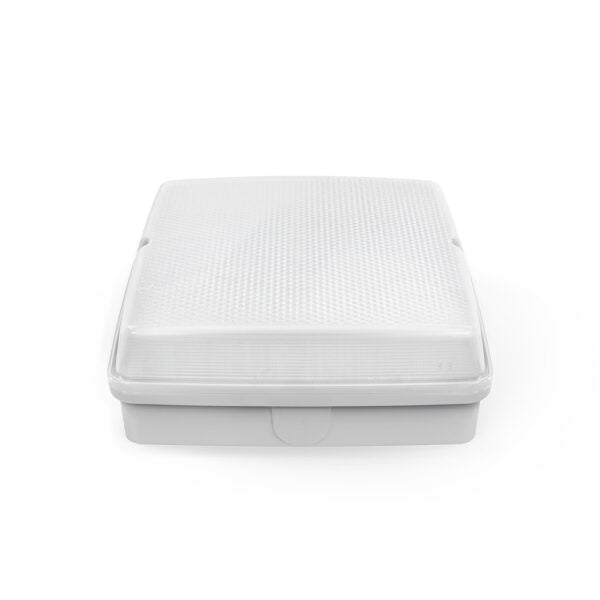

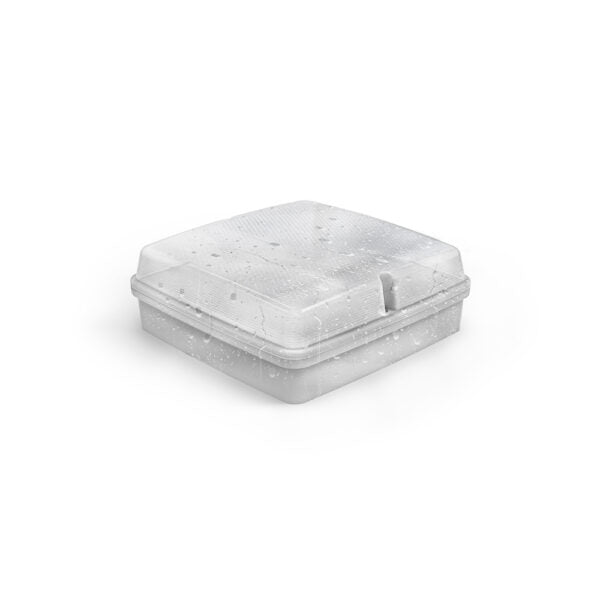

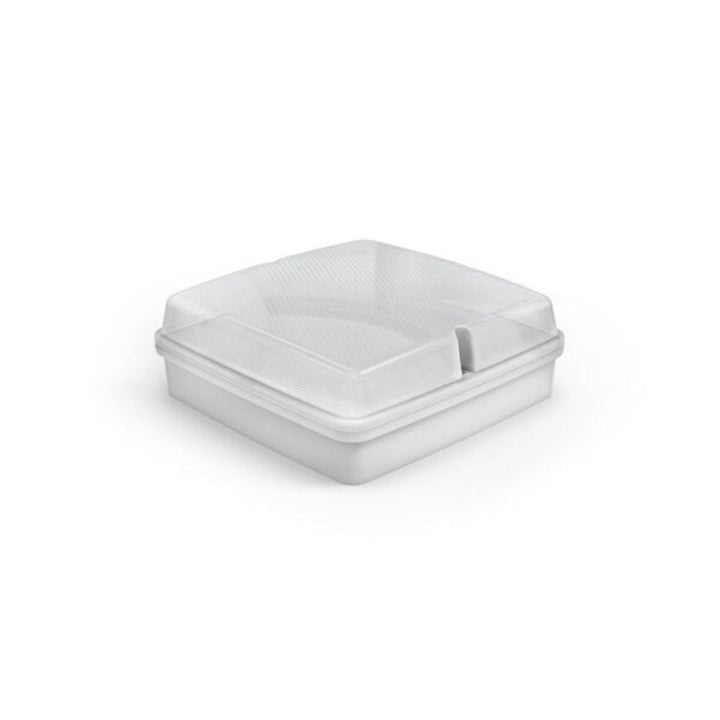

Ektor QUADRO - 18W Advanced LED Bunker IP65
QUADRO
QUADRO — select the exact option below.
Important before you buy
- Arrange installation by a licensed electrician. The exact mounting and electrical connection for each available option are listed below.
IP Rating
IP65
IK Rating
IK08
Input voltage
230Vac
Key features
8-year product design life at the maximum stated ambient temperature.
Selectable tri-colour LED colour temperature; exact settings are listed below.
Selectable output power; use the exact wattage settings shown for this model.
EK-14522: Built-in mains-rated microwave occupancy sensor.
EK-14522: Corridor mode provides the stated sensor control during standalone operation.
Technical specifications
Shared across the listed options
Efficiencies
- Total System Efficiency
- 130 lm/W
Mechanical
- IP Rating
- IP65
- IK Rating
- IK08
- Body Material
- Polycarbonate
- Diffuser Material
- Polycarbonate
- Installation Type
- Surface mount
Electrical
- Working Temp Range
- 0 to 40 °C
- Input Frequency
- 50 Hz
- System Max Wattage
- 20 W
- Input voltage
- 230Vac
Lamp
- Colour Rendering Index (CRI)
- >80
- CCT Configuration
- TRI-CCT
- Macadam Steps (SDCM)
- 5-step MacAdam Ellipse
- Lamp/LED voltage
- 36 V
- Lamp/LED Current
- 460 mA
LED Lifetime
- TM-21 Test Hours
- 9000 hrs
Colour temperature
- 12 Watts · 3000 K
- 1100 lm
- 12 Watts · 4000 K
- 1350 lm
- 12 Watts · 6000 K
- 1300 lm
- 20 Watts · 3000 K
- 2200 lm
- 20 Watts · 4000 K
- 2650 lm
- 20 Watts · 6000 K
- 2600 lm
Driver
- Driver Type
- Fixed output
- Driver Included
- Yes
- Integrated Driver
- No
- Dimmable
- No
- Wiring Type
- Re-wireable terminal block (3 pin)
- PSTLM
- 0.09
- SVM
- 0.012
Emergency (EM suffix)
- Replacement Battery Code
- 01302
Compliance
- Product Design Life
- 8 years
EK-14520 · No
EV-QUADRO-ADV
LED Lifetime
- LED Lifetime Ratings (Failure rate & lumen depreciation)
- Ambient Temp (°C): 25 °C: 40 °C; L90B10: 41000 hrs: 37000 hrs
Compliance
- Standards
- AS/NZS 60598.1 AS/NZS 60598.2.1 AS/NZS 61347.1 AS/NZS 61347.2.13 AS/NZS 61058.1 AS/NZS CISPR 15
EK-14522 · Yes
EV-QUADRO-ADV-S
LED Lifetime
- LED Lifetime Ratings (Failure rate & lumen depreciation)
- Ambient Temp (°C): 25 °C: 40 °C; L90B10: 43000 hrs: 39000 hrs
Sensor (S suffix)
- Sensor Type
- Microwave
- Detection Range
- 10 m
- Time Delay
- 5s-14mins
- Switched Output
- No
- Corridor Function
- Yes
- Lux Adjustment
- Yes
- Dusk Mode
- Yes
- Adjustable Hold Time
- Yes
- Adjustable Standby Level
- Yes
- Adjustable Standby Period
- Yes
- Adjustable Detection Area / Sensitivity
- Yes
Compliance
- Standards
- AS/NZS 60598.1 AS/NZS 60598.2.1 AS/NZS 61347.1 AS/NZS 61347.2.13 AS/NZS 61058.1 AS/NZS CISPR 15 AS/NZS 4268
Features for this option
- Built-in mains-rated microwave occupancy sensor.
- Corridor mode provides the stated sensor control during standalone operation.
Dimensions
EK-14520
- Product Height
- 102 mm
- Product Length
- 275 mm
- Product Width
- 275 mm
EK-14522
- Product Height
- 102 mm
- Product Length
- 275 mm
- Product Width
- 275 mm
Inclusions & required separately
- EK-14520: LED driver included.
- EK-14520: emergency battery / charging system included for this emergency option.
- EK-14522: LED driver included.
- EK-14522: emergency battery / charging system included for this emergency option.
Installation & maintenance
- Follow the supplied manufacturer instructions for commissioning, charging, emergency testing and maintenance. Use the listed replacement battery code for the exact option.
Warranty
EK-14520
- Warranty
- 5 Year Warranty, First 2 Years Onsite
- Commercial Use Warranty
- 5 RTB (Total 5 Years)
EK-14522
- Warranty
- 5 Year Warranty, First 2 Years Onsite
- Commercial Use Warranty
- 5 RTB (Total 5 Years)
Subject to the manufacturer’s warranty conditions and stated operating limits. Any stated on-site service is subject to Australian installation, eligibility and service availability.
