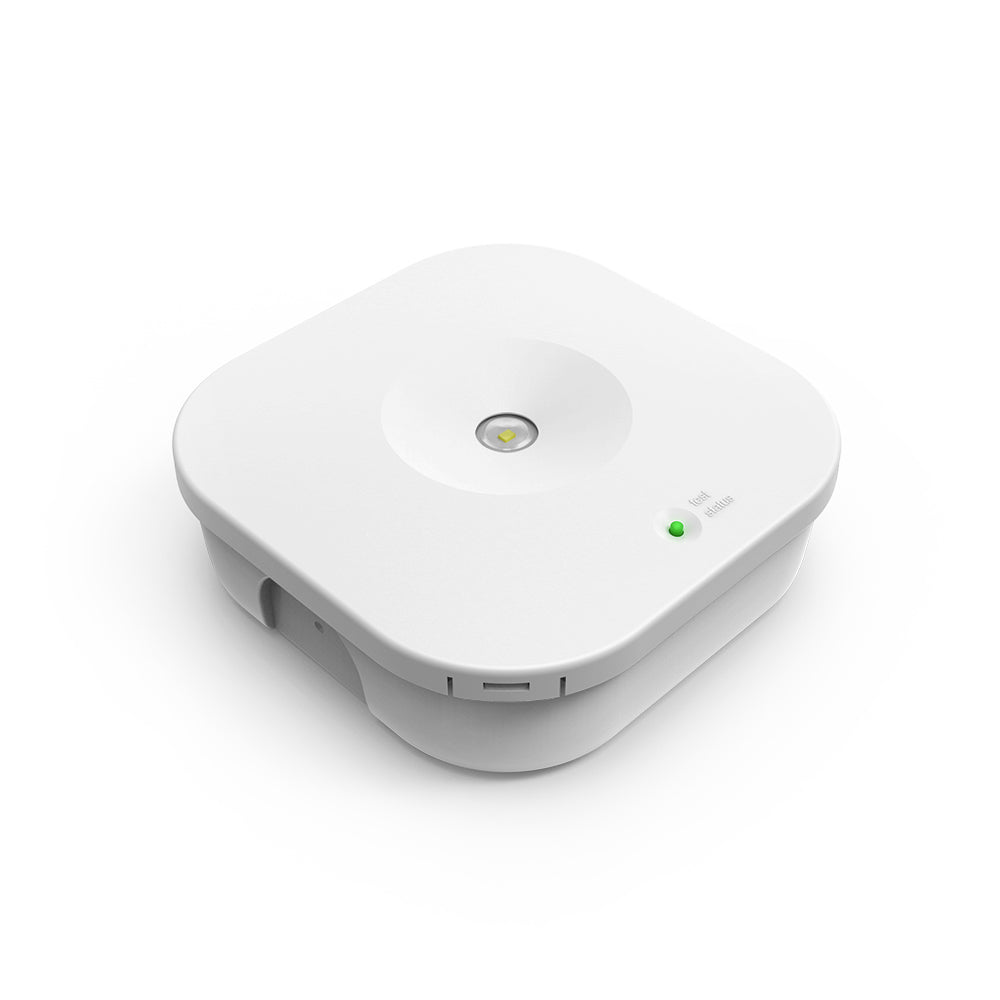

Ektor One Ledfire Emergency LED Luminaire - DALI, IP65, Surface Mount, D63, Wireless
Order code: 14859
Supplier item code: EV-LEDFIRE-SM-ONE-IP65
Ledfire SM
Ektor One Ledfire Surface Mount IP65 - D63 - W/Wireless and DALI
Before you buy
- Installation must be carried out by a suitably qualified installer; isolate the electrical supply before work.
- After battery replacement, allow at least 24 hours charging before discharge testing.
- An unswitched active supply is required during normal operation.
- The guide’s M5 mounting fixings are not included.
- Where DALI wiring is used, the guide identifies it as FELV and requires it to be treated as LV for installation safety.
At a glance
Fixture power
Maximum rating: 2 W
Emergency Classification
C0:D63, C90:D63
Emergency Duration
90 mins
IP Rating
IP65
Input voltage
230Vac
Driver Type
Lynk Wireless or DALI-2 with DT1
Installation Type
Surface mount
Technical specifications
Mechanical
- IP Rating
- IP65
- Fitting Colour
- White
- Body Material
- Polycarbonate
- Installation Type
- Surface mount
Electrical
- Working Temp Range
- 0 to 40 °C
- Input Frequency
- 50 Hz
- Maximum Wattage
- 2 W
- Input voltage
- 230Vac
- Standby Power
- 0.4 W
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge.
Colour temperature
- LED Wattage
- 4.3 W
Driver
- Driver Type
- Lynk Wireless or DALI-2 with DT1
- Driver Included
- Yes
- Integrated Driver
- Yes
- Wiring Type
- Re-wireable terminal block (4 pin)
- Dimmable
- No
Emergency (EM suffix)
- Emergency Mode
- Non-Maintained
- Emergency Classification
- C0:D63, C90:D63
- Emergency Output Power
- 2200 mW
- Replacement Battery Code
- 18096
- Emergency Duration
- 90 mins
- Emergency Lumen Output
- 320 lm
- Emergency Control
- Lynk Wireless or DALI-2
DALI Monitored ~ Supports Emergency test and monitoring over DALI (IEC62386) with full compliance to IEC62386-202. | IEC62386-104 ~ Supports wireless test and monitoring over IEC62386-104 using IEC62386-202.
Compliance
- Standards
- AS/NZS 60598.1 | AS 60598.2.22 | AS/NZS 61347.1 | AS/NZS 61347.2.13 | AS CISPR 15 | AS/NZS 2293.3
Warranty
- Warranty
- 8 Year Warranty, RTB
The total warranty period is shown above. Where an on-site period is listed, the first years are covered on-site, with return-to-base coverage for the remainder. For full warranty details and claim instructions, please refer to our Warranty page.
Product configuration
- Fixture power
- Maximum rating: 2 W
- Light source
- LED
- Light power
- LED rating: 4.3 W
- Installation requirement
- Installation must be carried out by a suitably qualified installer; isolate the electrical supply before work.
- Battery replacement test
- After battery replacement, allow at least 24 hours charging before discharge testing.
- Emergency supply requirement
- An unswitched active supply is required during normal operation.
- Mounting fixings
- The guide’s M5 mounting fixings are not included.
- DALI wiring safety
- Where DALI wiring is used, the guide identifies it as FELV and requires it to be treated as LV for installation safety.
Dimensions & supplier drawings
- Product Height
- 48 mm
- Product Length
- 145 mm
- Product Width
- 145 mm
Package & requirements
Included
- Driver
Not included / sold separately
- The guide’s M5 mounting fixings are not included.
