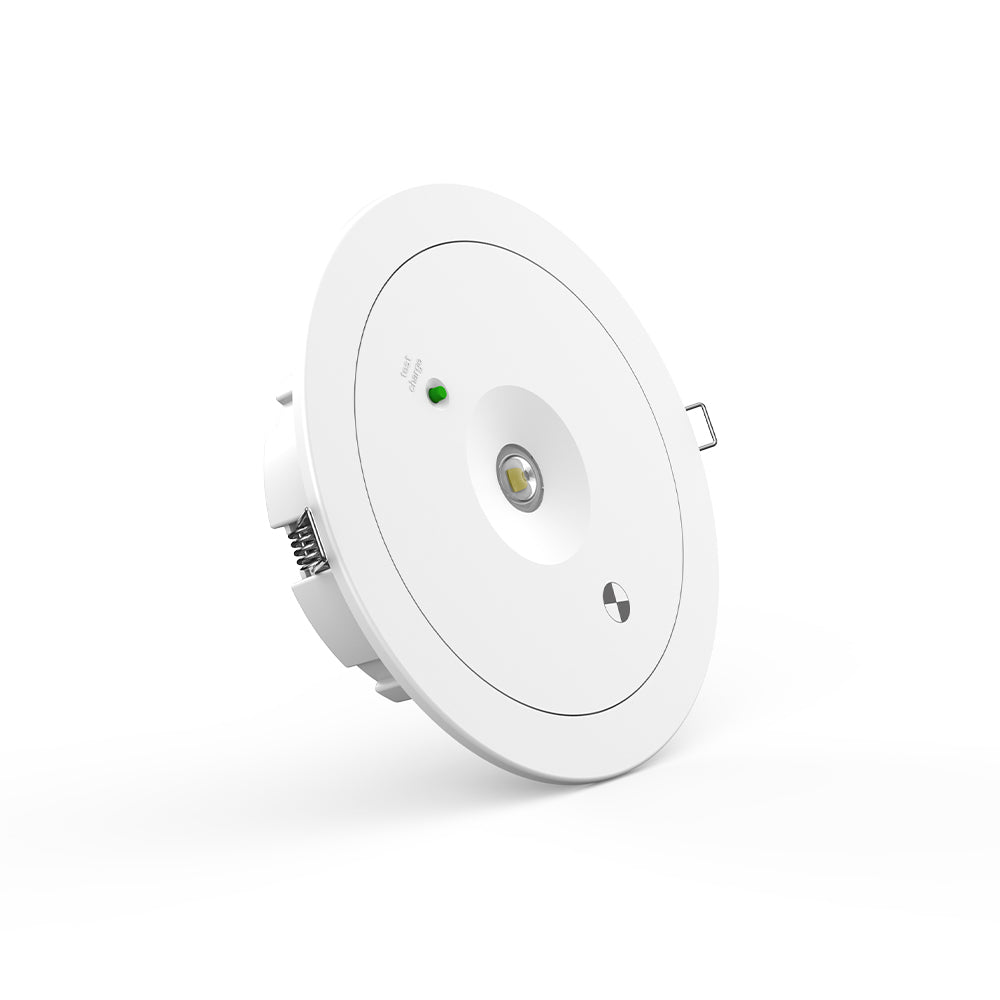

Ektor Lynk Slimfire Advanced Low Profile Emergency Light - D50, W/Wireless
Order code: 11565
Supplier item code: EV-SLIMFIRE-ADV-LK
Slimfire
Ektor Lynk Slimfire Advanced Low Profile - D50 - W/Wireless
Before you buy
- Installation must be carried out by a licensed electrician; isolate the electrical supply before work.
- Allow at least 24 hours battery charging after installation before carrying out discharge testing.
- An unswitched active supply is required during normal operation.
- Indoor use only.
- The plug and socket must be protected against unauthorised disconnection.
- The supplier photo is a range example. Confirm the selected model’s dimensions, optics, controls and emergency/sensor configuration from its verified specifications; optional accessories pictured are not proof of supply.
At a glance
Fixture power
Maximum rating: 1.7 W
Emergency Classification
C0:D50, C90:D50
Emergency Duration
90 mins
IP Rating
IP44 Front Face Only
Input voltage
230Vac
Driver Type
Wireless (IEC62386-104) with DT1
Installation Type
Recessed
Technical specifications
Mechanical
- IP Rating
- IP44 Front Face Only
- IC Rating
- IC-4
- Fitting Colour
- White
- Body Material
- Polycarbonate
- Installation Type
- Recessed
IC-4 rating has been conducted at the products maximum working Temperature Range (C) in line with Australian standards. This provides the required safety when covered with insulation and used in Australian Environments.
Electrical
- Working Temp Range
- 0 to 40 °C
- Input Frequency
- 50 Hz
- Maximum Wattage
- 1.7 W
- Input voltage
- 230Vac
- Standby Power
- 0.5 W
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge.
Driver
- Driver Type
- Wireless (IEC62386-104) with DT1
- Driver Included
- Yes
- Integrated Driver
- Yes
- Dimmable
- No
- Flex & Plug or Lead Length
- 1200 mm
- Wiring Type
- Non rewireable Flex & Plug
Junction Box (4p) ~ The rewireable 4 pole junction box allows for the easy wiring of soft wiring DALI-2 looms when used with soft-wiring systems.
Emergency (EM suffix)
- Emergency Mode
- Non-Maintained
- Emergency Classification
- C0:D50, C90:D50
- Emergency Output Power
- 2250 mW
- Replacement Battery Code
- 01308
- Emergency Duration
- 90 mins
- Emergency Lumen Output
- 275 lm
- Emergency Control
- IEC62386-104 (Wireless DT1)
IEC62386-104 ~ Supports wireless test and monitoring over IEC62386-104 using IEC62386-202.
Compliance
- Standards
- AS/NZS 60598.1 | AS 60598.2.22 | AS CISPR 15 | AS/NZS 4268 | AS/NZS 2772.2 | AS/NZS 61347.1 | AS/NZS 61347.2.13 | AS/NZS 2293.3
Warranty
- Warranty
- 5 Year Warranty, RTB
- Commercial Use Warranty
- 6 RTB (Total 6 Years)
The total warranty period is shown above. Where an on-site period is listed, the first years are covered on-site, with return-to-base coverage for the remainder. For full warranty details and claim instructions, please refer to our Warranty page.
Product configuration
- Fixture power
- Maximum rating: 1.7 W
- Installation requirement
- Installation must be carried out by a licensed electrician; isolate the electrical supply before work.
- Initial emergency test
- Allow at least 24 hours battery charging after installation before carrying out discharge testing.
- Emergency supply requirement
- An unswitched active supply is required during normal operation.
- Installation location
- Indoor use only.
- Plug and socket installation
- The plug and socket must be protected against unauthorised disconnection.
Dimensions & supplier drawings
- Product Height
- 45 mm
- Cutout
- 93 (inner), 75-130 (outer) mm
- Product Diameter
- 110 mm
Package & requirements
Included
- Driver
