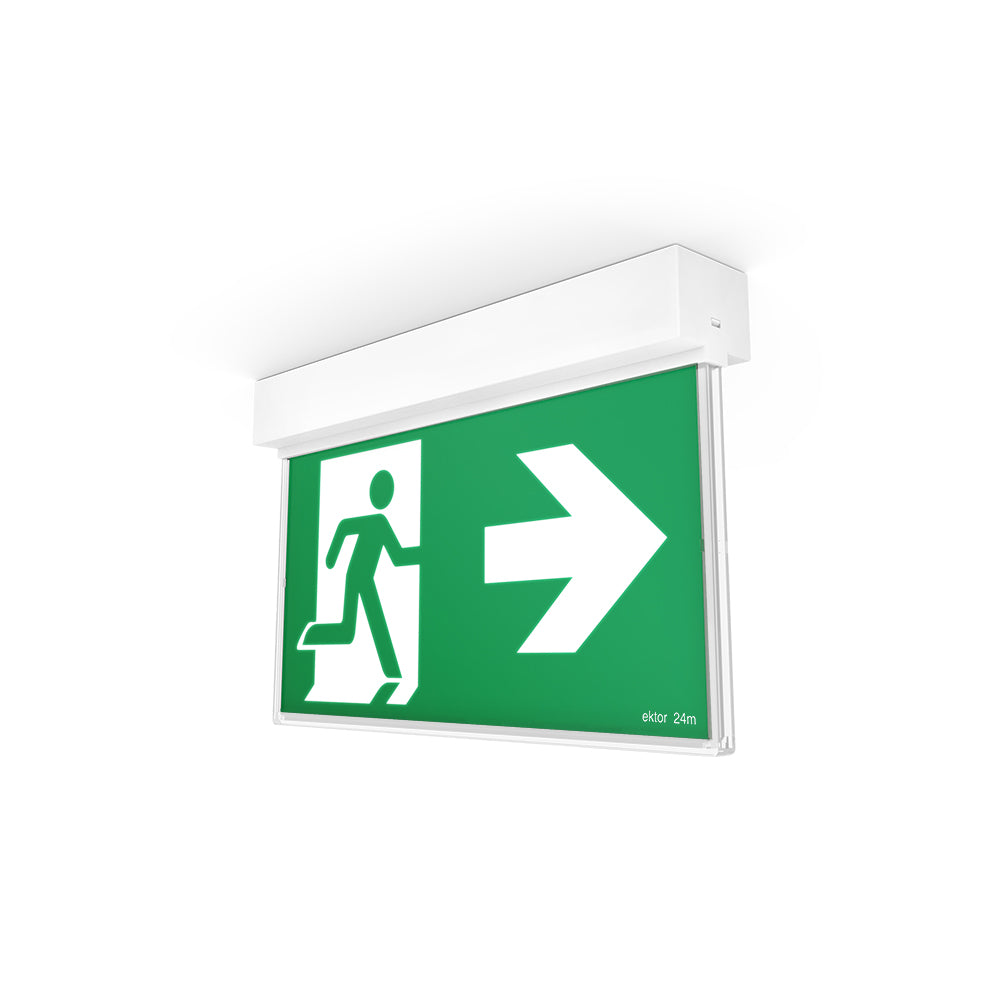

Ektor Lynk Razor Surface Mount Emergency Exit Pro W/Wireless
Order code: 12297
Supplier item code: EV-RAZOR-SM-PRO-24M-LK
Razor SM
Ektor Lynk Razor Surface Mount Emergency Exit - Pro W/Wireless
Before you buy
- Installation must be carried out by a licensed electrician; isolate the electrical supply before work.
- Allow at least 24 hours battery charging after installation before carrying out discharge testing.
- An unswitched active supply is required during normal operation.
- Indoor use only.
- The plug and socket must be protected against unauthorised disconnection.
- The chain for optional chain mounting is not included.
At a glance
Fixture power
Maximum rating: 2.6 W
Emergency Classification
C0:E6.3, C90:E10
Emergency Duration
90 mins
Viewing Distance
24 m
IP Rating
IP20
Input voltage
230Vac
Driver Type
Wireless (IEC62386-104) with DT1
Installation Type
Surface mount
Technical specifications
Mechanical
- IP Rating
- IP20
- Fitting Colour
- White
- Body Material
- Polycarbonate
- Diffuser Material
- PMMA
- Installation Type
- Surface mount
Electrical
- Working Temp Range
- 0 to 40 °C
- Input Frequency
- 50 Hz
- Maximum Wattage
- 2.6 W
- Input voltage
- 230Vac
- Standby Power
- 1.9 W
Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge.
Driver
- Driver Type
- Wireless (IEC62386-104) with DT1
- Driver Included
- Yes
- Integrated Driver
- Yes
- Wiring Type
- Re-wireable terminal block (2 pin)
- Dimmable
- No
Emergency (EM suffix)
- Emergency Mode
- Maintained
- Emergency Output Power
- 650 mW
- Replacement Battery Code
- 13845
- Emergency Duration
- 90 mins
- Viewing Distance
- 24 m
- Decal Size
- 300 x 150 mm
- Emergency Control
- IEC62386-104 (Wireless DT1)
- Emergency Light Source Life
- 34Y/04M
- Emergency Classification
- C0:E6.3, C90:E10
DALI Monitored ~ Supports Emergency test and monitoring over DALI (IEC62386) with full compliance to IEC62386-202. | IEC62386-104 ~ Supports wireless test and monitoring over IEC62386-104 using IEC62386-202.
AS2293.3-2018 Projection of Light source life for LED Exit signs (appendix E) Defines the projected time until the surface luminance falls below the minimum required surface luminance for an exit sign.
Compliance
- Standards
- AS/NZS 60598.1 | AS 60598.2.22 | AS/NZS 61347.1 | AS/NZS 61347.2.13 | AS CISPR 15 | AS/NZS 2293.3
Warranty
- Warranty
- 8 Year Warranty, RTB
- Commercial Use Warranty
- 8 RTB (Total 8 Years)
The total warranty period is shown above. Where an on-site period is listed, the first years are covered on-site, with return-to-base coverage for the remainder. For full warranty details and claim instructions, please refer to our Warranty page.
Product configuration
- Fixture power
- Maximum rating: 2.6 W
- Installation requirement
- Installation must be carried out by a licensed electrician; isolate the electrical supply before work.
- Initial emergency test
- Allow at least 24 hours battery charging after installation before carrying out discharge testing.
- Emergency supply requirement
- An unswitched active supply is required during normal operation.
- Installation location
- Indoor use only.
- Plug and socket installation
- The plug and socket must be protected against unauthorised disconnection.
- Chain mounting
- The chain for optional chain mounting is not included.
Dimensions & supplier drawings
- Product Height
- 203 mm
- Product Length
- 315 mm
- Product Width
- 52 mm
Package & requirements
Included
- Driver
Not included / sold separately
- The chain for optional chain mounting is not included.
