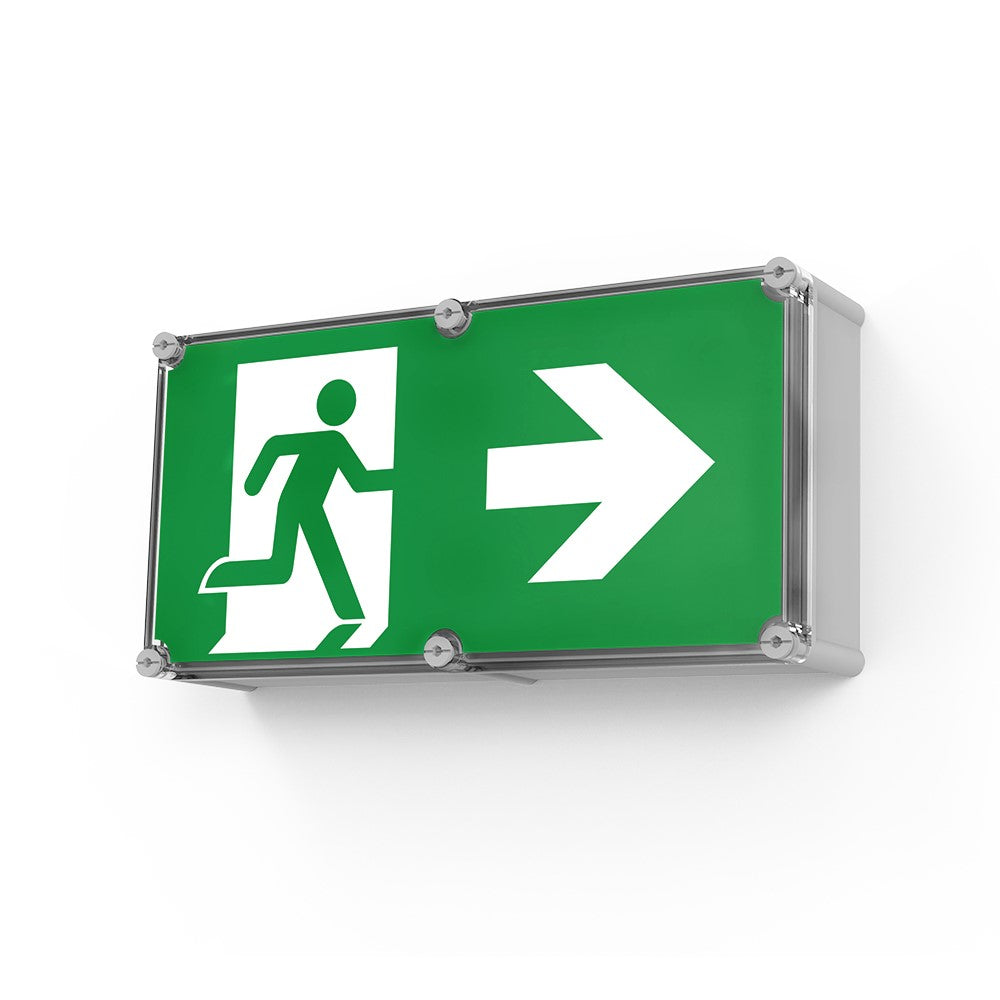

Ektor BOXIT PRO Wall Mount Exit Light - 40m, IP65 (13105)
Order code: 13105
Supplier item code: EV-BOXIT-IP65-40M-PRO-DA
Boxit IP65 Professional
Ektor Boxit Pro IP65 Wallmount Exit Light - 40M
Before you buy
- The family webpage combines specifications for different models. Confirm the following details for this exact order code before purchase: System Max Wattage, Emergency Lumen Output, Decal Size, Emergency Light Source Life, Daily Use.
- The exact-code datasheet specifies maximum rating: 3.5 w. The family webpage also displays a power field belonging to another variant; confirm the required model and rating before purchase.
- Installation must be carried out by a suitably qualified installer; isolate the electrical supply before work.
- After battery replacement, allow at least 24 hours charging before discharge testing.
- An unswitched active supply is required during normal operation.
- When installing in direct sunlight, ensure the internal enclosure remains within the rated ambient temperature.
- Where DALI wiring is used, the guide identifies it as FELV and requires it to be treated as LV for installation safety.
At a glance
Fixture power
Maximum rating: 3.5 W
Emergency Classification
C0:E5, C90:E2.5
Emergency Duration
90 mins
Viewing Distance
40 m
IP Rating
IP65
Input voltage
230Vac
Driver Type
DALI DT1 Emergency
Installation Type
Surface mount
Technical specifications
Mechanical
- IP Rating
- IP65
- IK Rating
- IK08
- Fitting Colour
- Grey
- Body Material
- Polycarbonate
- Diffuser Material
- Polycarbonate
- Installation Type
- Surface mount
Electrical
- Working Temp Range
- 0 to 40 °C
- Input Frequency
- 50 Hz
- Input voltage
- 230Vac
- Standby Power
- 2.5 W
- Maximum Wattage
- 3.5 W
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge.
Driver
- Driver Type
- DALI DT1 Emergency
- Wiring Type
- Re-wireable terminal block (5 pin)
Emergency (EM suffix)
- Emergency Mode
- Maintained
- Emergency Classification
- C0:E5, C90:E2.5
- Emergency Output Power
- 1600 mW
- Replacement Battery Code
- 01303
- Emergency Duration
- 90 mins
- Viewing Distance
- 40 m
AS2293.3-2018 Projection of Light source life for LED Exit signs (appendix E) Defines the projected time until the surface luminance falls below the minimum required surface luminance for an exit sign.
Compliance
- Standards
- AS/NZS 60598.1 | AS 60598.2.22 | AS/NZS 61347.1 | AS/NZS 61347.2.13 | AS CISPR 15 | AS/NZS 2293.3
The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally.
Warranty
- Warranty
- 8 Year Warranty, RTB
- Commercial Use Warranty
- 8 RTB (Total 8 Years)
The total warranty period is shown above. Where an on-site period is listed, the first years are covered on-site, with return-to-base coverage for the remainder. For full warranty details and claim instructions, please refer to our Warranty page.
Product configuration
- Fixture power
- Maximum rating: 3.5 W
- Installation requirement
- Installation must be carried out by a suitably qualified installer; isolate the electrical supply before work.
- Battery replacement test
- After battery replacement, allow at least 24 hours charging before discharge testing.
- Emergency supply requirement
- An unswitched active supply is required during normal operation.
- Sunlight installation
- When installing in direct sunlight, ensure the internal enclosure remains within the rated ambient temperature.
- DALI wiring safety
- Where DALI wiring is used, the guide identifies it as FELV and requires it to be treated as LV for installation safety.
Dimensions & supplier drawings
- Product Height
- 138 mm
- Product Length
- 555 mm
- Product Width
- 278 mm
