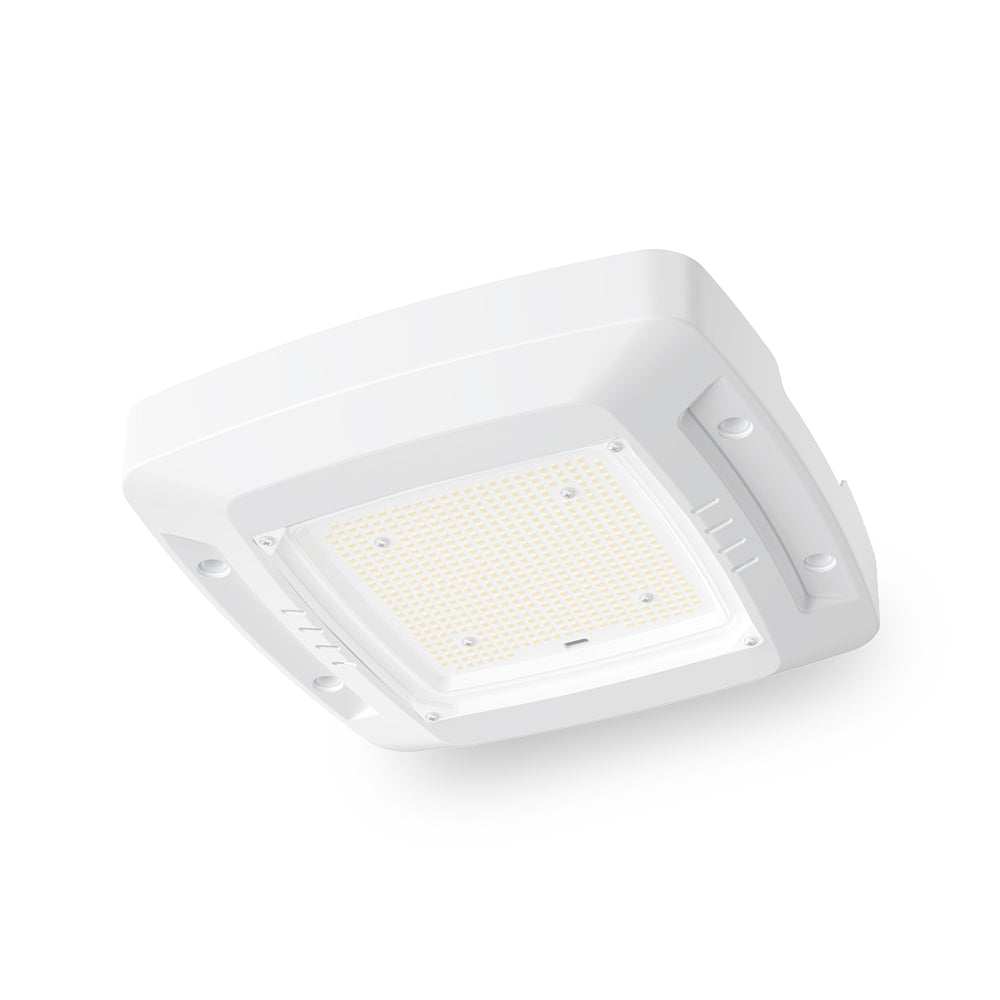

Ektor AUROX Power Adjustable Canopy Light - 5000K (15561)
Order code: 15561
Supplier item code: EV-AUROX-CORE-120
Aurox
Ektor Aurox Power Adjustable 5000K CRI 80 Canopy Light 30/60/80/120W Surface
Before you buy
- Installation must be carried out by a suitably qualified installer; isolate the electrical supply before work.
- The selectable-power steps differ between the webpage prose, the current lamp-output table and the linked exact installation guide. Confirm the required DIP-switch settings before installation.
At a glance
Fixture power
Maximum rating: 120 W
IP Rating
IP65
Input voltage
220-240V~
Driver Type
Fixed output
Installation Type
Surface mount
Technical specifications
Mechanical
- IP Rating
- IP65
- IK Rating
- IK08
- Adjustability
- Fixed
- Fitting Colour
- White
- Product Finish
- Powder coated
- Body Material
- Aluminium
- Diffuser Material
- Glass
- Installation Type
- Surface mount
Electrical
- Working Temp Range
- -30 to 50 °C
- Input Frequency
- 50 Hz
- Maximum Wattage
- 120 W
- Input voltage
- 220-240V~
- Surge Protection L-N
- 6KV
- Surge Protection L/N-PE
- 10KV
Lamp
- Colour Rendering Index (CRI)
- >80
- CCT Configuration
- Single
- Macadam Steps (SDCM)
- 4-step MacAdam Ellipse
- Beam Angle
- 115 °
LED Lifetime
- LED Lifetime
- >102000 hrs
- LED Lifetime Ratings (Failure rate & lumen depreciation) / L90B10 / 25 °C
- 48000 hrs
- LED Lifetime Ratings (Failure rate & lumen depreciation) / L90B10 / 40 °C
- 46000 hrs
- TM-21 Test Hours
- 17000 hrs
This is the Reported LED Lifetime in Hours based on TM-21. Ektor does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below.
This rating defines the performance of the led within its lifetime. L relates to lumen depreciation, where the proceeding number gives the resultant lumen output at the end of it reported lifetime. L70, would mean 30% lumen depreciation which means 70% of its initial output and is tested accordingly to TM-21. The B part refers to failures, which can be define as the percentage of LEDs which fall below the L value in the projected lifetime. A value of B10 refers to 10% failure and a value of B50 refers to 50% failure. After the defined lifetime, the system will reach the defined lumen depreciation and the average led failures is defined by the B rating. The B rating is defined in and tested to IEC62717.
Colour temperature
- 36 Watts / 5000 K
- 5700 lm
- 60 Watts / 5000 K
- 10650 lm
- 80 Watts / 5000 K
- 15450 lm
- 120 Watts / 5000 K
- 22400 lm
Driver
- Driver Type
- Fixed output
- Driver Included
- Yes
- Integrated Driver
- Yes
- Dimmable
- No
- Flex & Plug or Lead Length
- 300 mm
- PSTLM
- 0.02
- SVM
- 0.01
Short Term Light Modulation (PstLM): The requirement is that PstLM should be less than or equal to 1.0. This metric measures the short-term flicker severity and ensures that flicker is not perceptible or is at a level that does not cause discomfort or health issues.
Stroboscopic Visibility Measure (SVM): The requirement for SVM is that it should be less than or equal to 0.4. The SVM metric assesses the visibility of the stroboscopic effect, which can make moving objects appear to be stationary or moving in discrete steps, thus ensuring that this effect is minimized in lighting environments to prevent visual discomfort and safety hazards.
Compliance
- Standards
- AS/NZS 60598.1 | AS/NZS 60598.2.1 | AS/NZS 61347.1 | AS/NZS 61347.2.13 | AS CISPR 15
Warranty
- Warranty
- 5 Year Warranty, First 2 Years Onsite
- Warranty Operating Hours
- 15000 hrs
The total warranty period is shown above. Where an on-site period is listed, the first years are covered on-site, with return-to-base coverage for the remainder. For full warranty details and claim instructions, please refer to our Warranty page.
This product is provided with a warranty up until the stated warranty period or until the stated warranty operating hours has been reached (whichever occurs first).
Product configuration
- Fixture power
- Maximum rating: 120 W
- Installation requirement
- Installation must be carried out by a suitably qualified installer; isolate the electrical supply before work.
- Mounting hardware
- M5 surface-mount fixings are supplied.
- Power setup
- Select the required output using the DIP switch before installation.
Dimensions & supplier drawings
- Product Height
- 65 mm
- Product Length
- 368 mm
- Product Width
- 369 mm
- Product Weight
- 4000 g
Package & requirements
Included
- Driver
- M5 surface-mount fixings are supplied.
