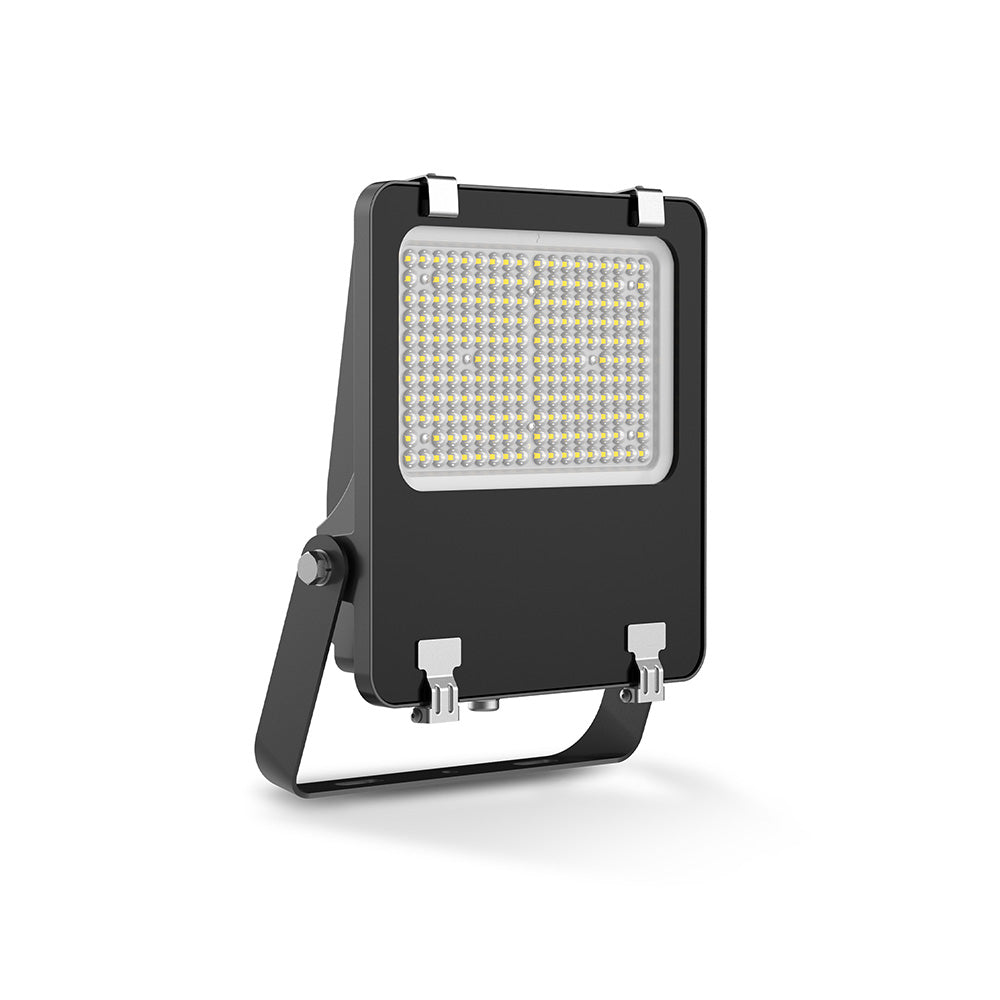

Ektor Altura Advanced Floodlight - 150W, 5000K, Asymmetric, power selectable
Order code: 14031
Supplier item code: EV-ALTURA-ADV-150
Altura Advanced
Ektor Altura Advanced 150W Asymmetric flood light - power selectable - 5000K
Before you buy
- This model uses a 1-10V dimmable driver. Confirm a compatible control arrangement before purchase.
- This model uses 1–10V dimming and three-wire flying leads. Confirm the control and connection arrangement for the installation before purchase; alternate 60° lenses are optional.
- Installation must be carried out by a suitably qualified installer; isolate the electrical supply before work.
- Appropriate M10 mounting fixings are required and are not supplied.
At a glance
Fixture power
Selectable: 75 / 113 / 150 W
IP Rating
IP66
Input voltage
230Vac
Driver Type
1-10V dimmable
Installation Type
Surface mount
Technical specifications
Efficiencies
- Total System Efficiency
- 154 lm/W
The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system.
Mechanical
- IP Rating
- IP66
- IK Rating
- IK08
- Adjustability
- Adjustable
- Fitting Colour
- Silver-grey
- Product Finish
- Powdercoated
- Body Material
- Aluminium
- Diffuser Material
- Glass
- Installation Type
- Surface mount
Electrical
- Working Temp Range
- 50 °C
- Input Frequency
- 50 Hz
- Power Factor
- 0.97
- Input voltage
- 230Vac
- Earth Leakage
- 0.75 mA
- Power Selection
- 75 / 113 / 150 W
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Lamp
- CCT Configuration
- Single
Colour temperature
- 113 Watts / DayLight (5000 K)
- 16900 lm
- 150 Watts / DayLight (5000 K)
- 21750 lm
- 75 Watts / Daylight (5000 K)
- 11550 lm
Driver
- Driver Type
- 1-10V dimmable
- Driver Included
- Yes
- Integrated Driver
- Yes
- Dimmable
- Yes
- Flex & Plug or Lead Length
- 1500 mm
- Wiring Type
- Flying leads (3 wire)
- Driver Mode
- Constant Current
Compliance
- Standards
- AS/NZS 60598.1 | AS/NZS 60598.2.5 | AS CISPR 15
Warranty
- Warranty
- 5 Year Warranty, First 2 Years Onsite
The total warranty period is shown above. Where an on-site period is listed, the first years are covered on-site, with return-to-base coverage for the remainder. For full warranty details and claim instructions, please refer to our Warranty page.
Product configuration
- Fixture power
- Selectable: 75 / 113 / 150 W
- Light distribution
- Asymmetric
- Installation requirement
- Installation must be carried out by a suitably qualified installer; isolate the electrical supply before work.
- Mounting fixings
- Appropriate M10 mounting fixings are required and are not supplied.
- Bracket adjustment
- Rotate the fitting to the required angle, then lock the two clamping bolts.
- Optional alternate optics
- The manufacturer lists optional 60-degree alternate lenses. Confirm selected-model compatibility; the selected fitting retains its own specified asymmetric optics.
Dimensions & supplier drawings
- Product Height
- 357 mm
- Product Length
- 310 mm
- Product Width
- 75 mm
- Product Weight
- 3700 g
Package & requirements
Included
- Driver
Not included / sold separately
- Appropriate M10 mounting fixings are required and are not supplied.
