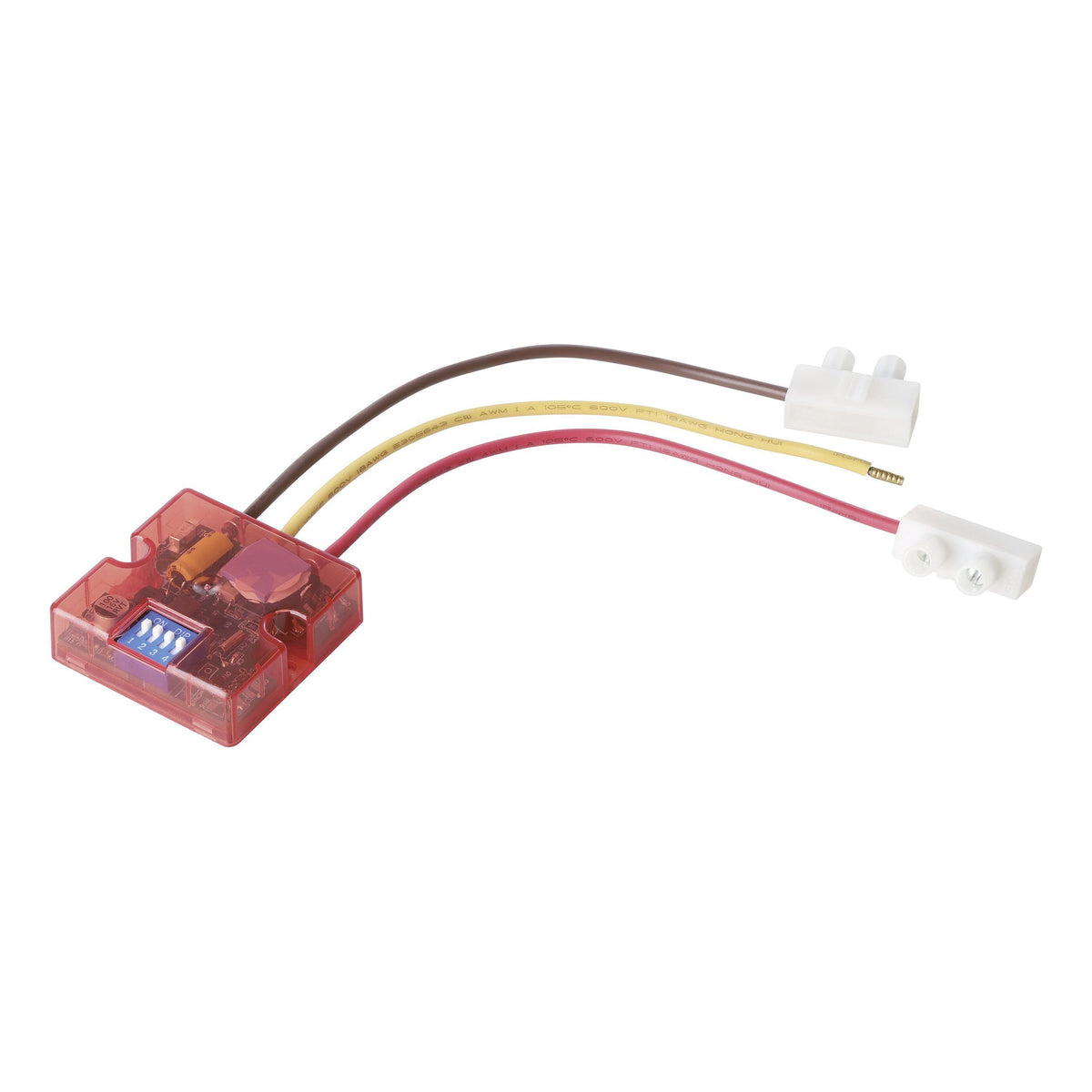

Eglo Delay Off Timer - for Exhaust Fans
Delay Off Timer for Exhaust Fans
Keep a connected exhaust fan or motor load running after the wall switch is turned off. Choose one of 16 delay settings, from 30 seconds to 120 minutes, using the module DIP switches.
Important before you buy
Installation must be carried out by a licensed electrician. The connected load must be between 4W and 250W, with a 220-240V AC, 50/60Hz supply. Isolate power before wiring or adjusting the module.
Operation and compatibility
Available delay settings are 30 seconds, 2, 5, 10, 15, 20, 30, 40, 50, 60, 70, 80, 90, 100, 110 and 120 minutes. Switching on applies power to the load; switching off starts the countdown. Use the exact DIP-switch pattern in the instructions.
Technical specifications
- Supply voltage
- 220-240V AC, 50/60Hz
- Working load
- 4W minimum to 250W maximum
- Delay range
- 30 seconds to 120 minutes
- Timing settings
- 16 DIP-switch settings
- Ambient operating temperature
- 0-40 degrees Celsius
- Body material
- ABS
Dimensions
- Length
- 65mm
- Width
- 26mm
- Height
- 18mm
- Net weight
- 0.03kg
What's included
Delay-off timer module. Exhaust fan or motor load sold separately.
Installation and care
Follow the wiring diagram and DIP-switch table in the official instructions. Operate within the specified 0-40 degrees Celsius ambient temperature range.
