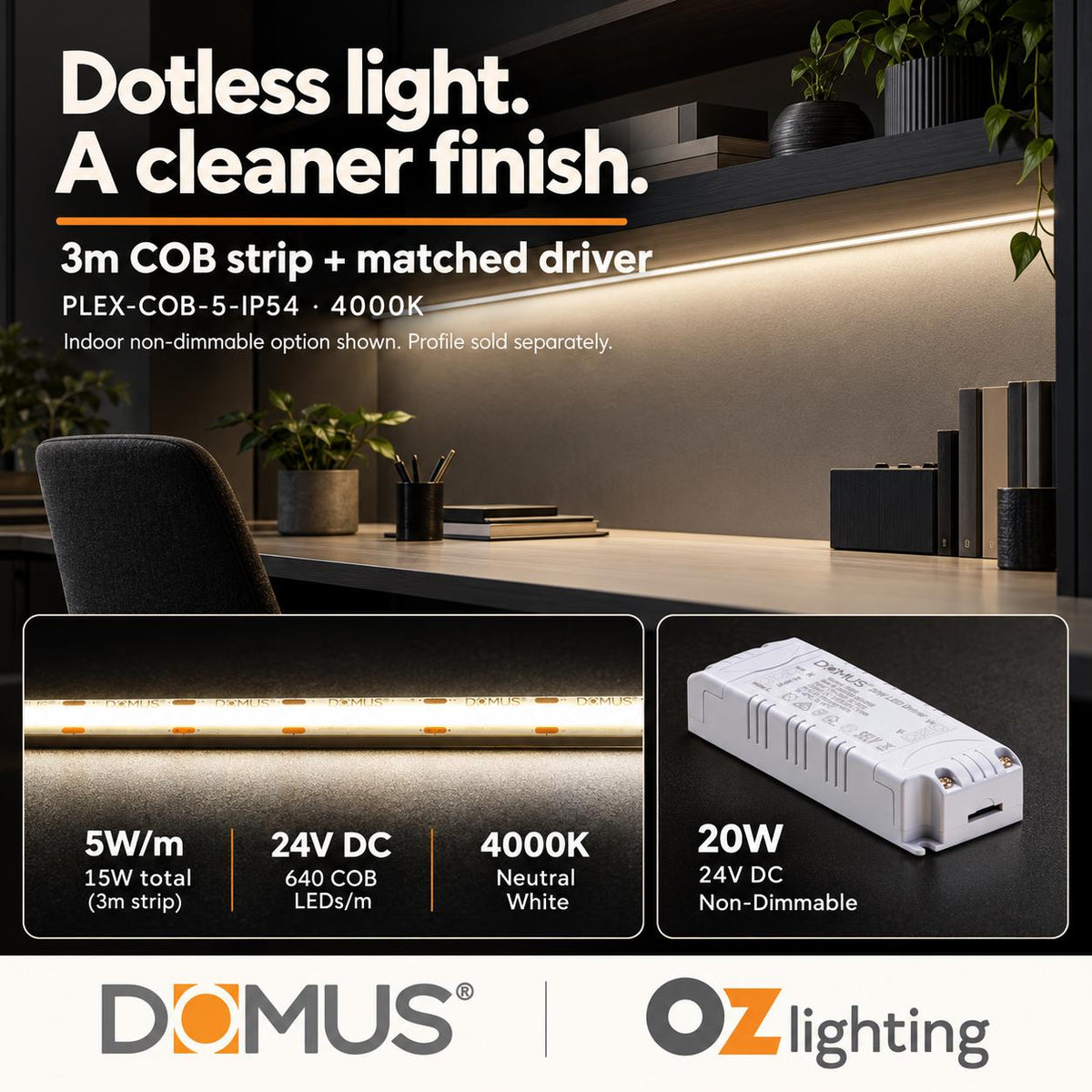

Domus PLEX 3 Metre 5W/m Neutral White Strip and Driver Bundle
PLEX-COB-5-IP54 · 3m bundle
LED strip with a choice of Domus driver
Dotless COB LED strip with 640 LEDs per metre for a continuous line of light.
Before you buy
- 3m of PLEX-COB-5-IP54 LED strip (DL-24001) and one Domus driver are included. Choose the driver option for this bundle; the exact driver is listed below.
- This bundle is for one continuous 3m run, powered from one end. The strip's verified maximum single-end run is 5m.
- Driver selection uses rated output at least 20% above the calculated strip load; this is the sizing allowance used for this bundle.
- Install the strip on an aluminium heat sink. Domus states that omitting the heat sink voids the strip warranty. The aluminium profile/heat sink is supplied separately.
- This IP54 strip is for indoor use only. An IP67 driver does not change the strip's IP rating or indoor-use restriction.
- A compatible dimmer is required separately for a dimmable driver. Confirm the installed dimmer and load compatibility; minimum-load performance is not specified here.
- Mains electrical work must be carried out by a licensed electrician.
Key highlights
3m
Included strip length
15W
Calculated strip load
24V DC
Strip input voltage
4000K
Light colour
Features
Dotless light
640 COB LEDs per metre create a continuous light line.
Colour rendering
CRI ≥90.
Fixed white light
4000K white light for this exact SKU.
Marked cutting points
Cut only at the 25mm marked cutting points.
Technical specifications
- Strip model
- PLEX-COB-5-IP54
- Source strip SKU
- DL-24001
- Included strip length
- 3m
- Strip power per metre
- 5W/m
- Calculated strip load
- 15W (5W/m × 3m)
- Strip input voltage
- 24V DC
- Maximum continuous single-end run
- 5m
- Light colour
- 4000K
- Strip IP rating
- IP54
- LED type
- COB
- LED density
- 640 LEDs/m
- CRI
- ≥90
- Beam angle
- 180°
- Light output
- 500 lm/m at 4000K
- Rated lifespan
- 50,000 hours
- Operating temperature
- -20°C to 50°C
- Wiring
- Parallel
- Strip dimming
- With a suitable LED driver and compatible dimmer
Strip dimensions
- Strip dimensions (W × H)
- 12 × 4.5mm
- PCB width
- 10mm
- End cap dimensions (W × H)
- 16.5 × 6.5mm
- Cutting interval
- 25mm; cut only at marked points
Driver options
Each option includes the driver shown in its row. Select one option for the 3m strip bundle.
| Driver option | Included driver | Rated output | Driver control | Driver IP |
|---|---|---|---|---|
| Indoor Non-dimmable | DRIVER-24V-IP20DL-20208 | 20W24V DC | Constant-voltage power supply; no mains dimming | IP20 |
| Indoor Dimmable | DRIVER-24V-IP20-DIMDL-20216 | 20W24V DC | Triac, suitable external dimmer required | IP20 |
| Outdoor Non-dimmable | DRIVER-24V-IP67DL-20224 | 20W24V DC | Constant-voltage power supply; no mains dimming | IP67 |
| Outdoor Dimmable | DRIVER-24V-IP67-DIMDL-20236 | 30W24V DC | Triac, suitable external dimmer required | IP67 |
Indoor Non-dimmable — DRIVER-24V-IP20 (DL-20208)
- Input voltage
- 240V AC
- Output type
- Constant voltage
- Protection
- Secondary-side short-circuit protection; Thermal overload protection; Over-temperature protection; Over-voltage protection
- Supplied cable
- 1m flex and plug
- Wiring
- Parallel wiring
- Indoor use only; install the IP20 driver in a dry location.
Indoor Dimmable — DRIVER-24V-IP20-DIM (DL-20216)
- Input voltage
- 240V AC
- Output type
- Constant voltage
- Protection
- Secondary-side short-circuit protection; Thermal overload protection; Over-temperature protection; Over-voltage protection
- Supplied cable
- 1m flex and plug
- Wiring
- Parallel wiring
- Driver dimensions (L × W × H)
- 100 × 36 × 18mm
- Indoor use only; install the IP20 driver in a dry location.
Outdoor Non-dimmable — DRIVER-24V-IP67 (DL-20224)
- Input voltage
- 240V AC
- Output type
- Constant voltage
- Protection
- Secondary-side short-circuit protection; Thermal overload protection; Over-temperature protection; Over-voltage protection
- Supplied cable
- 1m flex and plug
- Wiring
- Parallel wiring
- IP67 driver suitable for outdoor use. Protect mains connection and all cable joints to suit the installation; the driver IP rating does not transfer to the strip or other components.
Outdoor Dimmable — DRIVER-24V-IP67-DIM (DL-20236)
- Input voltage
- 240V AC
- Output type
- Constant voltage
- Protection
- Secondary-side short-circuit protection; Thermal overload protection; Over-temperature protection; Over-voltage protection
- Supplied cable
- 1m flex and plug
- Wiring
- Parallel wiring
- IP67 driver suitable for outdoor use. Protect mains connection and all cable joints to suit the installation; the driver IP rating does not transfer to the strip or other components.
What's included
- 3m of PLEX-COB-5-IP54 LED strip — source SKU DL-24001.
- 1 × Domus LED driver matched to the selected driver option above.
Required separately
- Suitable dimmer for a dimmable driver option.
- Suitable aluminium mounting profile/heat sink.
Not included
- Aluminium mounting profile/heat sink, installation labour and separately listed installation accessories.
Installation & maintenance
Recommended: mount the strip in a compatible heat-dissipating aluminium profile (sold separately). Follow Domus mounting instructions.
- Mains electrical work must be carried out by a licensed electrician.
- Supply the selected strip quantity as one continuous run. Feed the strip from one end only.
- Cut only at the marked 25mm cutting points.
- Indoor use only; suitable for indoor wet areas as stated by Domus.
Warranty
- LED strip: 3-year replacement warranty for the LED strip, subject to the manufacturer installation requirements.
- Indoor Non-dimmable (DL-20208): 5-year replacement warranty
- Indoor Dimmable (DL-20216): 5-year replacement warranty
- Outdoor Non-dimmable (DL-20224): 5-year replacement warranty
- Outdoor Dimmable (DL-20236): 5-year replacement warranty
