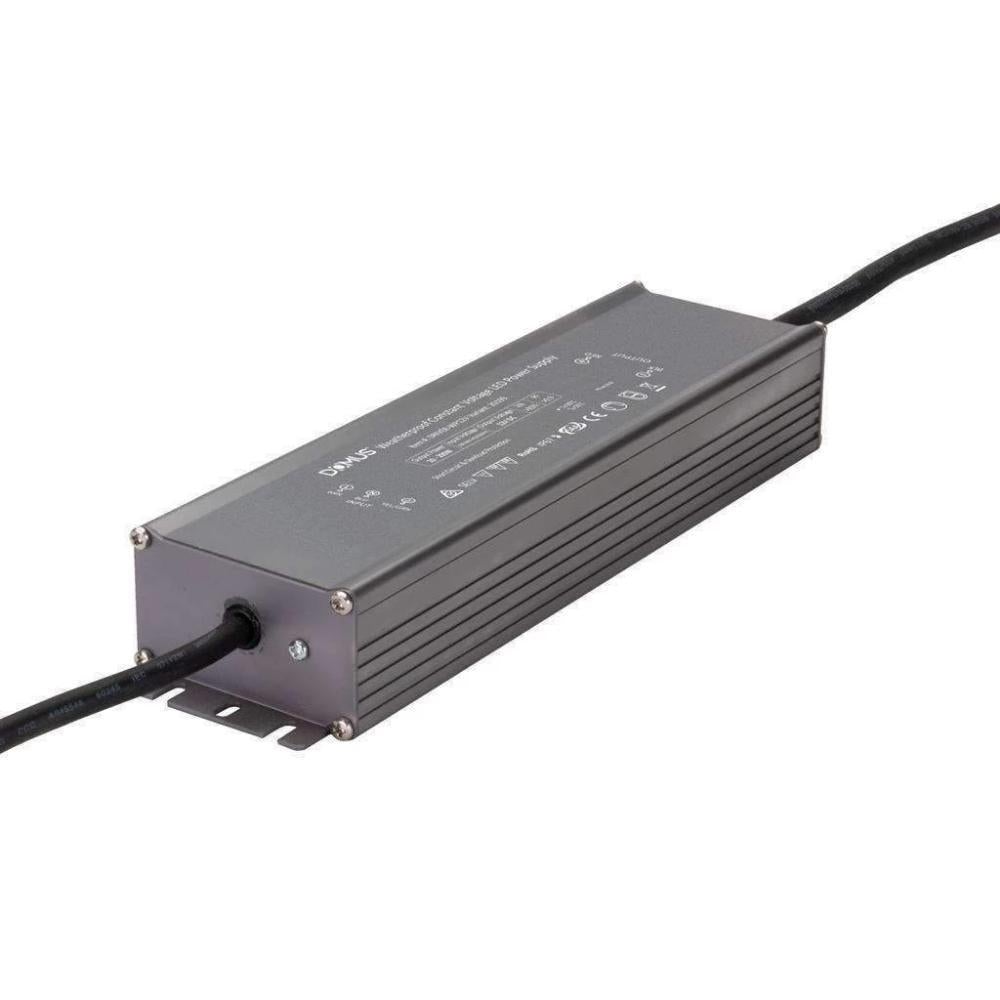

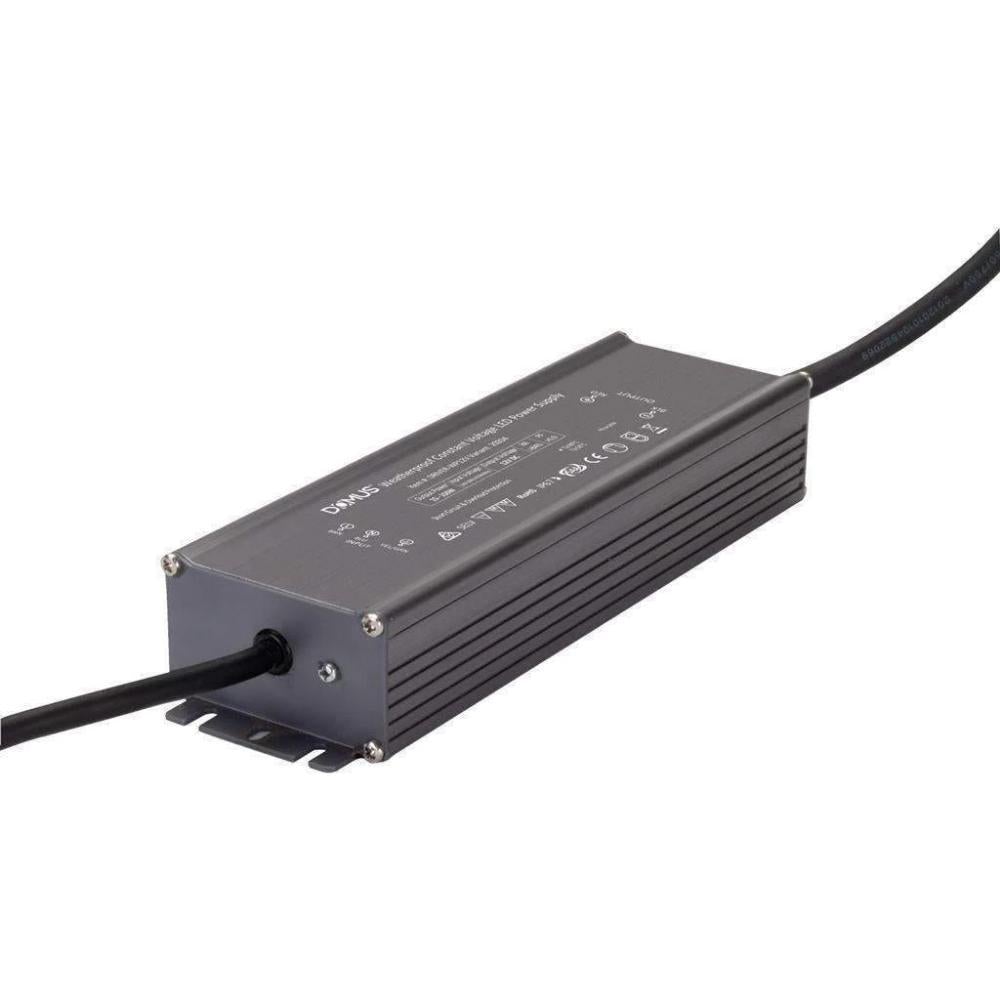

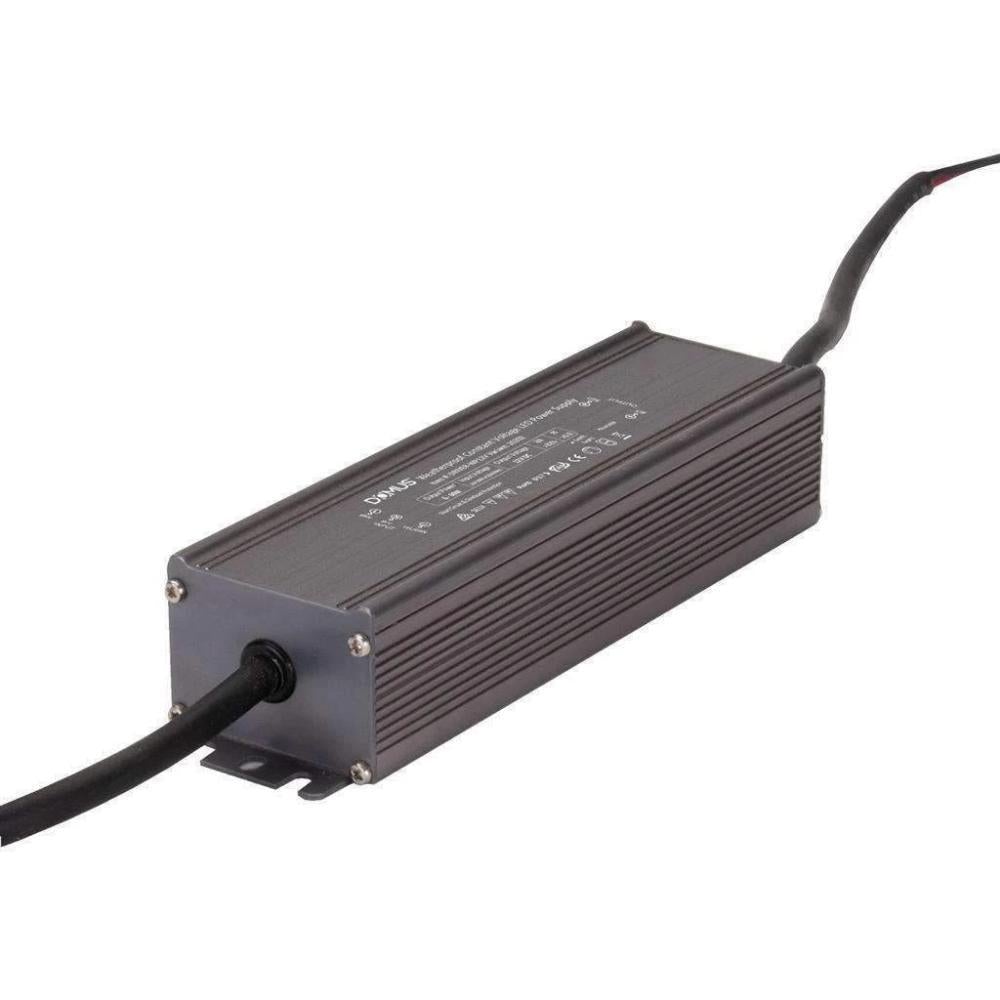

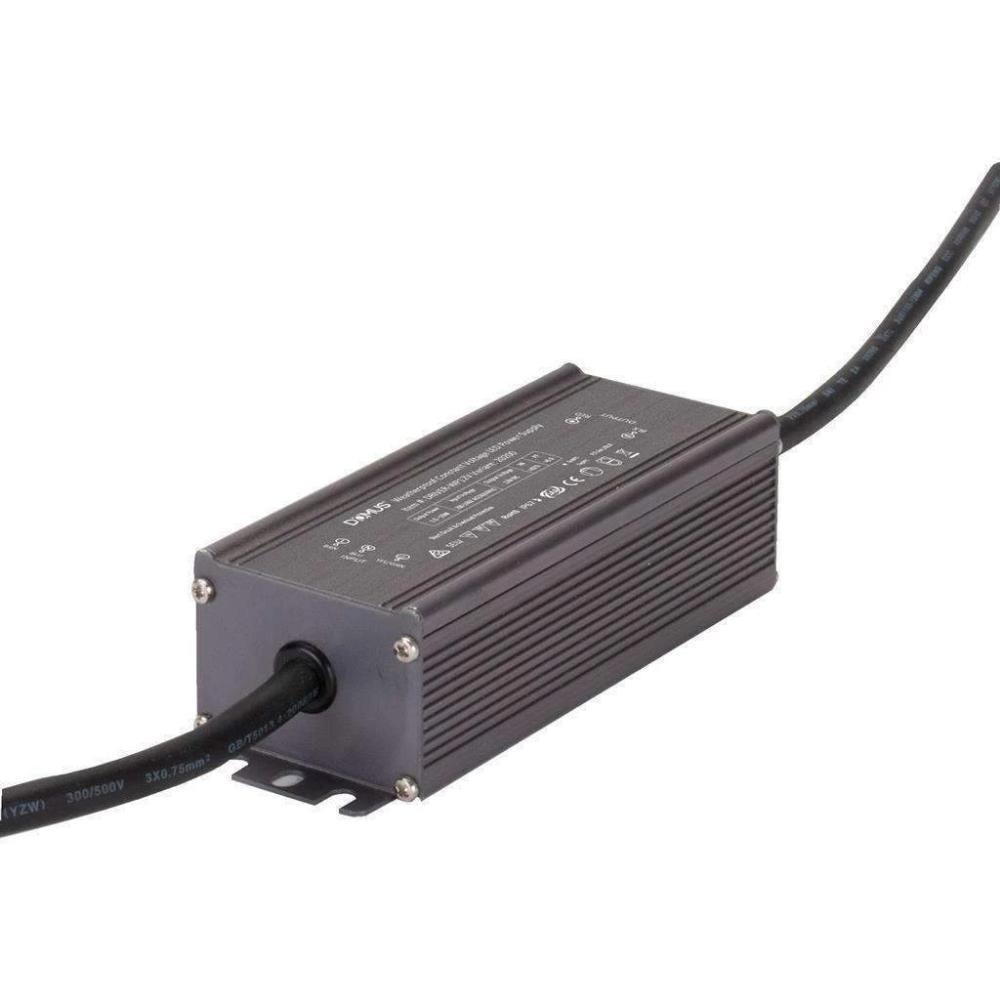

Domus DRIVER-WP12 - 12V DC Constant Voltage Weatherproof IP66 LED Driver

DRIVER-WP12
12V DC constant-voltage LED driver
A weatherproof driver range for compatible 12V DC LED lighting, supplied with flex and plug.
Before you buy
For 12V DC constant-voltage loads wired in parallel. Select the driver by its connected load and dimensions; the available 10W, 15W and 250W models have different operating ranges.
Key highlights
12V DC
Constant-voltage output
IP67
Driver protection rating
200–260V AC
50/60Hz input
Features
Parallel connection
The manufacturer specifies parallel wiring for the connected LED load.
Three capacities
Choose the 10W, 15W or 250W model shown in this listing.
Flex and plug
Supplied for the mains input connection.
Model-specific sizing
Check the load range and body size for the selected SKU.
Technical specifications
- Input
- 200–260V AC, 50/60Hz
- Output
- 12V DC constant voltage
- IP rating
- IP67
- Wiring
- Parallel
- DL-20198 load range
- 1–10W
- DL-20200 load range
- 1.5–15W
- DL-20259 load range
- 25–250W

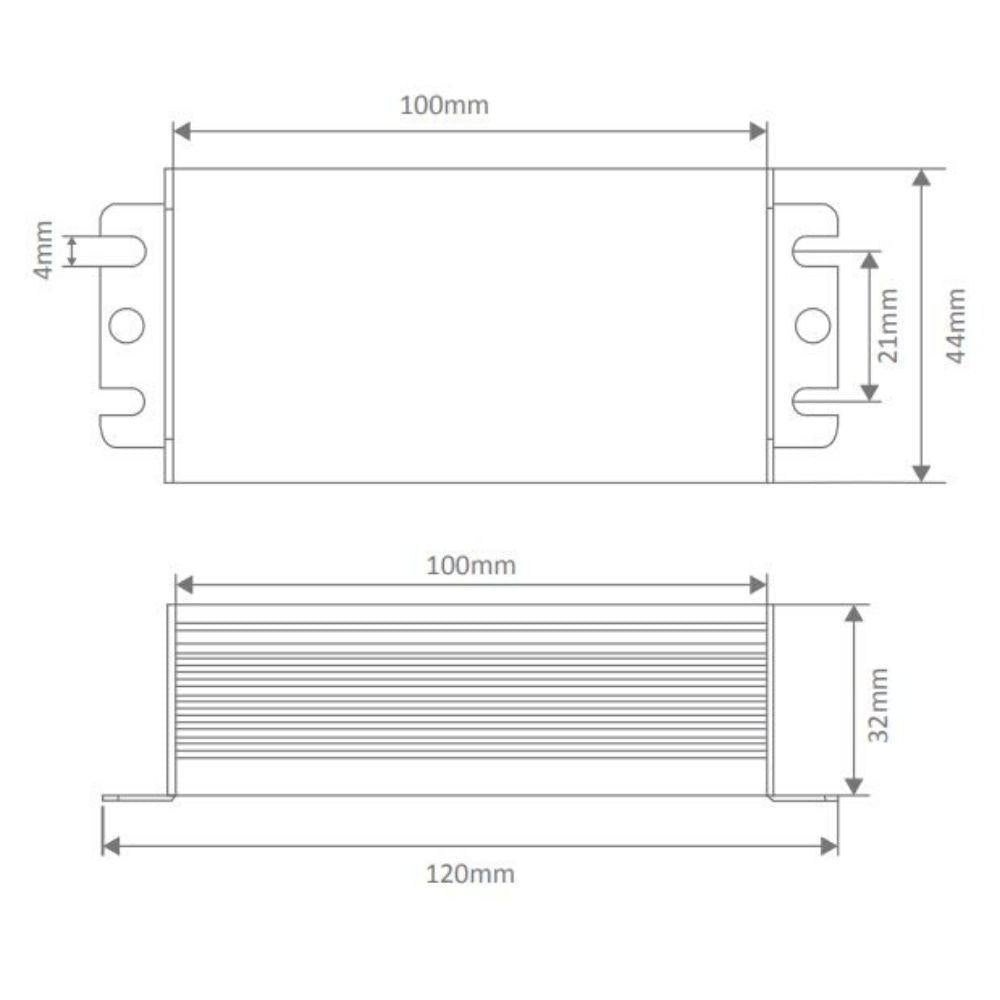

Dimensions
- DL-20198 / DL-20200 body
- 100 × 44 × 32mm (L × W × H)
- DL-20259 body
- 220 × 68 × 39mm (L × W × H)
- DL-20259 including mounting tabs
- 246mm overall length
Options & compatibility
- DL-20198
- 10W
- DL-20200
- 15W
- DL-20259
- 250W
Match the voltage, constant-voltage driver type and load range to the connected equipment.
What’s included
Selected DRIVER-WP12 LED driver with flex and plug.
Warranty
3 year replacement warranty.
