Colab Lighting MUSE - 45/65mm Surface Mounted Round Mini LED Downlight IP20
Miniature surface-mounted LED downlight
MUSE-SM45 / SM65
A compact die-cast aluminium downlight with set-back optics, a black baffle and a focused 30° beam. Choose the 45mm or 65mm body to suit the available space.
Important before you buy
IP20: for dry indoor locations. The dimmable circuit is included; dimming requires a compatible mains LED dimmer.
Select the size and colour temperature together: 45mm is listed in 3000K, while 65mm offers 3000K or 4000K. These are fixed colour-temperature variants, not a CCT-switchable fitting.
Key highlights

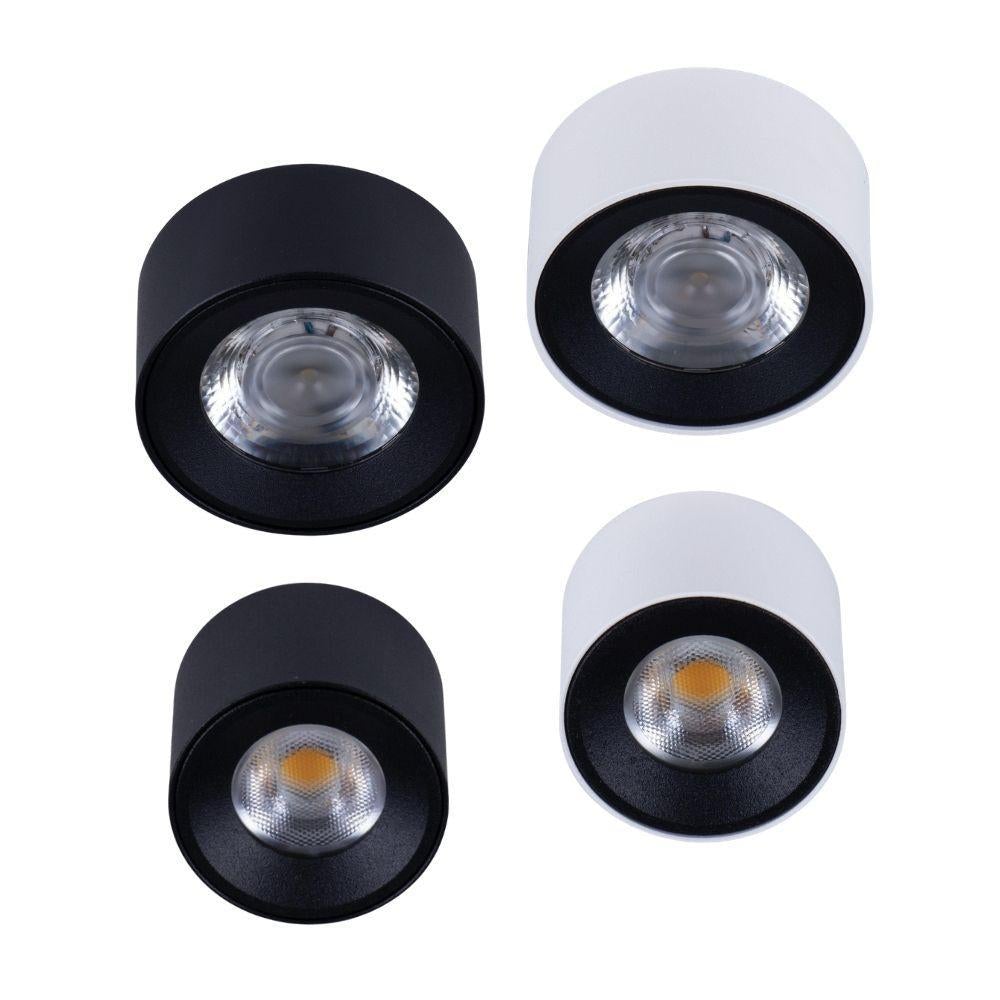

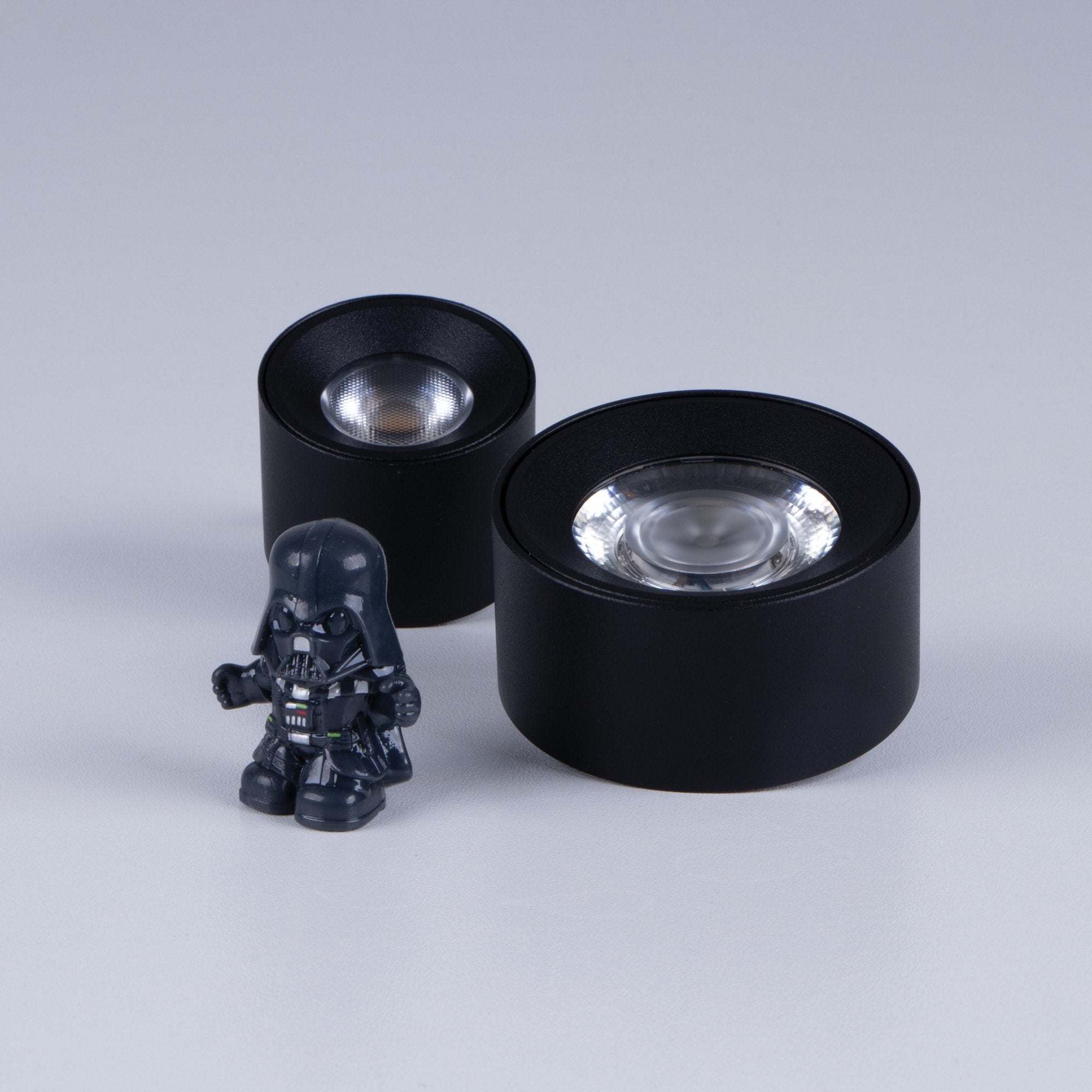

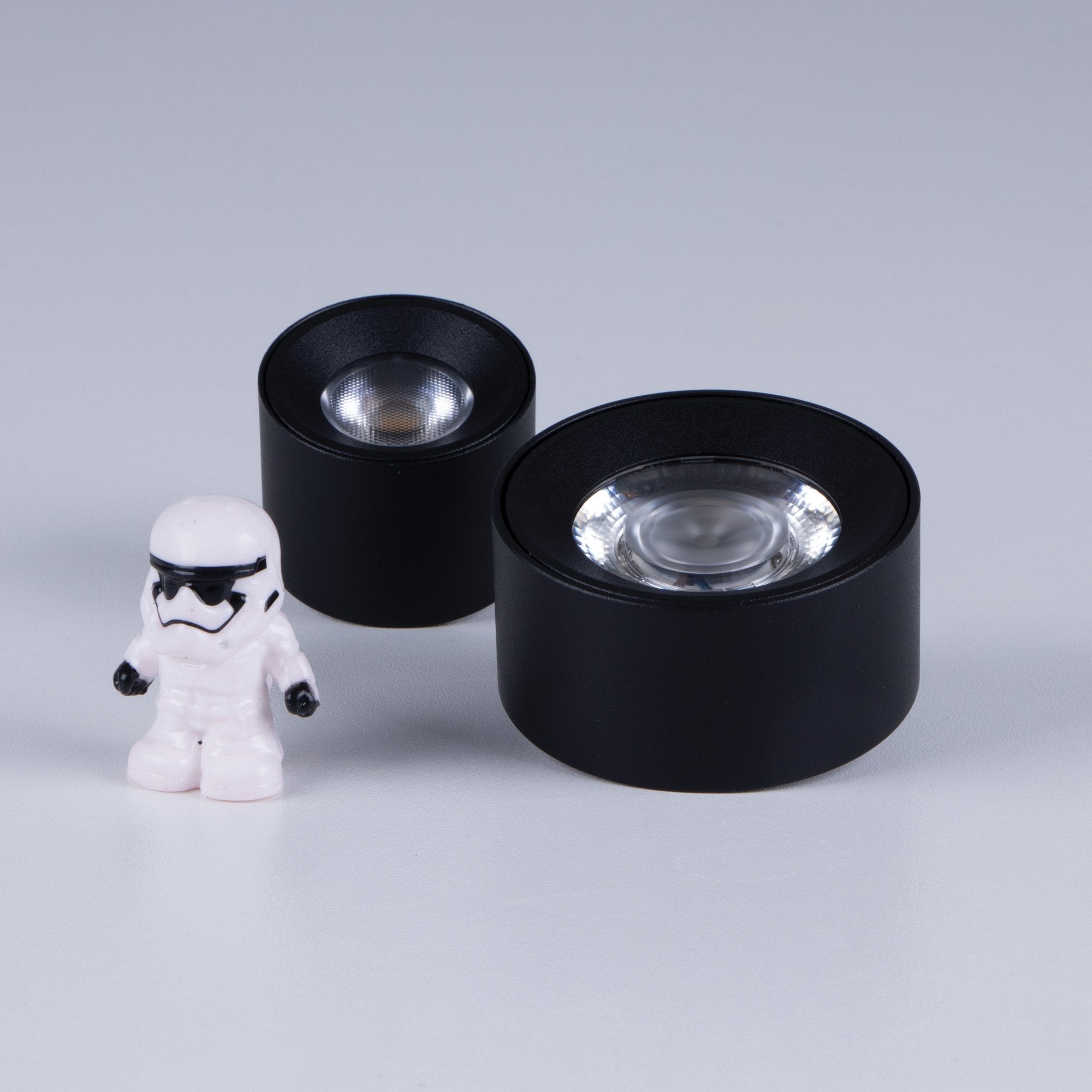

45 / 65mm
Two body sizes
30°
Focused beam
Mains dim
Dimmable circuit included
IP20
Indoor use
Designed for your space
Small surface profile
Use a miniature surface-mounted fitting where the appearance of a recessed downlight is not desired.
Set-back optics
A recessed light source and black baffle produce controlled, symmetrical illumination.

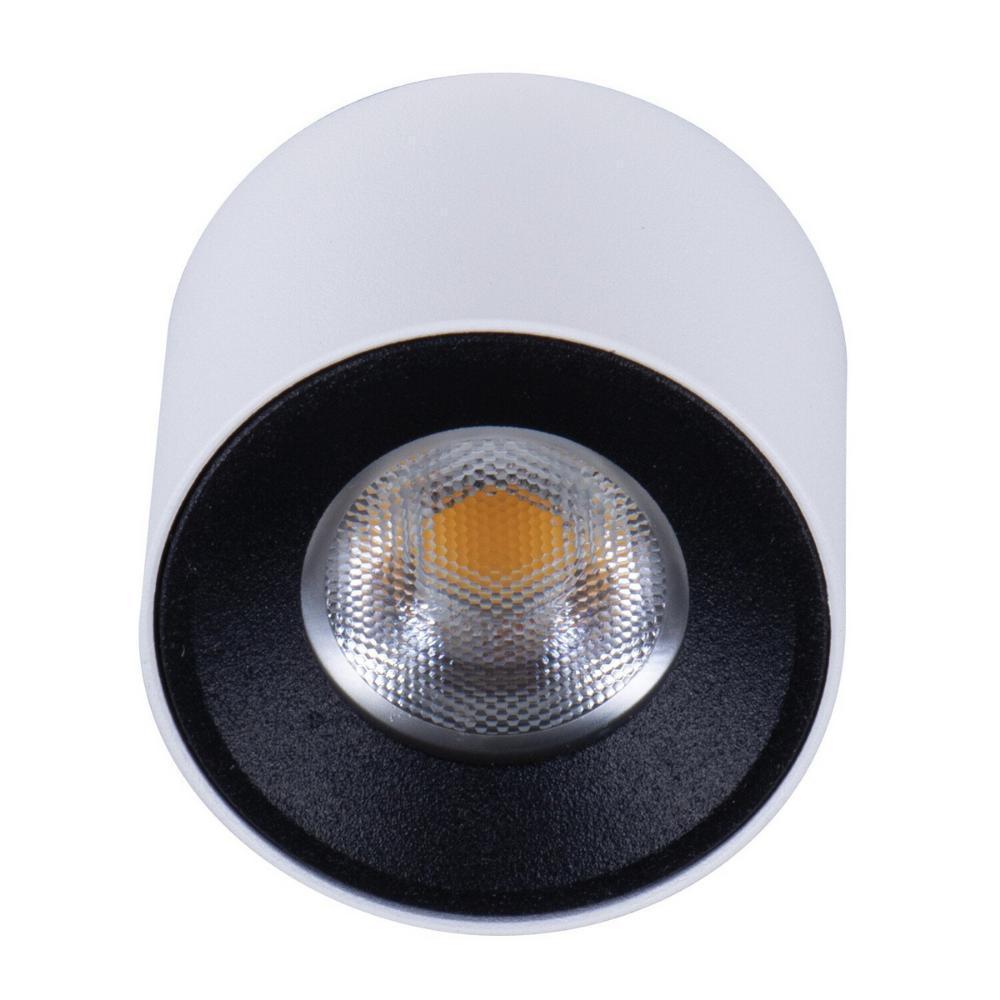

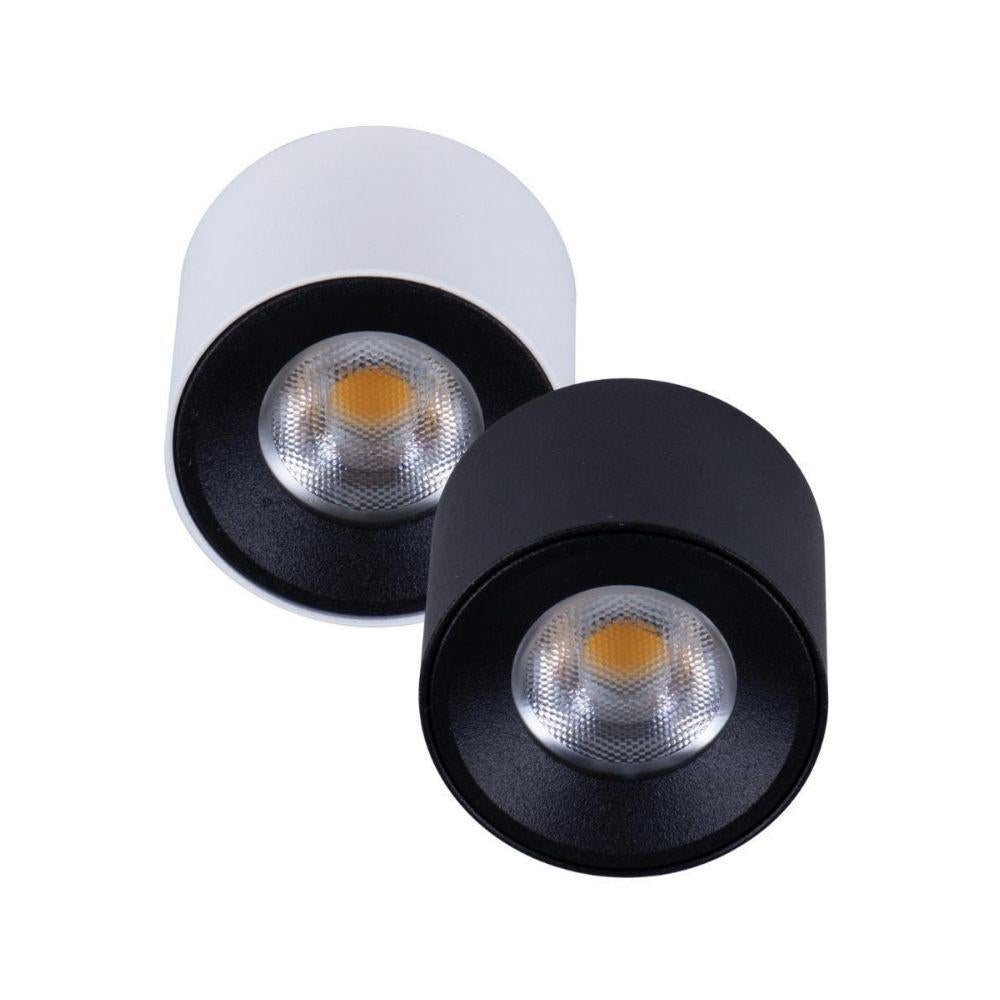

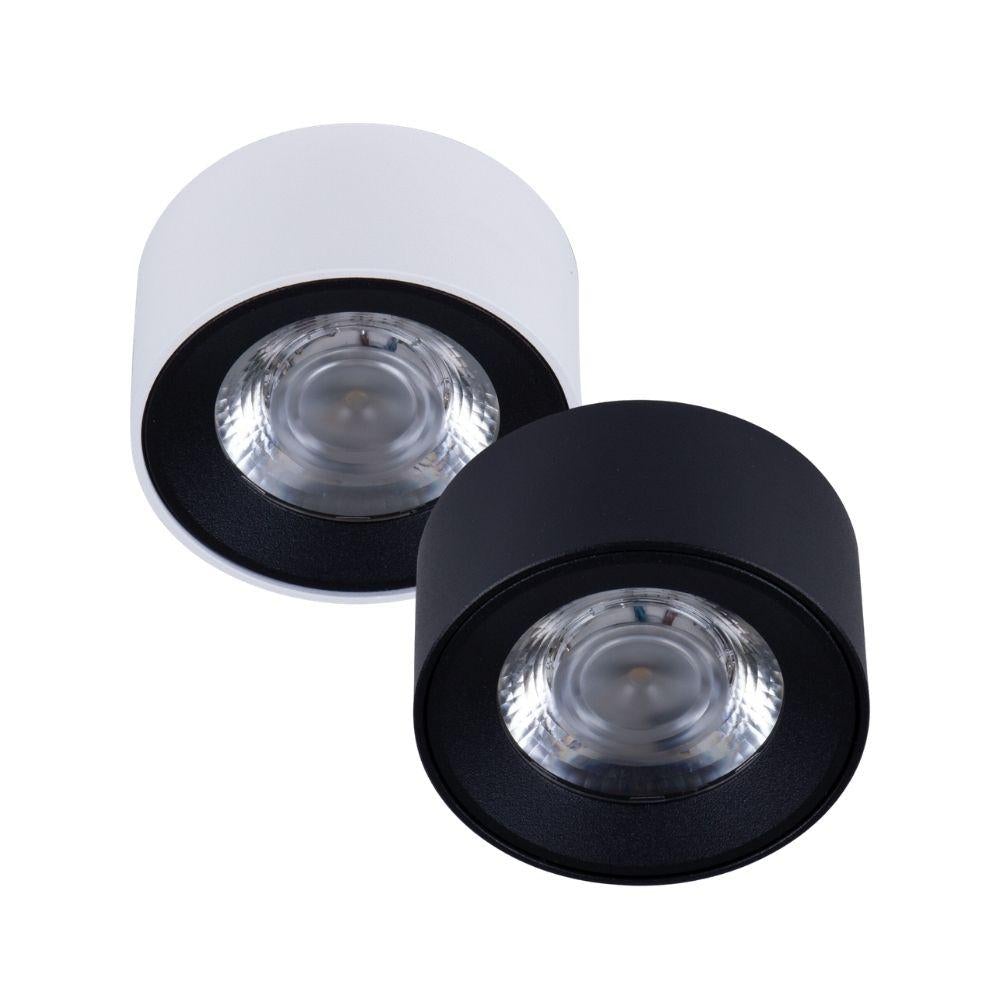

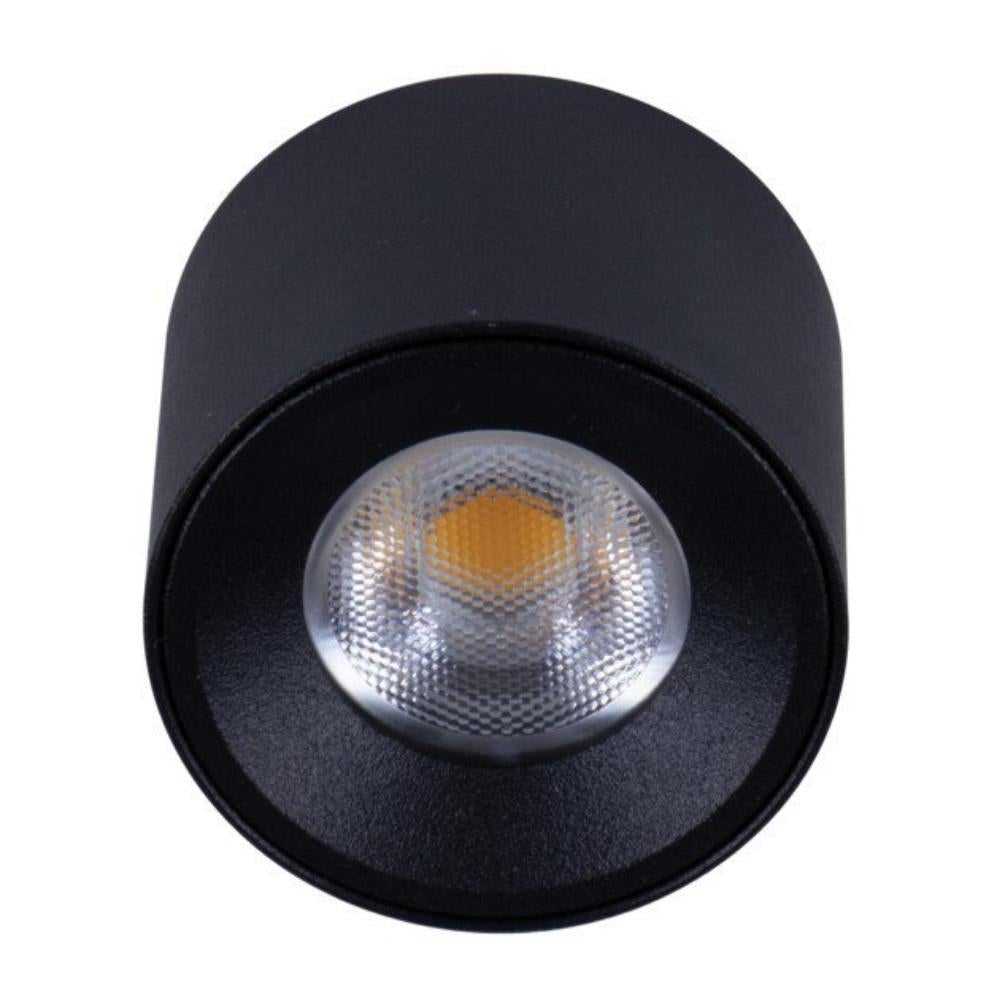

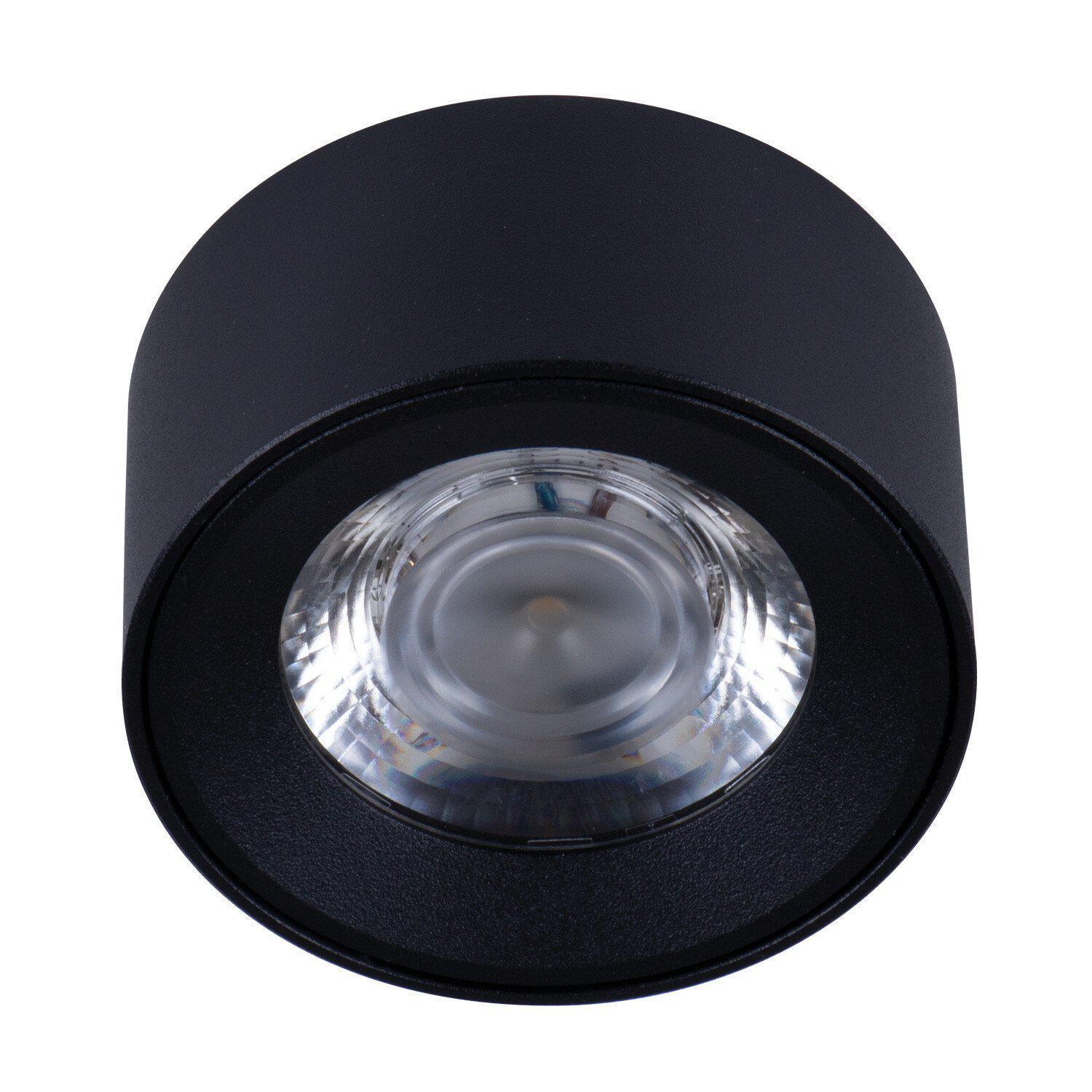

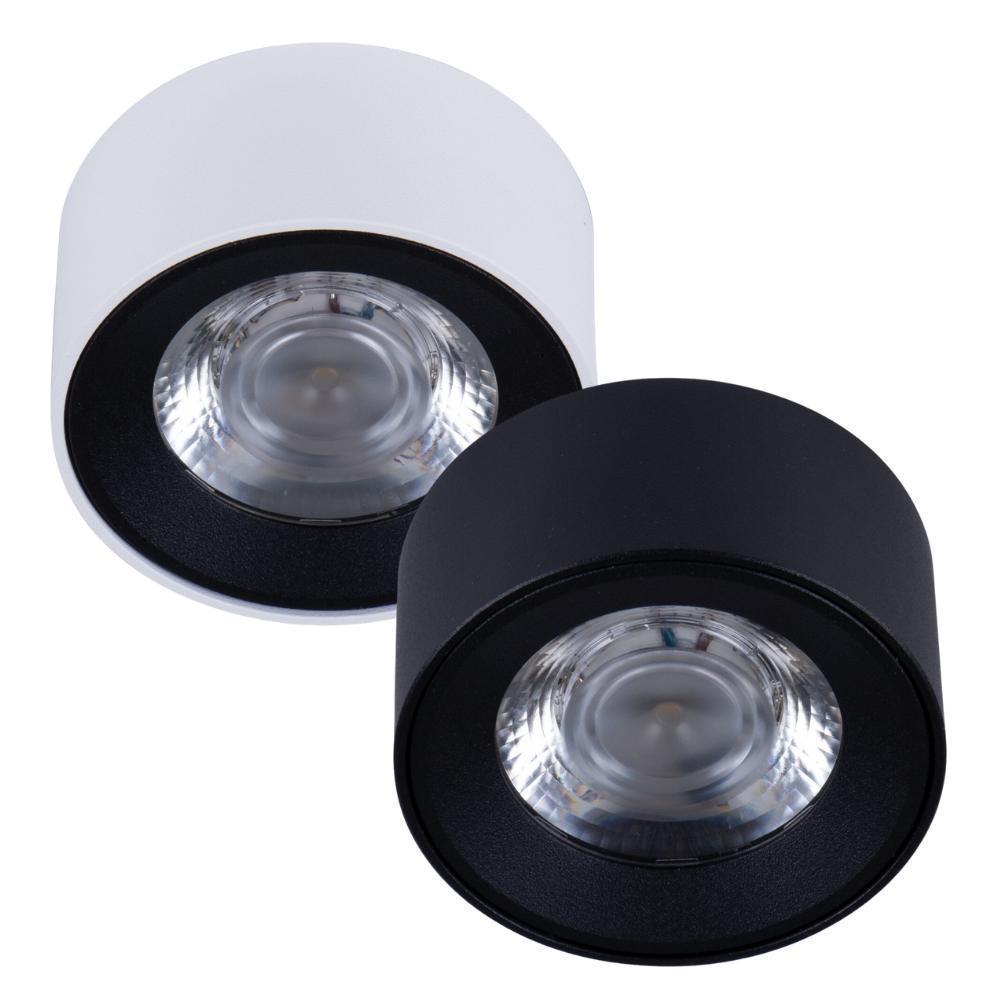

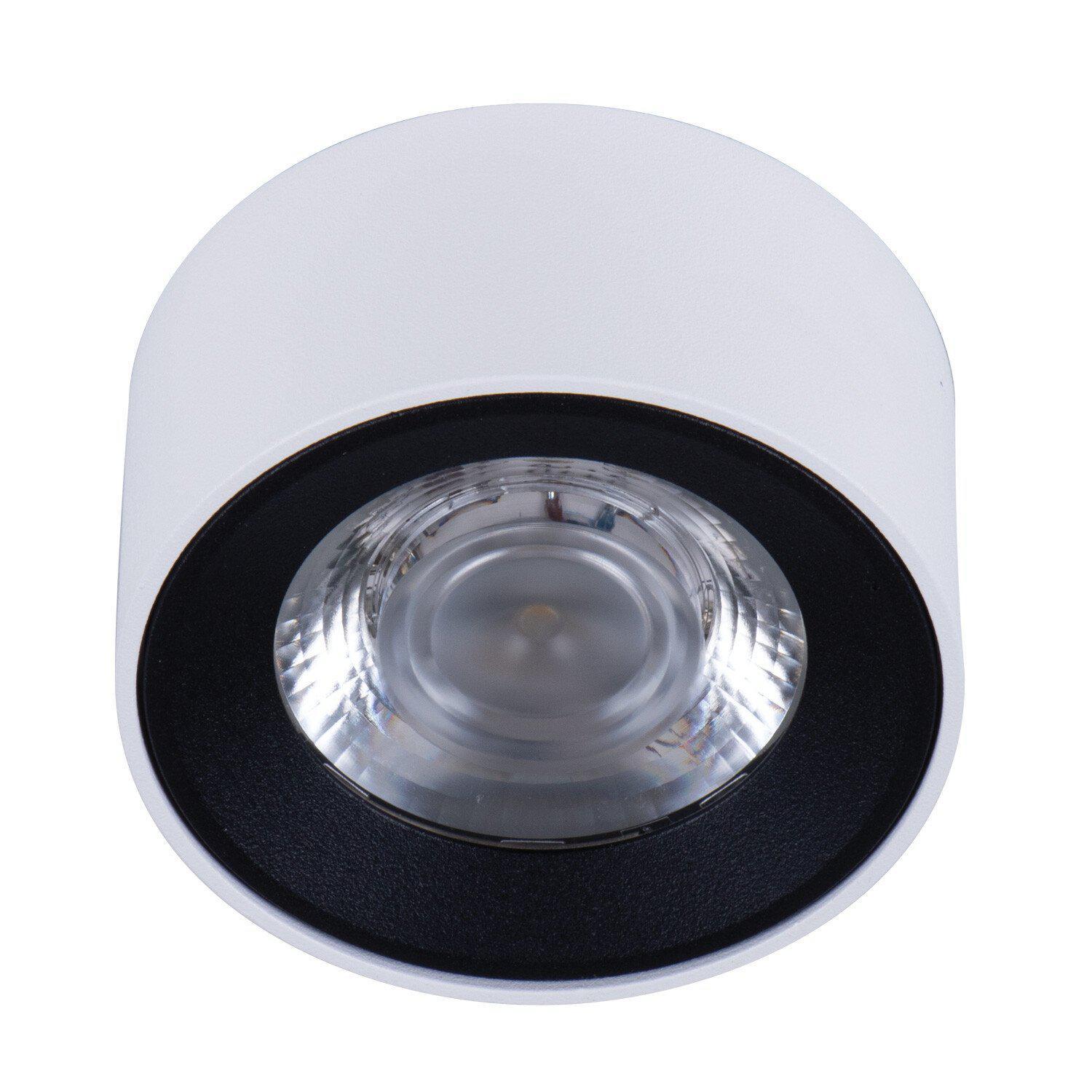

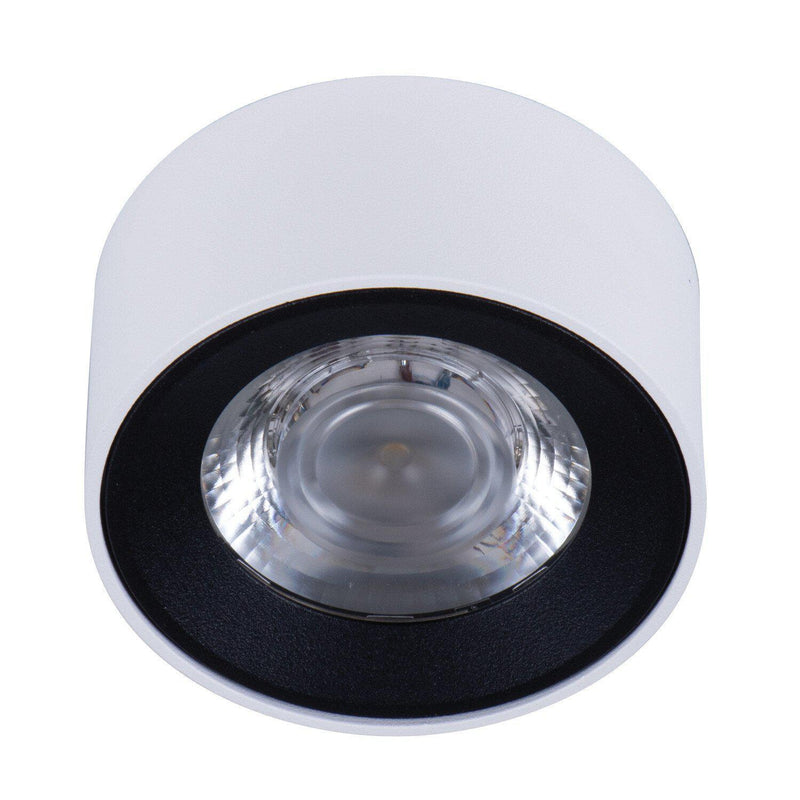

Two finishes
Choose Matte Black or Matte White, both with a Matte Black baffle.
Matched size and CCT
45mm offers 3000K; 65mm offers 3000K and 4000K in both listed finishes.
Technical specifications
- Models
- MUSE-SM45 and MUSE-SM65
- Nominal power
- 4W model (45mm); 7W system (65mm)
- Supply
- 240V AC
- Colour temperature
- 45mm: 3000K; 65mm: 3000K or 4000K
- 65mm luminaire output
- 544lm at 3000K; 561lm at 4000K (±10%)
- Colour rendering
- CRI >90
- Colour consistency
- 3-SDCM
- Beam angle
- 30°, fixed symmetrical distribution
- Glare control
- UGR <19
- Construction
- Die-cast aluminium, powder-coated finish
- Baffle
- Matte Black
- IP rating
- IP20
- Dimming
- Mains dimmable; verify compatibility with the chosen LED dimmer
- 65mm LED technology
- DOB LED
- 65mm rated life
- >50,000 hours, L70 B20
Dimensions

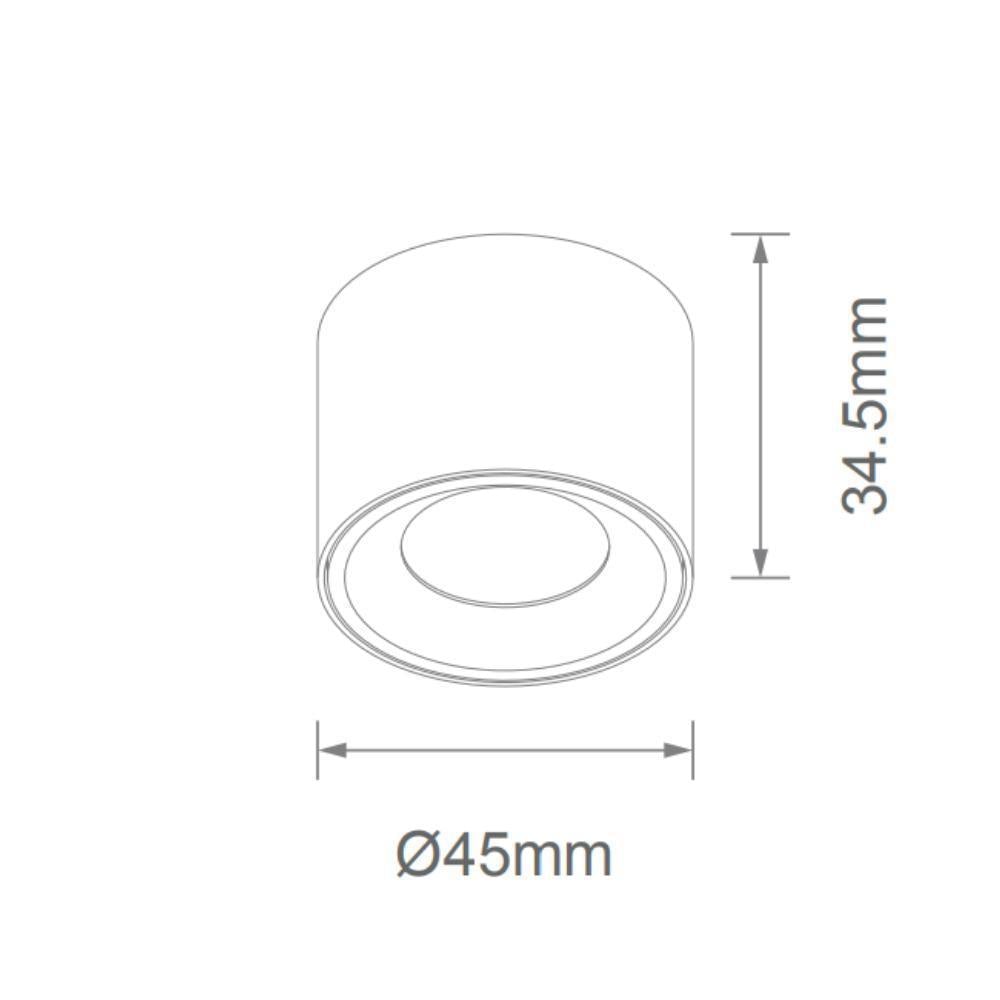

- 45mm model
- Ø45 × 34.5mm high

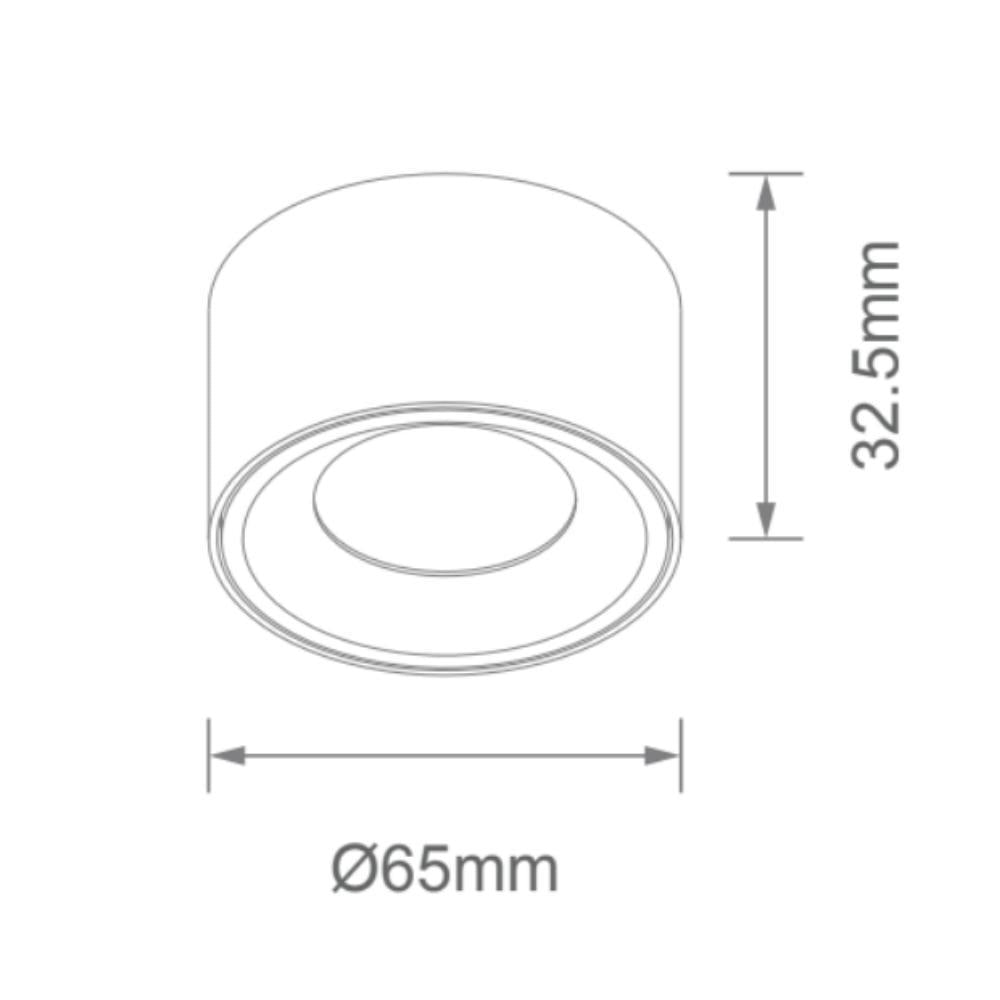

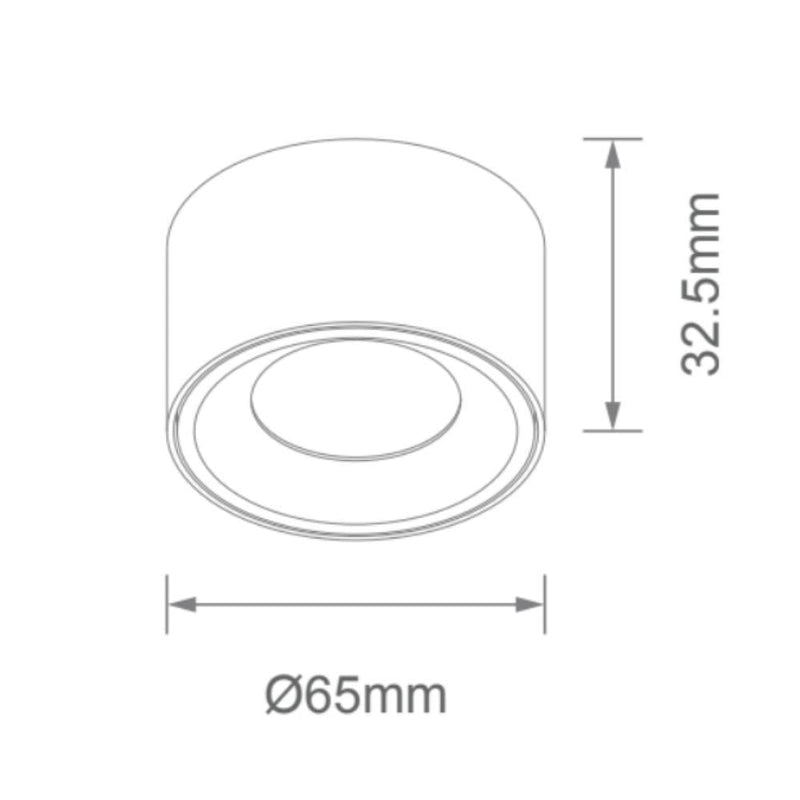

- 65mm model
- Ø65 × 32.5mm high
- 65mm weight
- 200g including mains-dimmable circuit
Options & compatibility
The six listed variants combine size, finish and CCT. DALI-2 is a manufacturer option for the 65mm model; request it separately and confirm availability before ordering.
What’s included
- Selected surface-mounted luminaire with integrated LED source.
- Standard mains-dimmable circuit.
Required separately / optional upgrades
- Compatible mains LED dimmer if dimming is required.
- Optional DALI configuration for the 65mm model, if specified.
Installation notes
Surface mount indoors in a dry location. Confirm the chosen LED dimmer and mounting arrangement with the installer before connection.
Warranty
3-year warranty, as stated in the product description and MUSE-SM65 manufacturer datasheet.
