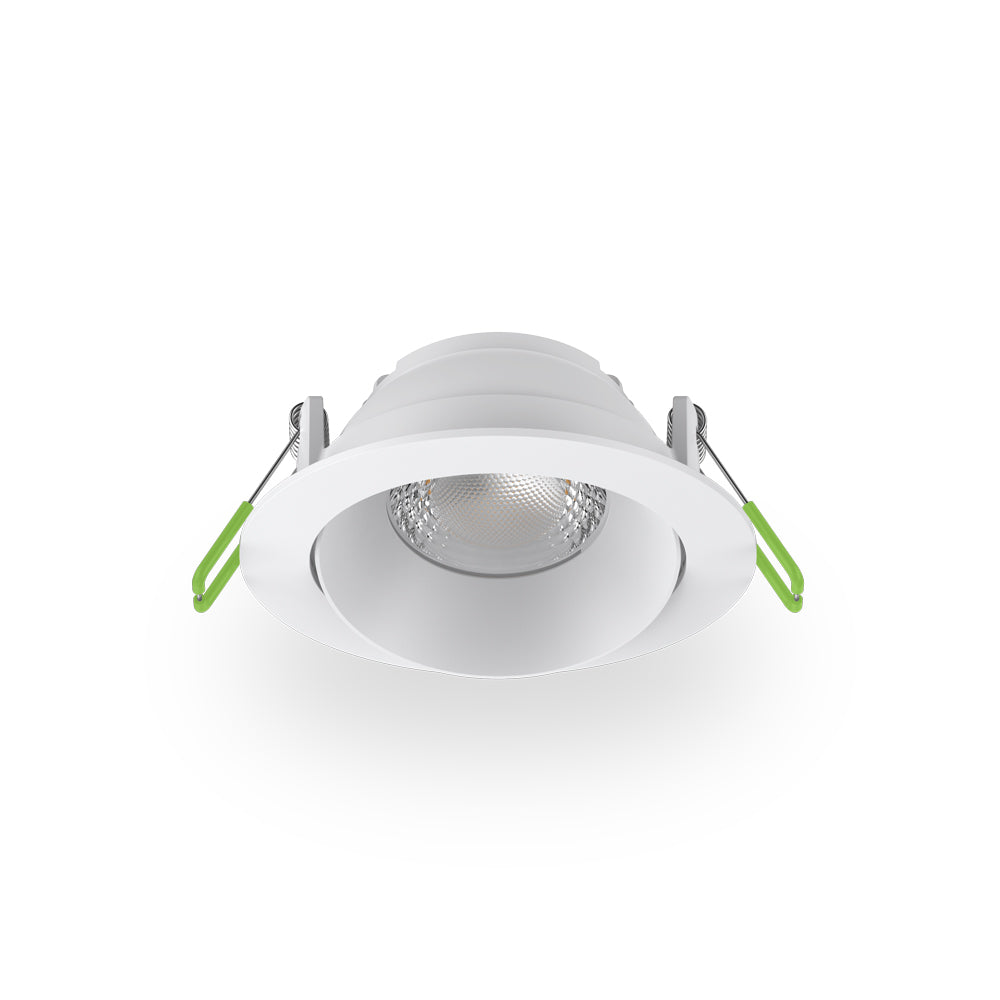

Atom AT9098 Stratos 8W Low-Glare LED COB Downlight Tri-CCT CRI90 IP54 White
ATOM Lighting
AT9098
Stratos 8W Low-Glare LED COB Downlight Tri-CCT CRI90 IP54 White
Before you buy
The AT9098 Stratos requires a 90mm ceiling cutout and is designed as a fixed recessed downlight. Its 38mm low-profile body makes it particularly suitable for shallow ceiling cavities. Select the required colour temperature before completing installation. Installation must be completed in accordance with applicable Australian electrical regulations and the manufacturer's installation instructions.
Key highlights
8W
Wattage
220-240V~
Input voltage
3000K / 4000K / 5700K
Colour temperature
IP54 Front Face Only
IP rating
Technical specifications
- Product
- AT9098 Stratos
- Item code
- AT9098/WH
- Order code
- 11633
- Wattage
- 8W
- Input voltage
- 220-240V~
- Input frequency
- 50Hz
- LED type
- COB
- Colour rendering
- CRI >90
- Colour temperature
- 3000K / 4000K / 5700K
- Beam angle
- 50°
- IP rating
- IP54 Front Face Only
- IC rating
- IC-4
- Adjustability
- Fixed
- Fitting colour
- White
- Body material
- ABS Plastic
- Diffuser material
- Clear Acrylic
- Working temperature
- -20°C to 40°C
- Dimmable
- Yes
- Flex & plug lead length
- 600mm
- Wiring type
- Non-Rewireable Flex & Plug
- L90B10 at 25°C
- 48,000 Hours
- L90B10 at 40°C
- 45,000 Hours
- TM-21 Test Hours
- 17,000 Hours
- Product length
- 110mm
- Product weight
- 271g
- Cutout
- 90mm
- Lighting standard
- AS/NZS 60598.1
- Recessed luminaire standard
- AS/NZS 60598.2.2
- EMC standard
- AS/NZS CISPR 15
- Driver standard
- AS/NZS 61347.2.13
- Year Warranty
- 3
Installation and application
Supplied with a dimmable driver and flex and plug connection for practical recessed installation.
The AT9098 Stratos requires a 90mm ceiling cutout and is designed as a fixed recessed downlight. Its 38mm low-profile body makes it particularly suitable for shallow ceiling cavities. Select the required colour temperature before completing installation. Installation must be completed in accordance with applicable Australian electrical regulations and the manufacturer's installation instructions.
Additional product details
A compact 8W recessed LED downlight combining a low-glare optical design, CRI90 colour accuracy, selectable tri-colour output and a low-profile body suited to shallow ceiling cavities.
The Atom AT9098 Stratos is an 8W fixed recessed LED downlight designed for comfortable, high-quality interior illumination.
Its recessed COB LED and low-glare matte reflector help reduce direct glare, achieving a UGR of less than 19 while maintaining a focused 50-degree beam.
Tri-CCT technology provides selectable 3000K warm white, 4000K cool white and 5700K daylight colour temperatures, while the CRI90 LED provides accurate colour reproduction across interior finishes and furnishings.
Recessed optics and a matte reflector help achieve a UGR of less than 19 for comfortable interior illumination.
Low-glare optics, high colour accuracy and selectable colour temperature make the Stratos suitable for refined residential and commercial interiors.
Recessed optics and a matte reflector help reduce direct glare with a UGR rating below 19.
CRI greater than 90 provides accurate and natural colour reproduction across illuminated surfaces.
Select between 3000K, 4000K and 5700K to suit the room and lighting application.
Integrated COB LED technology provides efficient, concentrated illumination from a compact fitting.
A 50-degree beam provides controlled light distribution for general and architectural interior applications.
The front face carries an IP54 rating for additional protection when installed in suitable locations.
IC-4 classification provides greater flexibility for compliant recessed ceiling installations.
A compact 38mm product height makes the fitting suitable for shallow ceiling cavities.
Tri-CCT technology provides three selectable colour temperatures from the one downlight.
3000K; Warm White; 830 lumens
4000K; Cool White; 860 lumens
5700K; Daylight; 840 lumens
830lm; 3000K Warm White; 8W output
860lm; 4000K Cool White; 8W output
840lm; 5700K Daylight; 8W output
Ø110mm; Product Diameter; Overall visible fitting diameter.
Ø90mm; Ceiling Cutout; Required recessed ceiling opening.
38mm; Product Height; Low-profile body suited to shallow ceiling cavities.
Warranty
Supported by Atom's three-year return-to-base domestic use warranty for added confidence in residential lighting installations.
