Wide Cutout Compatibility
Wide trim design accommodates existing ceiling cutouts between 72mm and 92mm.

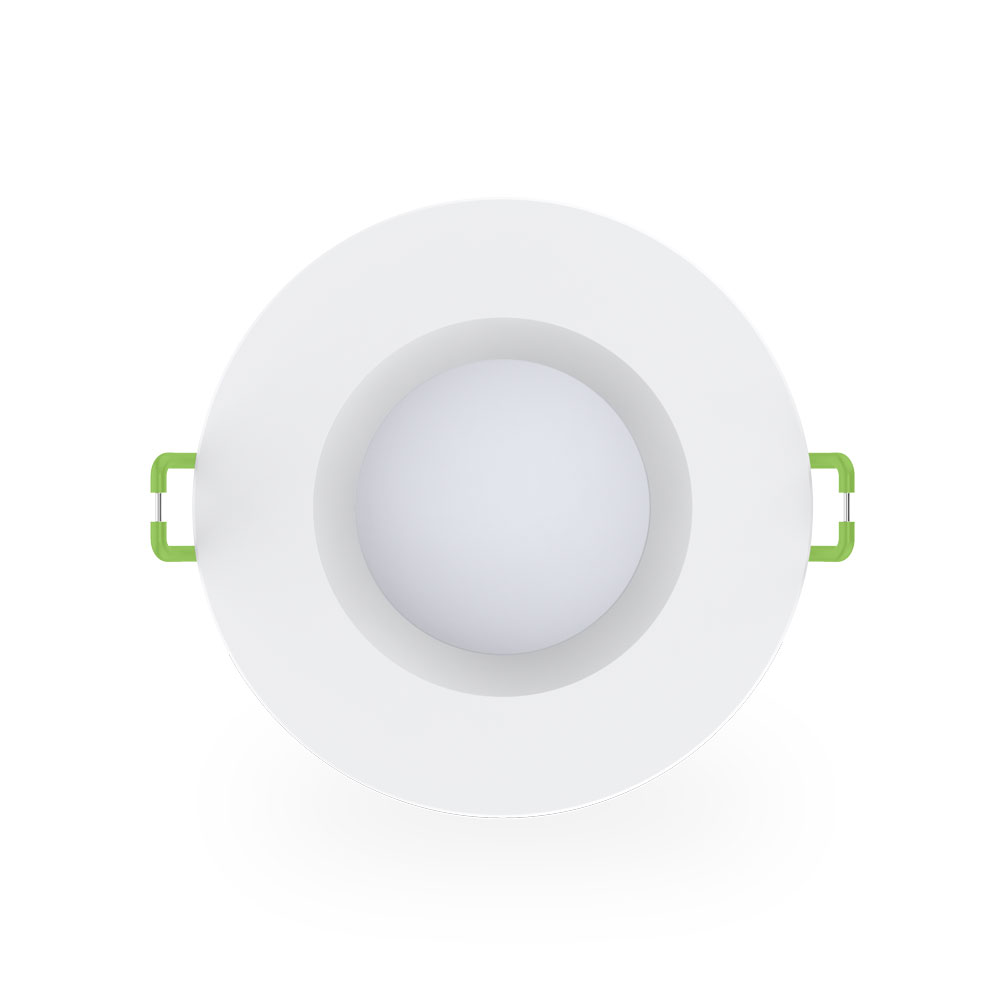

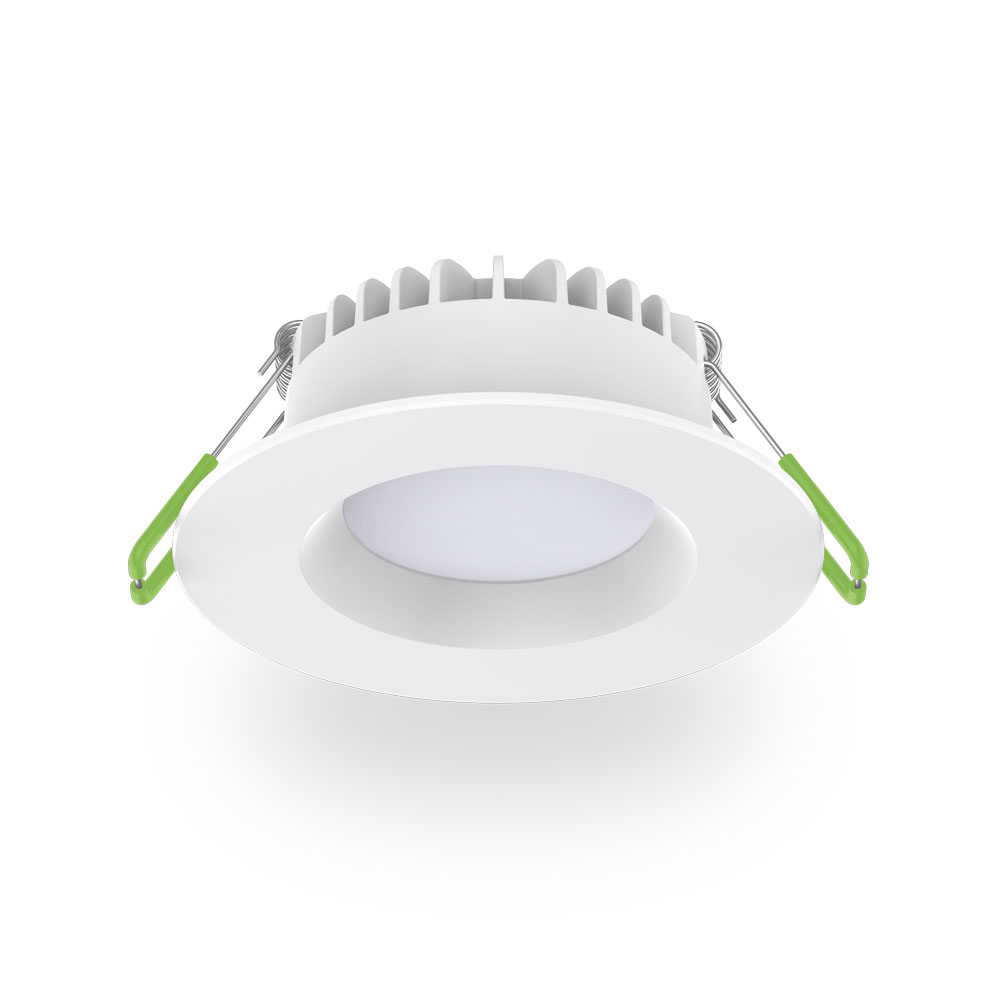

Atom AT9092 Arcus 5W/7W Adjustable LED Downlight Tri-CCT 72-92mm Cutout IP54 White
Atom Lighting
AT9092 Arcus
Adjustable LED Downlight
A versatile recessed LED downlight designed for retrofit flexibility, featuring adjustable 5W or 7W output, tri-colour selection and a wide trim plate suited to existing ceiling cutouts between 72mm and 92mm.
Flexible retrofit downlight
Designed to accommodate a wider range of ceiling cutouts
The Atom AT9092 Arcus is a compact recessed LED downlight designed to provide greater flexibility when replacing existing downlights.
Its wide trim plate is designed to suit ceiling cutouts between 72mm and 92mm, helping simplify retrofit installations where the existing opening may not match a standard modern downlight.
Dual-power selection allows the installer to choose between 5W and 7W, while tri-colour technology provides 3000K warm white, 4000K cool white and 5700K daylight settings from the one fitting.
Product highlights
Maximum flexibility for retrofit installations
Adjustable wattage, wide cutout compatibility and selectable colour temperature make Arcus a practical choice for replacing existing recessed downlights.
Dual Power Selectable
Choose between 5W and 7W during installation to suit the required brightness level.
Tri-CCT Selection
Select 3000K, 4000K or 5700K to suit the room and lighting application.
Wide Beam Angle
A recessed lens with a 100-degree beam provides broad and even light distribution.
Phase-Cut Dimmable
Supplied with a phase-cut dimmable driver for greater control over the light level.
IP54 Rated
IP54 protection provides added resistance against dust and moisture in suitable installations.
IC-4 Rated
IC-4 classification provides greater flexibility for compliant recessed ceiling installations.
Flex & Plug Included
Supplied with a 600mm non-rewireable flex and plug lead for practical installation.
Dual power selectable
Choose between 5W and 7W
Select the required output during installation to suit the room, ceiling height and desired light level.
5W
Lower Output
Up to 590 lumens depending on selected colour temperature.
7W
Higher Output
Up to 800 lumens depending on selected colour temperature.
Three colour temperatures
Select the light colour during installation
Tri-CCT technology allows one fitting to suit a wider variety of residential and commercial interiors.
3000K
Warm White
550lm at 5W / 750lm at 7W
4000K
Cool White
590lm at 5W / 800lm at 7W
5700K
Daylight
570lm at 5W / 780lm at 7W
Technical information
Product specifications
Product
AT9092 Arcus
Item code
AT9092/WH
Order code
11559
Maximum wattage
7W
Selectable power
5W / 7W
Input voltage
220-240V~ 50Hz
LED type
COB
Colour rendering
CRI >80
Colour temperature
3000K / 4000K / 5700K
Beam angle
100°
IP rating
IP54
IC rating
IC-4
Adjustability
Adjustable
Fitting colour
White
Product finish
White
Body material
ABS Plastic
Diffuser material
PC
Installation type
Recessed
Working temperature
-20°C to 40°C
Dimmable
Yes
Driver type
Dimmable Phase Cut
Driver and connection
Supplied ready for recessed installation
Driver type
Dimmable Phase Cut
Driver included
Yes
Integrated driver
No
Dimmable
Yes
Flex & plug lead
600mm
Wiring type
Non-Rewireable Flex & Plug
LED performance
Light output
3000K
Warm White
550lm at 5W
750lm at 7W
750lm at 7W
4000K
Cool White
590lm at 5W
800lm at 7W
800lm at 7W
5700K
Daylight
570lm at 5W
780lm at 7W
780lm at 7W
Compact recessed profile
Dimensions
Ø100mm
Product Diameter
Overall visible trim diameter.
38mm
Product Height
Compact recessed body profile.
35mm
Minimum Ceiling Depth
Designed for installations with limited ceiling cavity depth.
Retrofit compatibility
Cutout information
The datasheet lists the physical fitting cutout at 69mm, while the wide trim and mounting arrangement is designed to provide compatibility with existing ceiling cutouts from 72mm through to 92mm.
Ø69mm
Product Cutout
Cutout dimension shown on the manufacturer's line drawing.
72-92mm
Retrofit Compatibility
Wide trim design suited to existing ceiling openings across
this range.
LED testing
LED lifetime test data
TM-21 test hours
10,000 Hours
Compliance
Applicable standards
Lighting standard
AS/NZS 60598.1
Recessed luminaire standard
AS/NZS 60598.2.2
Control gear standard
AS/NZS 61347.1
LED driver standard
AS/NZS 61347.2.13
EMC standard
AS CISPR 15
Installation recommendation
Confirm the existing ceiling opening and ensure it falls within the supported retrofit range before installation. Select the required 5W or 7W output and preferred 3000K, 4000K or 5700K colour temperature before completing installation. The fitting requires a minimum ceiling depth of approximately 35mm. Installation must be completed in accordance with current Australian electrical regulations and the manufacturer's installation instructions.
Three-year domestic warranty
Supported by Atom's three-year return-to-base domestic use warranty. Eligible registered VIP users may receive additional warranty coverage subject to Atom's applicable terms and conditions.
