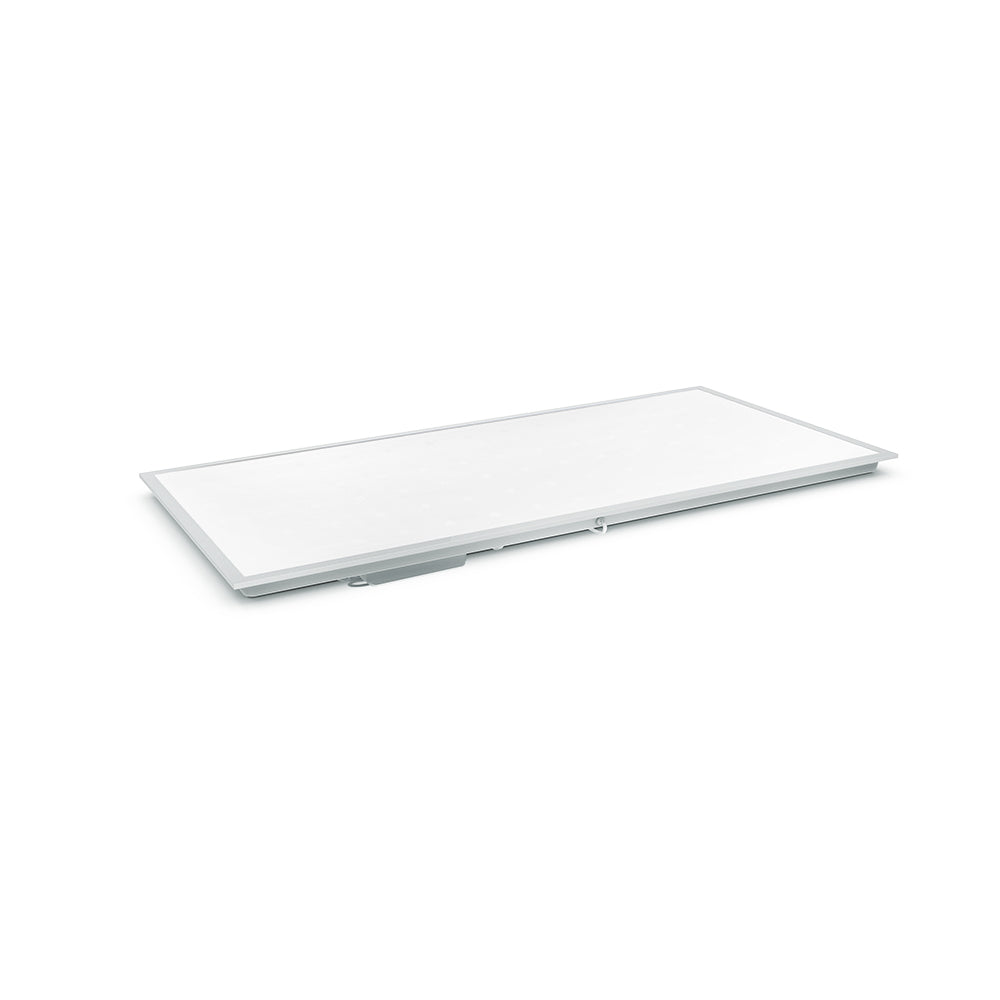

Atom AT6023/612/TRI Series III Backlit LED Panel 45W Tri-Colour 600 x 1200mm
AT6023 Series III
Tri-CCT backlit panel
AT6023/612/TRI combines a 45W LED panel with selectable 3000K, 4000K and 5700K light. This 600 x 1200mm nominal size has a white powdercoated aluminium body and a supplied LED driver.
Before you buy
The supplied driver is non-dimmable. A compatible DALI-2 driver upgrade is available separately. IP54 protection applies to the front face only. Check the actual panel dimensions and mounting arrangement before ordering.
Key highlights
Key features
Selectable light colour
Choose warm white, cool white or daylight using the inline switch.
Driver included
Supplied with a separate LED driver and 900mm flex and plug.
Controlled glare
UGR below 22 and a polystyrene diffuser support a uniform backlit panel design.
Mounting options
Recessed installation with compatible surface frames and suspension accessories available separately.
Technical specifications
- Model
- AT6023/612/TRI
- Order code
- 17979
- Series
- III
- Maximum wattage
- 45W
- Input voltage
- 230V AC
- Frequency
- 50Hz
- Colour temperatures
- 3000K / 4000K / 5700K
- Lumen output (3000K / 4000K / 5700K)
- 6250 / 6600 / 6300 lm
- CRI
- >80
- UGR
- <22
- System efficiency
- 147 lm/W
- IP rating
- IP54 front face only
- IC rating
- IC-4
- Installation
- Recessed, fixed
- Body material
- Aluminium AL6063
- Diffuser
- Polystyrene
- Finish
- White, powdercoated
- Working temperature
- -10 to 40 degrees C
- Power factor
- 0.9
- Driver
- Included, separate constant-current fixed-output driver
- Driver current
- 1150mA
- Dimmable
- No with supplied driver
- Flex and plug
- 900mm, re-wireable 2-pin
- LED voltage
- 36V
- MacAdam steps
- 3-step
- Design life
- 10 years at recommended 12 hours daily use
- Approvals
- IPART and REES
Dimensions
1195mm long x 595mm wide x 25mm high. Nominal panel size: 600 x 1200mm.
Compatible accessories
AT9057 suspension kit and the matching AT9059 surface-mount frame are listed by ATOM as accessories. Select the frame for this panel size. Accessories and the optional DALI-2 driver are sold separately.
What's included
LED backlit panel, separate fixed-output LED driver, and 900mm flex and plug. Optional dimming drivers, mounting frames and suspension kits are not included.
Warranty
ATOM lists a 3-year return-to-base warranty for domestic use. The listed VIP warranty is 2 years onsite plus 3 years return-to-base, subject to eligibility and ATOM warranty terms. The stated operating-hour limit is 20,000 hours, or the applicable warranty period, whichever occurs first.
