Atom AT3013/SLIM/25/TRI/S SERIES II Sensor LED Oyster Light - 24W, 400mm, Tri-Colour
Order code: 12335
Supplier item code: AT3013/SLIM/25/TRI/S
Oysters
Atom AT3013/SLIM/25/TRI/S — SLIM 24W 400mm Dia Oyster - Tri CCT - Series II - with sensor
Before you buy
- The current datasheet lists 18/20/24 W, but this exact 24 W model’s installation-guide switch illustration shows 10/12/14 W. Confirm the selectable settings before ordering or setup.
- Select current Series II item 12335. The same slash code was also used for older 25 W item 18138; its barcode and specifications do not identify this current 24 W model.
- The exact sensor guide resolves the native hold-time units as 5 seconds, 30 seconds, 1 minute or 5 minutes. Choose internal standby behavior separately from external dimming; this fitting is not externally dimmable.
- The exact guide reports 2330 lm at 5700 K, while the current native 24 W sensor table reports 2370 lm. The disputed daylight lumen figure requires supplier confirmation.
- Indoor installation is required by the exact guide despite the IP54 rating. Use the sensor guide for 12335, not the separately linked non-sensor guide.
At a glance
Fixture power
Maximum rating: 24 W
Colour temperature
3000 / 4000 / 5700 K, selectable
IP Rating
IP54
Input voltage
230Vac
Installation Type
Wall or Ceiling
Product details

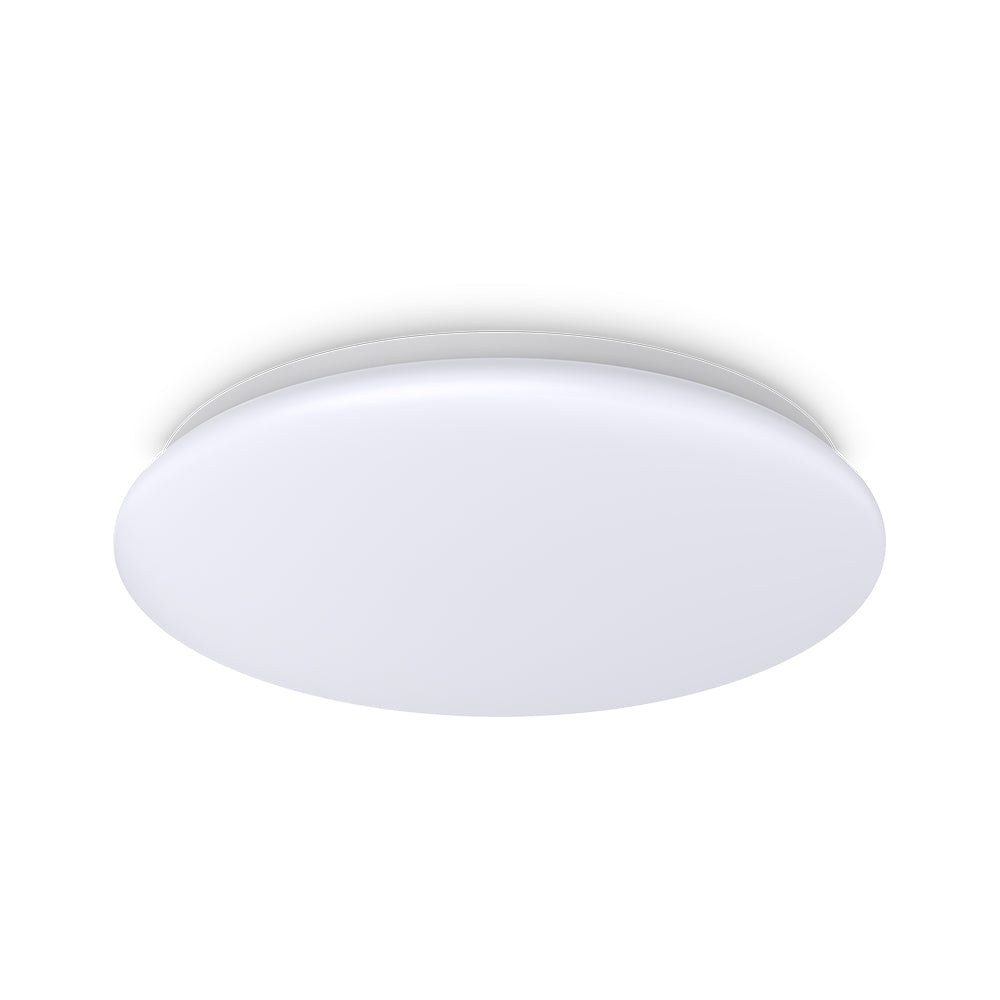

The Series II sensor oyster uses current Atom item 12335. It has a 24 W maximum rating, a 400 mm diameter white body and a built-in microwave motion sensor, with selectable white-light colour temperatures.
Microwave sensing can pass through walls or glass thinner than 20 mm; thicker material attenuates it. Detection also depends on motion speed, mounting height and movement.
The opal acrylic oyster has an insect-resistant seal and a slim 70 mm profile.
The manufacturer lists kitchens, bathrooms and laundries as applications for this IP54 wall or ceiling fitting.
Technical specifications
Efficiencies
- Total System Efficiency
- 98 lm/W
- Efficiency scope
- Total system efficiency includes optical, thermal and driver losses; it is distinct from LED-chip or luminaire-only efficiency.
Mechanical
- IP Rating
- IP54
- Fitting Colour
- White
- Body Material
- Steel
- Diffuser Material
- Acrylic
- Installation Type
- Wall or Ceiling
Electrical
- Maximum Wattage
- 24 W
- Input voltage
- 230Vac
- In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Lamp
- Colour Rendering Index (CRI)
- >80
- CCT Configuration
- TRI-CCT
LED Lifetime
- LED Lifetime
- 102000 hrs
- LED Lifetime Ratings (Failure rate & lumen depreciation) / L90B10 / 25 °C
- 45000 hrs
- LED Lifetime Ratings (Failure rate & lumen depreciation) / L90B10 / 40 °C
- 43000 hrs
- TM-21 Test Hours
- 17000 hrs
- LED lifetime scope
- LED lifetime figures concern LED-component performance, not a guaranteed complete-fixture service life or the warranty period.
- Lifetime-rating terminology
- L describes remaining light output as a percentage of initial output; B describes the proportion of LEDs below that output criterion at the stated time and ambient temperature.
Colour temperature
- 18 Watts / Warm White (3000 K)
- 1820 lm
- 18 Watts / Cool White (4000 K)
- 1860 lm
- 18 Watts / DayLight (5700 K)
- 1840 lm
- 24 Watts / Warm White (3000 K)
- 2330 lm
- 24 Watts / Cool White (4000 K)
- 2460 lm
Driver
- Driver Included
- Yes
- Wiring Type
- Re-wireable terminal block (3 pin)
- Flicker Free
- Yes
- PSTLM
- 0.02
- SVM
- 0.04
- Short Term Light Modulation (PstLM): The requirement is that PstLM should be less than or equal to 1.0. This metric measures the short-term flicker severity and ensures that flicker is not perceptible or is at a level that does not cause discomfort or health issues.
- Stroboscopic Visibility Measure (SVM): The requirement for SVM is that it should be less than or equal to 0.4. The SVM metric assesses the visibility of the stroboscopic effect, which can make moving objects appear to be stationary or moving in discrete steps, thus ensuring that this effect is minimized in lighting environments to prevent visual discomfort and safety hazards.
Sensor (S suffix)
- Sensor Type
- Microwave
- Lux Range
- 2/10/50/- lx
- Time Delay
- 5 seconds / 30 seconds / 1 minute / 5 minutes — verified exact sensor guide
- Detection Range
- 8 m diameter — verified exact sensor guide
Compliance
- Standards
- AS/NZS 60598.2.1 | AS/NZS 60598.1 | AS/NZS 61347.1 | AS/NZS 61347.2.13 | AS CISPR 15
Warranty
- Warranty
- 5 years from purchase for products purchased from 1 July 2026; first 2 years onsite in Australia where eligible, then return to base. Any expressly stated Warranty Operating Hours and Atom terms apply.
- Warranty conditions
- Onsite support requires eligible purchase and installation by an appropriately licensed electrician in Australia, and is subject to location, access, service-network availability and claim acceptance.
- The total warranty period is shown above. Where an on-site period is listed, the first years are covered on-site, with return-to-base coverage for the remainder. For full warranty details and claim instructions, please refer to our Warranty page.
Product configuration
- Product image scope
- Manufacturer images are illustrative; confirm the selected item number and supplied configuration before ordering.
- Fixture power
- Maximum rating: 24 W
- Light source
- LED
- Colour temperature
- 3000 / 4000 / 5700 K, selectable
- Sensor
- Built-in microwave motion sensor
- Electrical class
- Class I
- Input frequency
- 50 Hz
- Working temperature
- −20 to 40 °C — exact sensor installation guide
- Beam angle
- 120° — exact sensor installation guide
- External dimming
- Not dimmable; the separate 10%/30% setting is internal sensor standby dimming
- Sensor frequency
- 5.8 GHz microwave
- Sensor mounting height
- 2.5–6 m
- Sensor detection diameter
- 8 m
- Sensor detection-area settings
- 50% / 100%
- Sensor daylight settings
- 2 / 10 / 50 lux / disabled
- Sensor hold time
- 5 seconds / 30 seconds / 1 minute / 5 minutes
- Sensor standby period
- Always off / 30 seconds / 5 minutes / always on
- Sensor standby dimming
- 10% / 30%
- Sensor setup
- Set the sensor DIP switches with mains power off; hold time is the period at 100% output after no motion is detected, followed by the selected standby period/level
- Installation requirement
- Qualified electrician installation; indoor use only; do not mount outdoors or on damp/newly plastered ceilings; maintain adequate ventilation around the driver
- Light-source service
- Only the manufacturer, its service agent or a similarly qualified person may replace the light source
- Dimmable
- No
- Sensor daylight-output source conflict
- At 24 W and 5700 K the native page/current datasheet gives 2370 lm; the exact sensor guide gives 2330 lm. Confirm before purchase.
- Selectable-power source conflict
- The exact current datasheet lists 18/20/24 W; the exact 24 W sensor guide switch drawing instead shows 10/12/14 W. Confirm the supplied selector settings.
Dimensions & mounting
- Product Height
- 70 mm
- Product Diameter
- 400 mm
Package & requirements
Included
- Driver
Installation & care
- Qualified electrician installation; indoor use only; do not mount outdoors or on damp/newly plastered ceilings; maintain adequate ventilation around the driver
- Set the sensor DIP switches with mains power off; hold time is the period at 100% output after no motion is detected, followed by the selected standby period/level
- Only the manufacturer, its service agent or a similarly qualified person may replace the light source
Warranty
- 5 years from purchase for products purchased from 1 July 2026; first 2 years onsite in Australia where eligible, then return to base. Any expressly stated Warranty Operating Hours and Atom terms apply.
- Onsite support requires eligible purchase and installation by an appropriately licensed electrician in Australia, and is subject to location, access, service-network availability and claim acceptance.
