Aeratron WCKIT/WCKIT-L - Wall Controller Kit To Suit Aeratron DC Ceiling Fans
WCKIT / WCKIT-L
Aeratron wall-control kit
Six-speed wall control for Aeratron AE+ and FR ceiling fans.
Important before you buy
- Choose WCKIT for a fan without a light, or WCKIT-L for fan-and-light control. The ceiling fan and any light kit are sold separately.
- This kit replaces remote operation: the remote cannot be used at the same time. The FR timer function is unavailable with wall control.
- Controlling multiple fans requires separate PLFR-SGS slave signal modules. Grouped fans operate together, with a maximum of eight fans per control.
- Installation and control wiring must be completed by a licensed electrician. This is the matching Aeratron controller system, not a conventional fan-speed dimmer.
Key highlights
Wall control
Seasonal airflow
With separate slave modules
Fan-only or fan-and-light
Key features
Fixed wall control
Switch the fan on or off and step the speed up or down from the wall.
Seasonal airflow
Select forward or reverse operation without using a handheld remote.
Light control with WCKIT-L
Switch the compatible light on or off. Press and hold the light button to cycle the brightness.
Group control
Add PLFR-SGS slave signal modules to operate up to eight fans together. Individual control requires a separate wall-control kit for each fan.
Technical specifications
- Compatible fan series
- Aeratron AE+ and FR

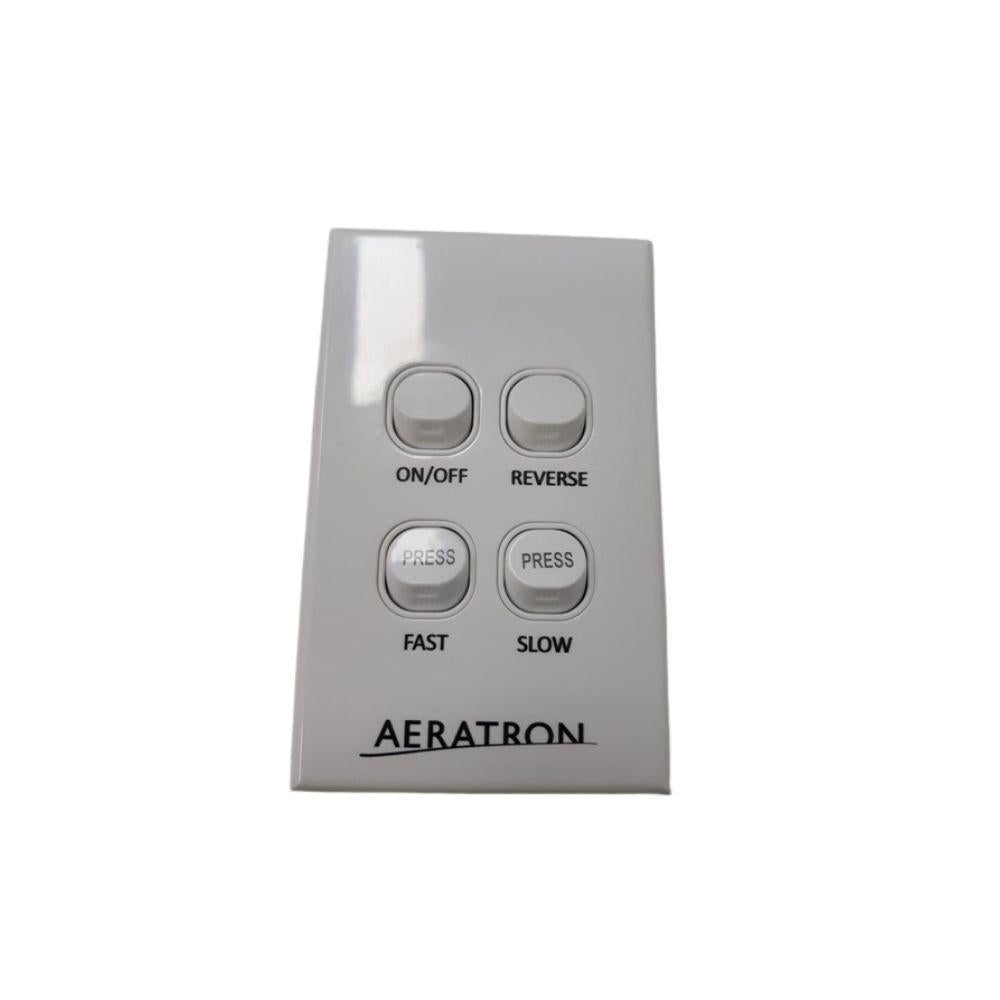

- WCKIT
- Fan control without light

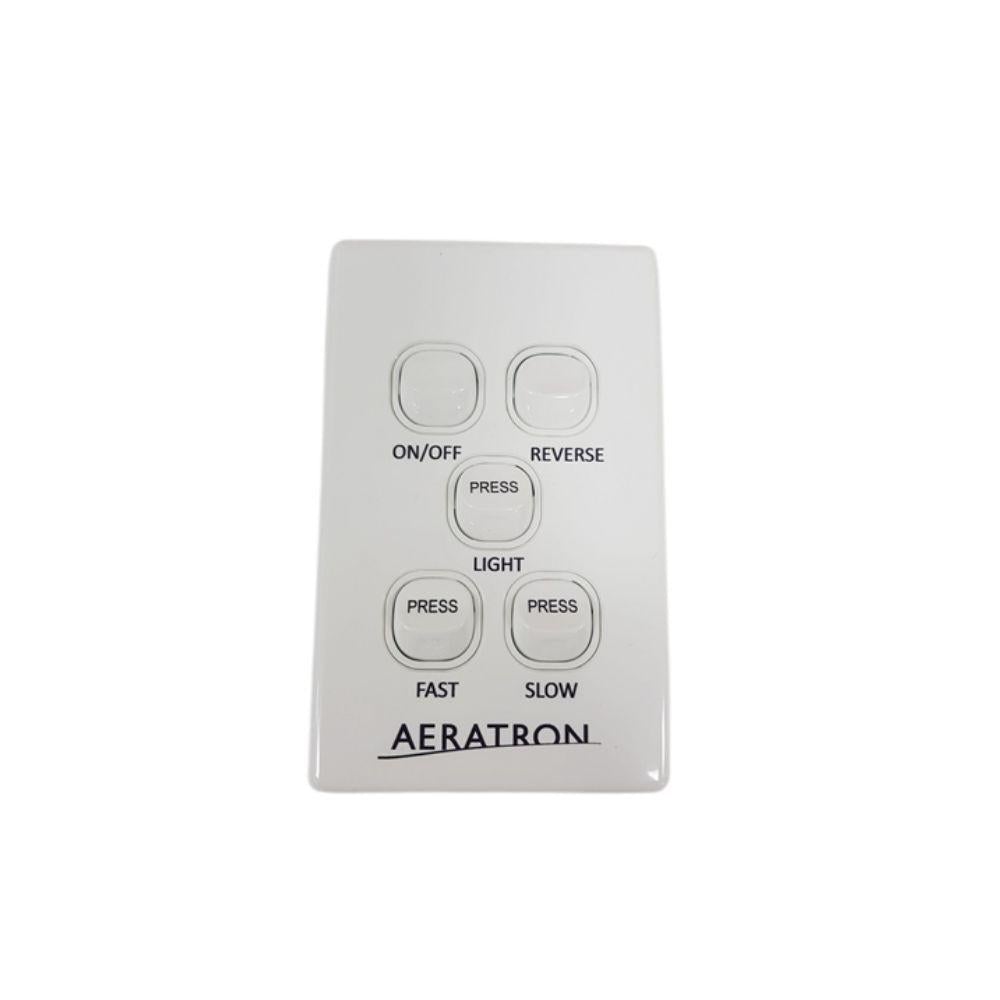

- WCKIT-L
- Fan and light control
- Fan functions
- On/off; six speeds; forward/reverse
- Light functions with WCKIT-L
- On/off; press-and-hold dimming
- Maximum group size
- 8 fans, with separate PLFR-SGS slave modules
- Remote compatibility
- Remote and wall control cannot be used together
- FR timer
- Unavailable with wall control
- Fan power requirement
- 240 V
- Control wiring
- Two-core wiring for switch control and master signal
What's included
- Switch control.
- Master signal.
- Switch mechanisms.
- Faceplate.
Fans, light kits and PLFR-SGS slave signal modules are sold separately.
Installation notes
Have the wiring and fan compatibility checked by a licensed electrician. Each fan in a shared control group receives the same command. Fit a separate control kit for each fan that needs independent operation.

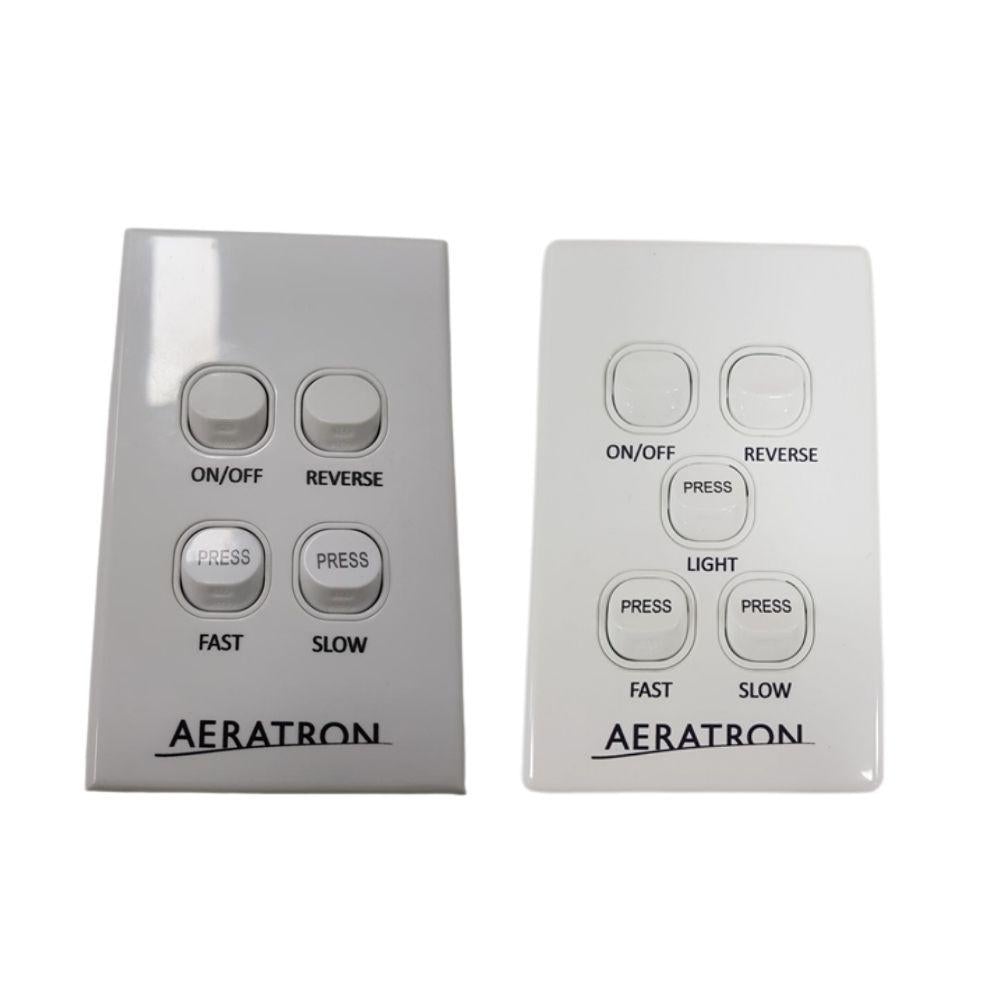

Models on this listing
- AD-WCKIT
- Without Light
- AD-WCKIT-L
- With Light
