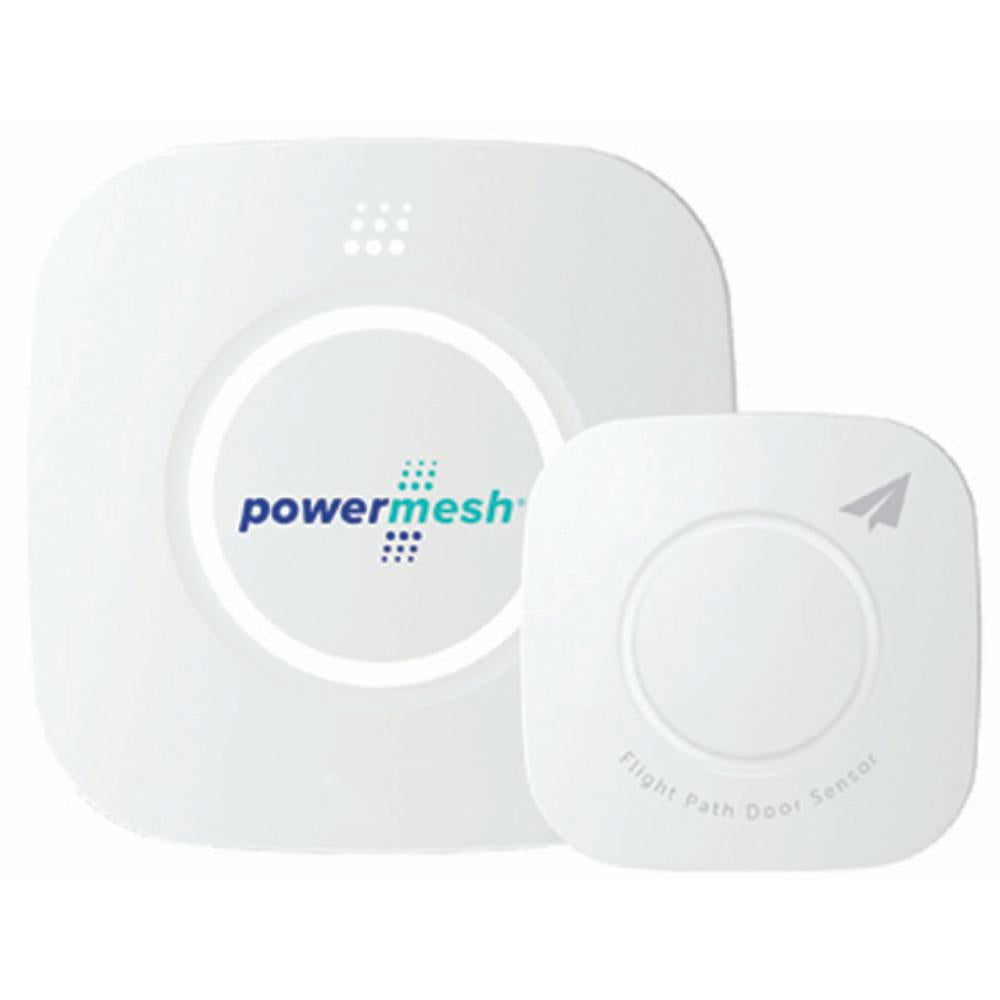

Zimi POWERMESH Smart Controller - Garage Door, & Sensor
POWERMESHSmart garage control + door sensor
Add app control and door-position monitoring to a compatible garage-door motor while keeping your existing remote in use.
PMGCKAt a glance
Door capacity
Up to 2, with extra sensor
Kit
Controller + 1 sensor
Power
24V DC adaptor included
Sensor protection
IP66
Control that fits your day
Keep your current remote
Add Zimi app control to the existing motor without giving up its original remote.
Track door position
Flight Path sensor technology tracks door position and supports opening to a chosen height on compatible setups.
Monitor the garage
View temperature and humidity and check door activity in the app.
Share access
Provide app access to family or other authorised users.
Link lighting
Behaviour Link can trigger compatible Zimi lighting when the garage door operates.
Expand to a second door
The controller has two motor outputs. Add a second compatible door sensor for independent two-door use.
Technical specifications
- Model / finish options
- PMGCK — standard kit
- Kit model
- PMGCK: PMGC controller plus PMGS sensor
- Controller supply
- 24V DC; manufacturer specifies a plug pack above 500mA
- Motor outputs
- 2 dry-contact relay outputs for motor / bell-press connection
- Safety inputs
- 2 Photo Eye Beam (PEB) inputs; check compatibility
- Sensor battery
- CR2450, included
- Sensor IP rating
- IP66; this rating applies to the door sensor
- Door types
- Sensor supports roller, sectional and tilt doors; motor compatibility must be checked
- Connectivity
- Bluetooth; Silverfish antenna technology
- Monitoring
- Door position, temperature and humidity
Dimensions & fit
- Controller
- 90 × 90 × 28mm
- Door sensor
- 57 × 57 × 22mm
Options & compatibility
Compatible PMGS sensors allow expansion to a second door. Zimi Cloud Connect is sold separately for remote access and voice functions. Keep the existing motor remote available. Google Assistant door opening supports a security PIN; voice-platform features depend on the configured service.
What’s included
Included
- 1 × PMGC garage-door controller
- 1 × PMGS door sensor
- 1 × 24V DC plug pack
- 1 × CR2450 sensor battery
Supplied separately
- Second door sensor
- Garage-door motor and any required compatible safety beams
- Zimi Cloud Connect
Installation & setup
Follow Zimi’s motor compatibility and installation instructions, then run the app-guided door training. Check safe door travel and any safety-beam requirements before enabling remote use. Electrical work must be performed by a licensed electrician. Use a compatible iOS or Android device with the Zimi app for setup and smart features.
Warranty
2-year manufacturer warranty.
