Zimi POWERMESH Smart Blind Controller - Double
POWERMESHSmart control for two blinds
Open, close and stop compatible motorised blinds from the wall or the Zimi app, with schedules for your daily routine.
PMBC4At a glance
Blind control
2 motors
Load limit
600W / channel
Supply
230V AC
Mounting centres
84mm
Control that fits your day
Open, close or stop
Dedicated open/close buttons operate each blind; press again to stop movement.
Operate the group
A double press opens or closes blinds together on the same Zimi network.
Schedule privacy
Set automatic opening and closing times in the app for morning light or evening privacy.
Status at a glance
The LED indicator pulses during movement. Night-light settings include on/off and automatic dimming.
Control from another switch
Behaviour Link can connect blind control with compatible Zimi switches without extra control wiring.
Mesh connection
Bluetooth mesh repeater operation and Silverfish antenna technology connect the controller with the Zimi network.
Technical specifications
- Model / finish options

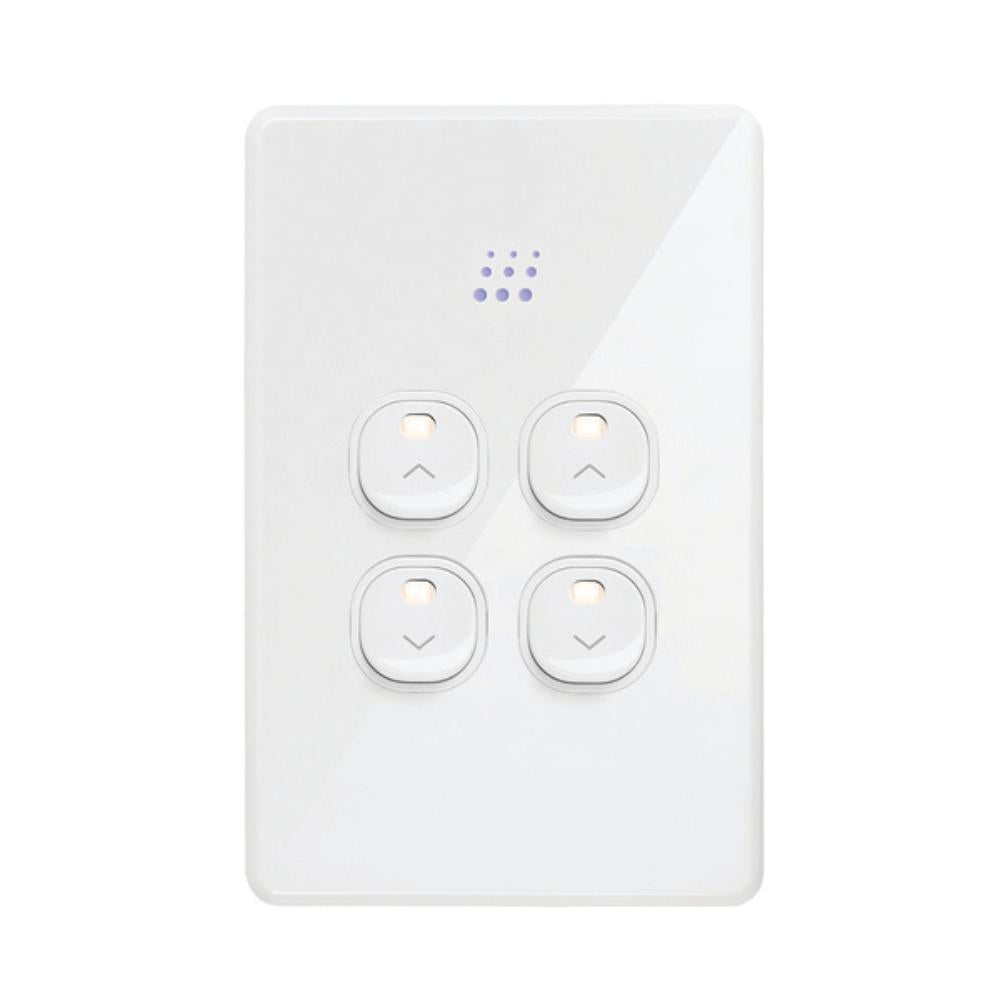

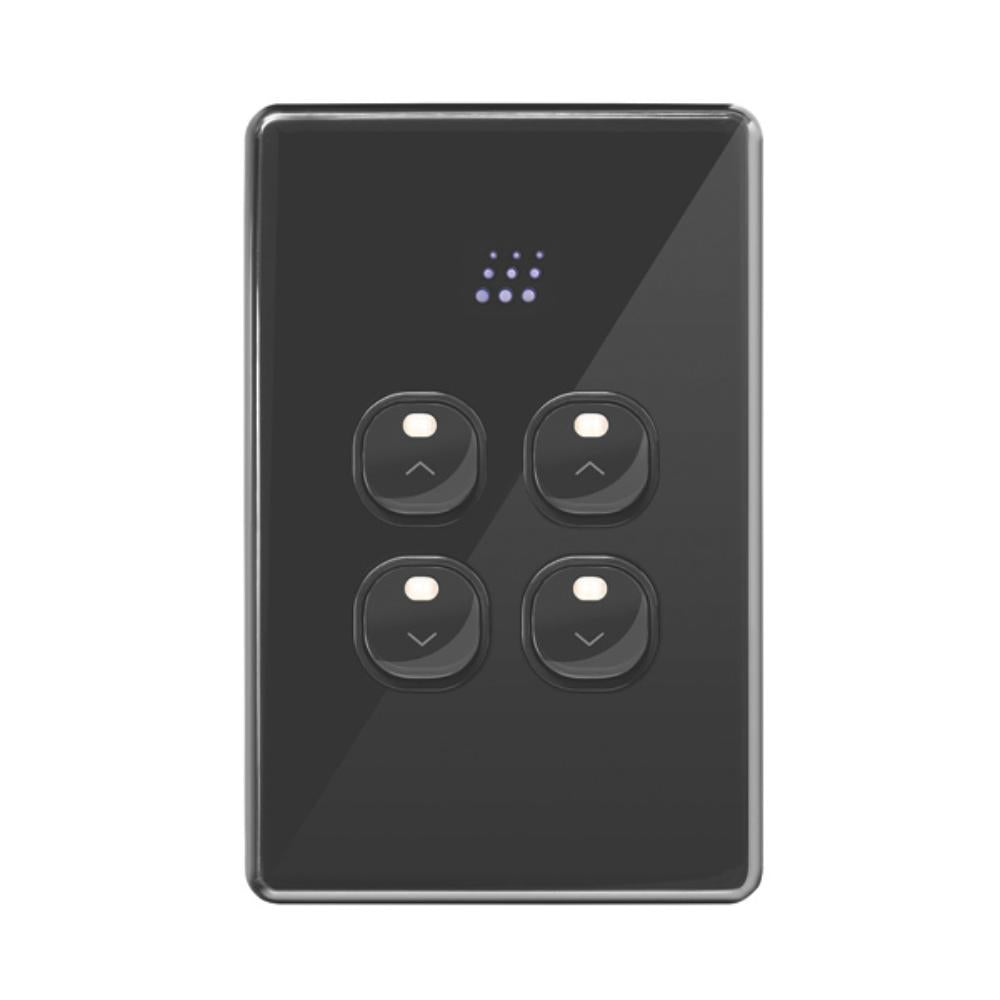

- PMBC4 — White; PMBC4BK — Black
- Blind channels
- 2
- Supply
- 230V AC, 50Hz; neutral required
- Maximum load
- 600W (2.5A) per channel
- Motor rating
- M40
- Motor compatibility
- AC blind motors with separate open and close active wires; check manufacturer compatibility guidance
- Wall actions
- Open / stop and close / stop; double press for network group control
- Connectivity
- Bluetooth mesh with Silverfish antenna technology; devices relay the network signal
- Cover, plate and buttons
- UV-stabilised polycarbonate
- Smart functions
- Schedules, Behaviour Link, power outage recovery, movement indicator and night-light settings
- Manufacturer-listed standards
- AS/NZ60669.2.1; AS/NZS CISPR15
- Certification number
- GMA-506939-EA
Dimensions & fit
- Faceplate
- 116 × 76mm
- Mounting centres
- 84mm
- Front / rear depth
- 13mm front projection; 29mm rear body depth
Options & compatibility
Select the finish shown in the product options. Zimi Cloud Connect is available separately for remote access, voice assistants and energy history. Matter, Apple Home and Samsung SmartThings additionally require Zimi Matter Connect and a compatible Matter controller; these are separate products.
What’s included
Included
- 1 × PMBC4 dual blind controller in the selected finish
Supplied separately
- Blind motors, blinds and installation
- Zimi Cloud Connect and other ecosystem bridges
Installation & setup
Your electrician must verify motor type, wiring, neutral and load rating against the manufacturer instructions. Set up schedules and group control after installation. Use a compatible iOS or Android device with the Zimi app for setup and smart features.
Indoor use only: keep clear of water and splash zones. Switch power off before wiring or maintenance. Manufacturer instructions recommend surge protection at the main switchboard; power-surge damage is excluded from the stated warranty.
Warranty
2-year manufacturer warranty.
