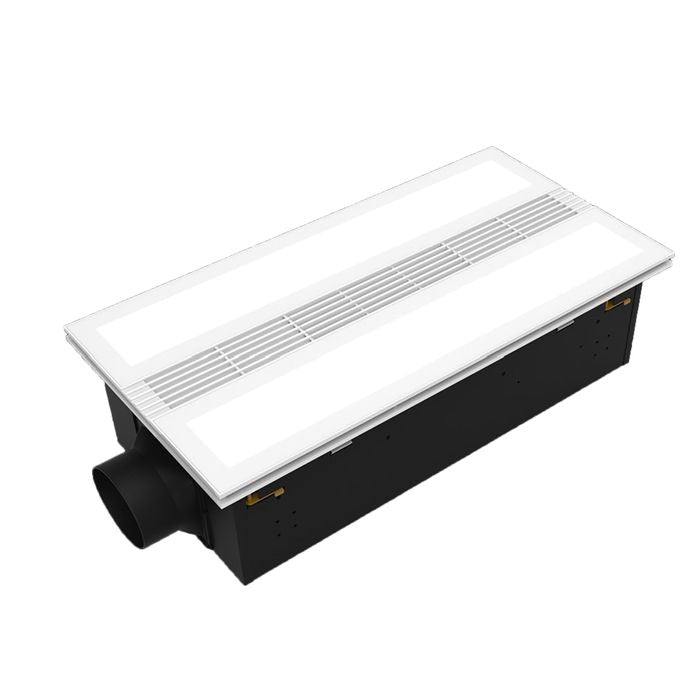

Vencha Extract Prime Bathroom Heater - EC 4in1, Fan, Light and Exhaust, White
Order code: 5501020
Bathroom Heaters Exhaust Fan
Extract Prime EC 4in1 Bathroom Heater, Fan, Light and Exhaust - White
Before you buy
- Check the stated minimum installation depth separately from the product body depth before cutting the ceiling opening.
- Installation must be completed by a licensed electrician, with the supply isolated before work.
- Do not install directly above a shower or bathtub, on a sloping ceiling or on a vertical wall. Do not cover the unit with insulation.
- Provide replacement air and an unobstructed exhaust route. Do not share the exhaust flue with gas or other open-flame appliances.
- Installation wiring is not supplied; the guide requires cable rated for at least a 10A load.
- Exhaust overrides Heat. Heat will not operate while exhaust is active; allow the exhaust run-on cycle to finish before using heat.
- The guide’s general high-steam advice suggests Heat and Exhaust together, while its operating sequence says Exhaust overrides Heat. Confirm operation with the installer; Heat cannot operate during Exhaust or its run-on cycle.
At a glance
Light rating
24w LED
Input voltage
240v
IP rating
IPX2
Colour temperature
3CCT Selectable (3000K/4000K/5000K)
Motor rating
Exhaust fan: 30w; cooling fan: 25w
Product details
Lighting: 24w LED; Fan motor rating: Exhaust fan: 30w; cooling fan: 25w; Heating: 2200w.
Built-in Thermal Protection System
Built-in 120 second Exhaust Run-On Timer
Built-in 20 second Automatic Heat Cool Down Cycle
Built-in 45-minute Safety Heat Shut-Off
Backflow Prevention Shutter
Technical specifications
- Code
- 5501020
- Model
- Extract Prime EC 4in1 Bathroom Heater
- Colour
- White
- Material Body
- Metal
- Material Face
- PC
- Voltage
- 240v
- Motor
- EC Motor
- Exhaust Fan
- 30w
- Airflow
- 500m³/h
- Cooling Fan
- 25w
- PTC Heating
- 2200w
- Light
- 24w LED
- Light Colour
- 3CCT Selectable (3000K/4000K/5000K)
- Output
- 1700/1900/1800lm
- Dimmable
- Non Dimmable
- IP Rating
- IPX2
- Cut Out
- 595mm x 275mm
- Face Size
- 615mm x 315mm
- Depth
- 150mm (*195mm Min Install Depth)
- Duct Size
- 100mm
- Parts Supplied
- 1 x 4 Gang Wall Switch 1 x 3m Aluminium Duct 1 x External Grille 1 x Cut Out Template 1 x Backflow Prevention Shutter
- Safety
- Built-in Thermal Protection System
- Motor wattage
- Exhaust fan: 30w; cooling fan: 25w
- Motor type
- EC
- Light wattage
- 24w LED
- Light source
- LED
- Lamp inclusion
- Yes; integrated LED light
- Heater rating
- 2200w
- Guide wall clearance
- At least 250 mm from vertical walls
- Guide clearance above unit
- At least 100 mm above the top
- Guide side clearance
- At least 75 mm from joists, walls or insulation
- Application
- Domestic use only; not suitable for commercial applications
- Heat operation
- Guide recommends no more than 40 minutes continuous heat; separate automatic safety shutoff is 45 minutes
- Exhaust run-on
- Approximately 2 minutes after switching off
- Heater fan cool-down
- Approximately 20seconds after heat stops
- Warranty scope
- Motor 5 years; lighting components 2 years; in-home labour 2 years for approved domestic claims
- Warranty documentation
- Proof of purchase and licensed-installation/safety or compliance certificate may be required; access/reinstatement costs and installation faults excluded
- Warranty
- Motor 5 years; lighting 2 years; in-home labour 2 years for approved domestic claims. Conditions apply.
Dimensions & supplier drawings
- Cut Out
- 595mm x 275mm
- Face Size
- 615mm x 315mm
- Depth
- 150mm (*195mm Min Install Depth)
- Duct Size
- 100mm
Package & requirements
Included
- 1 x 4 Gang Wall Switch
- 1 x 3m Aluminium Duct
- 1 x External Grille
- 1 x Cut Out Template
- 1 x Backflow Prevention Shutter
Warranty
- Motor 5 years; lighting 2 years; in-home labour 2 years for approved domestic claims. Conditions apply.
