Vencha LED Strip Light - 9W COB, 12V, IP20, 1m, 3000K
Order code: 5535039-12V-IP20-3K
Led Strip Lights
9w COB LED Strip Light - 12v - IP20 - 1m - 3000K
Before you buy
- Install the strip on an aluminium heat sink or aluminium channel.
- Use a compatible 12v DC constant-voltage LED driver with adequate load allowance; confirm the driver and dimmable components separately.
- Do not exceed the stated maximum run length. Do not bend, twist or strongly pull the strip during installation.
- The supplier prohibits installation in wet areas or locations where water can accumulate, including its IP65 strip models.
- This is the per-metre product code; confirm the required custom-cut length and soldered-tail arrangement. Separate bulk-reel codes are not substituted.
- Warranty excludes damage from batteries, vehicles, solar panels, alternators and other unregulated DC sources.
- Confirm the sales unit and supplied cut length before ordering: the product identity is per metre, while the supplier uses 500 mm ordering increments and custom soldered tails. Cutting increments and maximum run length are separate installation limits.

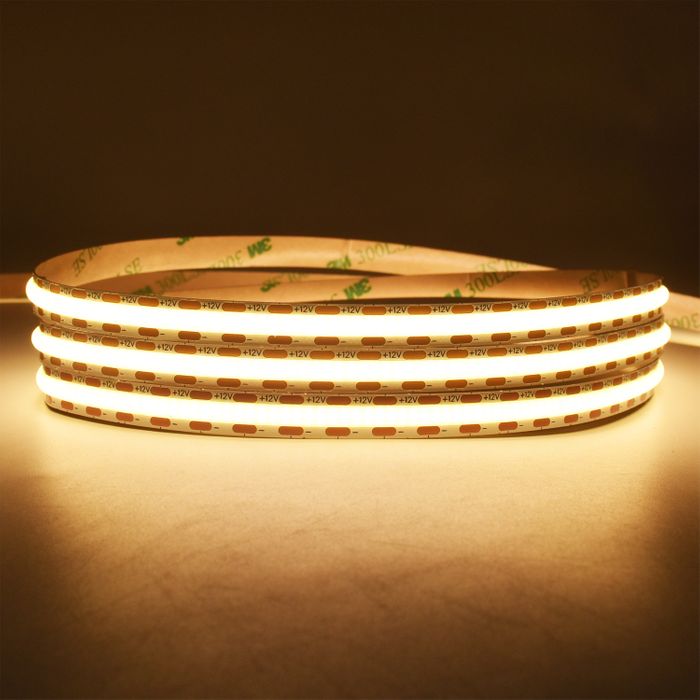

- The coil is a manufacturer illustration; this exact listing is ordered per metre/custom length, not as a pictured full reel.
At a glance
Strip rating
9w/m
Input voltage
12v DC
IP rating
IP20
Colour temperature
3000K
Product details
This is the 5535039-12V-IP20-3K per-metre LED strip model, rated 9w/m at 12v DC with 3000K light. Installation requires an aluminium heat sink or channel and a compatible constant-voltage driver; dimming requires compatible components.
Supplied in custom lengths or 50m reel.
Charged per 500mm and comes complete with professionally soldered tails.
LED Strip light must be installed on aluminium heat sink or aluminium channel.
LED Strip must not exceed the maximum run length specified in product details.
Do not bend, twist or strongly pull LED strip during installation.
LED Strip must not be installed in wet areas, and locations where water can be accumulated.
3 Year Residential Warranty: If used less than 8 hours per day.
1 Year Residential Warranty: If used for more than 8 hours per day.
1 Year Commercial Warranty.
All LED Strips are tested and carefully packed before dispatch.
If products are defective during warranty period, they will be replaced under warranty terms.
Vencha is not responsible for any additional expenses such as transport, access equipment and installation fees.
Warranty does not cover damage caused by connection to batteries, vehicles, solar panels, alternators, or other unregulated DC power sources.
LED Strip supplied in custom lengths cannot be returned.
LED Strip supplied in 50m Reels can be accepted but may incur restocking fees.
Technical specifications
- Code: 1m
- 5535039-12v-IP20-3K
- Wattage
- 9w/m
- Voltage
- 12v DC
- IP Rating
- IP20
- LED Chip Type
- COB
- LED/m
- 480
- Colour Temp
- 3000K
- Lumen Output
- 810lm
- CRI
- >90
- Beam Angle
- 120ᵒ
- Wiring
- Parallel
- Width
- 8mm
- Cutting Increments
- 8.3mm
- Max Run Length
- 5000mm (5m)
- Input voltage
- 12v DC
- Strip power
- 9w/m
- Dimmable
- Yes; compatible dimmable components required
- Warranty
- 3 years residential below 8 h/day; 1 year residential above 8 h/day; 1 year commercial. Conditions apply.
- Wattage per metre
- 9w/m
- Custom-order preparation
- Professionally soldered tails supplied; supplier ordering charge basis is per 500 mm
- Selected strip order scope
- This exact 1 m/per-metre code supports custom lengths; pictured coil or separate 50 m reel option does not establish reel inclusion
Dimensions & supplier drawings
- Width
- 8mm
- Max Run Length
- 5000mm (5m)
Warranty
- 3 years residential below 8 h/day; 1 year residential above 8 h/day; 1 year commercial. Conditions apply.
