Havit TRIN LED Step Light - 240V, Rectangular, Recessed
TRIN 240V RECTANGULAR RECESSED LED STEP LIGHT

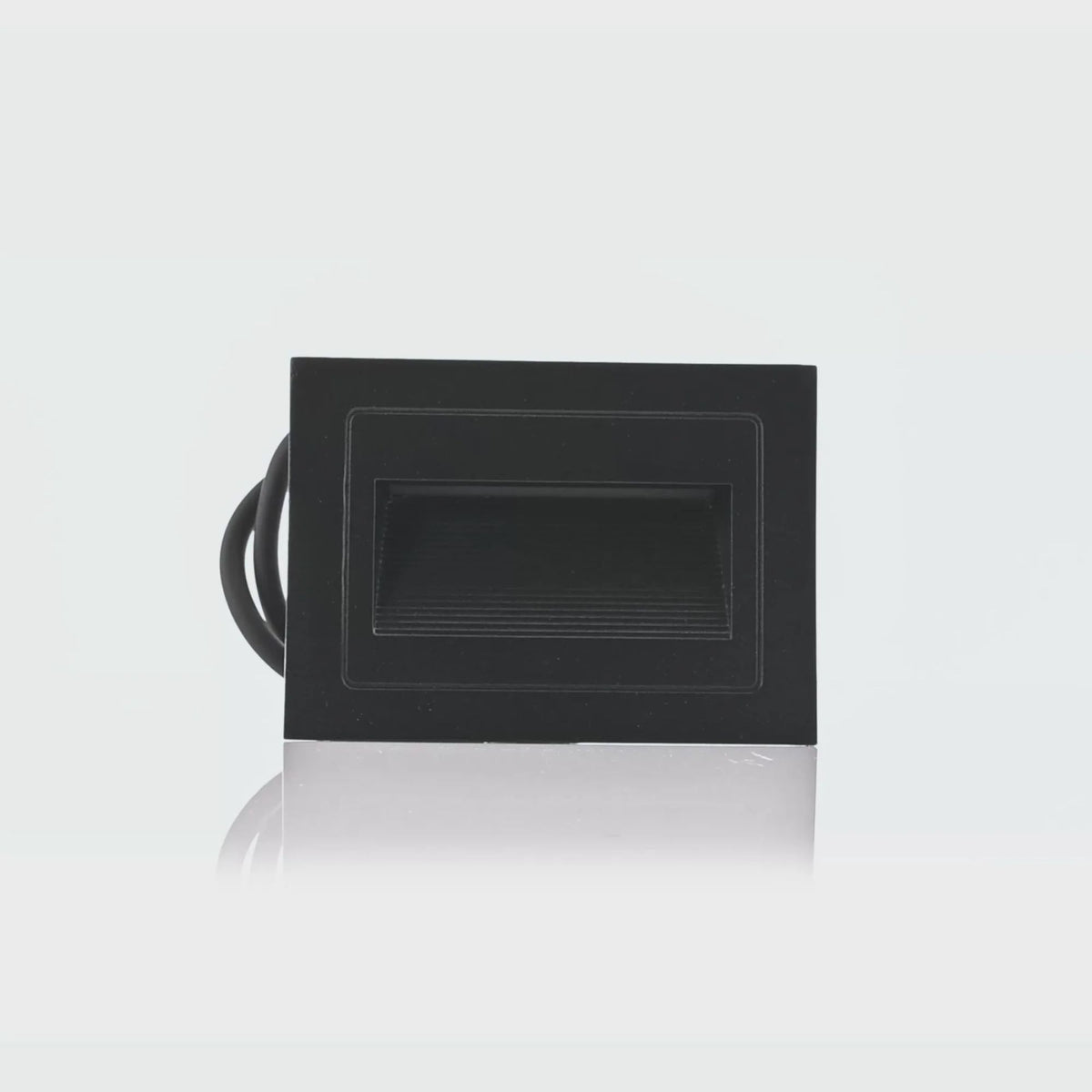

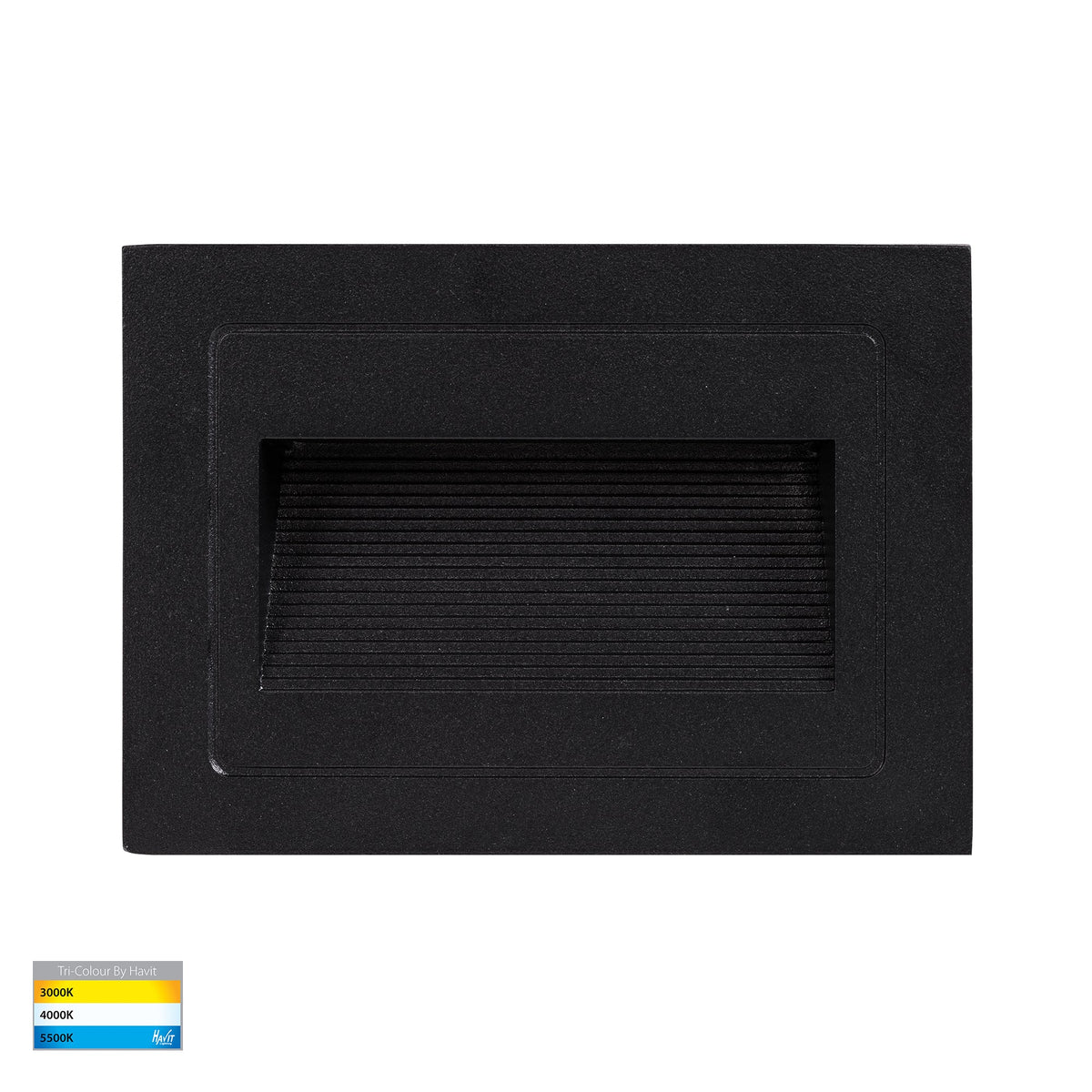

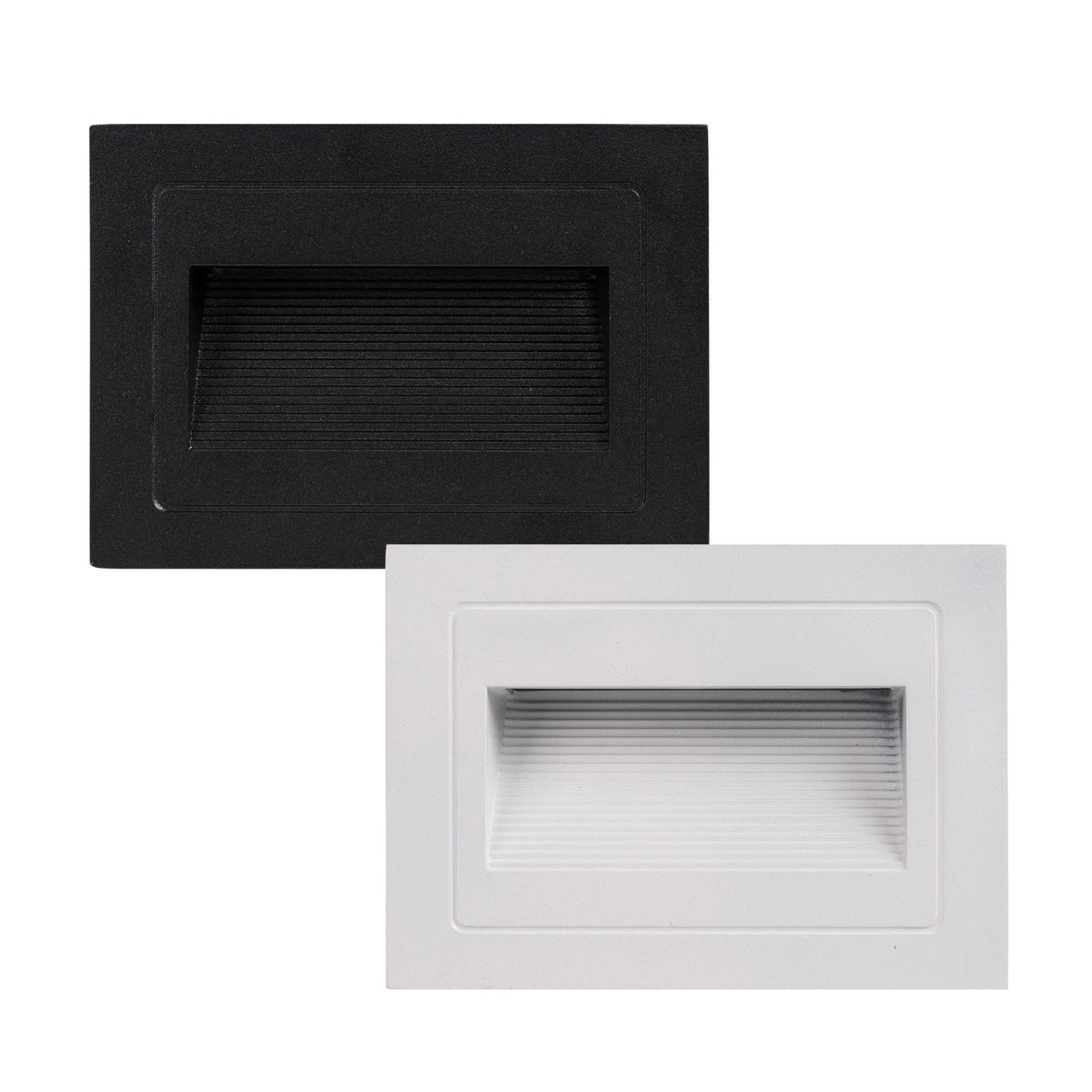

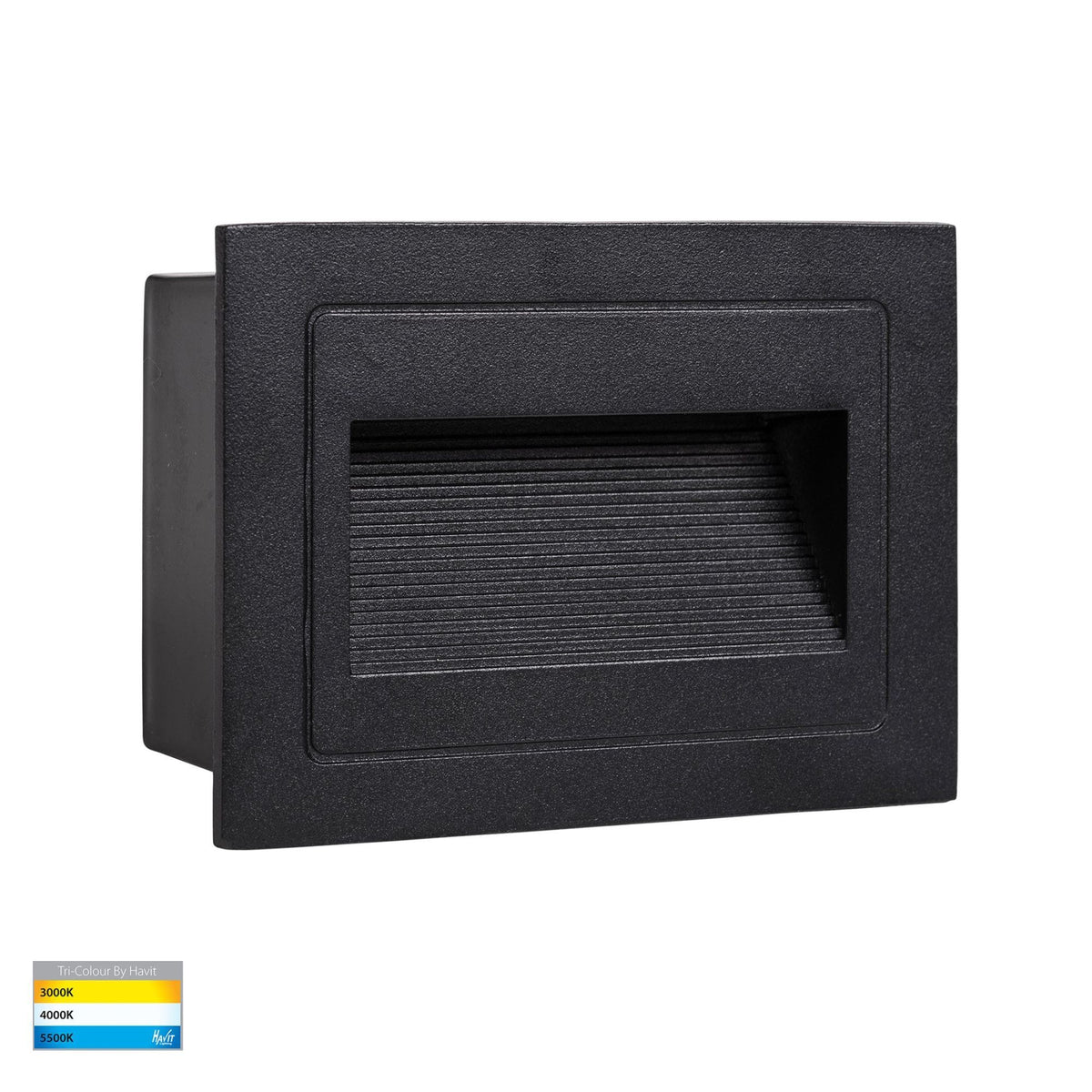

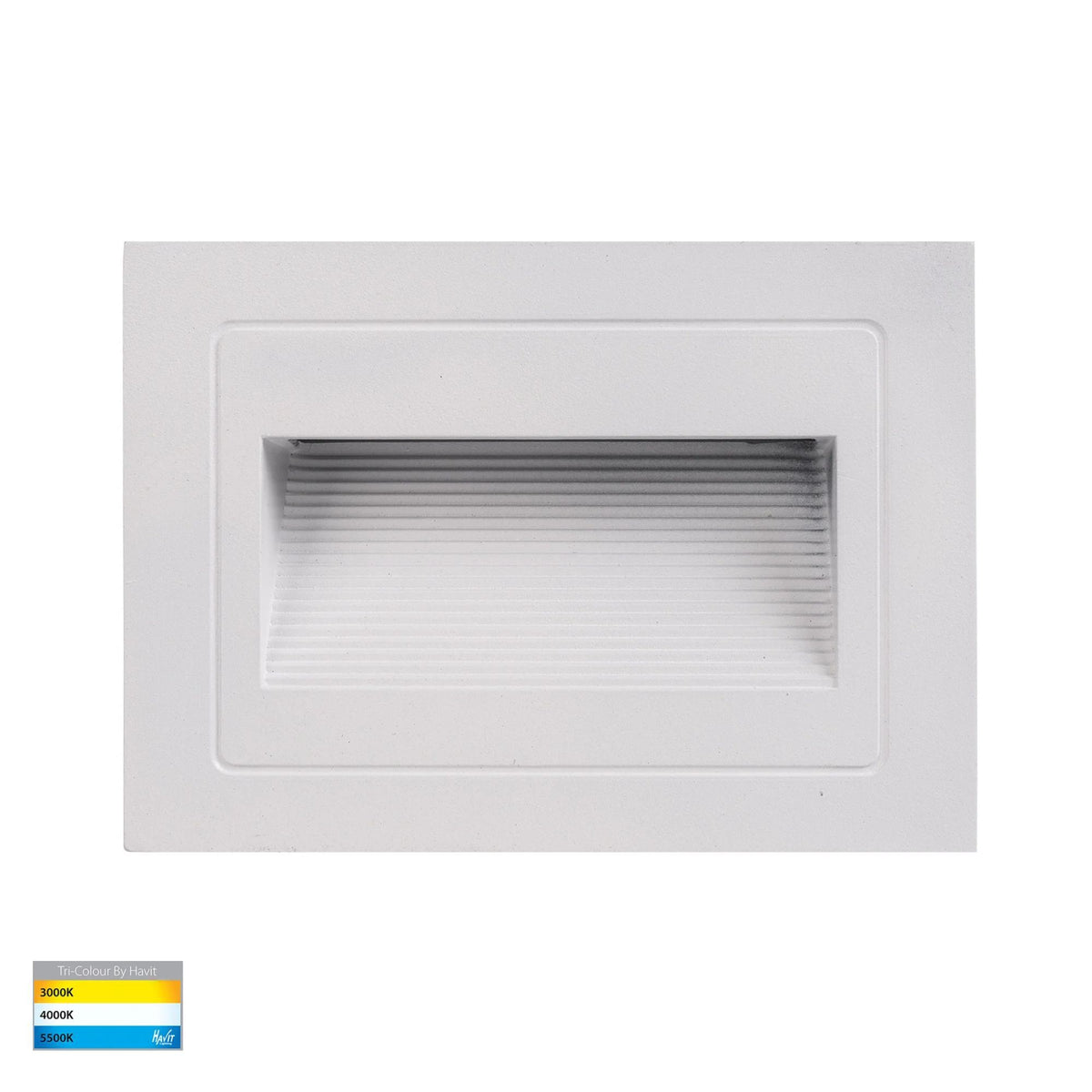

A recessed aluminium wall or step light with a built-in 5W LED and three selectable white colour temperatures. Choose a black or white powder-coated finish.
Important before you buy
This is the 240V AC model: installation by a licensed electrician and an earth connection are required. It is not dimmable. Havit prohibits aluminium fittings within 5km of salt-water environments. Choose the correct cut-out for installation with or without a canister; confirm canister supply with Ozlighting before ordering if your installation requires one.
No separate globe required.

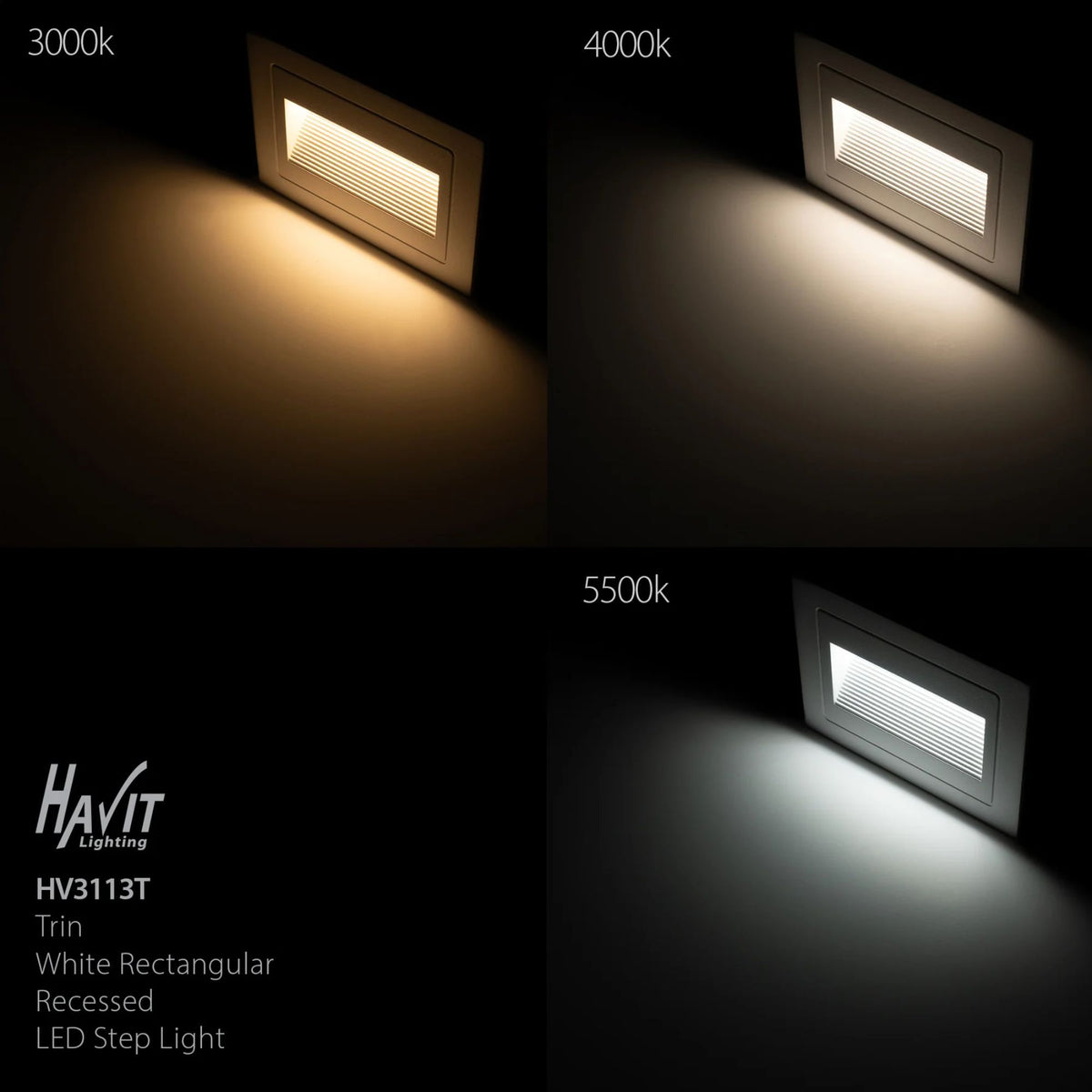

3000K, 4000K or 5500K selected at the fitting.
Class 1 fitting requiring an earth connection.
Follow the installation instructions for sealing outdoor connections.
Recessed wall or step lighting
The rectangular TRIN face measures 116mm wide by 84mm high. The recessed fitting has a 120° beam angle and is supplied with clips for gyprock installation. The built-in LED produces 120lm at 3000K, 130lm at 4000K and 125lm at 5500K.
Technical specifications
- Family / installation
- Havit TRIN / recessed wall or step light
- Material / finish
- Aluminium / poly powder-coated black or white
- Input / protection class
- 240V AC / Class 1, earth required
- Included LED / wattage
- Built-in LED / 5W
- Colour temperature / lumens
- 3000K: 120lm; 4000K: 130lm; 5500K: 125lm
- Beam angle / IP rating
- 120° / IP54
- Dimmable
- No
- Colour rendering
- CRI >80
- Colour consistency / glare index
- SDCM <3 / UGR <10
- Manufacturer lamp expectancy
- <30,000 hours
- Multiple-fitting wiring
- Parallel
- Replacement warranty
- 3 years, subject to Havit terms

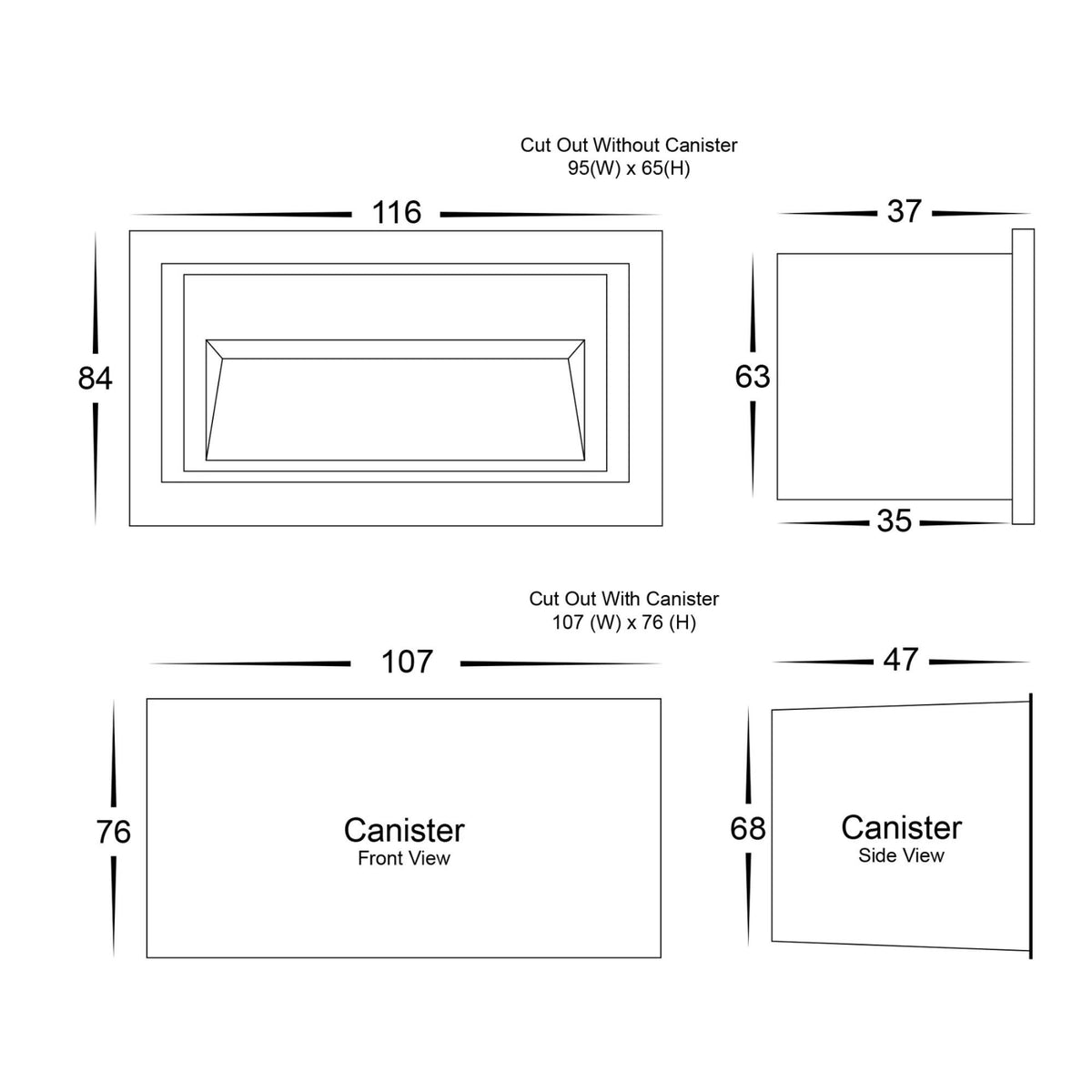

Dimensions and installation options
- Face dimensions
- 116mm wide × 84mm high

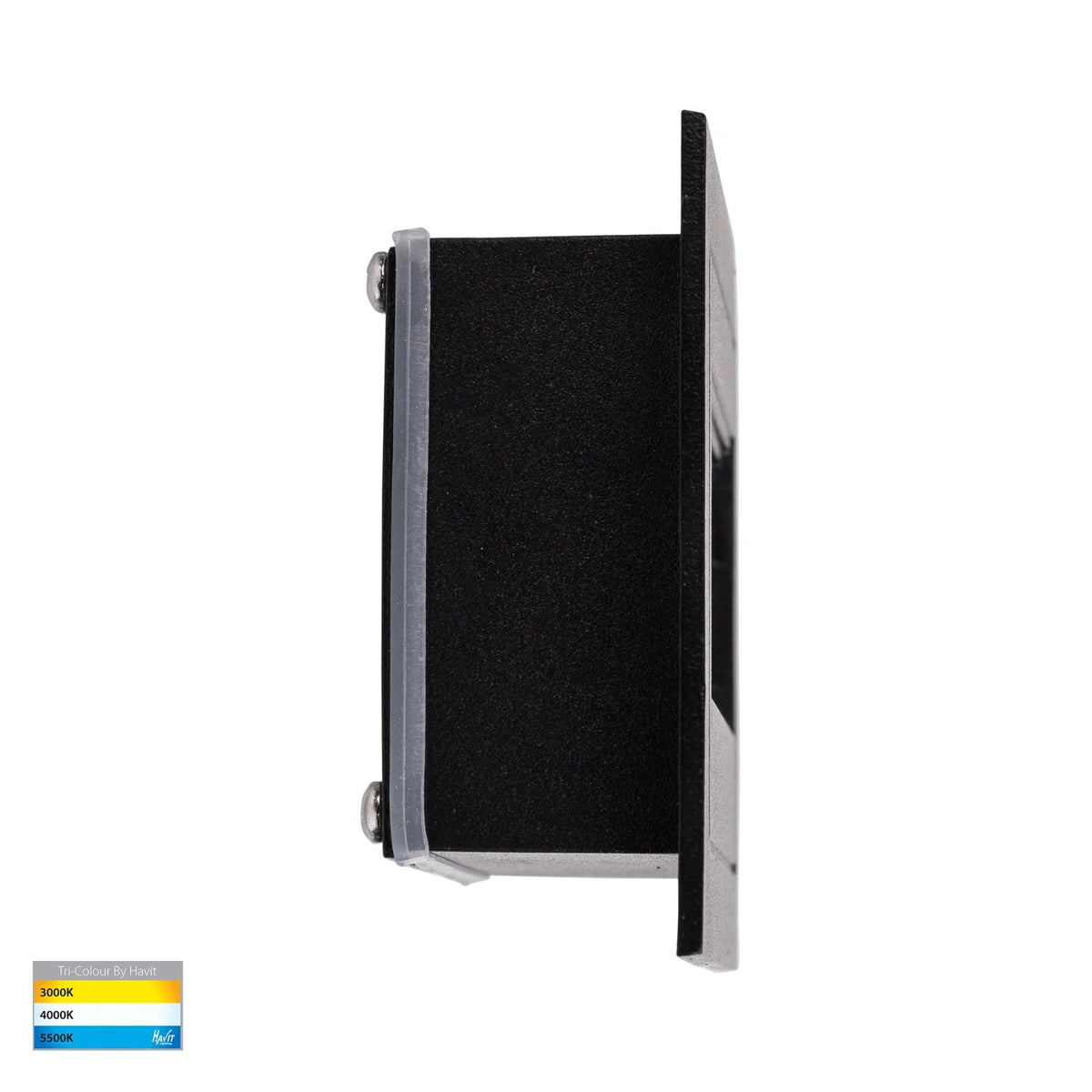

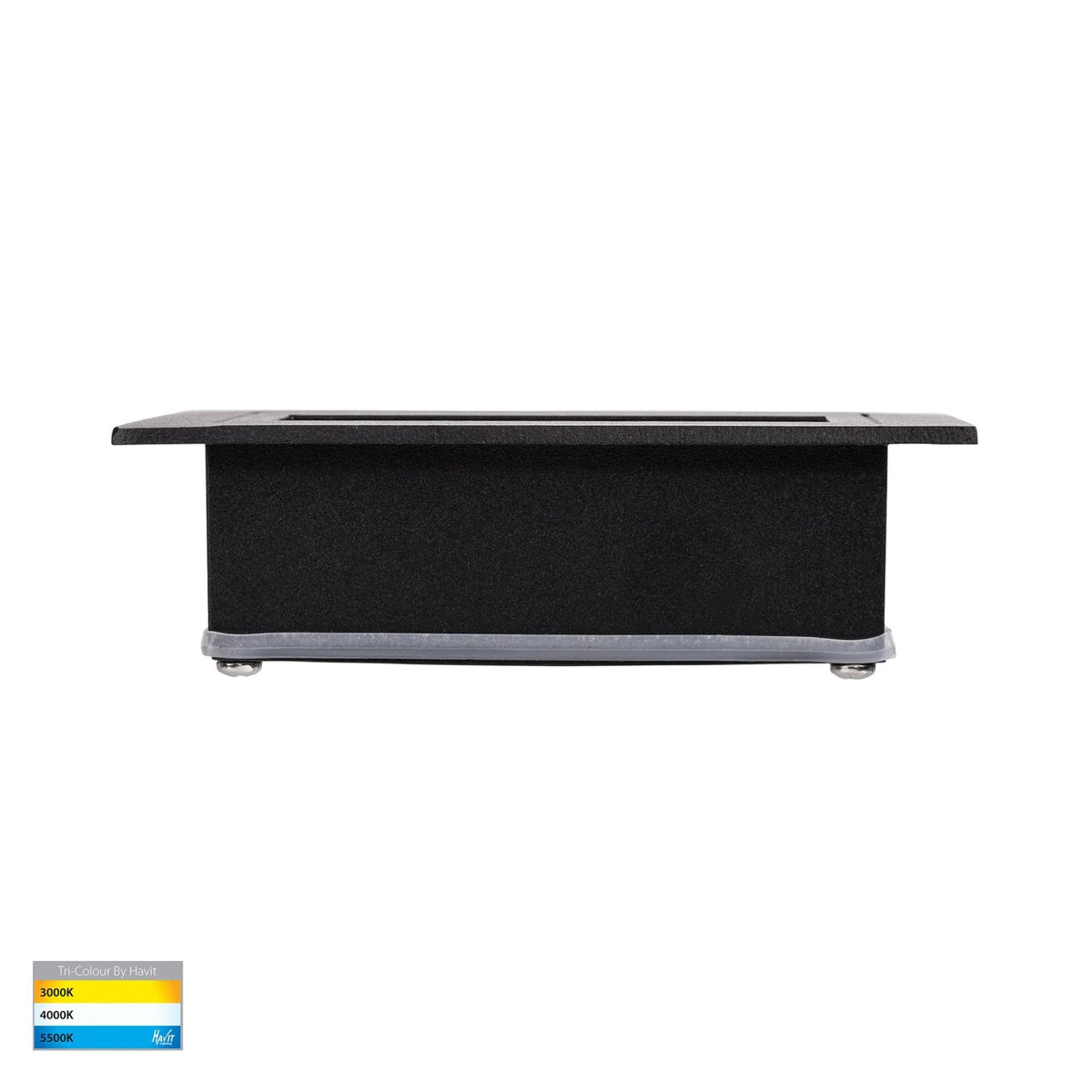

- Fitting dimensions shown
- 37mm overall depth; 35mm recessed body depth; 63mm recessed body height
- Cut-out without canister
- 95mm wide × 65mm high
- Cut-out with canister
- 107mm wide × 76mm high

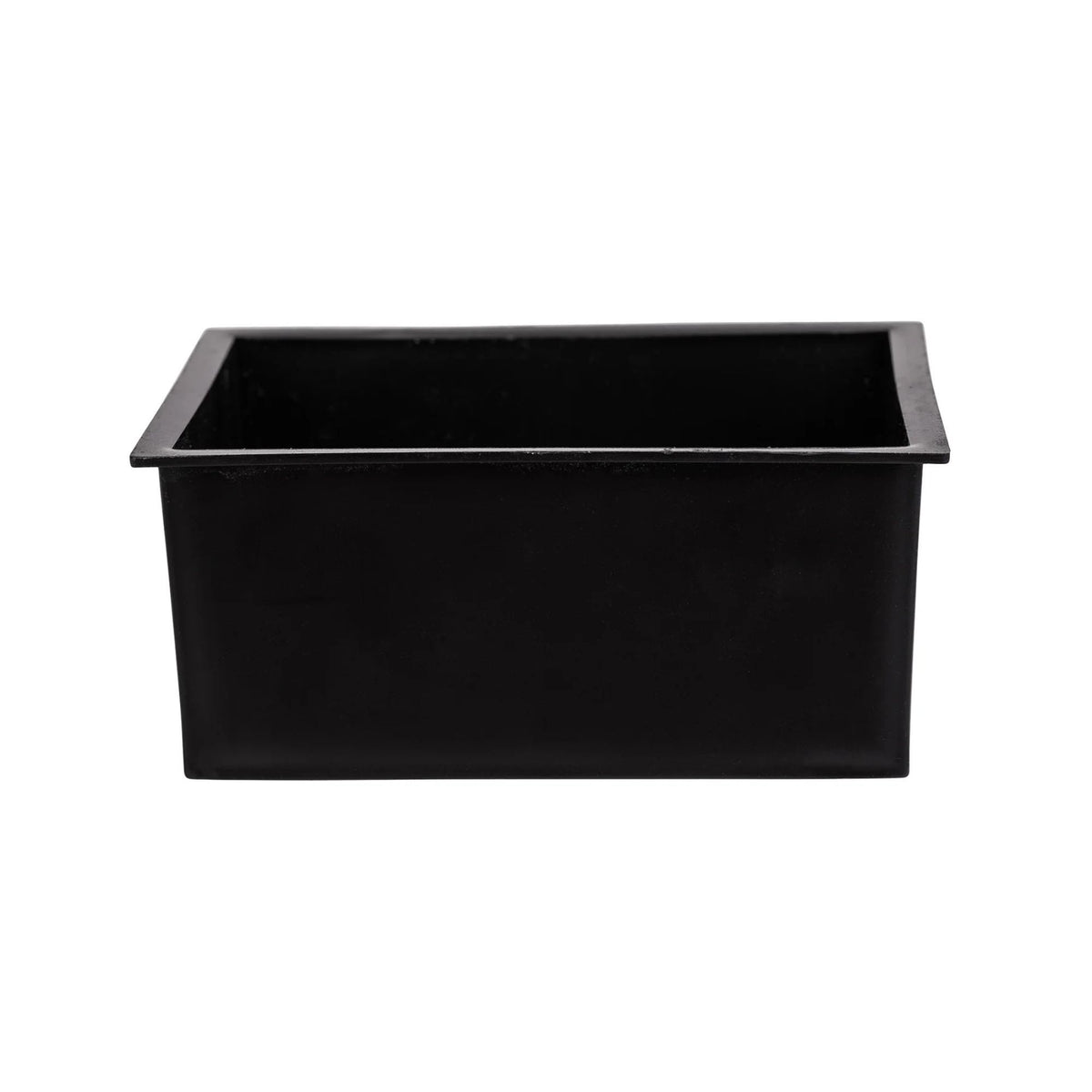

- Canister dimensions shown
- 107mm wide × 76mm high × 47mm deep; internal height 68mm
Confirm the installation method before cutting the opening. The canister must sit level with the wall, and the fitting body must sit just behind its edge. The rectangular model’s clips are required for canister installation as well as gyprock installation.
HV3113T-BLK-240V / Ozlighting SKU HL-HV3113T-BLK-240V
HV3113T-WHT-240V / Ozlighting SKU HL-HV3113T-WHT-240V
What is included and model selection
The fitting has an integrated 5W LED; Havit lists gyprock installation clips as supplied. This listing covers the 240V black and white versions. The related 12V DC versions are separate products requiring a suitable 12V DC LED driver; that driver requirement does not apply to these 240V models. Canister supply is not explicitly stated in the product documents: confirm with Ozlighting for your installation.
Installation and care
Your electrician must follow the current Havit instructions and AS/NZS 3000, isolate the mains before work and make all connections carefully. Colour temperature is preset to 3000K; select the desired setting at the rear switch as instructed. Maintain all seals and O-rings. For outdoor installation, waterproof the connections and apply silicone around the fitting edge as instructed. Do not modify the fitting or use incompatible installation materials.
Warranty
Havit specifies a 3-year replacement warranty, subject to its warranty terms and correct installation. Product modification or incorrect installation may void the warranty.
Product documents
Ozlighting product datasheet
Current Havit datasheet
Havit installation instructions
Havit warranty terms
