Fantech Trade DOM - Fan Kits IPX4
Fantech Trade · DWK100

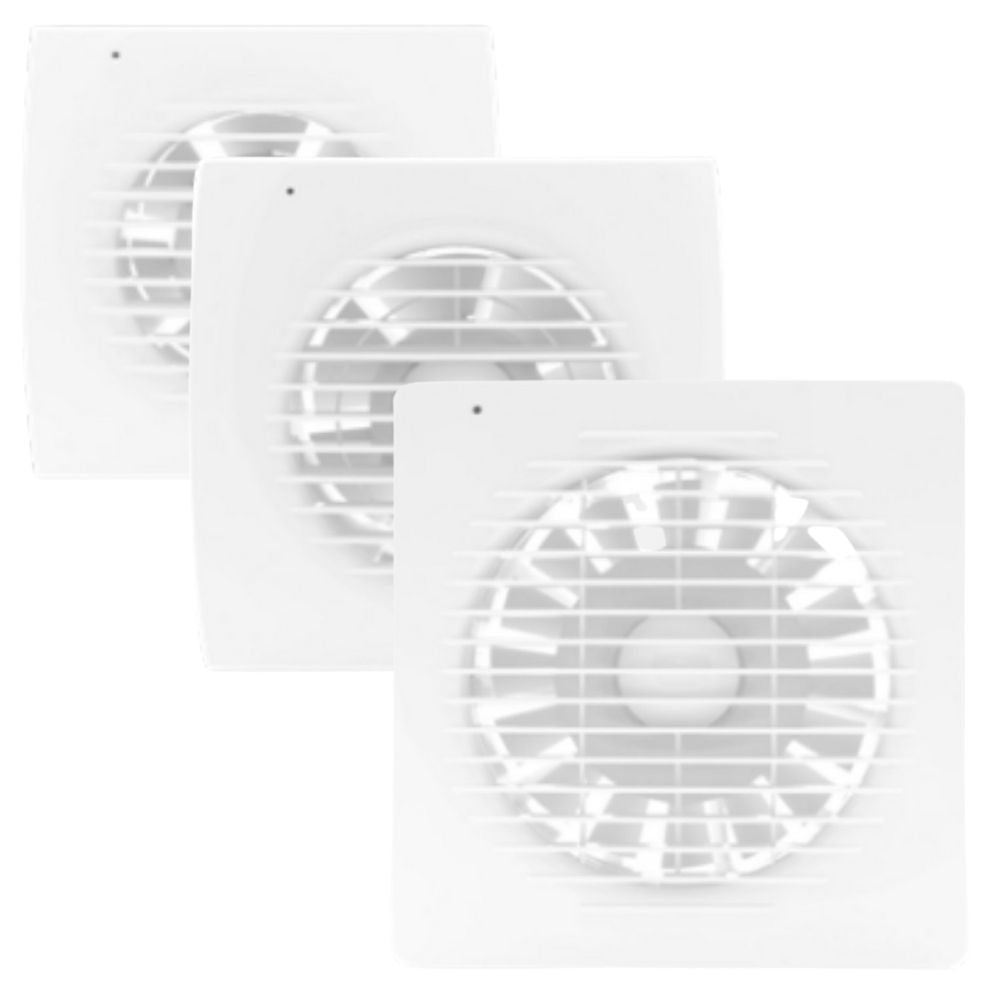

DOM through-wall fan kits

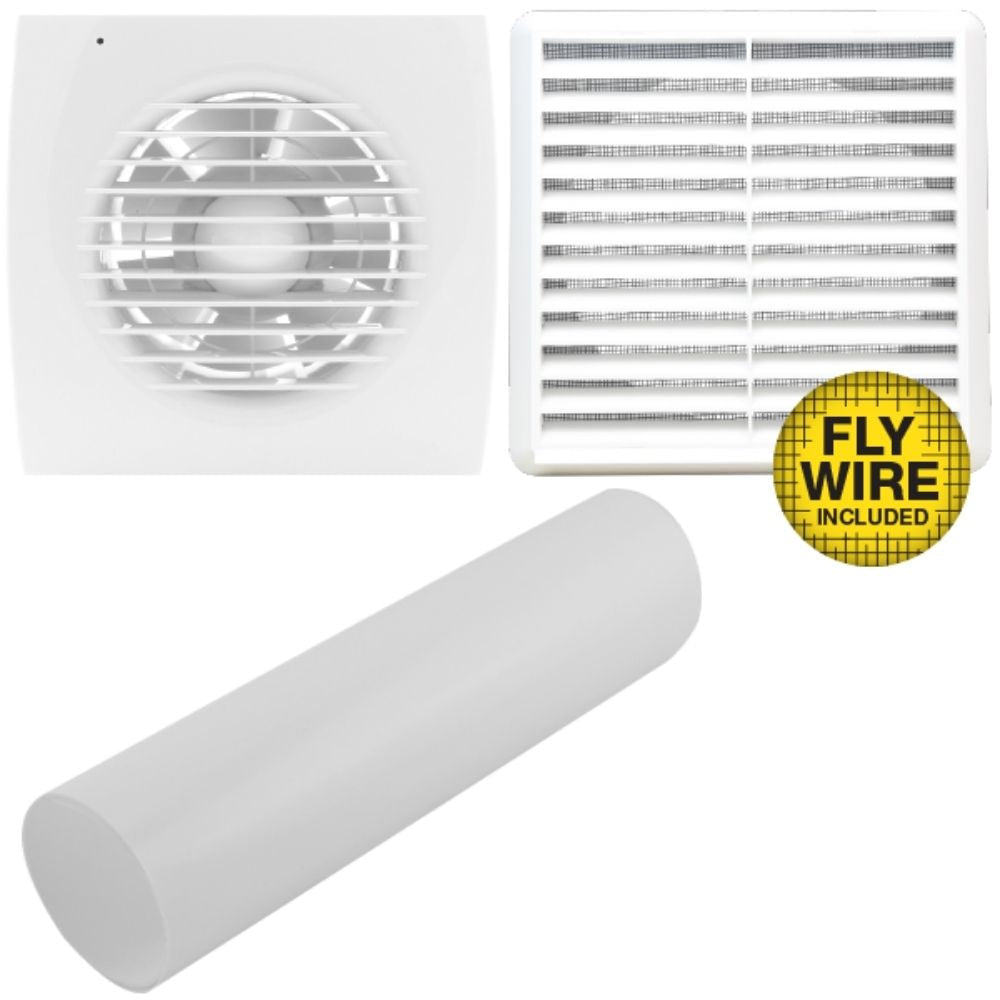

A DOM extraction fan, wall tube and exterior fixed-louvre grille in a matched through-wall kit.
Before you order
Electrical installation and any fixed wiring must be completed by a qualified electrician. Follow the manufacturer’s installation instructions and provide access for maintenance. Check wall thickness, cut-out and exterior access before installation.
Built for the application

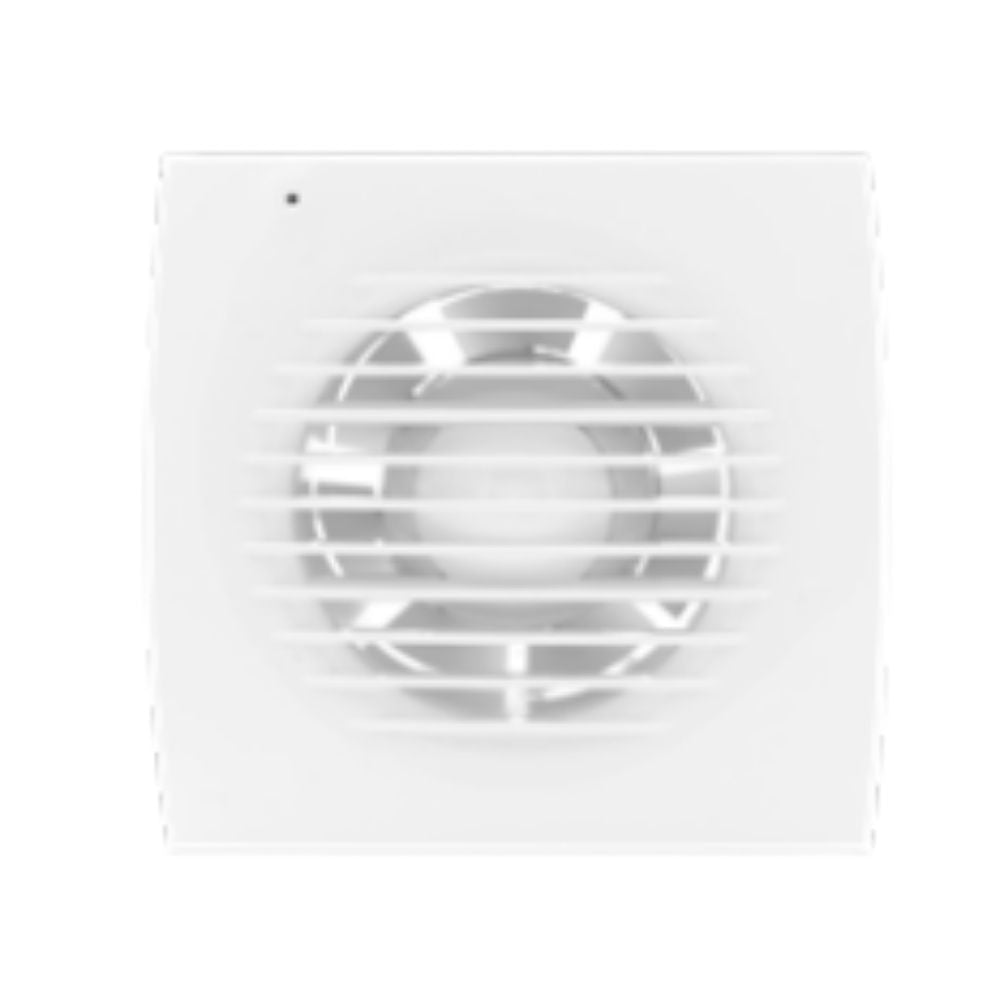

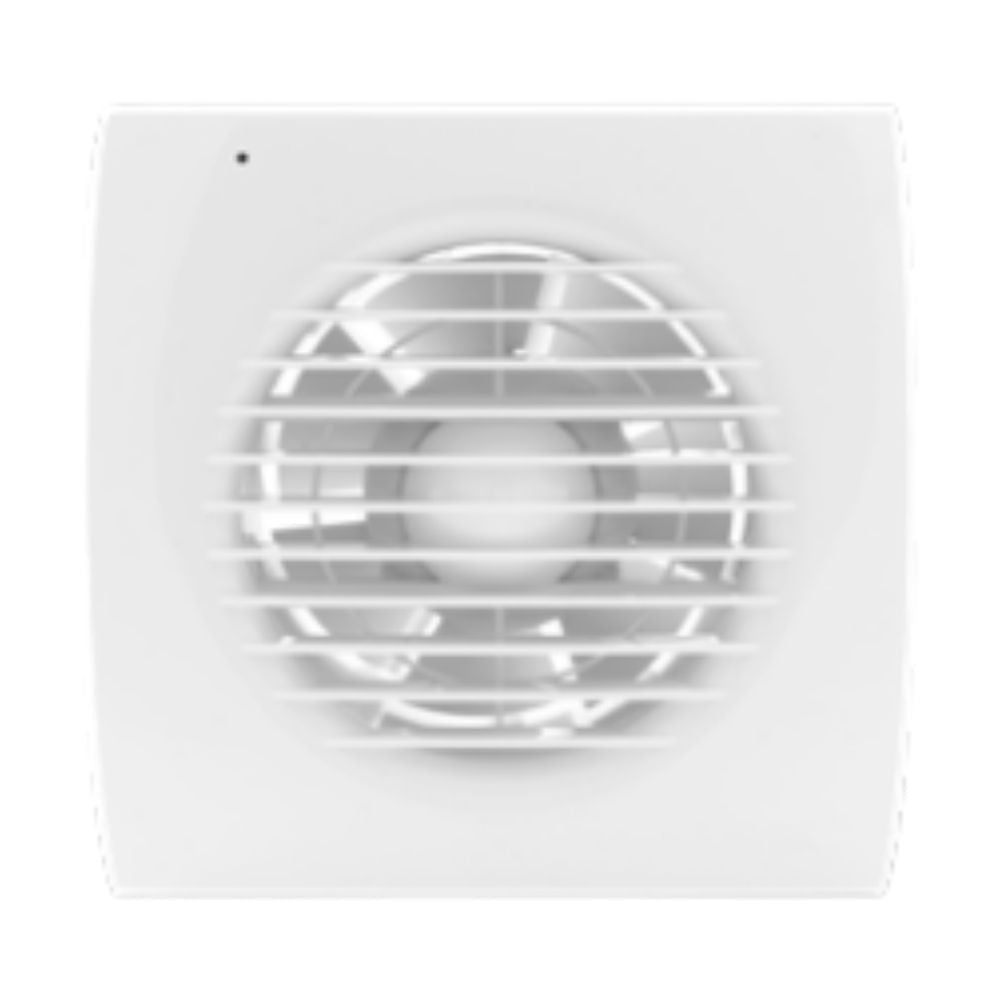

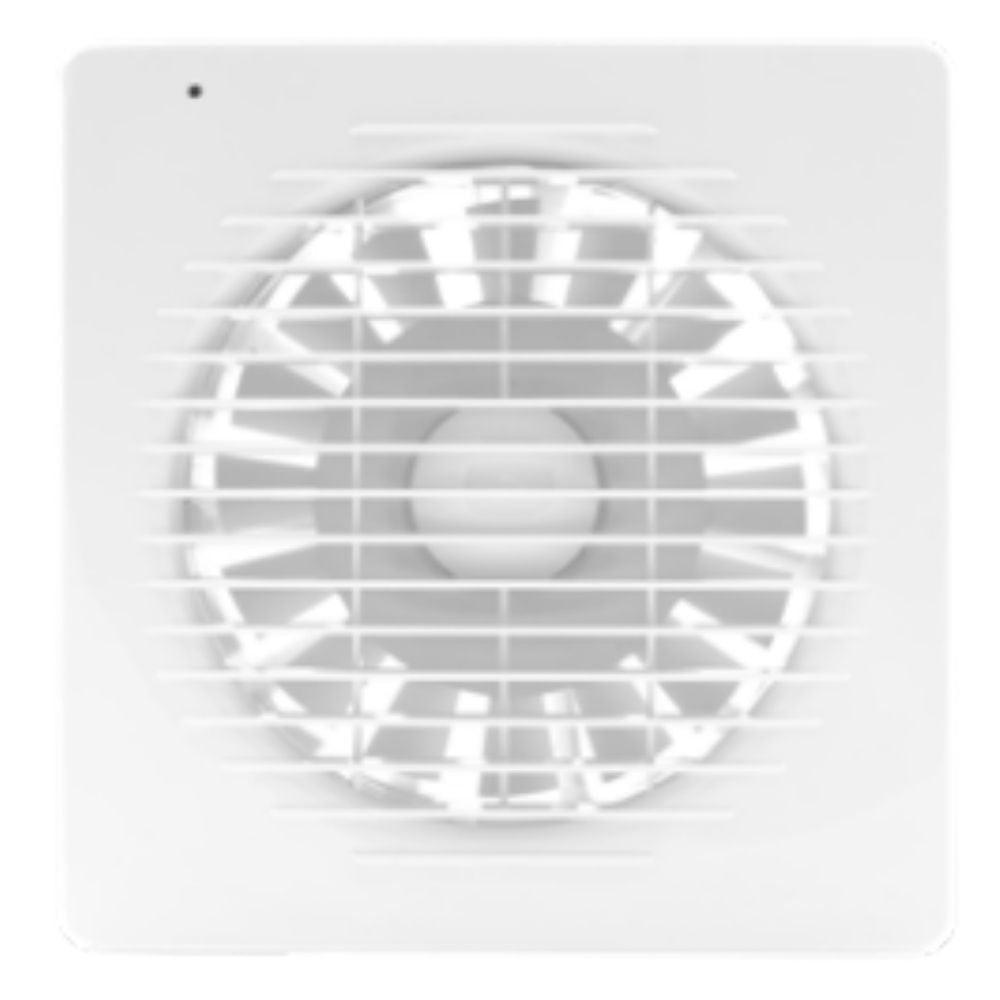

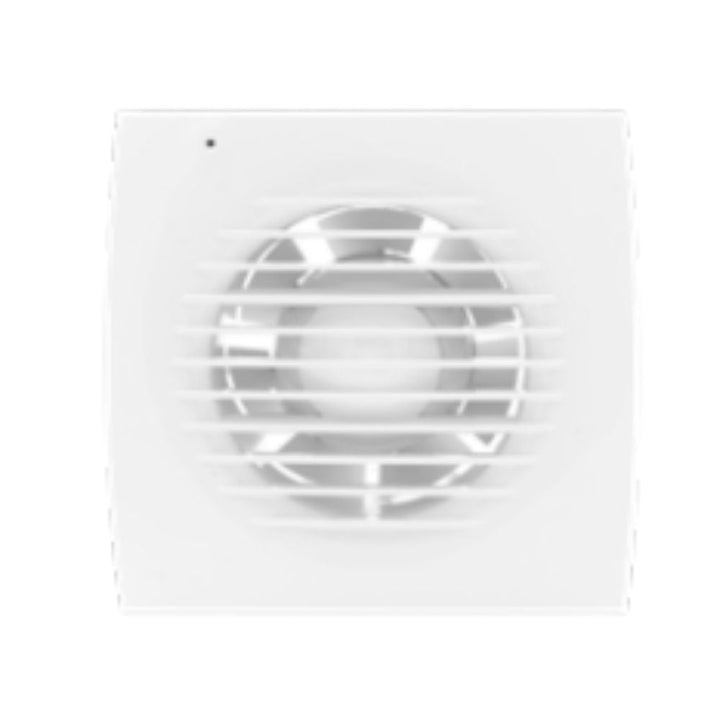

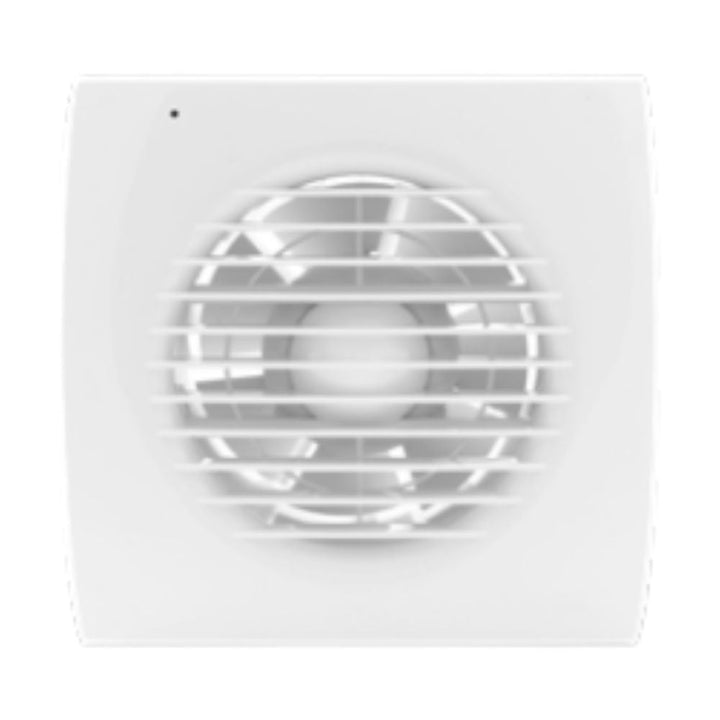

DOM fan included
The kit includes the selected DOM exhaust fan.
Wall tube included
The supplied tube connects the fan to the exterior grille.
Exterior grille included
An EPFL grille with fly mesh is supplied.
Matched duct size
Choose 100, 125 or 150 mm to suit the installation.
Specifications and supplied components
- Supply
- 230–240 V AC, 50 Hz
- Fan IP rating
- IPX4
Choose your exact model
DWK100
- Ozlighting SKU
- FT-DWK100
- Manufacturer code
- DWK100
- Dimension A (supplier diagram)
- 158 mm
- Dimension B (supplier diagram)
- 168 mm
- Dimension C (supplier diagram)
- 20 mm
- Dimension D (supplier diagram)
- 62 mm
- Dimension EØ (supplier diagram)
- 99 mm
- Dimension FØ (supplier diagram)
- 109 mm
- Dimension GØ (supplier diagram)
- 109 mm
- Dimension HØ (supplier diagram)
- 99 mm
- Dimension I (supplier diagram)
- 28 mm
- Dimension J (supplier diagram)
- 15 mm
- Dimension K□ (supplier diagram)
- 155 mm
- Airflow (m³/h)
- 85 m³/h
- Airflow (L/s)
- 24/20 L/s
- Sound pressure at 3 m
- 34 dB(A)
- Motor power
- 14 W
- Supply voltage
- 230 V AC
- Nominal duct size
- 100 mm
- Supplied fan
- DOM-100C
- Exterior grille supplied
- EPFL100 with fly mesh
- Wall tube
- Included
- Installed-kit airflow
- 20 L/s
DWK125
- Ozlighting SKU
- FT-DWK125
- Manufacturer code
- DWK125
- Dimension A (supplier diagram)
- 180 mm
- Dimension B (supplier diagram)
- 190 mm
- Dimension C (supplier diagram)
- 26 mm
- Dimension D (supplier diagram)
- 76 mm
- Dimension EØ (supplier diagram)
- 118 mm
- Dimension FØ (supplier diagram)
- 128 mm
- Dimension GØ (supplier diagram)
- 130 mm
- Dimension HØ (supplier diagram)
- 120 mm
- Dimension I (supplier diagram)
- 25 mm
- Dimension J (supplier diagram)
- 12 mm
- Dimension K□ (supplier diagram)
- 160 mm
- Airflow (m³/h)
- 180 m³/h
- Airflow (L/s)
- 50/43 L/s
- Sound pressure at 3 m
- 39 dB(A)
- Motor power
- 18 W
- Supply voltage
- 230 V AC
- Nominal duct size
- 125 mm
- Supplied fan
- DOM-125C
- Exterior grille supplied
- EPFL125 with fly mesh
- Wall tube
- Included
- Installed-kit airflow
- 43 L/s
DWK150
- Ozlighting SKU
- FT-DWK150
- Manufacturer code
- DWK150
- Dimension A (supplier diagram)
- 200 mm
- Dimension B (supplier diagram)
- 200 mm
- Dimension C (supplier diagram)
- 25 mm
- Dimension D (supplier diagram)
- 104 mm
- Dimension EØ (supplier diagram)
- 148 mm
- Dimension FØ (supplier diagram)
- 158 mm
- Dimension GØ (supplier diagram)
- 160 mm
- Dimension HØ (supplier diagram)
- 150 mm
- Dimension I (supplier diagram)
- 34 mm
- Dimension J (supplier diagram)
- 15 mm
- Dimension K□ (supplier diagram)
- 175 mm
- Airflow (m³/h)
- 255 m³/h
- Airflow (L/s)
- 71/61 L/s
- Sound pressure at 3 m
- 40 dB(A)
- Motor power
- 23 W
- Supply voltage
- 230 V AC
- Nominal duct size
- 150 mm
- Supplied fan
- DOM-150C
- Exterior grille supplied
- EPFL150 with fly mesh
- Wall tube
- Included
- Installed-kit airflow
- 61 L/s

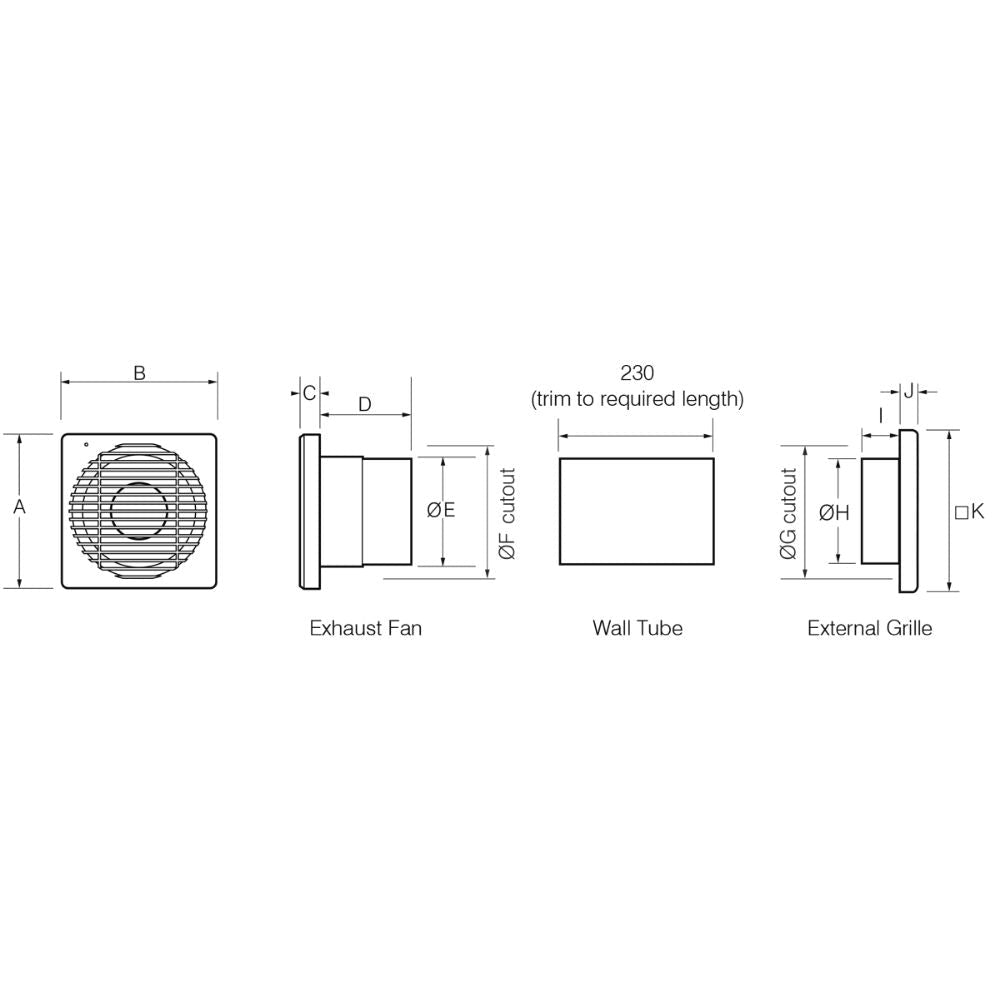

Dimensions labelled A, B or other letters refer to the manufacturer’s model-specific drawing. Airflow and sound ratings refer to the stated test conditions; installed performance depends on the ventilation system.
Installation and product information
Check the exact model’s dimensions and installation instructions before ordering or cutting an opening.
