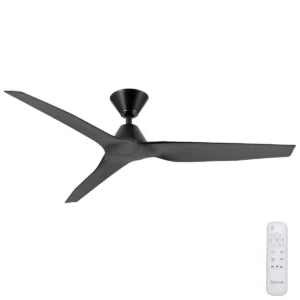

Fanco Infinity iD DC Ceiling Fan - Remote, Black 54″
Infinity-iD · DC ceiling fan
54″ / 1370 mm — Black
Six-speed DC airflow in a clean architectural form, with a remote included.
Important before you buy
- Installation by a licensed electrician is required; allow for the installation service separately. Use the supplied remote and receiver. Do not connect the fan motor to a dimmer switch.
- For covered outdoor use, install in an enclosed, sheltered area with at least 1.5 m from the blade tips to roof/eave edges or unprotected points. Fully protect the fan from wind, rain and direct sunlight.
- The F9990/000A SMART module is optional and sold separately. App control requires this module; the standard remote is included.
Key highlights
Features and benefits
Fine control at low speed
Six speeds include a 60 RPM first setting for gentle circulation. Use the included no-beep 433 MHz remote to select your setting.
Summer and winter modes
Reversible operation lets you change the fan direction for the season. The timer offers 1, 4 or 8 hours.
ABS blades, architectural finish
Three ABS plastic blades in black suit the understated Scandinavian-inspired design.
Add app control when needed
The optional F9990/000A SMART module enables app and remote control in tandem. It is sold separately and fits into the receiver before installation.
Technical specifications
- Model
- Infinity-iD DC
- Supplier product code / components
- F8030/202C
- Motor
- DC
- Rated voltage
- 220–240 V AC
- Electrical supply
- 230 V AC, 50 Hz
- Finish
- Black
- Blades
- 3 × ABS plastic
- Blade pitch
- Approximately 14°
- Location
- Indoor, sheltered covered outdoor and coastal
- Ceiling angle
- 0–10°
- Speeds
- 6
- Remote frequency
- 433 MHz
- Timer
- 1, 4 or 8 hours
- Reversible
- Yes
- Motor input at speed 6
- 39.5 W
- Rated motor consumption
- 40 W
- Maximum speed
- 200 RPM
- Maximum airflow
- 14,125 m³/h
- Light
- Not included — no-light model
Airflow and motor performance
| Speed | Power (W) | RPM | Airflow (m³/h) |
|---|---|---|---|
| 1 | 1.5 | 60 | 3,920 |
| 2 | 3.5 | 90 | 7,095 |
| 3 | 7 | 120 | 8,789 |
| 4 | 15 | 150 | 10,853 |
| 5 | 28 | 180 | 12,556 |
| 6 | 39.5 | 200 | 14,125 |
Dimensions
- Fan diameter
- 1370 mm / 54 inches
- Ceiling to lowest blade
- 270 mm
- Canopy diameter shown
- 172 mm
- Ceiling to lowest motor
- 270 mm
Published dimensions are from the Fanco model datasheet. Have your installer confirm the assembled drop, rod selection and required clearances for your ceiling.
Compatible accessories
- Optional F9990/000A SMART module — sold separately.
- Matching black extension rods: K701M/206A (600 mm), K701M/209A (900 mm), K701M/215A (1500 mm). Extension accessories are sold separately; the installation manual specifies Type A rod orientation.
What's included
- Fan motor assembly, mounting bracket and supplied rod.
- Three ABS plastic blades.
- Remote and receiver pack.
- Assembly hardware and blade balancing kit.
Sold separately / arrange separately
- Licensed electrical installation.
- Optional SMART module and extension rod accessories.
- Suitable additional fixing screws for mounting surfaces other than timber joists, where required.
Installation and maintenance
- Maintain at least 2.1 m from blades to floor and 300 mm from blade tips to walls or obstructions. The mounting structure must support at least 45 kg.
- Maximum operating temperature: 40°C. Keep away from heat sources.
- Switch the fan off and allow it to stop before reversing. Check support connections, brackets and blade attachments twice a year.
- Disconnect the electricity before cleaning. Clean approximately every six months with a soft brush or lint-free cloth; do not use water. Follow the official installation manual for all installation, operating and care instructions.
Warranty
8-year motor warranty: 2 years in-home plus 6 years motor replacement, subject to Fanco terms. Register the product within 90 days of purchase to qualify for the extended warranty.
Product documents
