Ektor Flux Core Floodlight - 160W, 160/120/80W, Tri-Colour
Order code: 14012
Supplier item code: EV-FLUX-CORE-160-TRI
Flux Core

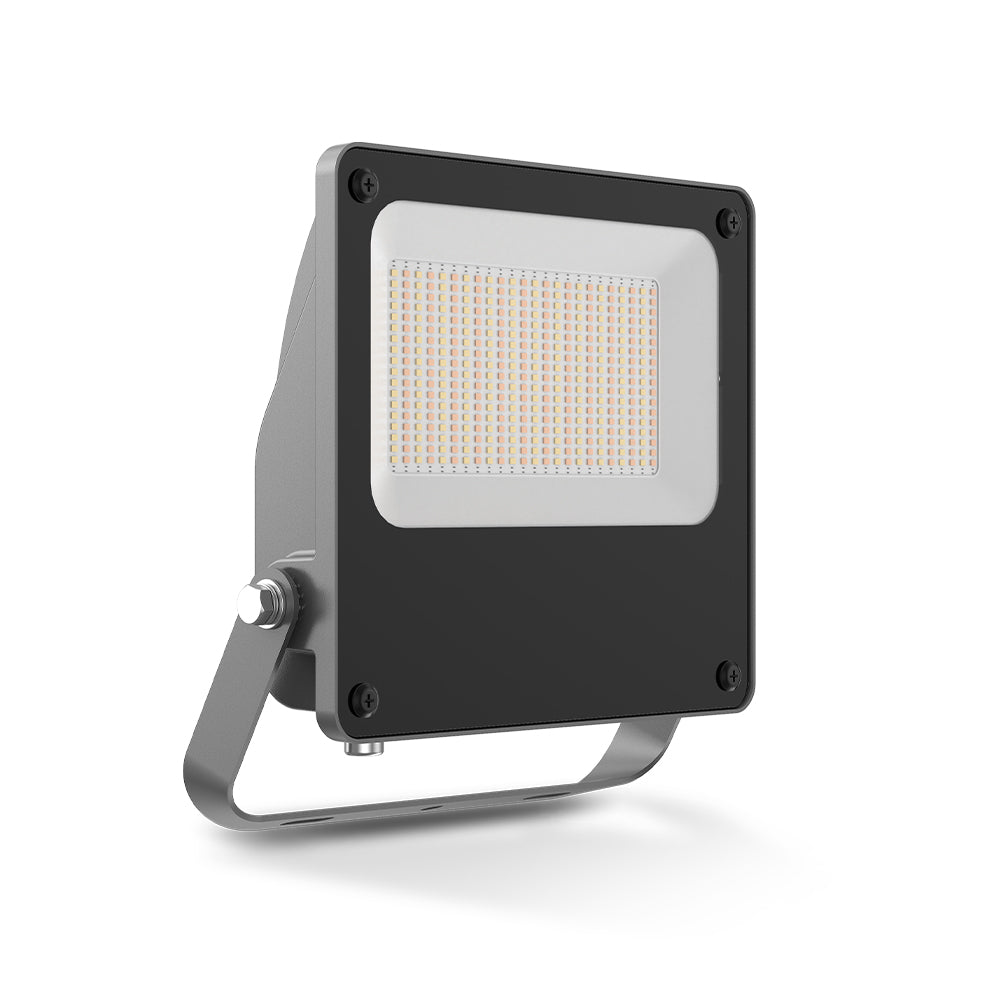

Ektor Flux Core 160W Power switch flood light - 160/120/80W - w/photocell - Tri-CCT
Before you buy
- Installation must be carried out by a suitably qualified installer; isolate the electrical supply before work.
- Appropriate M10 mounting fixings are required and are not supplied.
- Do not jet wash: the fitting is not rated for high-pressure water jets.
- The supplier photo is a range example. Confirm the selected model’s dimensions, optics, controls and emergency/sensor configuration from its verified specifications; optional accessories pictured are not proof of supply.
At a glance
Fixture power
Selectable: 80 / 120 / 160 W
IP Rating
IP66
Input voltage
230Vac
Driver Type
Fixed output
Installation Type
Surface mount
Colour temperature
3000 K / 4000 K / 5000 K
Technical specifications
Efficiencies
- Total System Efficiency
- 172 lm/W
The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system.
Mechanical
- IP Rating
- IP66
- IK Rating
- IK08
- Adjustability
- Adjustable
- Fitting Colour
- Black
- Product Finish
- Powdercoated
- Body Material
- Aluminium
- Diffuser Material
- Glass
- Installation Type
- Surface mount
Electrical
- Working Temp Range
- 50 °C
- Input Frequency
- 50 Hz
- Switch Type
- Inline
- Power Factor
- 0.95
- Inrush Current
- 45 A
- Inrush Duration
- 220uS (50%) uS
- Input voltage
- 230Vac
- Surge Protection L-N
- 4kV
- Surge Protection L/N-PE
- 4kV
- Earth Leakage
- 0.75 mA
- Power Selection
- 80 / 120 / 160 W
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Lamp
- Colour Rendering Index (CRI)
- >70
- CCT Configuration
- TRI-CCT
- Beam Angle
- 120 °
Colour temperature
- 80 Watts / Warm White (3000 K)
- 13400 lm
- 80 Watts / Cool White (4000 K)
- 13850 lm
- 80 Watts / DayLight (5000 K)
- 14000 lm
- 160 Watts / Warm White (3000 K)
- 23650 lm
- 160 Watts / Cool White (4000 K)
- 26000 lm
- 160 Watts / DayLight (5000 K)
- 24750 lm
Driver
- Driver Type
- Fixed output
- Driver Included
- Yes
- Integrated Driver
- Yes
- Flex & Plug or Lead Length
- 1500 mm
- Wiring Type
- Flying leads (3 wire)
- Driver Mode
- Constant Current
Compliance
- Standards
- AS/NZS 60598.1 | AS/NZS 60598.2.5 | AS CISPR 15
Warranty
- Warranty
- 5 Year Warranty, First 2 Years Onsite
The total warranty period is shown above. Where an on-site period is listed, the first years are covered on-site, with return-to-base coverage for the remainder. For full warranty details and claim instructions, please refer to our Warranty page.
Product configuration
- Fixture power
- Selectable: 80 / 120 / 160 W
- Colour temperature
- 3000 K / 4000 K / 5000 K
- Installation requirement
- Installation must be carried out by a suitably qualified installer; isolate the electrical supply before work.
- Mounting fixings
- Appropriate M10 mounting fixings are required and are not supplied.
- Bracket adjustment
- Rotate the fitting to the required angle, then lock the two clamping bolts.
- Photocell setup
- The photoswitch is OFF by default. When enabled, it turns on below 20 lux and switches off above 80 lux.
- Cleaning restriction
- Do not jet wash: the fitting is not rated for high-pressure water jets.
Dimensions & supplier drawings
- Product Height
- 329 mm
- Product Length
- 280 mm
- Product Width
- 68 mm
- Product Weight
- 3300 g
Package & requirements
Included
- Driver
Not included / sold separately
- Appropriate M10 mounting fixings are required and are not supplied.
