CoLab TWIST-LA-10W LED Downlight - 10W, Tri-Colour, Deepset
10W tri-colour recessed LED downlight
TWIST-LA
A fixed, deep-set downlight with a twist-lock trim, Osram LEDs and three switchable white light settings.
Important before you buy
Arrange installation and fixed electrical wiring by a licensed electrician. This is the LA frame: Ø190mm trim with a Ø160–180mm cut-out and a 67mm body height. Check your ceiling opening and available clearance before ordering or cutting.
A mains-dimmable driver, flex and plug are included. Use a compatible LED dimmer for dimming; DALI-2 or Bluetooth requires a separately specified driver upgrade. IP44 is the standard rating; an IP54 module is an optional configuration.
A compatible mains LED dimmer is required for dimming the standard driver and is sold separately. Optional control-system driver upgrades and their matching controls must be specified separately.
Key highlights
10W
System power
Tri-colour
3000K / 4000K / 5000K
Ø160–180mm
Ceiling cut-out
CRI >85
Colour rendering
Features & benefits
Twist-lock trim
The modular trim system suits new installations and retrofit ceiling openings within the LA cut-out range.
Selectable white light
A dip switch selects warm 3000K, neutral 4000K or cool 5000K light.
Controlled illumination
Deep-set optics provide a 100° symmetrical light distribution.
Aluminium construction
Die-cast aluminium, a polycarbonate lens and a powder-coated white frame form the fitting.
Technical specifications
- Exact listing
- TWIST-LA-10W
- System power
- 10W
- Input supply
- 240V AC
- Colour temperature
- 3000K / 4000K / 5000K, dip-switch selectable
- Output by CCT
- 963lm / 1078lm / 1048lm at 3000K / 4000K / 5000K; manufacturer tolerance ±10%
- Colour rendering
- CRI >85
- Colour consistency
- 3-SDCM
- LED source
- Osram SMD LED
- Beam
- 100°, fixed symmetrical distribution
- Protection
- IP44 standard; IP54 module optional
- Body / lens
- Die-cast aluminium / polycarbonate
- Listed finish
- Powder-coated white frame
- Baffle option
- Black deep-set ring; confirm selected configuration
- Driver
- Mains-dimmable as standard
- Optional control
- DALI-2 or BLE (basicDIM Wireless / Casambi), specified separately
- Rated life
- >50,000 hours, L80 B10

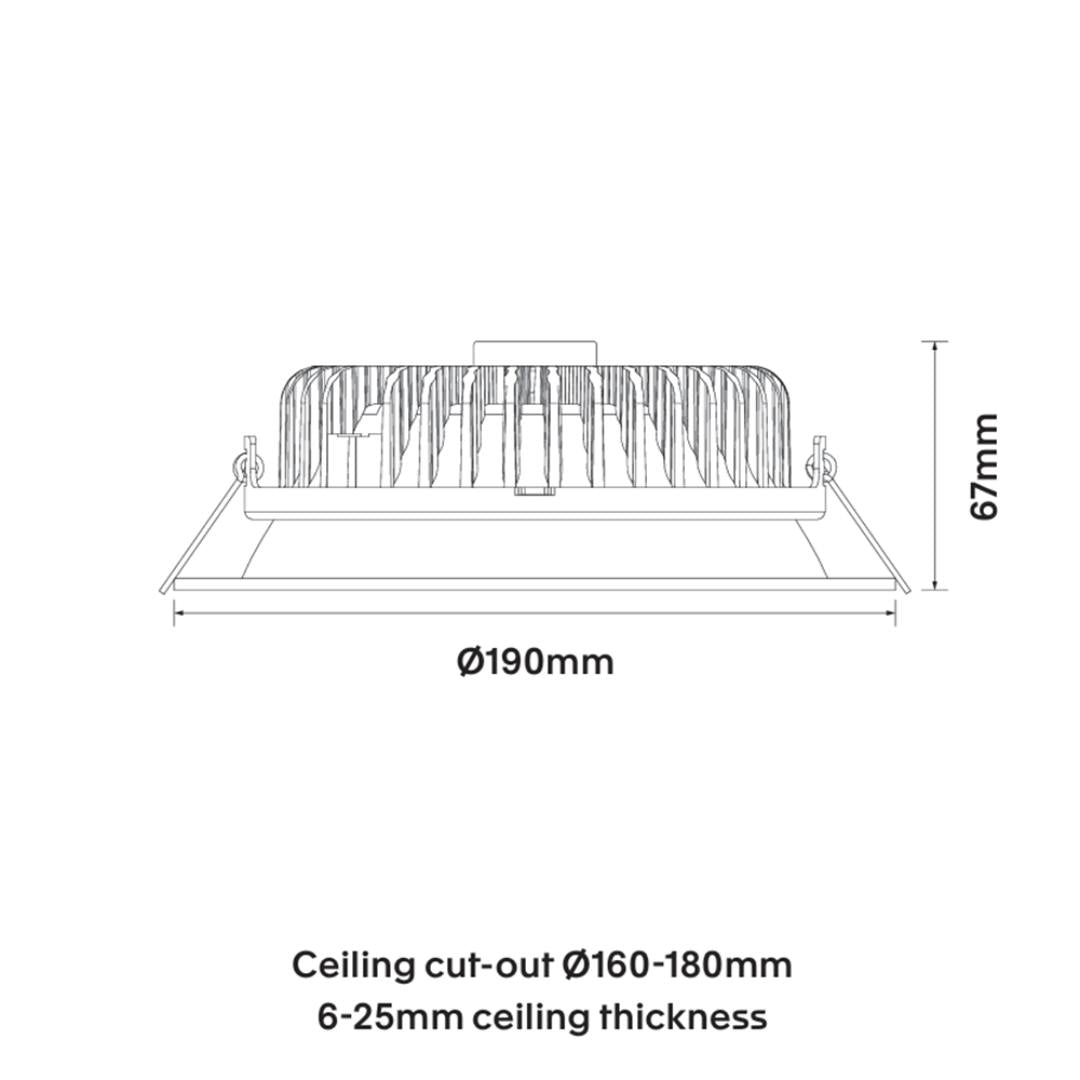

Dimensions
- LA trim
- Ø190mm
- LA ceiling cut-out
- Ø160–180mm
- LA body height
- 67mm, model drawing
- Ceiling thickness
- 6–25mm
- Weight
- 815g excluding driver, manufacturer series specification
Options & compatibility
This listing supplies the 10W model with the LA frame. LB (Ø230mm) and LC (Ø285mm) are alternative frames in the manufacturer range, not additional fittings included here. TWIST-L-RING is the optional deep-set ring. Specify any special finish, IP54 module or dimming driver upgrade separately before ordering.
What’s included
One TWIST-LA-10W downlight with integrated LEDs, powder-coated white frame, standard mains-dimmable driver, flex and plug.
Required separately
A compatible mains LED dimmer if dimming is wanted. DALI-2 or Bluetooth driver configurations and suitable controls are optional upgrades, specified separately.
Installation notes
Have a licensed electrician check the cut-out, body clearance and ceiling support, select the required colour temperature and confirm dimmer compatibility. Follow the supplied installation instructions.
Warranty
5-year manufacturer’s warranty covering product defects and performance deficiencies.
