Ventair AIRBUS Exhaust Fan - DC 200, Motor Body
Air movement specialists

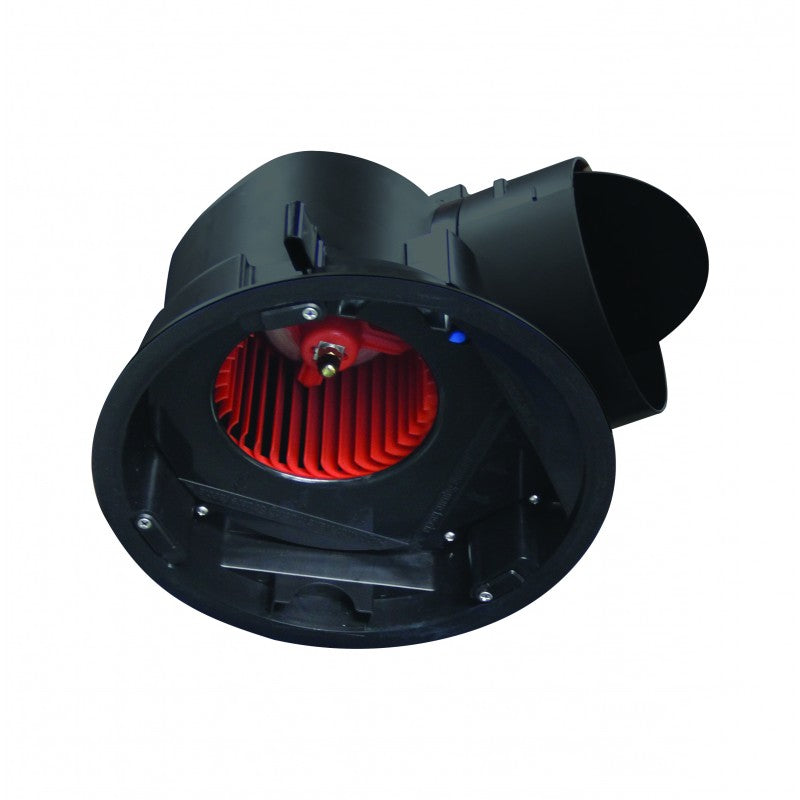

Airbus DC 200 motor body
Choose standard operation, a ten-minute run-on timer or continuous trickle extraction to manage moisture and stale air.
Before you buy
- Motor body only: a compatible Airbus 200 fascia is required separately and is not included.
- A plug-and-lead is supplied for standard operation. A licensed electrician is required for wiring the continuous-trickle or ten-minute run-on modes.
- Do not connect an external AC speed controller or wall dimmer. Isolate the complete supply before removing a fascia or guard; the fan can keep running after the wall switch is off.
- Ducting and the external termination are sold separately. Match the 150mm duct outlet and the exact cut-out and installation depth before cutting.
Key highlights
Exhaust Motor Power
24/7: 4W - Standard: 4-15W
Air Delivery
24/7: 80m³/h - Standard: 80-210m³/h
IP Rating
IPX4
Input Power
220-240V~ 50Hz
Key features
Three ventilation modes
Select standard switching, ten-minute run-on or continuous 24/7 trickle ventilation.
DC motor
A DC motor supports low-power continuous extraction.
Application-led design
Designed for bathroom and toilet ventilation.
Adjustable extraction
Adjust the built-in fan speed to balance airflow and noise.
Technical specifications
PVPXDC200
- Model Number
- PVPXDC200
- Ball bearing motor
- Yes
- Exhaust Motor Power
- 24/7: 4W - Standard: 4-15W
- Air Delivery
- 24/7: 80m³/h - Standard: 80-210m³/h
- Noise Level
- 24/7: 22dB(A) - Standard: 22-32dB(A)
- IP Rating
- IPX4
- Installation
- Qualified Electrician Required
- Input Power
- 220-240V~ 50Hz
Additional operating details
- Backdraft stopper
- Included
- Operating modes
- Standard / ten-minute run-on / continuous trickle
- Motor speed
- 687–1247 RPM (687 RPM trickle)
Dimensions and physical details
PVPXDC200
- Cut out size
- Ø240mm
- Min. install depth
- 220mm
Physical details
- Duct outlet
- 150mm side outlet
Compatible accessories
- Compatible with Airbus 200 fascias; match the fascia size to this motor body.
What’s included
Included
- Exhaust motor body, instruction manual and warranty card.
- AC plug-and-lead for standard operation.
Not included / sold separately
- Airbus 200 fascia, ducting and external termination.
Installation & maintenance
- Mount with the lowest moving parts at least 2.1m above the floor. Select the operating mode before installation and keep access for maintenance.
- The run-on/continuous settings need the manual’s additional wiring. Use the specified isolation arrangement and clean without immersing electrical components.
Warranty
PVPXDC200
- Warranty
- 5 years
- Commercial Warranty
- 1 year
