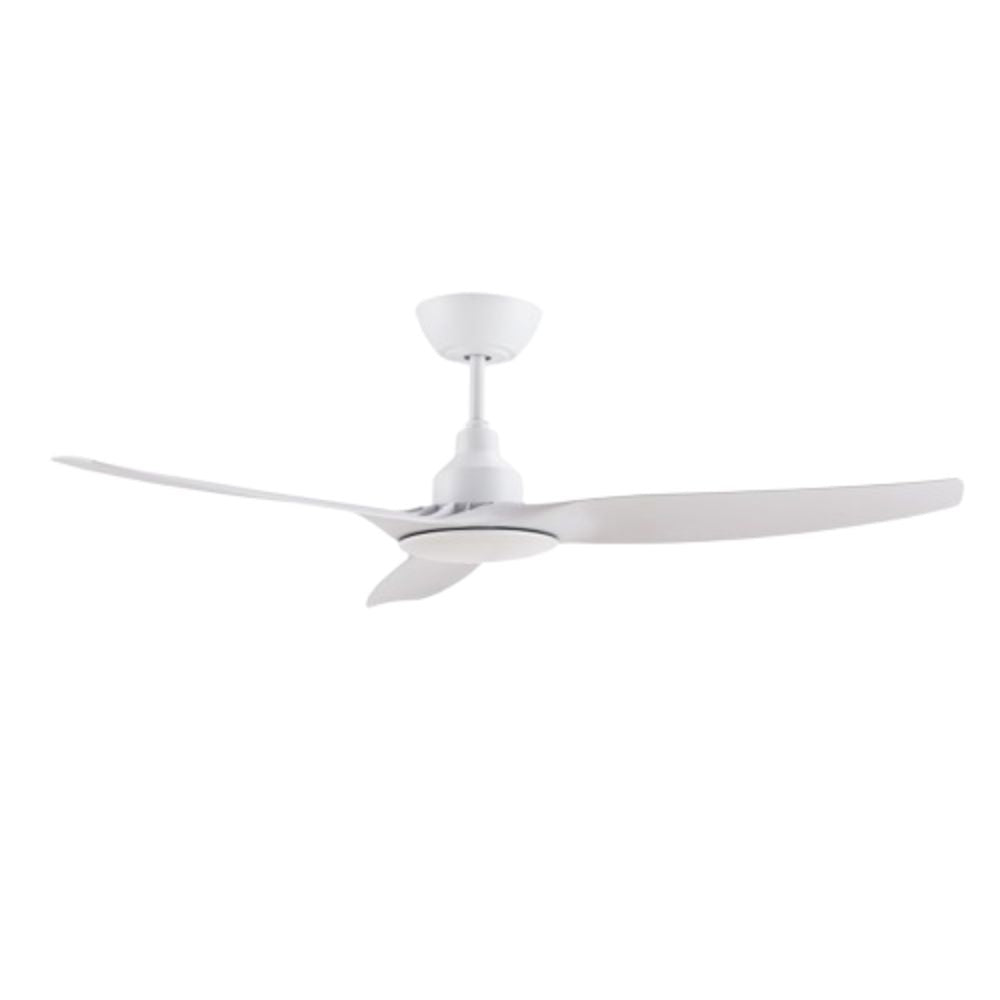

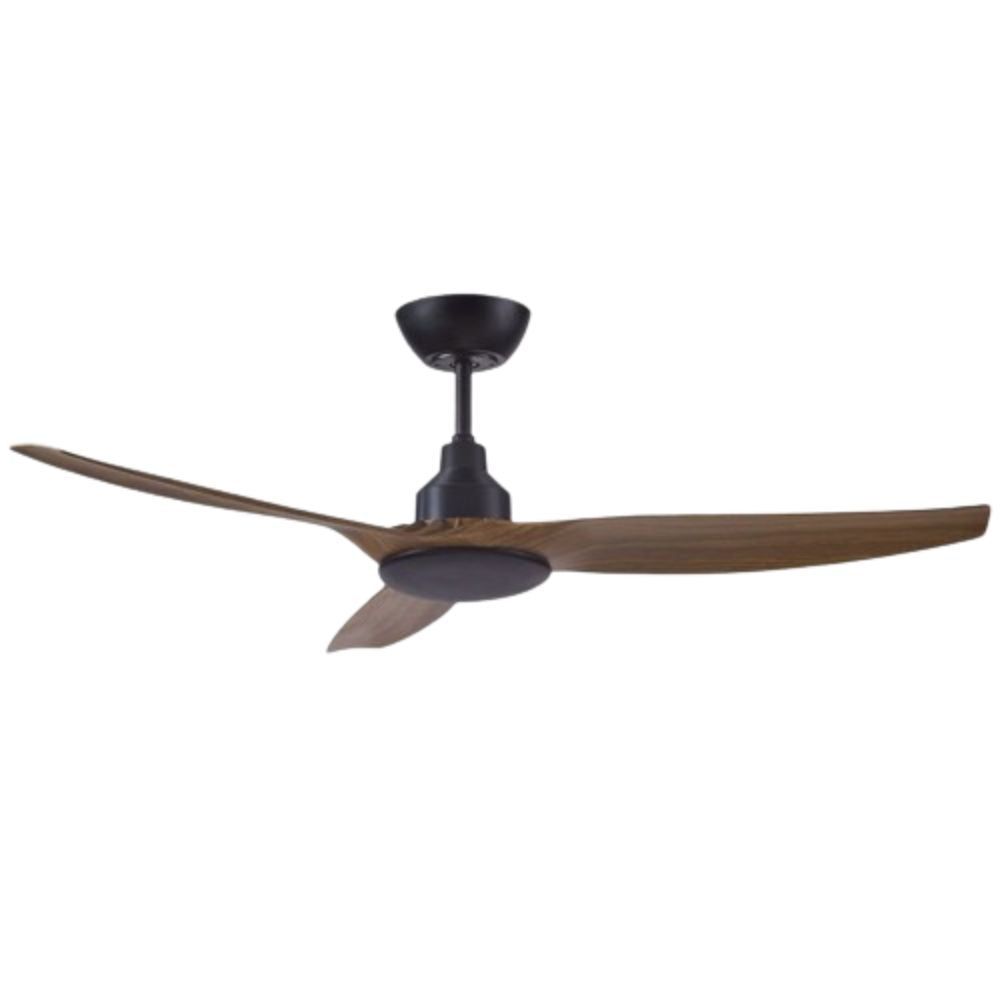

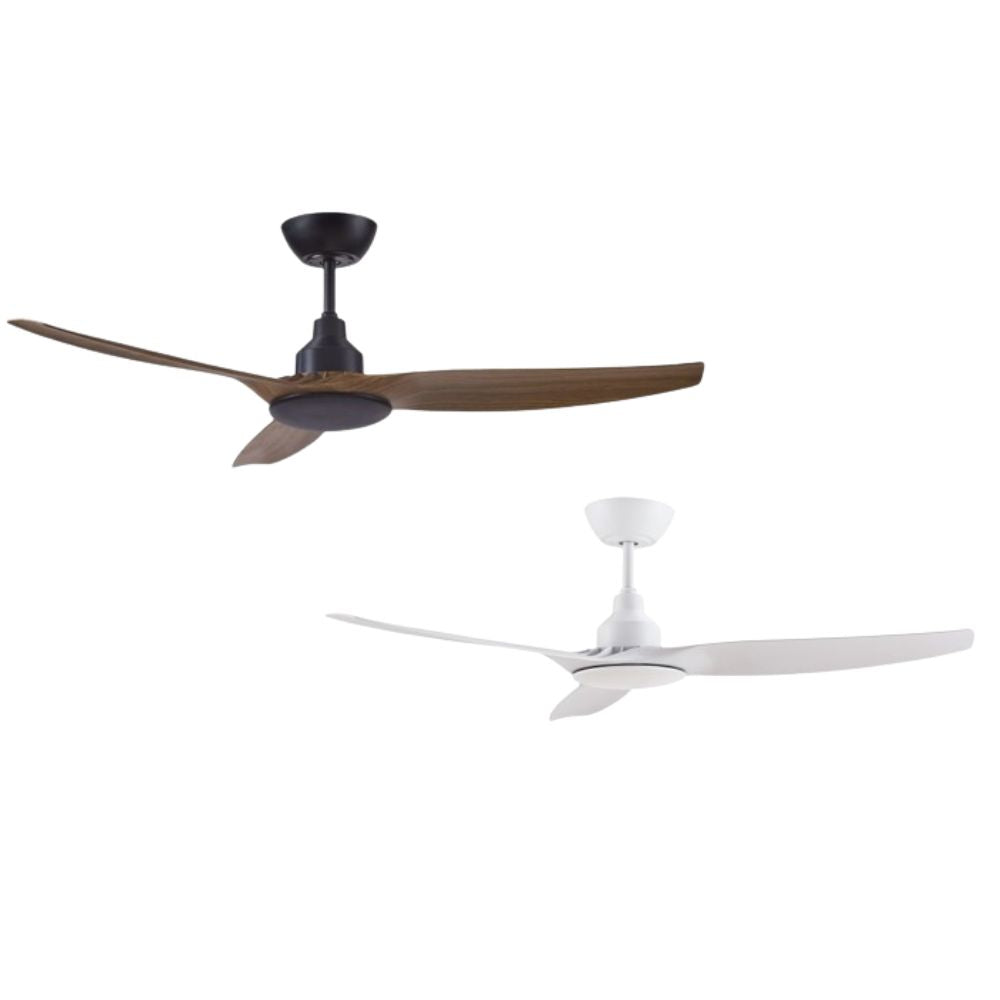

Ventair SKYFAN DC Ceiling Fan - 3 Blade 52" 1300mm
Air movement specialists
SKYFAN
Glass-fibre composite blades, a DC motor and an included LCD remote with ECO, Sleep and timer settings for indoor and covered outdoor spaces.
Before you buy
- A licensed electrician must install the fan and fixed wiring. Installation is arranged separately.
- Keep blade tips at least 300mm from nearby objects. Ventair specifies at least 2.1m blade height and a support capable of carrying 20kg. Maximum ceiling angle 15°.
- The LCD remote and receiver are included. Optional wall controls and app modules are sold separately. A remote handset and wall controller cannot operate together.
Highlights
Sweep
1300mmAir Delivery
14610m³/hr / 14,610m³/hMotor Power
Low: 3.9W - High 31WWarranty
5 Year Warranty / 5 years (2 year in-home plus 3 year motor replacement)Key features
Blade construction
3 blades in Glass Fibre Composite.
Motor and airflow
A DC motor with the speed-by-speed figures listed for each model.
Seasonal operation
Summer/winter reversal changes airflow direction.
Control choice

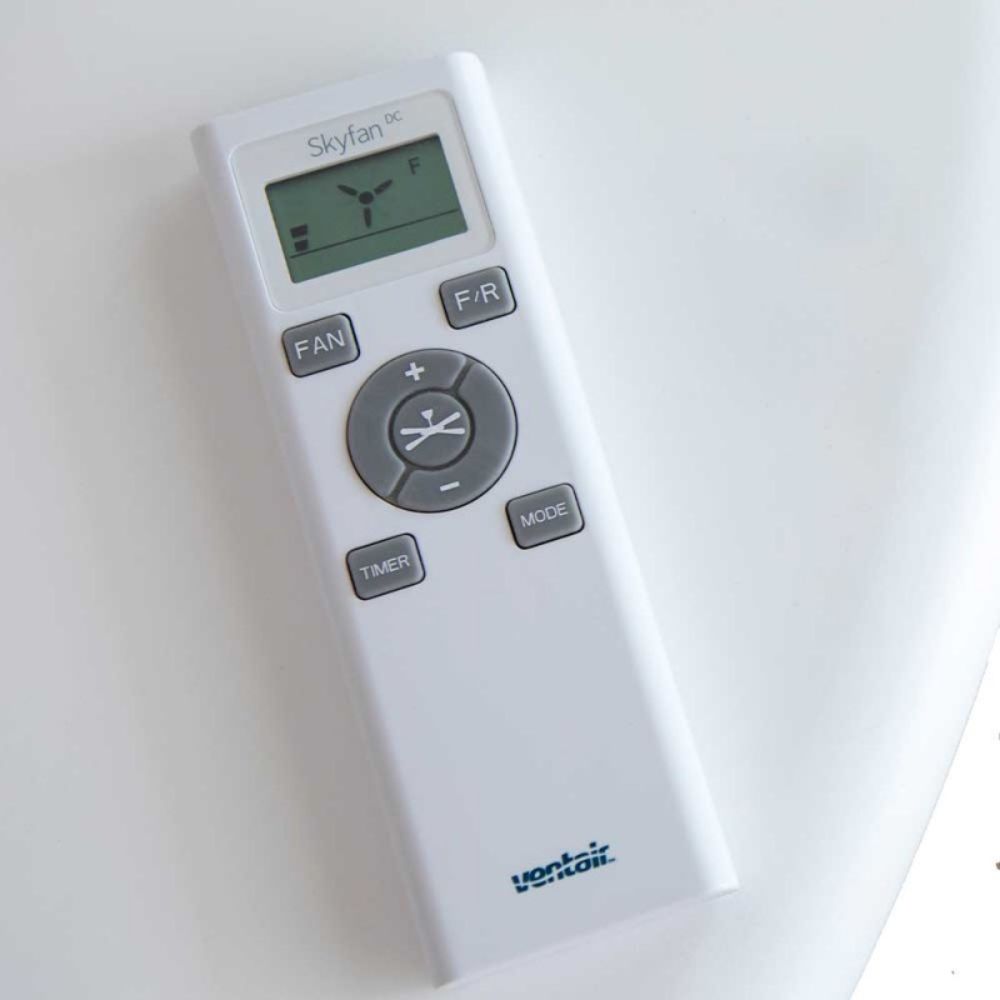

6 Speed LCD Remote Included.
Quick-fit blades
Glass-fibre composite blades use a quick-click assembly and an anti-vibration system.
Everyday settings
The LCD remote offers ECO, Sleep and timer modes. App control uses a separate compatible module.
Technical specifications
SKY1303WHC2
- Input Voltage
- 240V AC
- Wattage
- 3.9W / 9W / 15.6W / 25.2W / 31.8W
- Mount Angle
- 15°
- Air Movement
- 14610m³/hr
- Blade Material
- Glass Fibre Composite
- Speed (RPM)
- 90 / 132 / 166 / 190 / 210 rpm
- Blade Count
- 3
- Reverse Mode
- Yes
- Remote Control
- 6 Speed LCD Remote Included
- Colour
- White
- Model Number
- SKY1303WHC2
- Assembly
- Quick-click blades
- Anti vibration system
- Built in
- Suitable for
- Indoor and covered outdoor
- Remote modes
- ECO, Sleep, Timer; seasonal reversal
- Motor Type
- DC
- Electrical Protection Class
- Class II (double insulated)
SKY1303TK
- Input Voltage
- 240V AC
- Colour
- Teak
- Motor Wattage
- Low: 3.9W - High 31W
- Air Delivery
- 14,610m³/h
- Speed (RPM)
- 90/132/166/190/210RPM - *Eco110RPM
- Blade Count
- 3
- Blade Material
- Glass Fibre Composite
- Reverse Mode
- Yes
- Mount Angle
- 15° Max
- Remote Control
- 6 speed LCD remote included
- Installation
- Qualified Electrician Required
- Model Number
- SKY1303TK
- Assembly
- Quick-click blades
- Anti vibration system
- Built in
- Suitable for
- Indoor and covered outdoor
- Remote modes
- ECO, Sleep, Timer; seasonal reversal
- Motor Type
- DC
- Quick Connect
- Yes
Dimensions and installation space
SKY1303WHC2
- Sweep
- 1300mm
- Overall height
- 360mm
- Net weight
- 4.05kg
SKY1303TK
- Sweep
- 1300mm
- Overall height
- 356mm
- Blade height
- 330mm
- Overall diameter
- 1321mm
- Net weight
- 4.05kg
Compatible accessories — sold separately
- SKYAPPCM or compatible FanLink app module; matching SKYEXTR extension rods. SKYWCM-2 LCD wall control for no-light models. All sold separately.
What is included
- Ceiling fan, selected blades, LCD remote, receiver, two AAA batteries, mounting bracket, balancing kit, screw pack, instructions and warranty card.
Optional extras — sold separately
- Optional app module, compatible wall controller and extension rod.
Installation and care
- Use only the controls and hardware specified for the exact model. Stop the fan before changing airflow direction.
- Isolate power before cleaning. Inspect mounting and blade screws every six months; clean with a soft brush or lightly damp cloth and keep the motor dry.
Warranty
SKY1303WHC2
- Warranty
- 5 Year Warranty
SKY1303TK
- Warranty
- 5 years (2 year in-home plus 3 year motor replacement)
- Commercial Warranty
- 1 year
