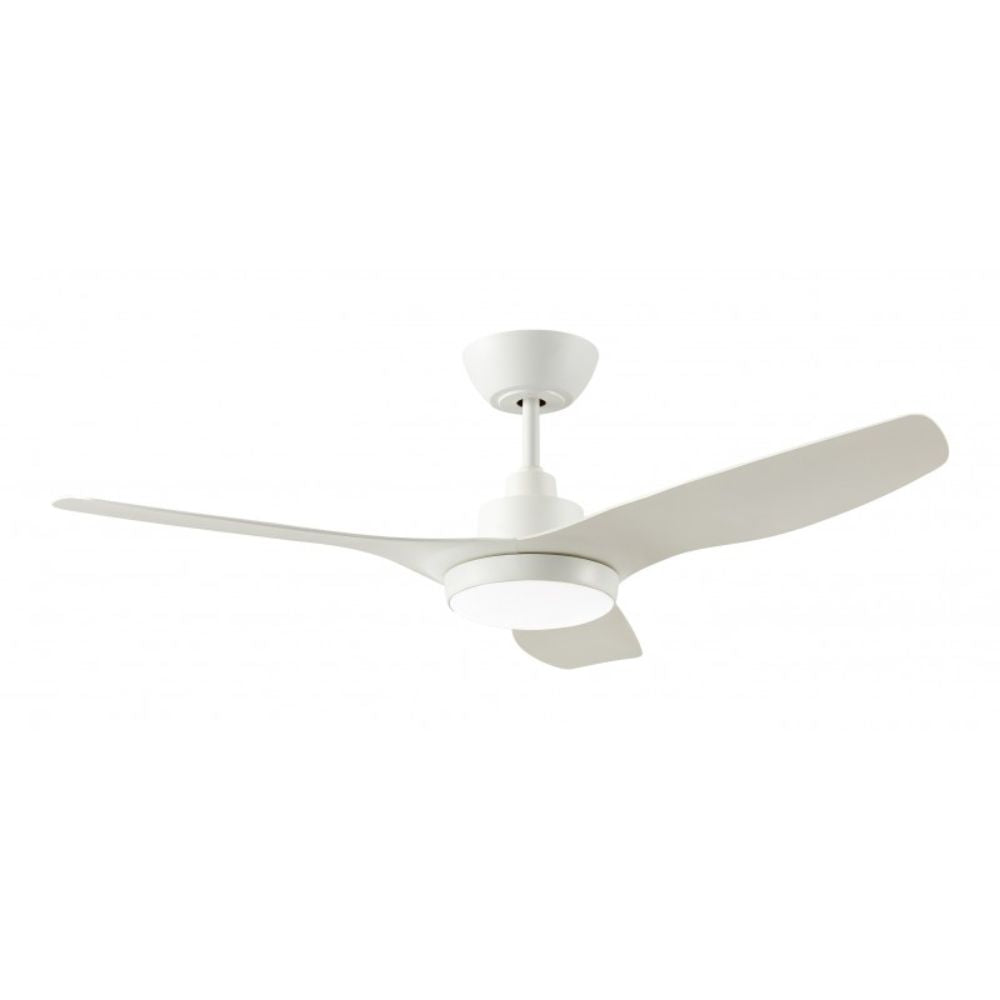

Ventair DC Ceiling Fan - 3 Blade 48" 1200mm, Switchable CCT LED Light
Air movement specialists
DC3 1200mm with LED
Three curved glass-fibre composite blades with a five-speed DC motor and an integrated 20W LED panel.
Before you buy
- A licensed electrician must install the fan and fixed wiring. Installation is arranged separately.
- Keep blade tips at least 300mm from nearby objects. Ventair specifies at least 2.1m blade height and a support capable of carrying 20kg. Maximum ceiling angle 15°.
- Select the correct control option: WC models include a wall controller; other models include an RF remote. A remote handset and wall controller cannot be used together.
- Required separately / not included: Alternative controller and optional extension rod.
Highlights
Sweep
1200mmAir Delivery
13,580m³/hMotor Power
2.2/5/9/15/26 wattsLight Wattage
20WKey features
Blade construction
3 blades in Glass Fibre Composite.
Motor and airflow
A DC motor with the speed-by-speed figures listed for each model.
Seasonal operation
Summer/winter reversal changes airflow direction.
Control choice
Remote or wall control is supplied according to the selected model.
Light option
20W LED lighting with the colour and dimming settings listed for each model.
Technical specifications
DC31203WH-L
- Input Voltage
- 240V AC
- Globe Type
- LED Panel
- Colour
- White
- Motor Wattage
- 2.2/5/9/15/26 watts
- Air Delivery
- 13,580m³/h
- Speed (RPM)
- 72/110/147/175/214 RPM
- Blade Count
- 3
- Blade Material
- Glass Fibre Composite
- Light Type
- LED panel
- Dimmable
- 5 Step
- Lumens
- 1800Lm
- Light Wattage
- 20W
- Tri-Colour Light
- Warm/Natural/Cool(3,000K/4,200K/6,500K)
- Overall Blade Pitch
- Dynamic Curve - High Airflow
- Reverse Mode
- Yes
- Mount Angle
- 15° Max
- Installation
- Qualified Electrician Required
- Model Number
- DC31203WH-L
- Motor Type
- DC
- Included control

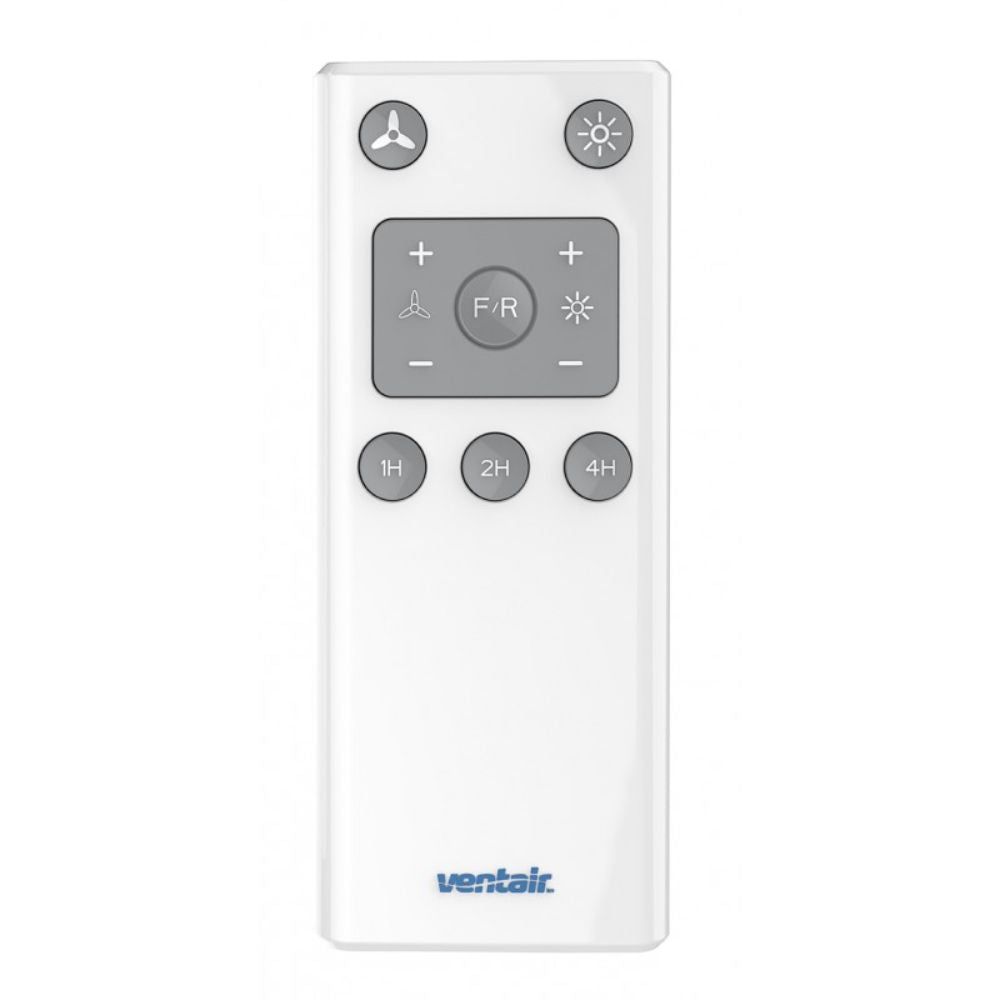

- Five-speed RF remote
- Remote Control
- 5 Speed RF Remote Control Included
- Quick Connect
- Yes
DC31203WH-LWC
- Input Voltage
- 240V AC
- Globe Type
- LED Panel
- Colour
- White
- Motor Wattage
- 2.2/5/9/15/26 watts
- Air Delivery
- 13,580m³/h
- Speed (RPM)
- 72/110/147/175/214 RPM
- Blade Count
- 3
- Blade Material
- Glass Fibre Composite
- Light Type
- LED panel
- Dimmable
- 5 Step
- Lumens
- 1800Lm
- Light Wattage
- 20W
- Tri-Colour Light
- Warm/Natural/Cool(3,000K/4,200K/6,500K)
- Overall Blade Pitch
- Dynamic Curve - High Airflow
- Reverse Mode
- Yes
- Mount Angle
- 15° Max
- Installation
- Qualified Electrician Required
- Model Number
- DC31203WH-LWC
- Motor Type
- DC
- Included control
- Five-speed wall controller
- Remote Control
- Sold separately
- Quick Connect
- Yes
Dimensions and installation space
DC31203WH-L
- Sweep
- 1200mm
- Blade height
- 300mm
- Overall height
- 366mm
DC31203WH-LWC
- Sweep
- 1200mm
- Blade height
- 300mm
- Overall height
- 366mm
What is included
- Ceiling fan with the controller listed for the selected model, receiver, mounting bracket, screw pack, instructions and warranty card.
- Integrated LED panel is included with the selected LED-light model.
Required separately
- Alternative controller and optional extension rod.
Installation and care
- Use only the controls and hardware specified for the exact model. Stop the fan before changing airflow direction.
- Isolate power before cleaning. Inspect mounting and blade screws every six months; clean with a soft brush or lightly damp cloth and keep the motor dry.
Warranty
DC31203WH-L
- Warranty
- 5 years (2 year in-home plus 3 year motor replacement)
- Warranty on LED Panel
- 1 year
- Commercial Warranty
- 1 year
DC31203WH-LWC
- Warranty
- 5 years
- Warranty on LED Panel
- 1 year
- Commercial Warranty
- 1 year
