Light source
INTEGRAL.LED
Oriel MARS LED Downlight - 10W/15W, Tri-Colour Dimmable Flat Face PC, IP44
Oriel Lighting catalogue
MARS
Dimmable 10w TriColour LED Downlight; Dimmable 15w TriColour LED Downlight
Before you buy
- Must be installed by a licensed electrician.

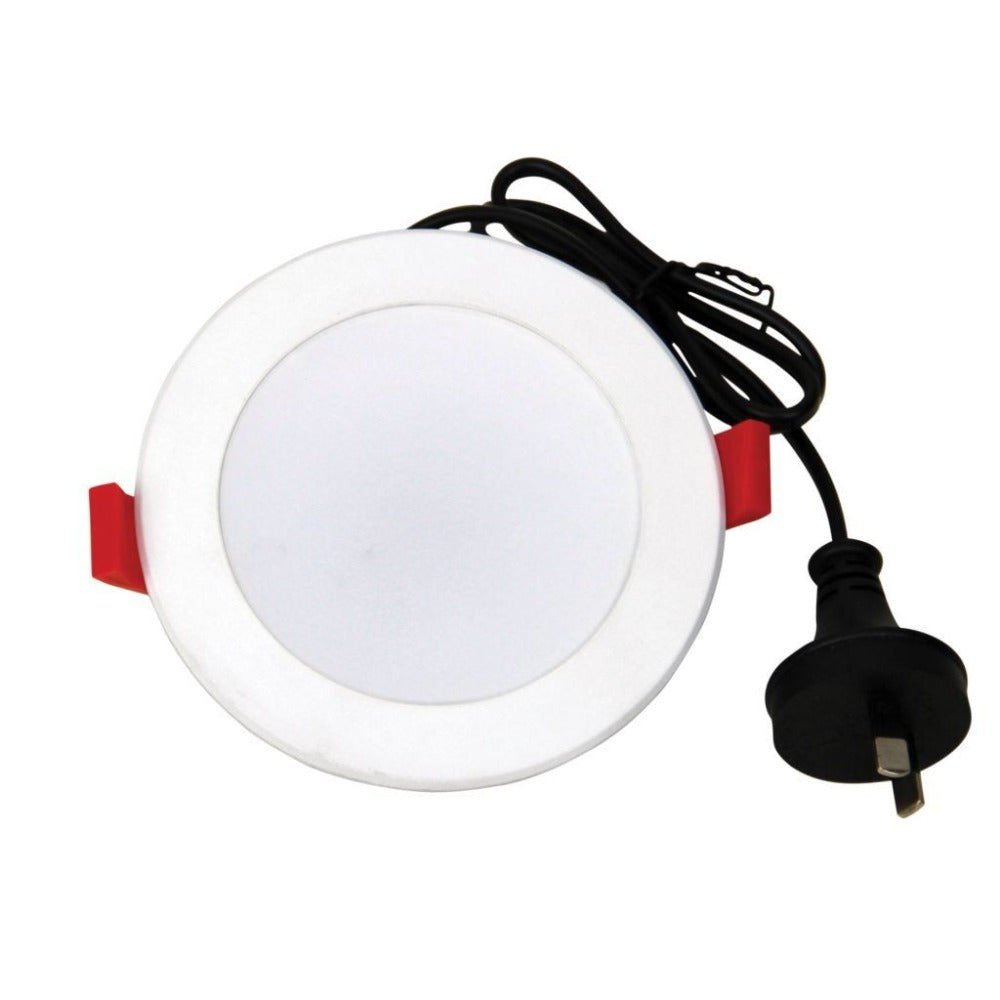

- Plugs into socket in ceiling.
- Dimming requires LED dimmer.
Key highlights
Power
10w / 15WColour temperature
CTS3000/4000/5000KProtection
IP44Material
AcrylicLight output
700-785lm / 1350-1450lmDesign and features
OL-LF3620WH

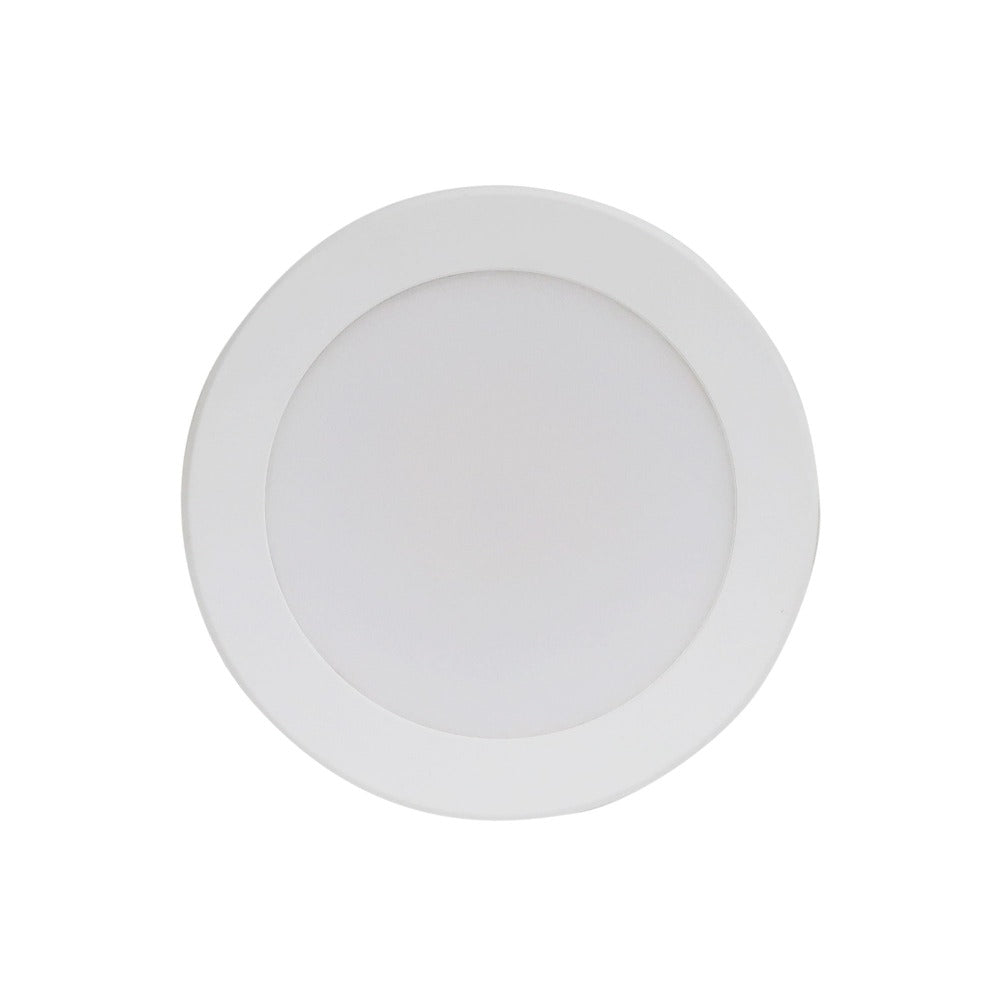

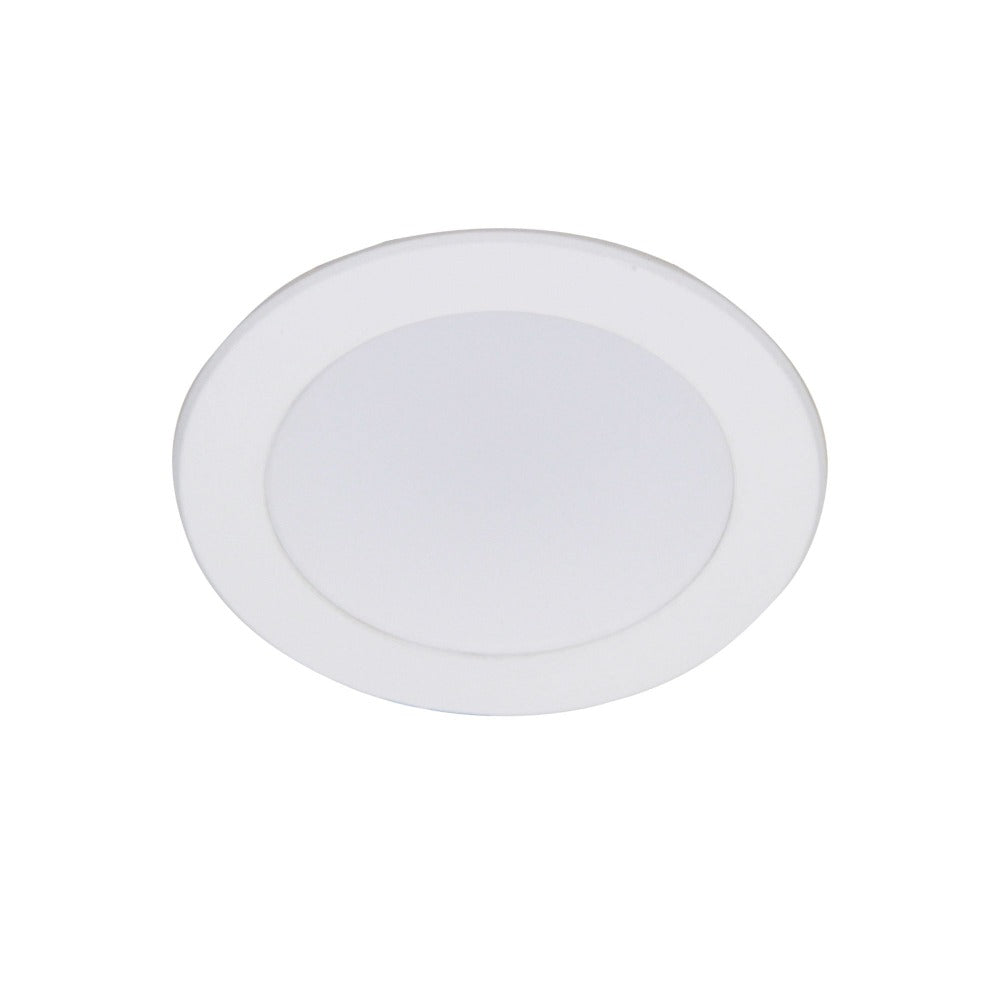

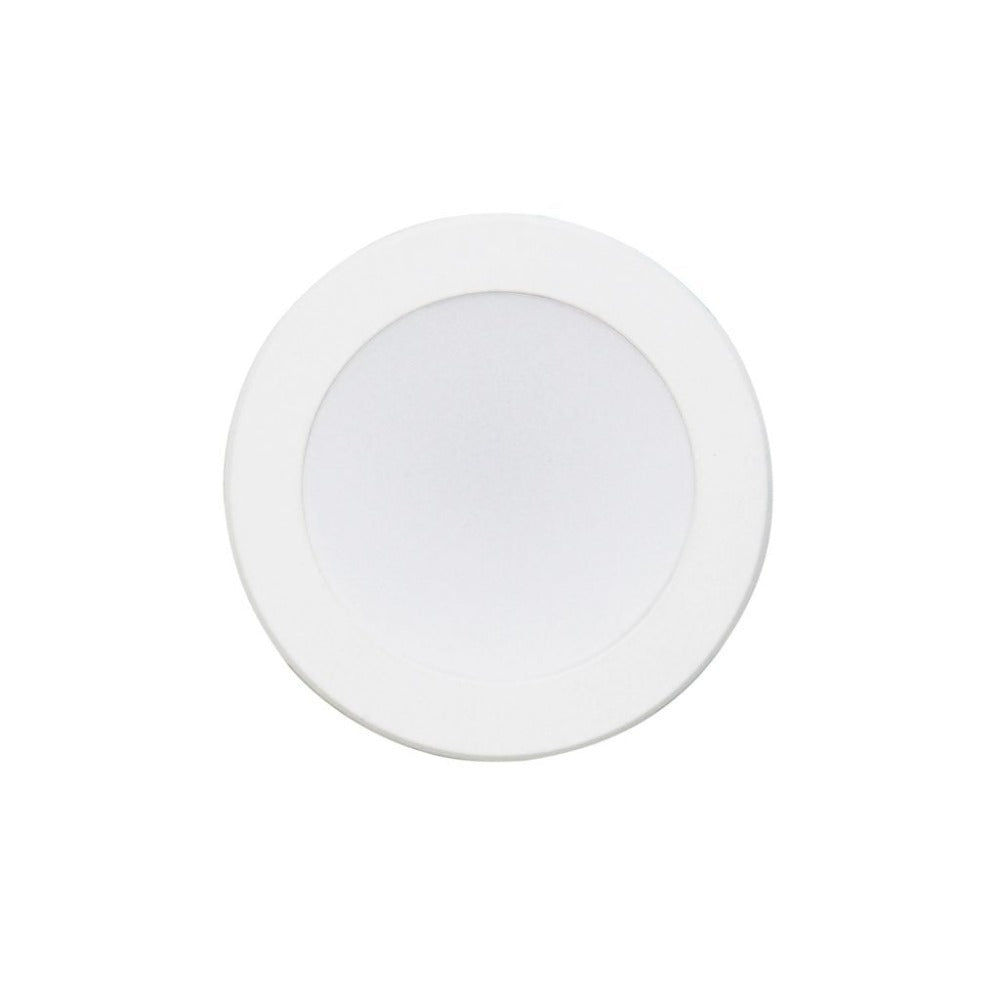

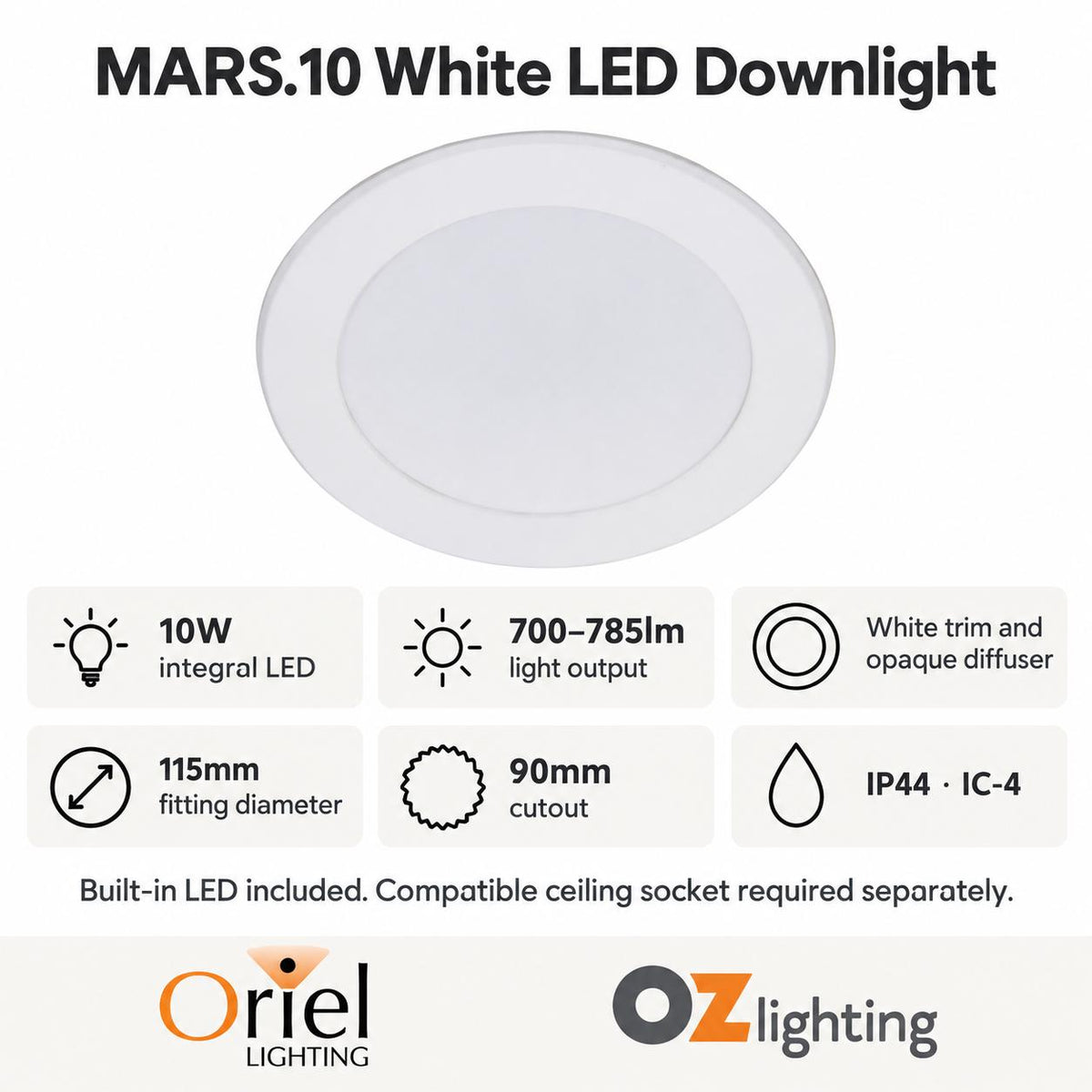

MARS 10W LED recessed light with white trim and opaque acrylic diffuser. MARS features CTS (Colour Temperature Switching) allowing the installer to select the colour temperature between warm white (3000K), cool white (4000K) or daylight (6000K).
OL-LF3630WH
MARS 15W LED recessed light with white trim and opaque acrylic diffuser. MARS features CTS (Colour Temperature Switching) allowing the installer to select the colour temperature between warm white (3000K), cool white (4000K) or daylight (6000K).
Additional design details

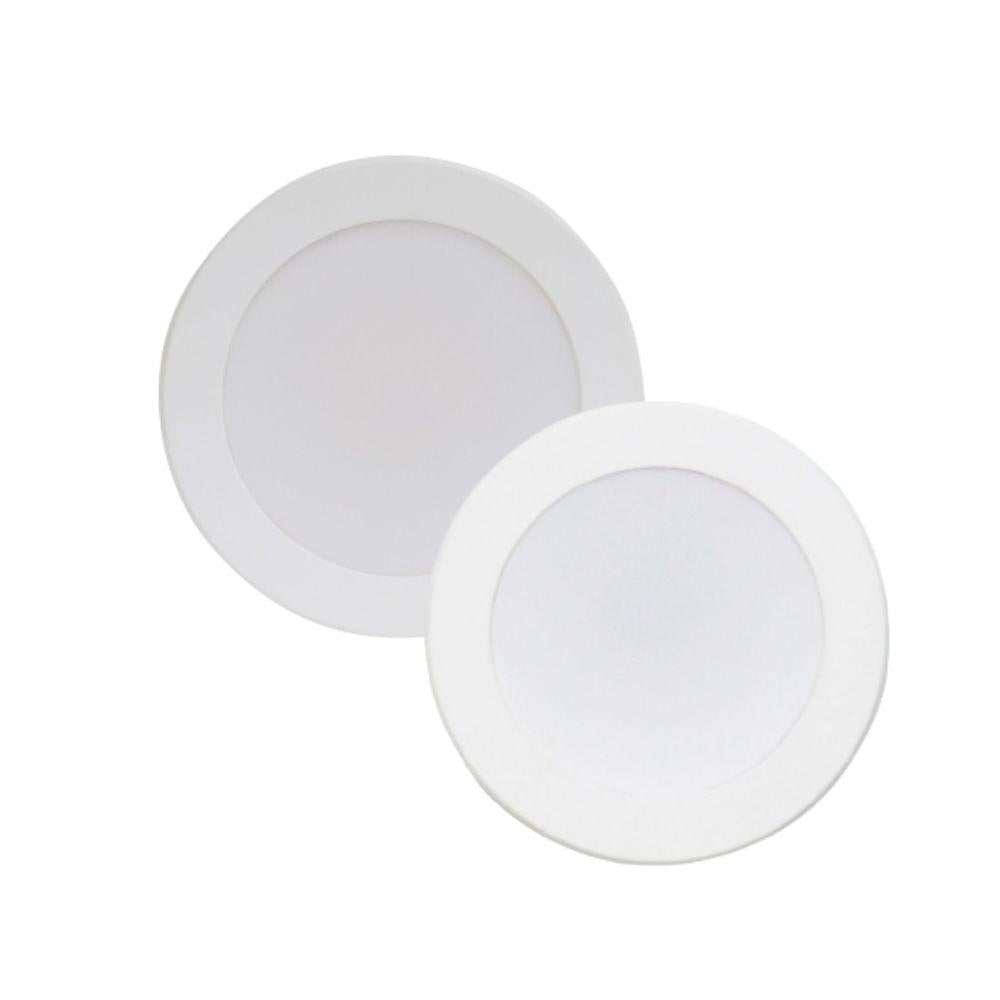

MARS 10W/15W LED recessed downlight with white trim and opaque acrylic diffuser. MARS features CCT (Colour Change Technology) allowing the installer to select the colour temperature between Warm White (3000K), Cool White (4000K) or Daylight (6000K). MARS is dimmable with most LED friendly dimmers.
Product detail
10W - Cut-out Diameter: Ø90mm
Product detail
15W - Cut-out Diameter: Ø120mm
Product detail
Built-In LED
Technical specifications
OL-LF3620WH — 10W
- Ozlighting SKU
- OL-LF3620WH
- Colour
- White
- Globe Type
- INTEGRAL.LED
- Max. Wattage
- 10w
- Voltage
- 240V AC
- Fitting Material
- Acrylic
- Glass/Diffuser Material
- Acrylic
- Cord / Wire Material
- BLACK PVC
- Primary Material
- ACRYLIC
- Light Source
- TRICOLOUR.LED
- Lumen Output
- 700-785lm
- Colour Temperature
- CTS3000/4000/5000K
- Colour Rendition (CRI)
- >Ra82
- IP Rating
- IP44
- IC Rating
- IC-4
- Classification
- Class II
- Dimmable
- Suitable for Dimming using LED dimmer
OL-LF3630WH — 15W
- Ozlighting SKU
- OL-LF3630WH
- Colour
- White
- Globe Type
- INTEGRAL.LED
- Max. Wattage
- 15W
- Voltage
- 240V AC
- Fitting Material
- Acrylic
- Glass/Diffuser Material
- Acrylic
- Cord / Wire Material
- PVC Black
- Primary Material
- ACRYLIC
- Light Source
- TRICOLOUR.LED
- Lumen Output
- 1350-1450lm
- Colour Temperature
- CTS3000/4000/5000K
- Colour Rendition (CRI)
- >Ra82
- IP Rating
- IP44
- IC Rating
- IC-4
- Classification
- Class II
- Dimmable
- Suitable for Dimming using LED dimmer
Dimensions and physical details
OL-LF3620WH — 10W
- Overall Height
- 6
- Overall Width
- 11.5
- Overall Depth
- 11.5
- Fitting Diameter
- 115mm
- Fitting Projection
- 2mm
- Fitting Cutout
- 90mm
- Fitting Recess
- 6
- Beam Width
- 120 degree
OL-LF3630WH — 15W
- Overall Height
- 7
- Overall Width
- 14
- Overall Depth
- 14
- Fitting Diameter
- 140mm
- Fitting Projection
- 2mm
- Fitting Cutout
- 120mm
- Fitting Recess
- 7
- Beam Width
- 120 degree
Additional physical details
- Cutout Diameter: Ø90mm
- Cutout Diameter: Ø120mm
Compatibility and accessories
OL-LF3620WH — 10W
- Accessories - Required

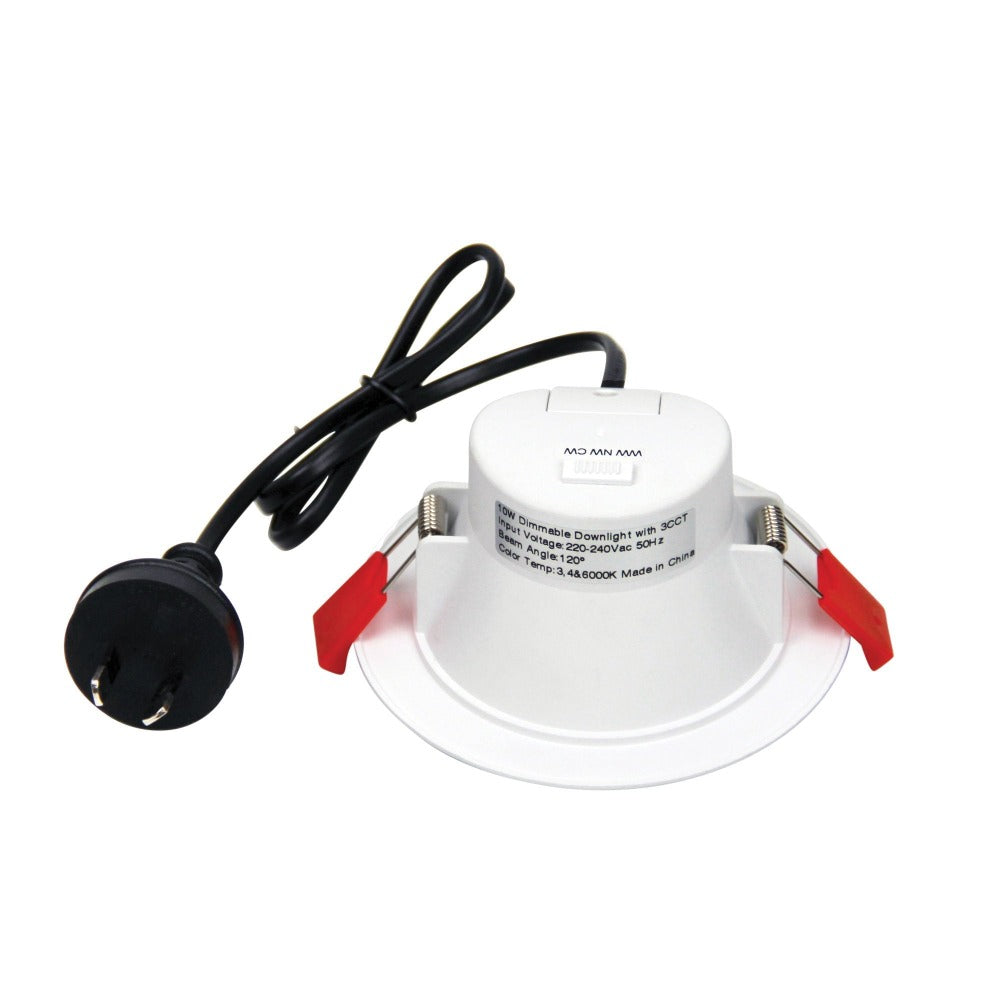

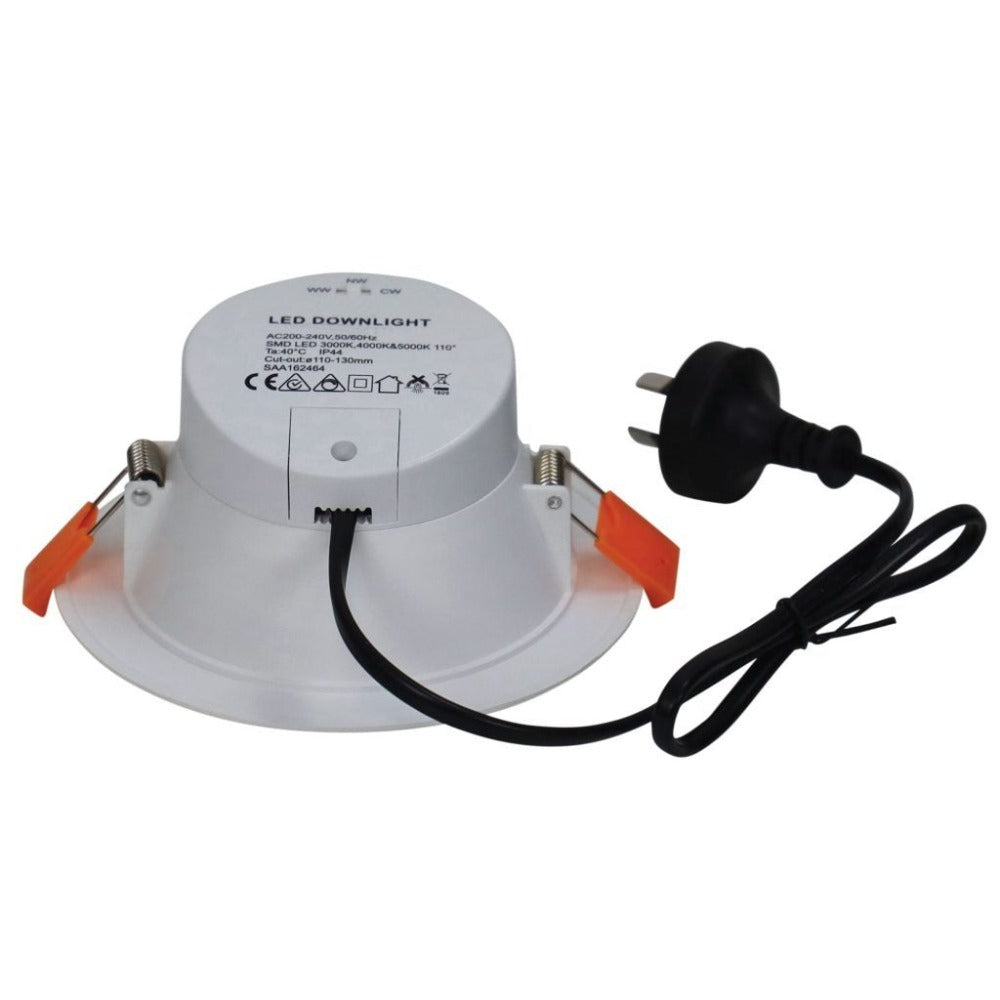

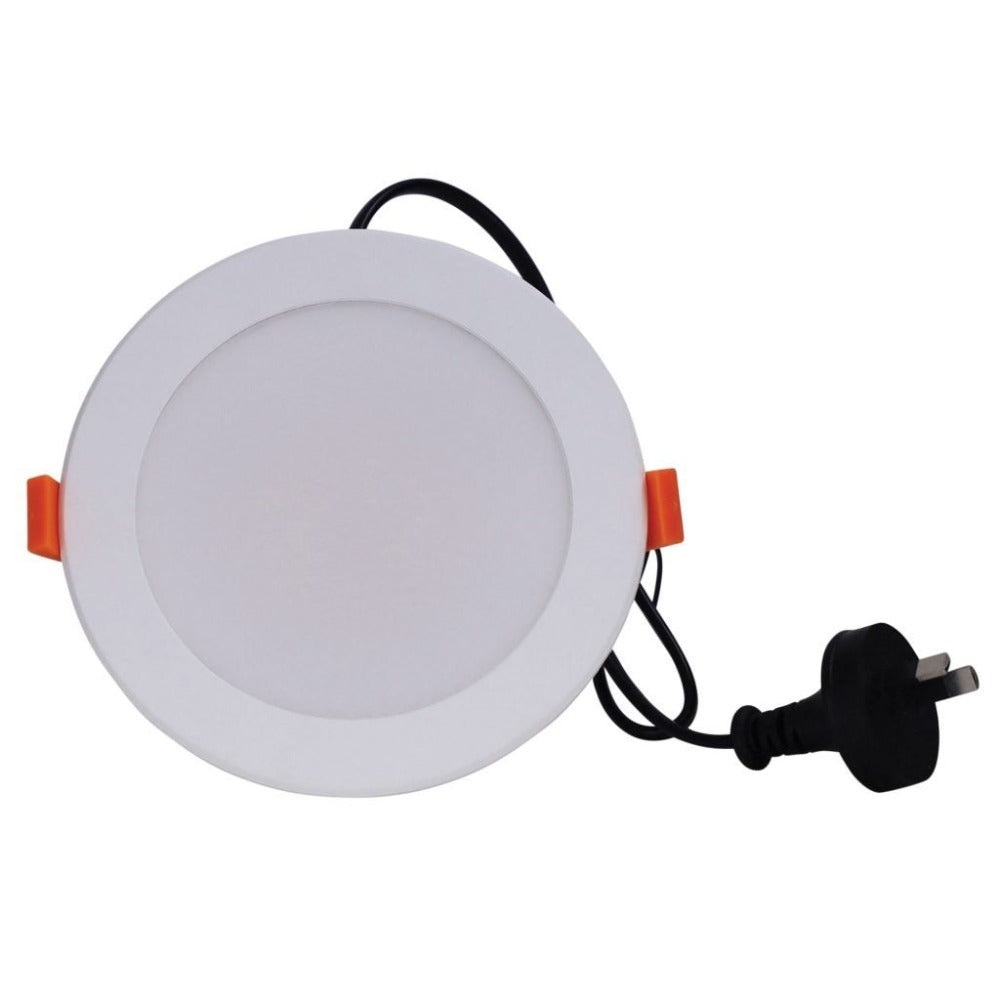

- Plugs into socket in ceiling
OL-LF3630WH — 15W
- Accessories - Required
- Plugs into socket in ceiling
Installation and application
OL-LF3620WH — 10W
- Indoor / Outdoor / Alfresco
- Indoor / Alfresco
- Electrician To Install
- This fitting should be installed by a licenced electrician
OL-LF3630WH — 15W
- Indoor / Outdoor / Alfresco
- Indoor / Alfresco
- Electrician To Install
- This fitting should be installed by a licenced electrician
Warranty
OL-LF3620WH — 10W
- Warranty / Guarantee
- 3 Year Replacement Guarantee when used in a domestic application
OL-LF3630WH — 15W
- Warranty / Guarantee
- 12 Month Replacement Guarantee
