Light source
INTEGRAL.LED

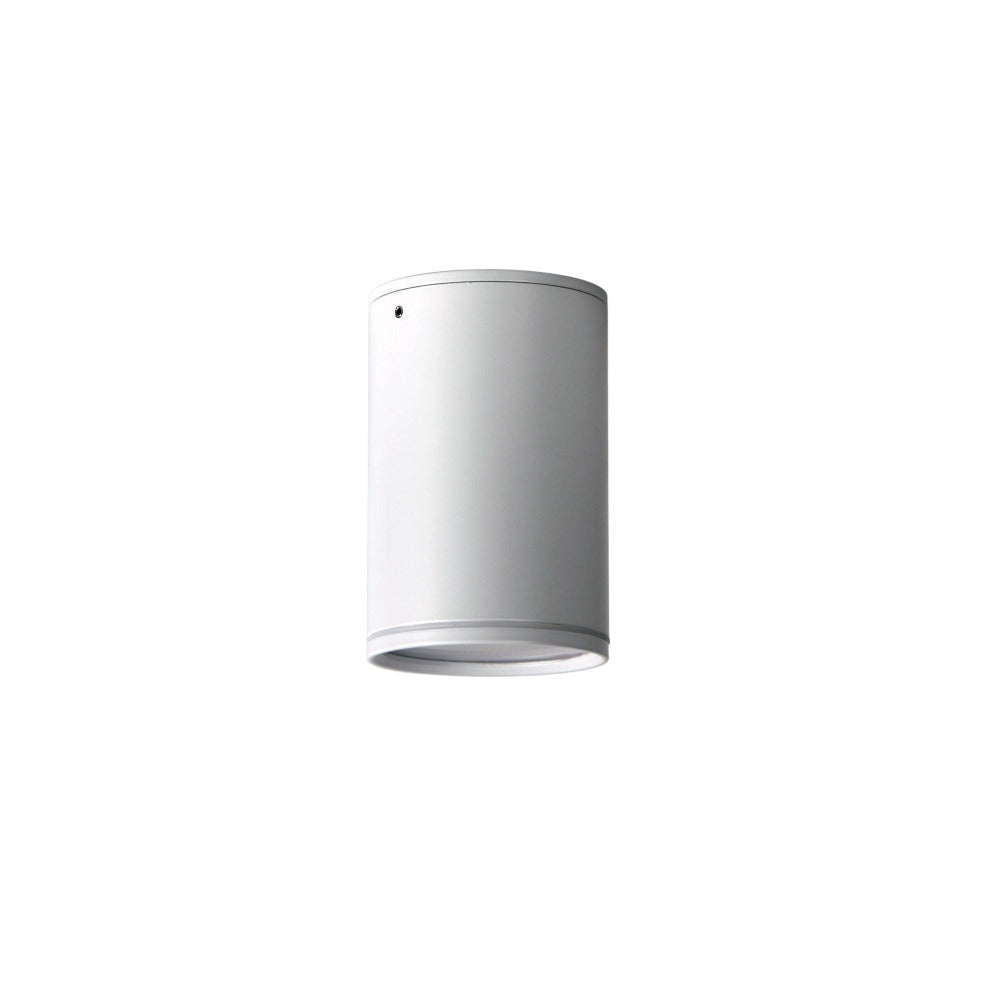

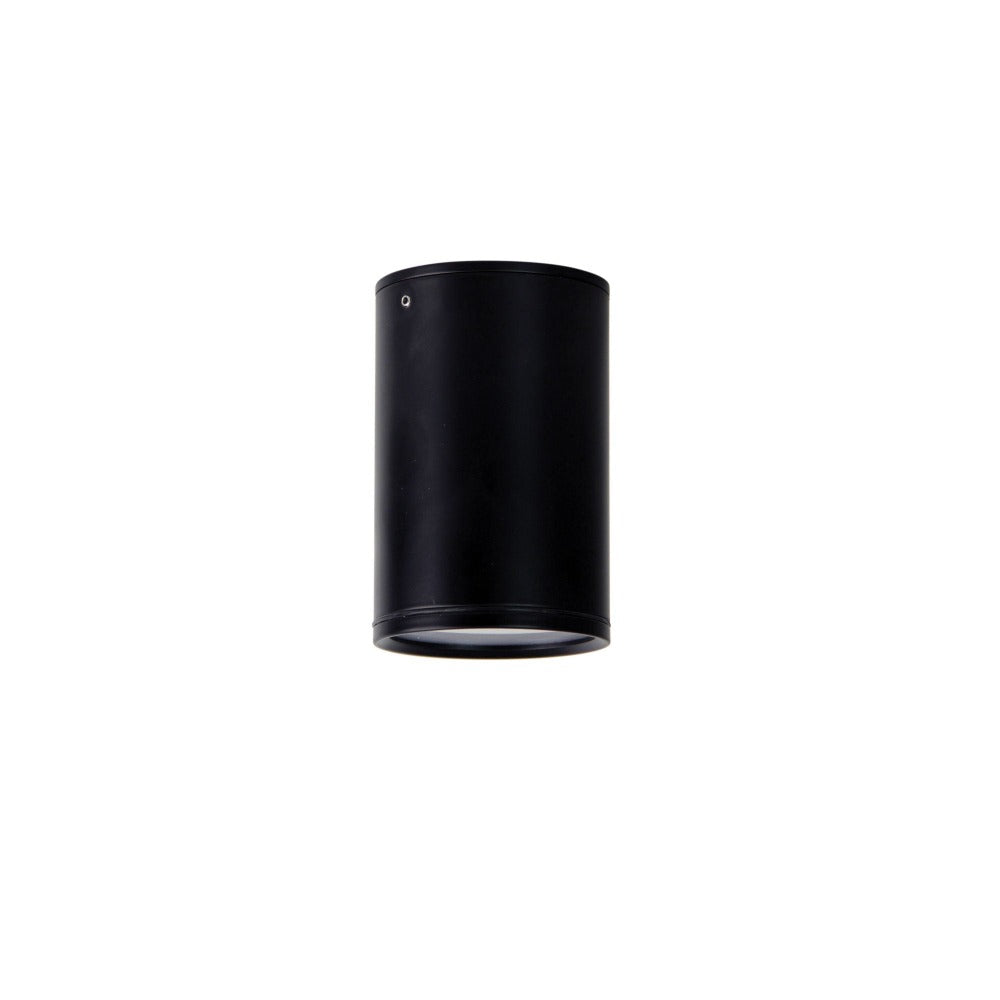

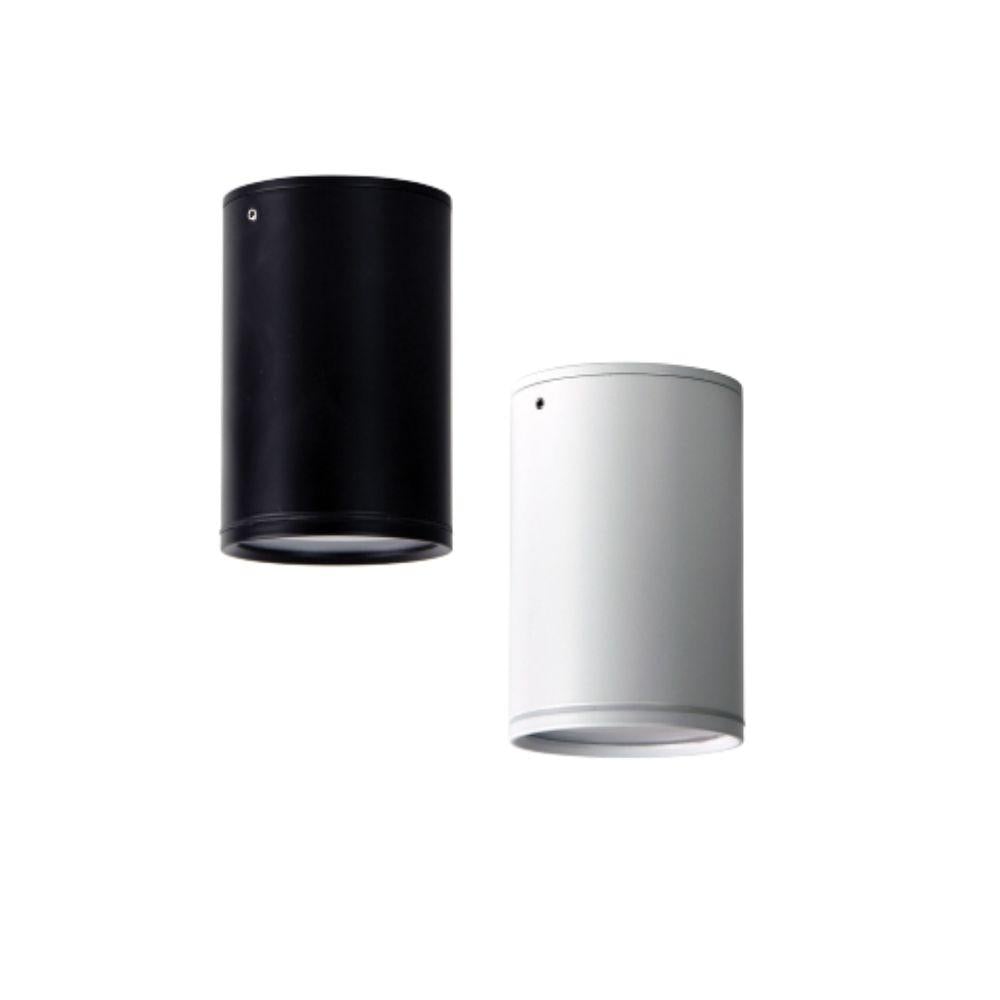

Oriel ENTAS LED Downlight - 9W, Tri-Colour Surface Mount, IP44

Oriel Lighting catalogue
ENTAS
9W TriColour LED Surface Mount Canister
Before you buy
- Must be installed by a licensed electrician.
- Not suitable for dimming.
Key highlights
Power
9wColour temperature
CTS3000/4000/6000KProtection
IP44Material
METALLight output
650-775lmDesign and features
Product design
ENTAS surface mounted LED ‘can’ light with integral (built-in) driver. The 9 Watt Entas has a 120 degree beam spread and produces 650-775 lumens. The Entas is IP44 rated. Not suitable for dimming. Effective installed in a row over a servery for example. CTS (Colour Temperature Switching) allows the installing electrician to select the preferred colour temperature.
Additional design details
The 9 Watt downlight has a 120 degree beam spread, produces 650-775 lumens, has an IP44 rating, and is not suitable for dimming. The Entas is ideal to be installed in a row over a kitchen bench. This downlight is tri-colour switchable, available in 3000K Warm White, 4000K Cool White or 6000K Daylight colour temperature options.
Product detail
Built-In LED
Light and control
Dimmable: Not Dimmable
Technical specifications
OL-UA4695BK — Black
- Ozlighting SKU
- OL-UA4695BK
- Colour
- BLACK
- Globe Type
- INTEGRAL.LED
- Max. Wattage
- 9w
- Voltage
- 240V AC
- Primary Material
- METAL
- Light Source
- TRICOLOUR.LED
- Lumen Output
- 650-775lm
- Colour Temperature
- CTS3000/4000/6000K
- Colour Rendition (CRI)
- >Ra82
- IP Rating
- IP44
- Dimmable
- Not Dimmable
OL-UA4695WH — White
- Ozlighting SKU
- OL-UA4695WH
- Colour
- White
- Globe Type
- INTEGRAL.LED
- Max. Wattage
- 9w
- Voltage
- 240V AC
- Primary Material
- METAL
- Light Source
- TRICOLOUR.LED
- Lumen Output
- 650-775lm
- Colour Temperature
- CTS3000/4000/6000K
- Colour Rendition (CRI)
- >Ra82
- IP Rating
- IP44
- Dimmable
- Not Dimmable
Dimensions and physical details
OL-UA4695BK — Black
- Overall Height
- 115mm
- Overall Width
- 7.5
- Overall Depth
- 7.5
- Fitting Height
- 115mm
- Fitting Diameter
- 75mm
- Fitting Recess
- n/a
- Beam Width
- 120 degree
OL-UA4695WH — White
- Overall Height
- 115mm
- Overall Width
- 7.5
- Overall Depth
- 7.5
- Fitting Height
- 115mm
- Fitting Diameter
- 75mm
- Fitting Recess
- n/a
- Beam Width
- 120 degree
Additional physical details
- Diameter: Ø75mm
- Height: 115mm
Installation and application
OL-UA4695BK — Black
- Indoor / Outdoor / Alfresco
- Indoor
- Electrician To Install
- This fitting should be installed by a licenced electrician
OL-UA4695WH — White
- Indoor / Outdoor / Alfresco
- Indoor
- Electrician To Install
- This fitting should be installed by a licenced electrician
Warranty
OL-UA4695BK — Black
- Warranty / Guarantee
- 12 Month Replacement Guarantee
OL-UA4695WH — White
- Warranty / Guarantee
- 12 Month Replacement Guarantee
