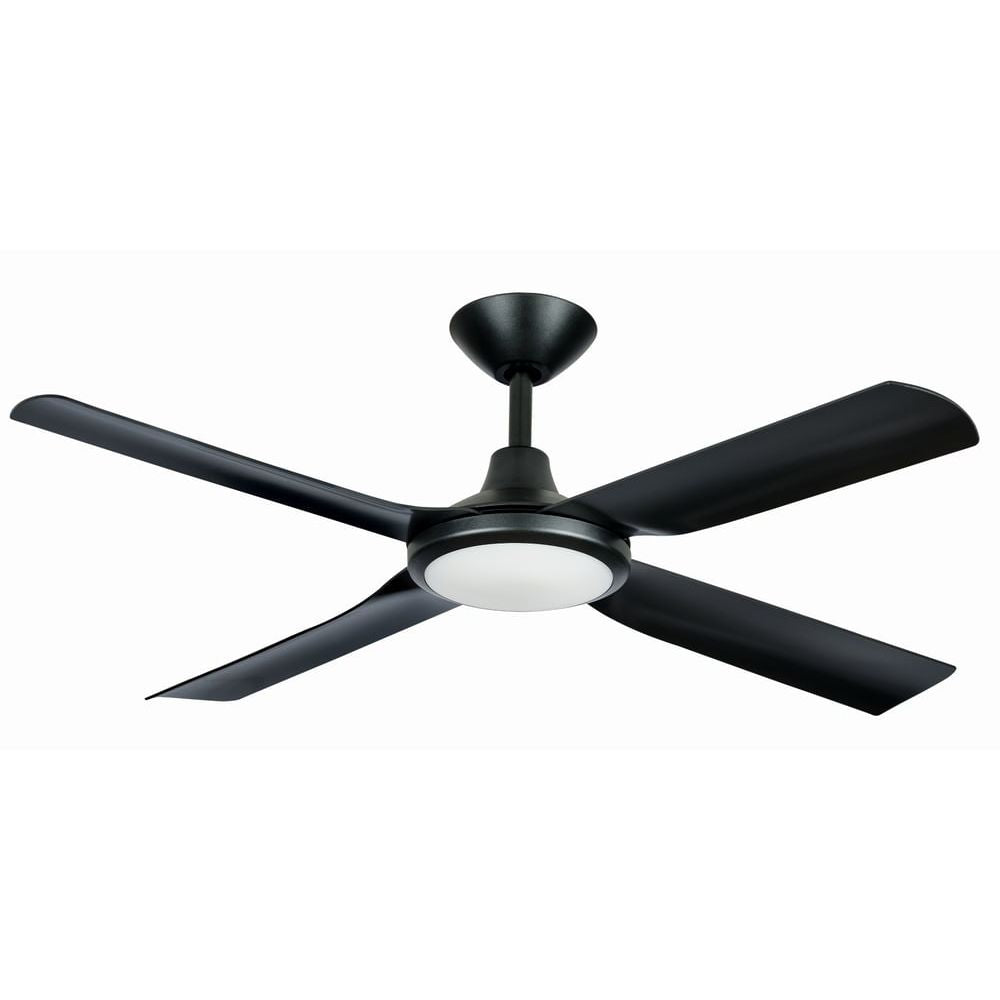

Hunter Pacific NEXT CREATION DC Ceiling Fan - 4 Blade 1320mm 52", Light
NEXT CREATION V2 - 4 Blade 1320mm 52" DC Ceiling Fan With Light
4-blade ceiling fan with 9-speed remote included. UV-stabilised ABS polymer blades.
At a glance
1320mm
9-speed remote included
4 blades — UV-stabilised ABS polymer blades
18W dimmable CCT LED light
Features
Choose your speed
9-speed remote included.
Blade construction
4 blades. UV-stabilised ABS polymer blades.
Lighting configuration
18W dimmable CCT LED light.
Installation setting
Indoor/coastal use or a sheltered outdoor location protected from wind and rain.
Summer and winter use
Reversible airflow for seasonal operation.
Mounting and clearance
Flat ceiling as standard. Allow at least 2.1m below the blades.
Specifications
- Blade sweep
- 1320mm
- Controls supplied
- 9-speed remote included
- Blade count
- 4
- Blades
- UV-stabilised ABS polymer blades
- Motor
- 156 × 12mm DC motor
- Lighting
- 18W dimmable CCT LED light
- Blade pitch
- 14.5°
- Ceiling to lowest point
- 330mm
- Ceiling to blades
- 300mm
- Canopy diameter
- 168mm
- Canopy depth
- 60mm
- Colour temperatures
- 3000K warm white / 4000K neutral white / 6000K cool white
- LED output by colour temperature
- 1842 / 2370 / 2123 lumens
- Installation location
- Indoor/coastal use or a sheltered outdoor location protected from wind and rain.
- Standard mounting
- Flat ceiling as standard.
- Minimum blade clearance
- 2.1m above the floor
- Listed variant SKU(s)
- HP-NCL2155 / HP-NCL2156
- Variant — White
- HP-NCL2155
- Variant — Black
- HP-NCL2156
Fan performance
- Speeds, low to high (RPM)
- 86 / 103 / 139 / 160 / 170 / 178 / 188 / 196 / 202
- Fan motor input by speed (W)
- 2.9 / 4.6 / 9.7 / 12.3 / 15.6 / 17.5 / 21.5 / 23.4 / 25.9
- Airflow by speed (m³/h)
- 4175 / 4683 / 8973 / 10000 / 10853 / 11675 / 12084 / 13151 / 14315
Included and optional accessories
- 9-speed remote included. 18W dimmable CCT LED light.
- Optional PIXIEM098 Pixie or WIFIM099 Smart WiFi module, sold separately.
- Compatible 9-speed DCWC000 wall control with built-in isolator or DCWC2409 wall control, sold separately.
- Compatible 26mm extension downrods and the 38° ceiling kit are sold separately. Select the correct finish and rod type for this model.
Installation and care
- Keep blades at least 2.1m above floor level. The installer must follow the exact-model manual and use a structurally suitable fixing.
- Use only Hunter Pacific approved controls. Solid-state fan speed controllers must not be used.
- Isolate power before cleaning or servicing. Keep blades balanced; replacement blades must be fitted as a complete matched set.
- Keep purchase and installer compliance documents for warranty service.
Warranty
Motor: 3 years in-home plus 4 additional years parts only. DC electronics, lighting and accessory wall controls: 2 years in-home. Non-domestic use: 1 year. Cosmetic issues and corrosion are excluded unless reported within the first 3 months. Manufacturer terms apply; statutory consumer rights remain.
